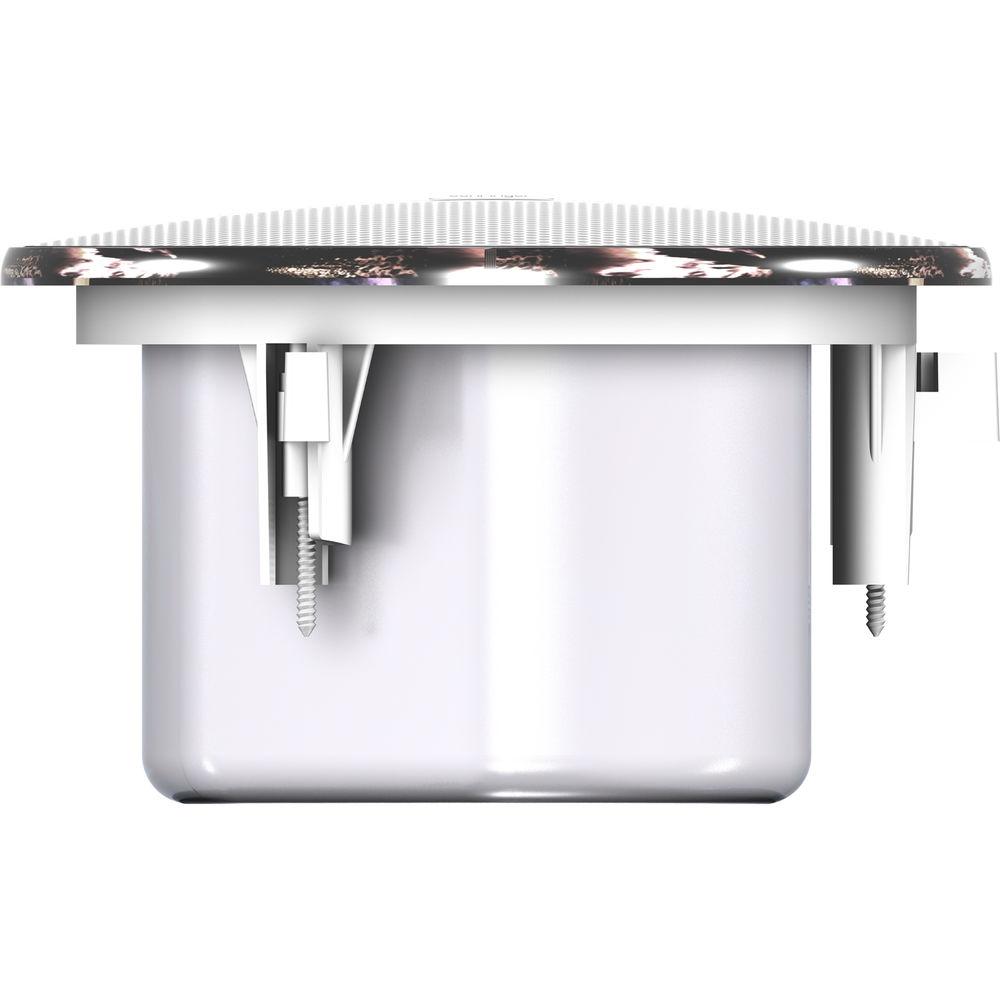

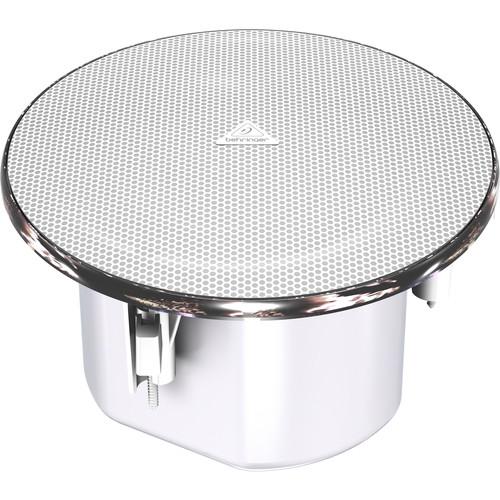

Product description The ST2400NANO Compact Ceiling Loudspeaker Assembly from Behringer is a full-range 4" ceiling-mounted loudspeaker capable of 10W of output power. The ST2400NANO is designed to emit quality foreground music and AV playback in conference rooms, restaurants, houses of worship, hotels, casinos, and more. A voltage/ohm selector switch facilitates the use of either low or high-impedance amplifiers, and a built-in high-pass filter allows the ST2400NANO to be deployed in subwoofer-equipped systems without external crossovers.
The high-power 4" LF transducer is mounted in a ported reflex enclosure to allow the bass response to go down to 80 Hz in full-range mode. A coaxial, waveguide-mounted 0.5" HF transducer delivers clear, balanced treble response with 150° dispersion, preventing "dead" spots between speaker locations and thereby reducing the number of speakers required for large projects. - Wide frequency bandwidth and uniform dispersion
- 10W, 4" low-frequency driver mounted in a ported reflex enclosure
- Coaxially-mounted 0.5" high-frequency transducer with waveguide delivers ultra-wide 150° nominal dispersion
- User-switchable high-pass filter enables deployment with subwoofers
- Professional four-pole Euroblock connector
- Ultra-compact 4"-deep zinc-coated steel back-can with seismic restraint tab

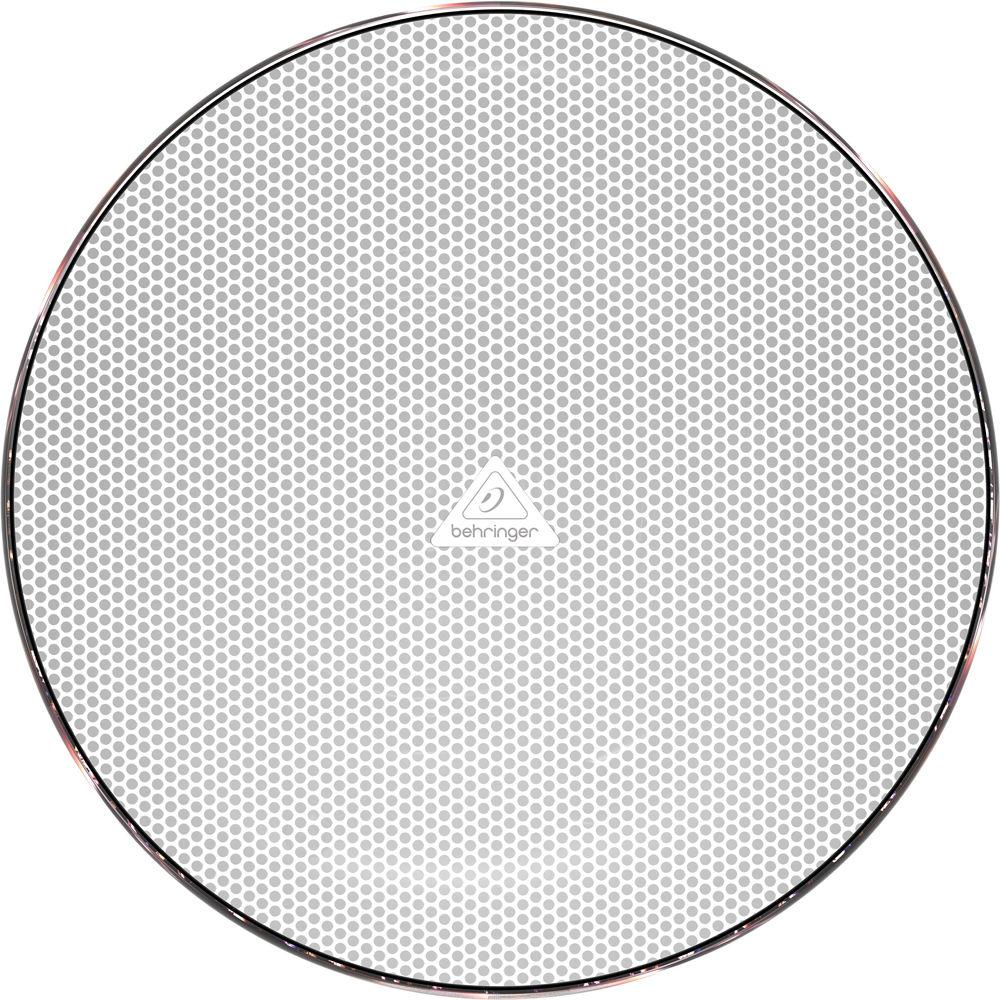

- Detachable white powder-coated steel grille
- UL1480 and UL2043 rated and compliant with all applicable safety codes
UPC: 736211840578 In the Box Behringer ST2400NANO Compact Ceiling Loudspeaker Assembly (4", 10W) Mounting C-Ring Tile Rail Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ST2400NANO Compact Ceiling Loudspeaker Assembly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer ST2400NANO Specs | Frequency Range | 80 Hz - 21 kHz (-10 dB) | | Frequency Response | 105 Hz - 20 kHz (-3 dB) | | Power Handling | Pink Noise: 10 W
Maximum: 20 W | | Sensitivity | 86 dB, 1 W @ 3.3' (1 m), 1/2-space | | Nominal Dispersion | 150° | | Directivity Factor | Q: 3.8 averaged 500 Hz - 4 kHz
DI: 5.4 averaged 500 Hz - 4 kHz | | Crossover Frequency | 4 kHz | | Nominal Impedance | 8 ohms | | Maximum SPL | 99 dB @ 3.3' (1 m), low impedance | | Transformer Taps | 10, 5, 2.5, 1.25 W @ 70 V
10, 5, 2.5 W @ 100 V | | Low Frequency Driver | 4" (10.2 cm) | | High Frequency Driver | 0.5" (1.3 cm) | | Material of Construction | Baffle: Plastic
Back Can: Steel | | Termination | 4-pole Euroblock | | Dimensions | Outer Diameter: 7.9" (20.1 cm)
Inner Depth: 5.2" (13.2 cm)
Cutout Size: 6.9" (17.5 cm) | | Weight | 4.5 lb (2.0 kg) | | | | Package Weight | 18.85 lb | | Box Dimensions (LxWxH) | 26.0 x 12.0 x 11.0" |
