User Manual for Behringer TRUTH B2030A Active 2-Way Reference Studio Monitor Click to enlarge the picture
Contents of the user manual for the Behringer TRUTH B2030A Active 2-Way Reference
- Product category: Studio Monitors Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Studio Monitors
 |
User manual for the Behringer TRUTH B2030A Active 2-Way Reference contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - Control Room Outputs: How to Connect BEHRINGER XENYX Mixer with TRUTH Monitors

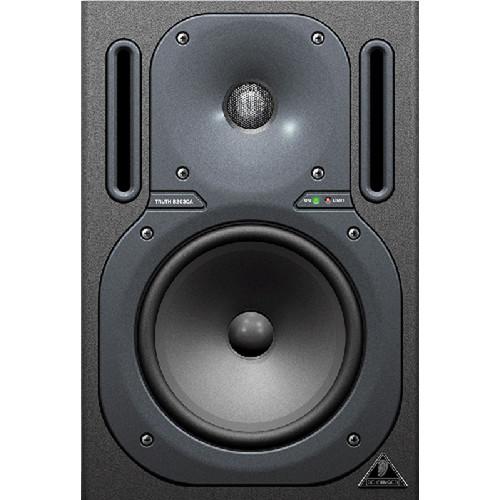

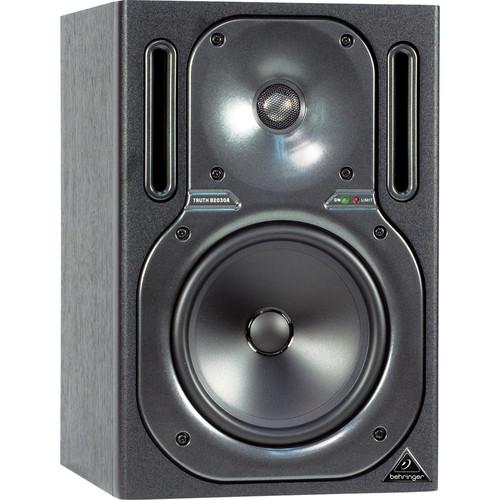

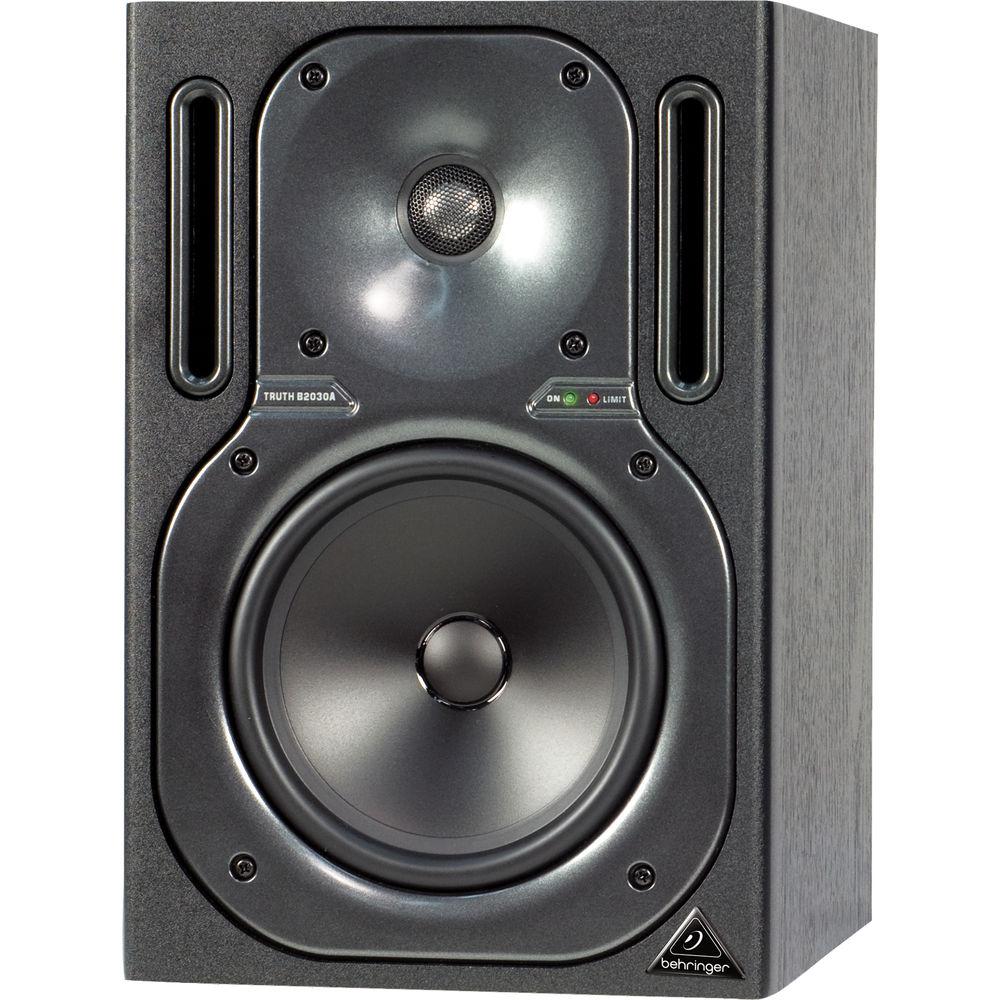

The single Behringer TRUTH B2030A is a bi-amplified 2-way studio monitor with a 1" tweeter and 6.75" woofer housed in a sturdy vibration-resistant cabinet, and powered by a 75 and 35 watt amplifier. The input connectors are balanced XLR and 1/4" TRS, and the magnetic speaker shielding we've come to expect has been provided.The documentation for the TRUTH B2030A speakers emphasizes their inherent linearity of frequency response and the neutrality of the playback experience, meant to decrease listener fatigue and increase the area of the elusive "sweet spot". However, if the neutral listening experience is not for you, or if the sound of your control room is less than desirable, Behringer has generously included a cockpit's worth of rear-panel frequency control switches enabling the user to tune the speakers to the environment or simply to taste. - Input Level Control Knob
- Enables independent monitoring level control directly from speaker
- Magnetically Shielded
- For use in close proximity to computer monitors
- Overload Protection
- Separate, integrated 2-band limiting circuits provided
- MDF Enclosure
- Sturdy, durable, and ported low-vibration speaker cabinets
- Customized Playback
- Extensive control of speaker response to room acoustics through rear panel switch selection
- High Headroom
- High SPL, well-matched amplification
- Linear Response
- Wave Guide Dispersion Technology for optimized phasing decreases listening fatigue, increases "sweet spot" area
- Switchable universal power supply
- Speakers delivered from factory as matched pairs
UPC: 689076748278 In the Box Behringer TRUTH B2030A Active 2-Way Reference Studio Monitor (Single) 2 x Power Cables Owner's Manual Limited 10-Year Warranty User Manual PDF 1.1mbztyruxqvrvwewteewzffyuaxdqtsdvwstb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer TRUTH B2030A Active 2-Way Reference Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B2030A Specs | Low Frequency Driver | 6.75" Polypropylene Diaphragm | | Mid Frequency Driver | No | | High Frequency Driver | .75" Ferro-Fuid Cooled Dome | | LF Amplifier | 75 Watts | | HF Amplifier | 35 Watts | | Crossover | Active, 4th Order Linkwitz-Riley, 2khz Frequency | | Frequency Range | 50 Hz - 21 kHz | | Impedance | 10 kOhms | | Maximum Sound Pressure Level (SPL) | 113 dB SPL @ 1 m | | Controls and Indicators | Front:
1 x Power On LED
1 x Limiter Activated LED

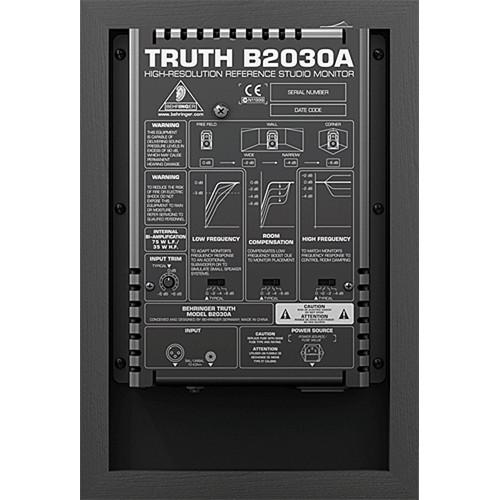

Rear:
1 x Power Switch
1 x Input Sensitivity Trim
1 x 4-Position LF Response Switch
1 x 4-Position LF Room Compensation Switch
1 x 4-Position HF Response Switch
1 x 3-Position Power Mode Switch
1 x 2-Position Mute Low Speaker Switch
1 x 2-Position Mute High Speaker Switch | | Connectors | 1 x XLR Female, Balanced
1 x 1/4" TRS Phone, Balanced | | Shielded | Yes | | Dimensions (HxWxD) | 12.5 x 8.4 x 8.3" (317 x 214 x 211mm) | | Weight | 21.6 lb (9.8 kg) | | Specialties | Magnetically Shielded
Front-Ported Bass Reflex Cabinet | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 15.0 x 12.5 x 11.0" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
