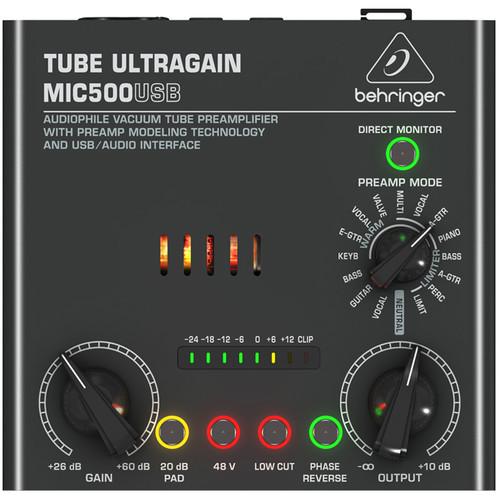

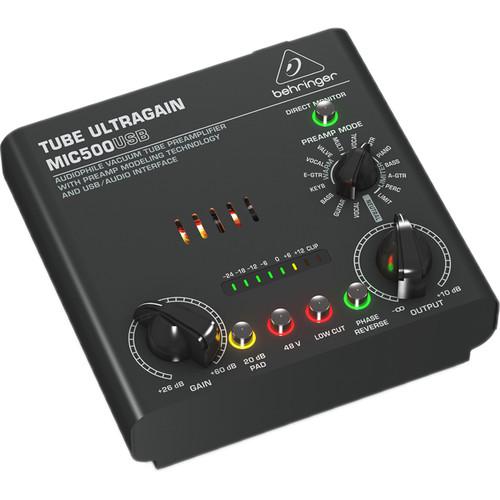

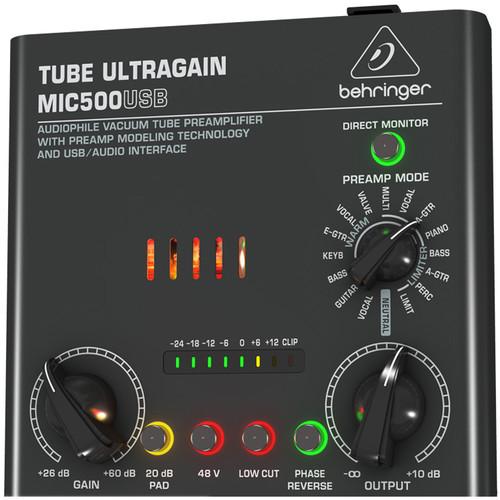

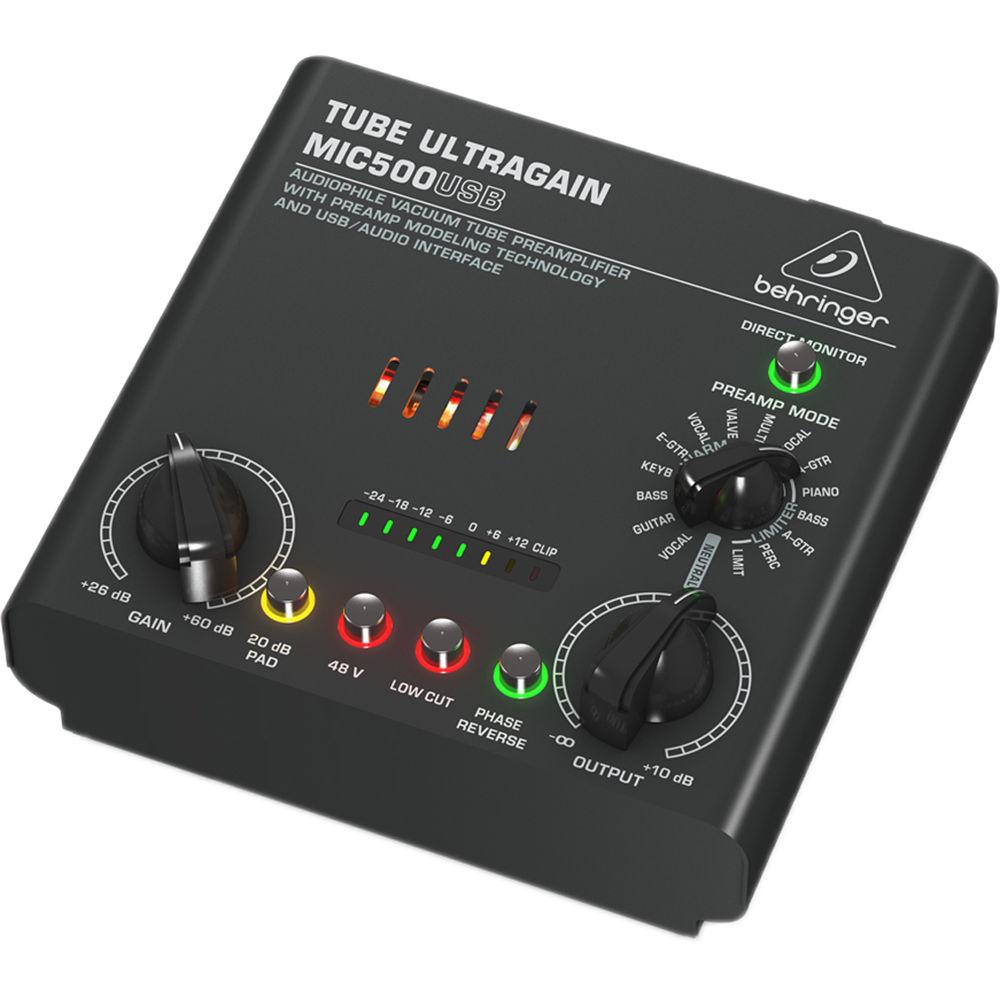

User Manual for Behringer TUBE ULTRAGAIN MIC500USB Vacuum Tube Preamplifier Click to enlarge the picture
Contents of the user manual for the Behringer TUBE ULTRAGAIN MIC500USB Vacuum Tube
- Product category: Microphone Preamps Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Microphone Preamps
 |
User manual for the Behringer TUBE ULTRAGAIN MIC500USB Vacuum Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The TUBE ULTRAGAIN MIC500USB Vacuum Tube Preamplifier from Behringer gives you the sound quality of a vintage tube preamp and a high-end DI box all-in-one, plus a built-in USB audio interface that lets you record straight to your computer. The hand-selected 12AX7 tube and preamplifier can be used to warm up a signal fast, giving it depth and character in applications for recordings, live sound, podcasts, voice-overs, and more. Featuring XLR and 1/4" TRS connectors, the preamplifier has +48V phantom power so you can use high-quality condenser mics. There is a rotary switch with 16-preamp voicings, which covers a wide range of applications for vocals, acoustic and electric guitars, bass, keyboards, and more. Other features include a powerful headphone output with level control knob and direct monitor select switch. Additionally, you can connect directly to your Windows or Mac computer via a single USB cable. Now any signal source you connect to the MIC500USB can be recorded directly to your hard drive. Furthermore, Tracktion DAW software for composing, recording, editing, mixing, and sharing your music with the world is also included via a download link. - The TUBE ULTRAGAIN MIC500USB's hand-selected 12AX7 vacuum tube gives everything from microphones to acoustic guitars, or bass guitars a vintage tube vibe in a dependable and ultra-affordable package.
- For studio and live applications, the balanced XLR and 1/4" TRS inputs give you the maximum flexibility in either environment. The MIC500USB's controls consists of: switches for +48V phantom power, 20 dB pad, phase reverse and limiter, plus vintage-style gain and output knobs.
- There are 16 unique preamp voicings that cover a wide-range of applications including vocals, acoustic and electric guitars, bass, keyboards, and more.
- The built-in audio interface can connect directly to your Mac or Windows computer via a single USB cable.
- Tracktion software is included that lets you compose, record, edit, mix and share your music with the world. It is a single-screen interface that gives you all the tools of an entire professional-grade recording studio.
UPC: 748252169945 In the Box Behringer TUBE ULTRAGAIN MIC500USB Vacuum Tube Preamplifier Power Adapter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer TUBE ULTRAGAIN MIC500USB Vacuum Tube Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Behringer TUBE ULTRAGAIN MIC500USB Vacuum Tube Preamplifier can be downloaded in PDF format at the link stated below.

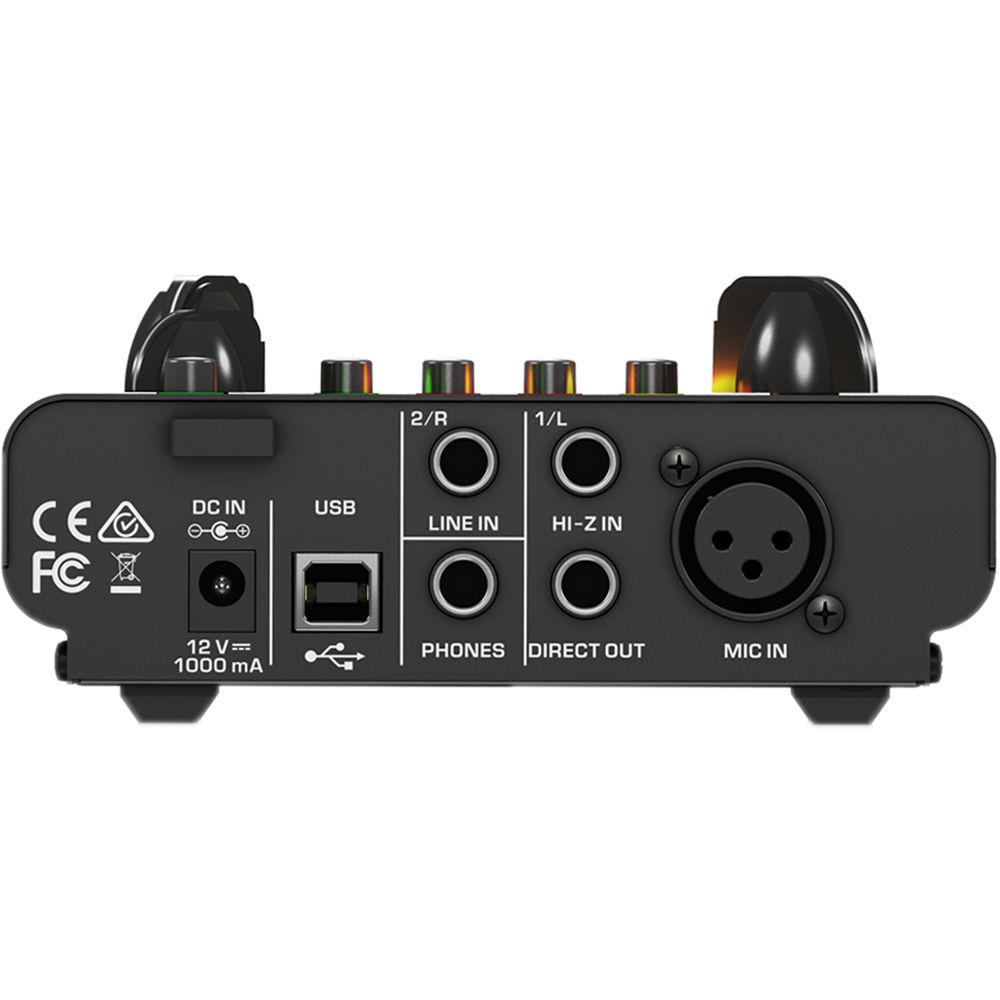

Technical parametersBehringer MIC500USB Specs | Number of Channels | Single | | Inputs | 1 x XLR microphone
1 x 1/4" (6.3 mm) TRS instrument / line
1 x 1/4" (6.3 mm) TRS Hi-Z
2 x channels from USB | | Input Impedance | Mic IN: 3 kOhms balanced / 1.5 kOhms unbalanced
Instrument In: 800 kOhms | | Maximum Input Level | Mic: +1 dBu
line: +22 dBu
Hi-Z: +12 dBu with pad | | Output | 1 x 1/4" (6.3 mm) TRS direct output
1 x 1/4" (6.3 mm) TRS stereo, headphone output
2 x channels to USB | | Output Impedance | Direct Out: 480 Ohms balanced, 240 Ohms unbalanced
Headphone Out: 24 Ohms minimum | | Maximum Output Level | +22 dBu direct output
+22 dBu headphone output | | Controls | Gain: Variable (+26 dB to +60 dB)
Output: Variable (∞ to +20 dB)
Preamp Mode Control: Selection of various preamp models for mic and instruments | | Pads | 20 dB level attenuation | | Phantom Power | -48 V | | Low Cut Filters | High-pass filter (cut-off frequency 90 Hz) | | Phase Reverse | 180° | | Headphones | Mono mix of mic/Hi-Z preamp out and line in | | Display | Input Level LEDs: -24, -18, -12, -6, 0, +6, +12, clip (dB) | | Signal to Noise Ratio | 90 dB, A-weighted @ -20 dBu input level | | Frequency Response | 10 Hz to 71 kHz (+0/-3 dB) mic / Hi-Z
Direct Out Monitor: 10 Hz to 65 kHz (+0 / -3 dB) line input | | USB Port | USB 2.0, type B | | Power Supply | 12 VDC, 1000 mA power adapter | | Power Consumption | 7 W | | Dimensions (H x W x D) | 2.4 x 5.3 x 5.2" (62 x 135 x 132 mm) | | Weight | 1.54 lb (0.7 kg) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 9.1 x 5.9 x 3.2" |
