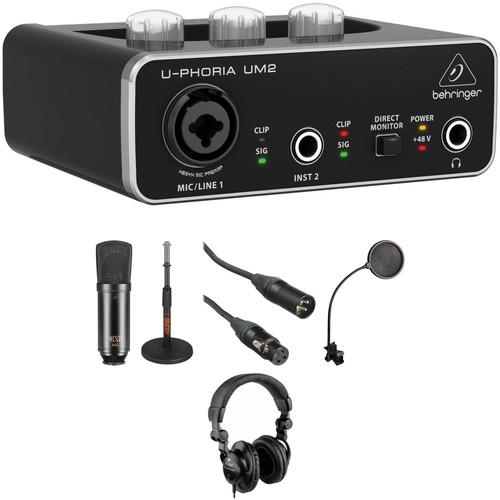

Behringer U-PHORIA UM2 Interface Kit with

User Manual for Behringer U-PHORIA UM2 Interface Kit with MXL 440 Microphone, Mic Stand, Headphones & More

• Product category: Audio Interfaces & Systems Behringer
• Brand: Behringer
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Behringer Audio Interfaces & Systems

Product description

• Behringer U-PHORIA UM2 2x2 USB Audio Interface The U-PHORIA UM2 2x2 USB Audio Interface from Behringer is a 2x2 USB audio interface that is capable of tracking your audio with a sampling rate up to 48 kHz. It features a single XENYX combination XLR/TRS microphone preamplifier with selectable 48V phantom power. Additionally, the UM2 has a front-panel 1/4" instrument input with dedicated level control. Output is provided in the form of stereo RCA outputs and a front-panel 1/4" headphone jack.

  The UM2 has selectable direct monitoring and is housed in a metal chassis to be impact resistant. Behringer provides a free download of Tracktion 4 Audio Production software with registration.
  Monitoring
  • All U-PHORIA models provide headphone output with level control and direct monitor select, status, signal and clip LEDs, and are powered via your computer's USB port so they're ready to go wherever you go
  Tracktion 4 Software Download
  • When you register your UM2, Behringer will provide you with a complimentary download code for the full version of Tracktion 4 digital audio workstation software, with 150 instrument/effect plug-ins
  • Up to 48 kHz resolution
  • Compatible with recording software including Avid Pro Tools, Ableton Live, Steinberg Cubase, and others
  • Streams 2 inputs / 2 outputs with low latency to your computer, supporting Mac OS X and Windows XP or higher
  • USB port for connection and power
  • +48 V-powered XENYX mic preamp
  • Headphone output with level control and direct monitor select
  UPC: 696859053887
• MXL 440 Studio Condenser Microphone (Black with Gold Print) The black with gold print 440 Studio Condenser Microphone from MXL features a gold sputtered large diaphragm, suitable for a wide variety of applications. The FET preamp combined with an electrically-balanced output provides uncompromised tonal quality. Internal Mogami wiring offers a high-grade signal path to prevent audio degradation. The microphone uses 48V of phantom power and includes a mic stand adapter.
  • Suitable for vocals and a wide range of instruments
  • Gold-sputtered diaphragm provides clean, clear audio
  • FET preamp with an electrically-balanced output
  • Cardioid pickup pattern
  • Internal Mogami wiring
  • Uses 48V of phantom power
  • Includes a mic stand adapter
  UPC: 801813128062
• Auray TT-6220 Telescoping Tabletop Microphone Stand (Black) The black TT-6220 Telescoping Tabletop Microphone Stand from Auray meets the needs of any desktop audio applications that require the use of a microphone by providing a solid, weighted round base with three nonslip rubber feet for additional stability. The telescoping shaft delivers flexibility when it comes to positioning the height of the microphone and includes a microphone cable guide. Durable steel construction ensures longevity.
  • Telescoping shaft for adjustable height
  • Weighted round base
  • Three nonslip rubber feet
  • Microphone cable guide
  • Durable steel construction
  UPC: 847628578234
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558274
• Auray PFSS-55 Pop Filter with Gooseneck The Auray PFSS-55 Pop Filter with Gooseneck features double-layered nylon to greatly reduce noise from aspirated plosives like "p" and "b" sounds. The PFSS-55's double-layered nylon filter gently disperses the explosive rush of air from speaking and breathing, while protecting your microphone from corrosive moisture. The flexible gooseneck makes it easy to position the filter exactly where you need it, the spring-loaded clamp provides fast and easy mounting and the locking bolt holds the PFSS-55 firmly into place. These features make the PFSS-55 Pop Filter ideal for desktops and also compatible with microphone stands. UPC: 847628569249
• Polsen HPC-A30 Closed-Back Studio Monitor Headphones The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.

  The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488

• U-PHORIA UM2 2x2 USB Audio Interface wvzuqudfwzev
• Limited 1-Year Warranty, Extendable to 3-Years with Product Registration

• MXL - 440 Studio Condenser Microphone (Black with Gold Print)

• Auray - TT-6220 Telescoping Tabletop Microphone Stand (Black)

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

• Auray - PFSS-55 Pop Filter with Gooseneck

• Polsen - HPC-A30 Closed-Back Studio Monitor Headphones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Behringer U-PHORIA UM2 2x2 USB Audio Interface

  Max Sample Rate/Resolution	48 kHz / 24-Bit

  Host Connection	USB Type-B (USB 2.0)
  Analog I/O	1 x Combo XLR / 1/4" Mic/Line Input 1 x 1/4" (6.3 mm) Hi-Z Input 1 x Stereo RCA Output 1 x 1/4" (6.3 mm) TRS Headphone Output
  Phantom Power	+48 V
  Digital I/O	None
  MIDI I/O	None

  Sample Rates	Up to 48 kHz
  Latency	Zero-Latency Direct Monitoring

  OS Compatibility	macOS 10 Windows XP or Later

  Anti-Theft Features	Kensington Security Slot

  Box Dimensions (LxWxH)	8.4 x 6.2 x 3.5"

• MXL 440 Studio Condenser Microphone (Black with Gold Print)

  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	30 Hz to 20 kHz
  Signal to Noise Ratio	80 dB A-Weighted
  Equivalent Noise Level	20 dB A-Weighted
  Maximum SPL	130 dB SPL
  Impedance	200 Ohms
  Sensitivity	15 mV/Pa

  Operating Current Consumption	3.0 µA
  Length	7.08" / 179.83 mm
  Diameter	2.08" / 52.83 mm
  Weight	1.2 lb / 0.54 kg

  Box Dimensions (LxWxH)	9.85 x 4.4 x 3.9"

• Auray TT-6220 Telescoping Tabletop Microphone Stand (Black)

  Height	8.3 to 13.5" / 21 to 34.3 cm
  Base Type	Round
  Base Dimensions	6.2 x 6.2" / 15.7 x 15.7 cm

  Mounting Thread	5/8"-27
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	7.05 x 7.05 x 1.9"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	10' / 3 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.7 x 2.2 x 1.0"

• Auray PFSS-55 Pop Filter with Gooseneck

  Box Dimensions (LxWxH)	14.3 x 6.8 x 2.3"

• Polsen HPC-A30 Closed-Back Studio Monitor Headphones

  Driver Size	2" / 50 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	18 Hz to 22 kHz
  Sensitivity	93 dB at 1 kHz / 1 mW
  Impedance	32 Ohms
  Maximum Power Handling	600 mW
  Total Harmonic Distortion (THD)	5%

  Audio Connector	1/8" (3.5 mm) TRS
  Adapter (Included)	1/4" (6.3 mm)

  Design	Single-Sided
  Color	Black
  Detachable	No
  In-Line Remote/Microphone	No
  Cable Length	9.84' / 3 m

  Certifications	CE, RoHS, as per Manufacturer
  Weight	6.5 oz / 184 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.8"
