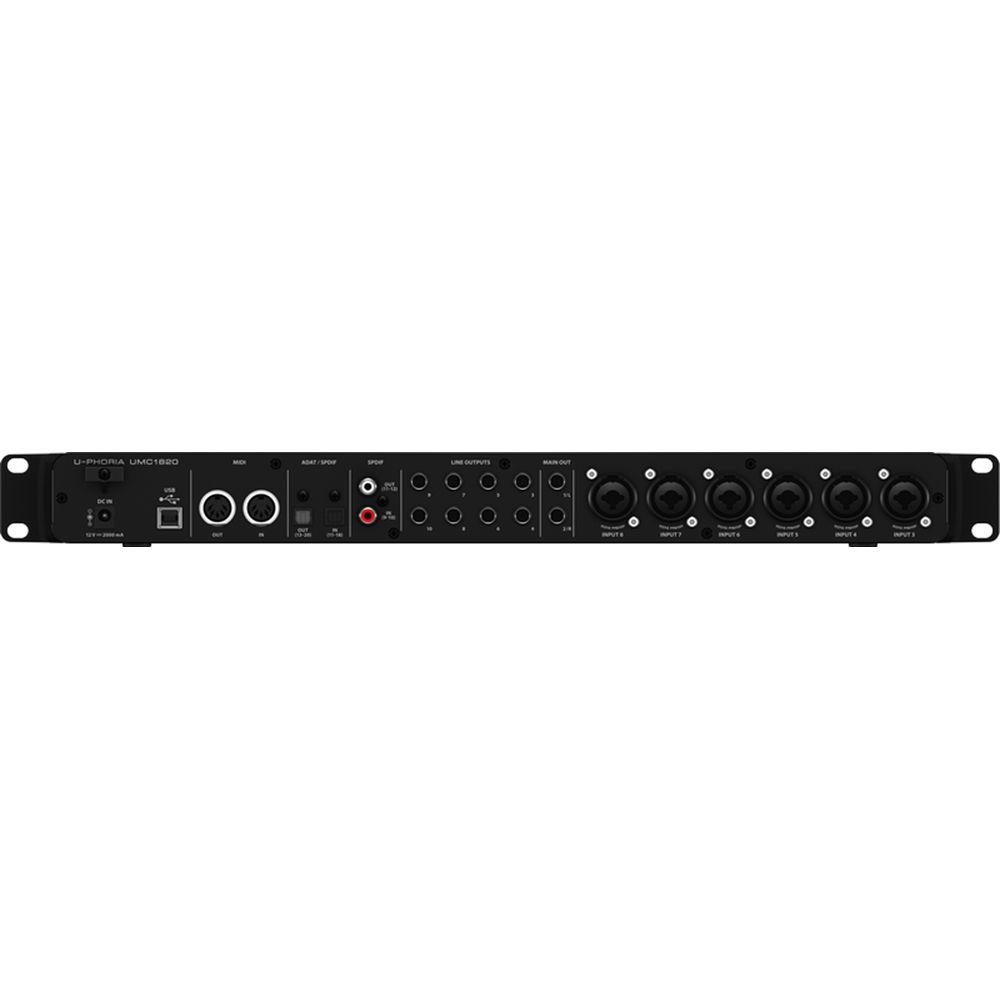

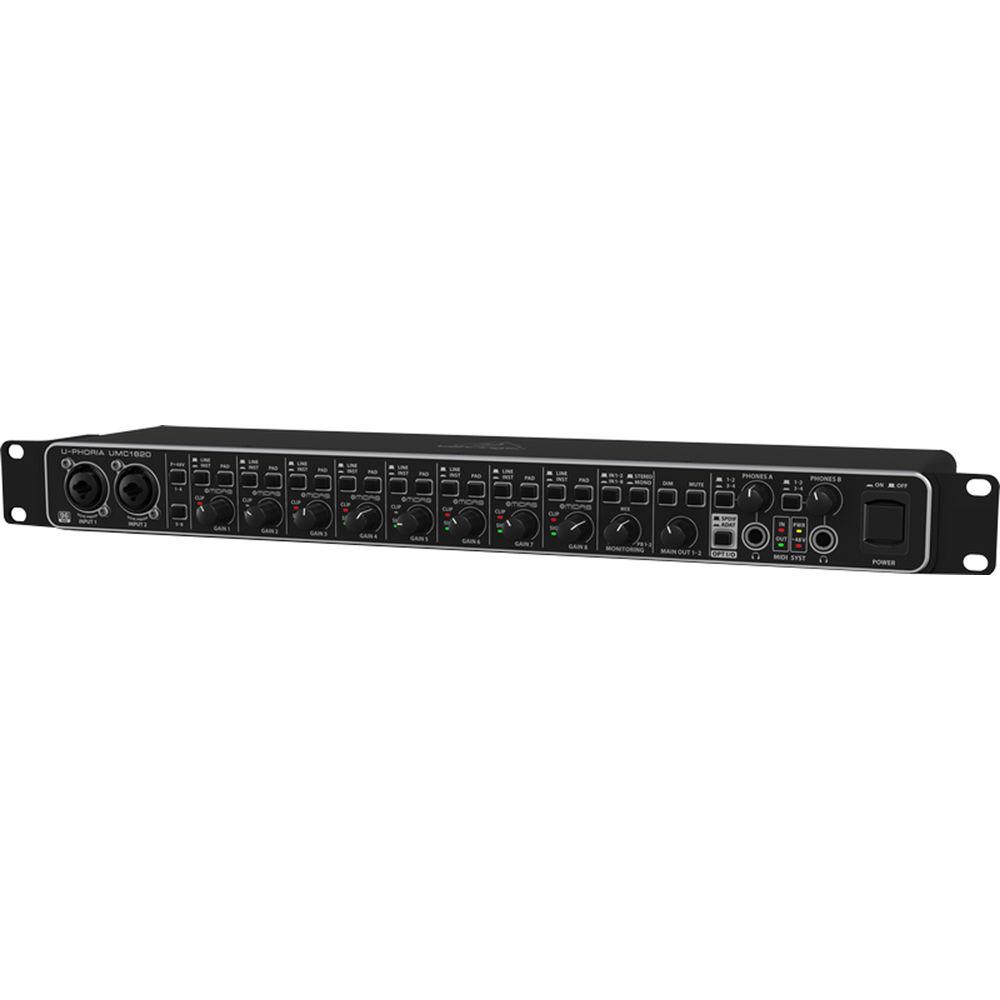

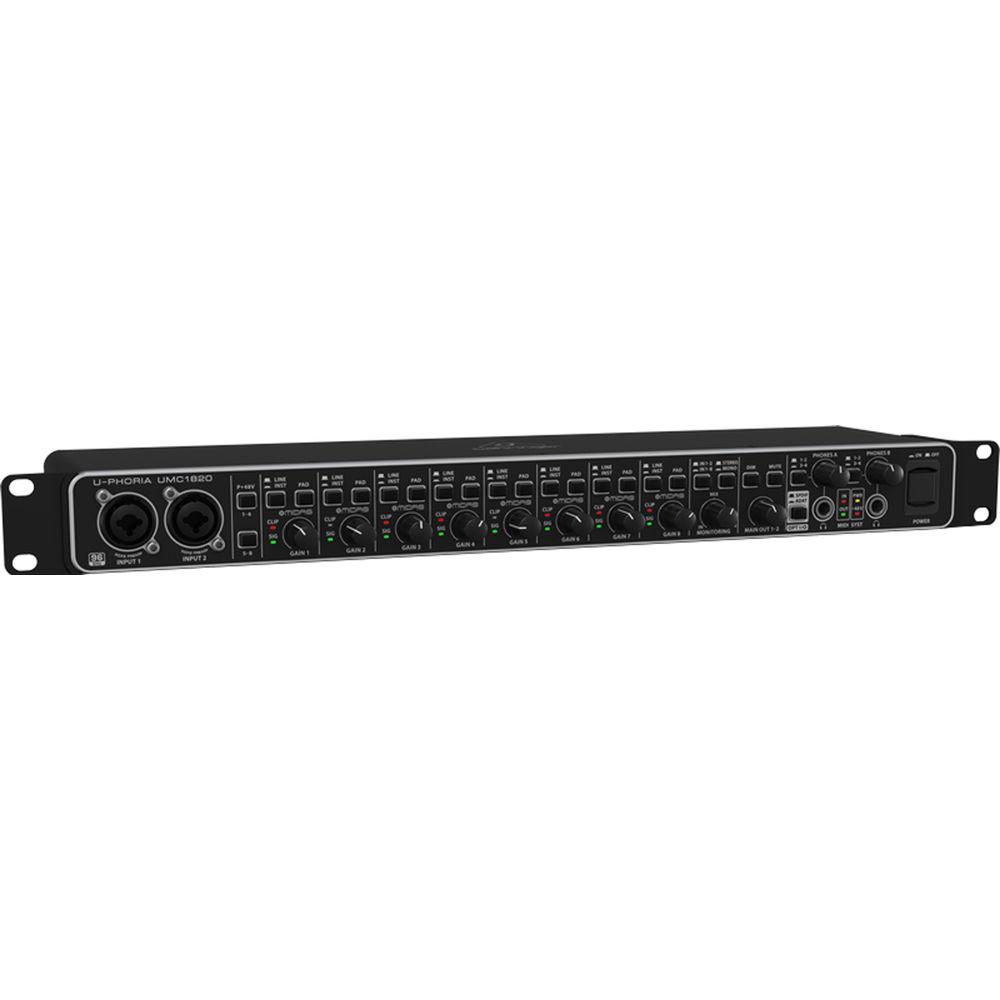

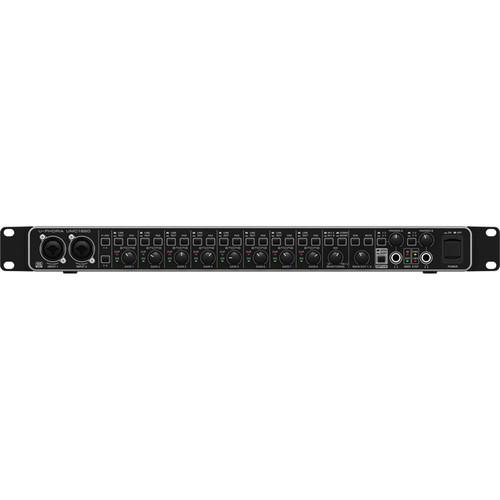

User Manual for Behringer U-PHORIA UMC1820 - USB 2.0 Audio MIDI Interface Click to enlarge the picture
Contents of the user manual for the Behringer U-PHORIA UMC1820 - USB 2.0
- Product category: Audio Interfaces & Systems Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Audio Interfaces & Systems
 |
User manual for the Behringer U-PHORIA UMC1820 - USB 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - U-PHORIA UMC1820 Audiophile 18x20, 24-Bit/96 kHz USB Audio/MIDI Interface
The U-PHORIA UMC1820 from Behringer is a USB 2.0 audio/MIDI interface featuring a combination of 18 inputs and 20 outputs. Capable of running at 24-bit/96 kHz resolution, the unit provides connectivity for microphones, guitars, keyboards and MIDI devices. Eight MIDAS-designed microphone preamps can supply 48V phantom power for use with condenser microphones.
Aside from the eight XLR/TRS combo connectors, the interface also includes a S/PDIF coaxial input and output, as well as ADAT optical I/Os supporting both S/PDIF and S/MUX operation. MIDI input and output is available, along with USB MIDI for adding a control surface to control your DAW. And speaking of DAWs, the unit is compatible with most popular recording software for Mac OS X and Windows.
A mix control allows zero-latency direct monitoring to aid performances without any delay or lag in the returning signal. A pair of headphone outputs is available with individual volume controls and an A/B source select for DJ-style cueing. Upon registering the interface at behringer.com, a complimentary download code for the full version of Tracktion DAW software is provided. - 18 input, 20 output USB 2.0 audio/MIDI interface with 24-bit/96 kHz resolution
- Eight MIDAS-designed microphone preamps with 48V phantom power
- Eight XLR/TRS combo inputs
- Coaxial S/PDIF input and output
- ADAT optical input and output supporting S/PDIF and S/MUX formats up to 96 kHz
- Simultaneous use of all analog, coaxial S/PDIF, optical ADAT and MIDI signals
- Zero-latency direct monitoring of all analog inputs while recording
- ADAT input allows for expanding to a total of sixteen MIDAS-designed preamps using an optional ADA8200 expander
- Input/playback mix control and stereo/mono switch for direct monitoring
- Dual headphones outputs with individual level controls and monitor A/B source select for DJ-style cueing
- Main outputs with dim, mute and dedicated main level controls
- Compatible with most current recording software running under Mac OS X and Windows XP or higher
- Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins downloadable at behringer.com
- Impact-resistant metal chassis
UPC: 748252152145 In the Box Behringer U-PHORIA UMC1820 - USB 2.0 Audio/MIDI Interface External Power Supply USB Cable Limited 10-Year Warranty Quick start Guide PDF 1.9mbxqtxzrrrfydvqrsxatwuawcfyewcscx Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer U-PHORIA UMC1820 - USB 2.0 Audio MIDI Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer UMC1820 Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-B (USB 2.0) | | Analog I/O | 8 x Combo XLR / 1/4" Input
2 x 1/4" (6.3 mm) TRS Monitor Output
8 x 1/4" (6.3 mm) TRS Line Output
2 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | 1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output
1 x TOSLINK / ADAT, S/MUX, S/PDIF Input
1 x TOSLINK / ADAT, S/MUX, S/PDIF Output | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Sample Rates | Up to 96 kHz | | Bit Depth | 24-Bit | | | | AC Input Power | 120 VAC at 60 Hz | | AC/DC Power Adapter | Included | | | | Rackmount Size | 1RU | | Dimensions | 19 x 1.75" / 48.26 x 4.45 cm | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 24.4 x 7.0 x 4.0" |
