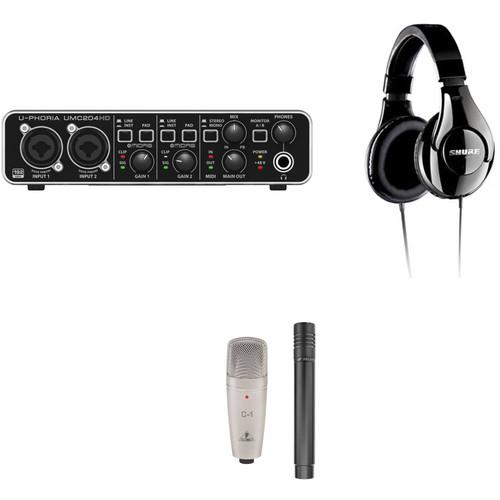

User Manual for Behringer U-PHORIA UMC204HD - Vocal and Instrument Recording Kit

• Product category: Audio Interfaces & Systems Behringer
• Brand: Behringer
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Behringer Audio Interfaces & Systems

Product description

• Behringer U-PHORIA UMC204HD - USB 2.0 Audio Interface The U-PHORIA UMC204HD from Behringer is a two input, four output, USB 2.0 audio interface that features MIDAS-designed preamps. Powered from the USB bus, the cross platform interface includes zero-latency direct monitoring for recording, LED indicators for status, signal and clipping, and a dedicated headphone output with volume control and a monitor A/B source select for DJ-style cueing.

  Connectivity includes a pair of XLR/TRS combo inputs, while the outputs feature two 1/4" TRS and four RCA phono connectors. A pair of 1/4" TRS insert allow for processing using external effects. Dedicated MIDI input and output terminals provide additional MIDI connectivity and global phantom power is available for use with condenser microphones. Free software downloads are available on registering the item.
  • Two input/four output USB 2.0 audio interface for recording vocals and instruments
  • Two MIDAS-designed microphone preamplifiers with +48V phantom power
  • 24-bit/192 kHz resolution
  • Zero-latency direct monitoring while recording
  • Two 1/4" TRS main balanced outputs and four RCA phono unbalanced outputs
  • Analog inserts for use of external effects such as compressors, etc.
  • Headphone output with level control and monitor A/B source select for DJ-style cueing
  • Dedicated MIDI input and output
  • Input/playback mix control and stereo/mono switch for direct monitoring
  • Status, signal and clip indicators
  • USB port for computer connection and power
  • Includes downloadable audio recording, editing and podcasting software, plus 150 instrument/effect plug-ins
  • Compatible with most recording software including Avid Pro Tools, Ableton Live, Steinberg Cubase, and more, running under Mac OS X and Windows XP, or higher
  • Impact-resistant metal chassis
  UPC: 748252142047
• Behringer C-1 Studio Condenser Microphone The C-1 Studio Condenser Microphone from Behringer offers a cardioid pickup pattern for maximum sound source separation and feedback rejection. This low noise microphone is suitable for a wide range of recording scenarios, including project, professional, and home studio applications. There is a pressure gradient transducer and a shock-mounted large diaphragm capsule for open, transparent sound with high-quality transient response. It is constructed of a die-cast metal body for durability and features an LED light to indicate when the microphone is receiving phantom power. The C-1 includes a swivel mount and custom case.
  Cardioid Polar Pattern
  • The cardioid polar pattern minimizes off-axis noise and feedback.
  Wide Frequency Response
  • The C-1 features a 40 Hz to 20 kHz frequency response for accurate reproduction of vocals and instruments.
  Condenser Element
  • The sensitive condenser element captures signal accurately and with low noise.
  UPC: 689076149112
• Polsen SDC-2150 Small-Diaphragm Condenser Microphone The SDC-2150 from Polsen is a small-diaphragm cardioid condenser microphone for capturing high-quality audio. It features an accurate and fast response to transient levels and can be used in several applications for recording acoustic instruments such as close-miking pianos, kick drums, cymbals, snares, and more. In addition, it can be used as a drum-overhead mic.Featuring a tailored frequency response, with slightly accentuated mid-highs, this microphone captures sound naturally and can handle high sound-pressure level (SPL) with no distortion. The solid-metal construction provides durability and will withstand use in the most demanding environments.The SDC-2150 Small-Diaphragm Condenser Microphone is versatile and includes a mic clip with a 5/8" threaded socket and a 3/8" adapter, which makes it suitable for mounting on a mic stand or a boompole.
  Cardioid Polar Pattern
  • The cardioid polar pattern is ideal for recording acoustic instruments and is less susceptible to pick up reflections, which make it suitable for recording speeches or dialog in the studio or on the set
  Tailored Frequency Response for Instruments
  • With slightly accentuated mid-high frequencies, the microphone will capture acoustic instruments with better accuracy and detail
  High SPL Levels
  • The microphone can handle extremely high SPL levels without distortion and can be placed as close to a snare, kick, or cymbal as you want
  Sturdy and Durable
  • Built with solid-metal construction, the mic can withstand use in the most demanding environments
  Versatile
  • A mic clip with a 5/8" threaded socket and a 3/8" adapter are included for both mic stand and boompole mounting
  UPC: 847628588127
• Shure SRH240A Professional Around-Ear Stereo Headphones The SRH240A Professional Around-Ear Stereo Headphones from Shure provide high-quality audio in a lightweight and comfortable design. Large 40mm neodymium dynamic drivers provide clear, detailed sound with a wide frequency response while the closed-back earcup design helps to block out ambient noise.

  The enhanced design features thick around-ear cushions and an adjustable headband that provide long-lasting comfort, allowing you to listen for hours without fatigue. The OFC cable provides plenty of slack and has a standard 3.5mm plug and a 1/4" adapter for wide compatibility with consumer and professional audio gear.
  • The lightweight and durable construction withstands the rigors of day-to-day use
  • Large 40mm neodymium dynamic drivers provide high-quality sound with a wide frequency response so you experience deep bass, clear mids, and crisp treble
  • The closed-back earcup design helps to block out ambient noise so you can focus on your music instead of your environment
  • The re-engineered ergonomic design features thick around-ear cushions and an adjustable headband for long-lasting comfort
  • The impedance, power handling, and sensitivity are calibrated for optimum performance with a variety of sound sources
  • The cable has a straight design that provides plenty of slack, while the oxygen-free copper construction provides a clear signal path
  • The standard 3.5mm stereo mini plug and threaded 1/4" adapter provide wide compatibility with consumer and professional audio devices
  UPC: 042406229210

• U-PHORIA UMC204HD - USB 2.0 Audio Interface awtbduvfxzyqrwcaswvvutbvyzfxvqcwbe
• USB Cable
• Limited 10-Year Warranty

• C-1 Studio Condenser Microphone awtbduvfxzyqrwcaswvvutbvyzfxvqcwbe

• Polsen - SDC-2150 Small-Diaphragm Condenser Microphone

• Shure - SRH240A Professional Around-Ear Stereo Headphones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Behringer U-PHORIA UMC204HD - USB 2.0 Audio Interface

  Max Sample Rate/Resolution	192 kHz / 24-Bit

  Host Connection	USB Type-B (USB 2.0)
  Analog I/O	2 x 1/4" (6.3 mm) TRS Insert Input 2 x Combo XLR / 1/4" Input 2 x 1/4" (6.3 mm) TRS Output 4 x RCA Output 1 x 1/4" (6.3 mm) TRS Headphone Output
  Phantom Power	+48 V (Applied to All Inputs)
  Digital I/O	None
  MIDI I/O	1 x 5-Pin MIDI In 1 x 5-Pin MIDI Out

  Sample Rates	Up to 192 kHz
  Bit Depth	24-Bit

  Power Requirements	USB Bus-Power

  Box Dimensions (LxWxH)	10.65 x 6.2 x 3.5"

• Behringer C-1 Studio Condenser Microphone

  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Diaphragm	0.63" / 16.0 mm
  Polar Pattern	Cardioid
  Frequency Range	40 Hz to 20 kHz
  Maximum SPL	136 dB SPL
  THD	1%
  Impedance	100 Ohms
  Load Impedance	1000 Ohms
  Sensitivity	-33 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	2.5 µA
  Operating Voltage	36 to 52 V
  Length	7.09" / 180.0 mm
  Diameter	2.13" / 54.0 mm
  Weight	0.93 lb / 0.42 kg

  Box Dimensions (LxWxH)	12.05 x 5.2 x 3.4"

• Polsen SDC-2150 Small-Diaphragm Condenser Microphone

  Sound Field	Mono
  Transducer	Electret Condenser
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 18 kHz
  Maximum SPL	125 dB SPL RMS
  Impedance	200 Ohms ± 30% @ 1 kHz
  Load Impedance	1000 Ohms
  Sensitivity	42 dB at 1 Hz

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	9 to 52 V
  Length	6" / 152.40 mm
  Diameter	0.75" / 19.05 mm
  Weight	0.35 lb / 159 g

  Box Dimensions (LxWxH)	9.8 x 6.5 x 2.6"

• Shure SRH240A Professional Around-Ear Stereo Headphones

  Driver Type	Dynamic
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	20 Hz to 20 kHz
  Sensitivity	107 dB
  Impedance	38 Ohms
  Maximum Power Handling	500 mW

  Audio Connector	1/8" (3.5 mm) TRS
  Connector Plating	Nickel

  Cable Length	6.6' / m

  Weight	10.1 oz / 238 g

  Box Dimensions (LxWxH)	9.5 x 8.7 x 4.6"
