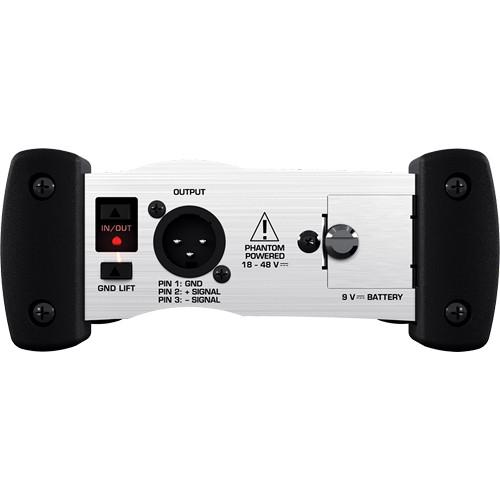

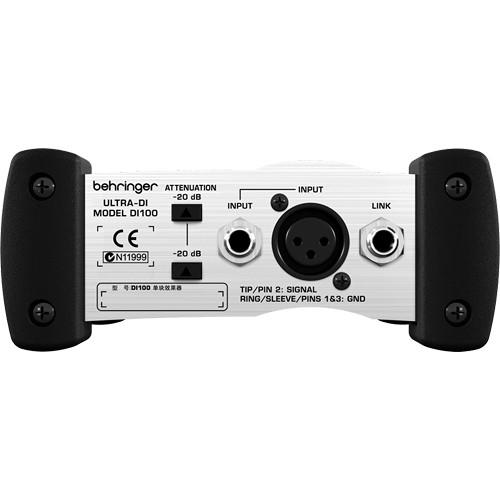

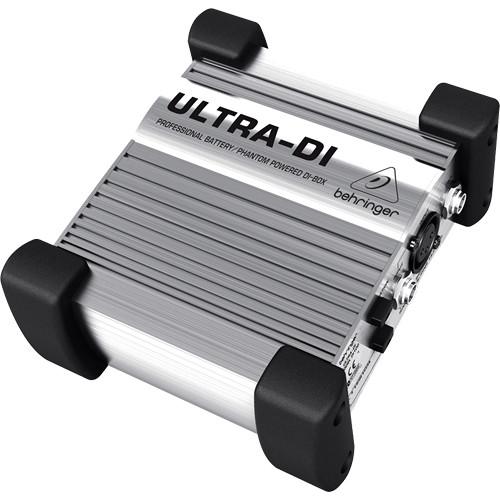

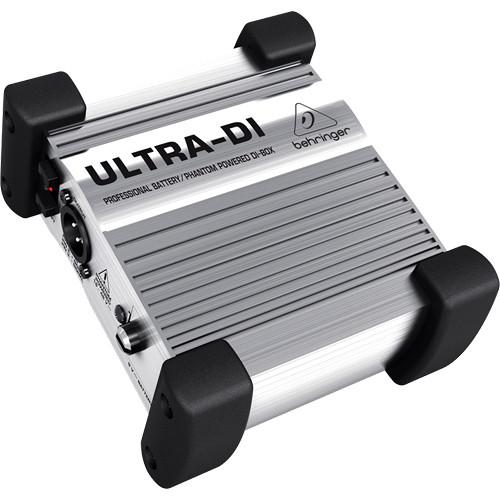

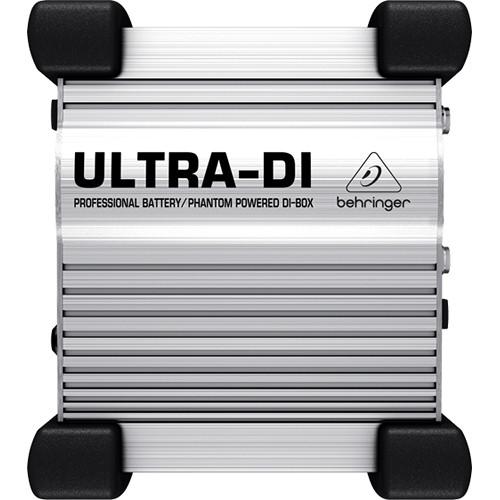

User Manual for Behringer ULTRA-DI DI100 Active Direct Box with Groundlift Switch Click to enlarge the picture
Contents of the user manual for the Behringer ULTRA-DI DI100 Active Direct Box
- Product category: Direct Boxes Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Direct Boxes
 |
User manual for the Behringer ULTRA-DI DI100 Active Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - ULTRA-DI DI100 Battery/Phantom Powered DI Box
The ULTRA DI DI100 is an active, phantom powered direct box. Unlike a passive DI where the frequency response of the signal can be altered depending on the connected impedance, an active DI buffers the input signal with an amplifier. This assures that the sound source will reach the mixer balanced and noise-free. The input-buffering amplifier also ensures clean, pure and powerful sound when using extremely long cables. The ULTRA DI DI100 features Behringer's OT-1 output transformer and the unit will also easily deal with a guitar amplifier's speaker output, handling up to 3,000 Watts. The DI can be powered either from the phantom power of a mixer or by using a 9V battery. - Internal battery automatically shut off when phantom power is connected
- Direct connection of amplifier outputs with ratings of up to 3,000 Watts
- Switchable input attenuation allows input levels of up to +50 dB
- Ground lift switch eliminates typical ground loop problems
- Rugged, road-proof aluminum case
UPC: 713757154413 In the Box Behringer ULTRA-DI DI100 Active Direct Box with Groundlift Switch Limited 10-Year Warranty User Manual PDF 1.5mbtsswxeub Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ULTRA-DI DI100 Active Direct Box with Groundlift Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer DI100 Specs | Input Connections | 1 x 1/4" TS phone (unbalanced)
1 x XLR (unbalanced) | | Output Connectors | 1 x XLR
1 x 1/4" TS phone (link out) | | Input Level | +10/+30/+50dBu | | Output Level | Not specified by manufacturer | | Frequency Response | 10Hz to 93kHz | | Noise | -100dBu | | Power | 18 to 48V DC of phantom power
9V battery | | Dimensions (WxDxH) | 6" x 5 1/8" x 2 3/8" | | Weight | 0.7 lbs | | Specialties | Stackable oversized rubber corners | | | | Package Weight | 1.675 lb | | Box Dimensions (LxWxH) | 6.3 x 5.35 x 2.7" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
