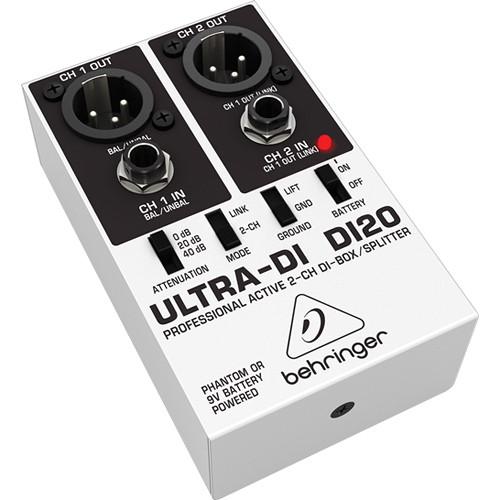

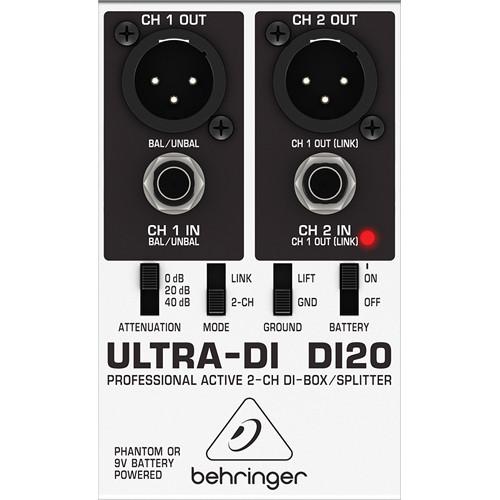

Product description The ULTRA-DI DI20 from Behringer is an active, two-channel DI box and splitter. The unit takes a signal from an unbalanced, high-impedance output and feeds it directly into a mixing console or recorder. Ideally suited for guitar and bass players, the ULTRA-DI DI20 is also useful in live/studio/broadcast applications, for installation contractors and studios/live event engineers. Multiple modes allow for flexible usage, and can also be used by keyboard players to balance their often unbalanced sources. Three levels of switchable input attenuation allows input levels of up to +48dBu, while a ground lift switch eliminates typical ground loop problems. The unit can derive power either from a 9V battery or by using 48V phantom power. - Active, two-channel DI box/splitter
- Converts two separate unbalanced 1/4" line inputs into two balanced XLR outputs
- Mono, two-channel or stereo DI-box operation with switchable link mode
- Additional split mode where the signal from channel 1 is sent to both XLR outputs
- Input 2 usable as channel 1 link output in addition to XLR output
- Switchable input attenuation allows for connection to outputs with up to 3,000 Watts
- Ground lift switch eliminates typical ground loop problems
- Powered from a 9V battery or via phantom power
UPC: 689076113915 In the Box Behringer ULTRA-DI DI20 - Active 2-Channel DI Box/Splitter Limited 10-Year Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ULTRA-DI DI20 - Active 2-Channel DI Box Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer DI20 Specs | Input Connections | 2 x 1/4" TRS phone, balanced or unbalanced | | Output Connectors | 2 x XLR | | Input Level | +12/32/52dBu | | Output Level | Not specified by manufacturer | | Controls | Attenuation switch
Mode switch
Ground lift
Battery On/Off | | Frequency Response | 10Hz to 70kHz, -3dB | | Noise | 100dBu | | Power | 9V battery or 18VDC to 48VDC phantom power | | Dimensions (WxDxH) | 5 x 6 x 2-3/8" (130 x 150 x 60 mm) | | Weight | 1.43 lbs (0.65kg) | | Specialties | Ultra compact, road-suitable housing | | | | Package Weight | 0.63 lb | | Box Dimensions (LxWxH) | 6.85 x 5.3 x 1.9" |
