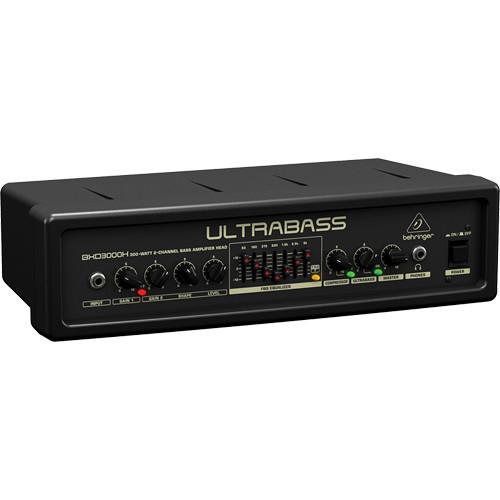

User Manual for Behringer ULTRABASS BXD3000H Bass Amplifier Head Click to enlarge the picture
Contents of the user manual for the Behringer ULTRABASS BXD3000H Bass Amplifier Head
- Product category: Bass Amplifiers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Bass Amplifiers
 |
User manual for the Behringer ULTRABASS BXD3000H Bass Amplifier Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The Behringer ULTRABASS BXD3000H is a 300-watt bass head amplifier with two switchable channels, one clean and one distorted. The ULTRABASS provides you with ample on-demand power for rehearsal, recording, and live performance.
The amplifier features a 7-band graphic equalizer with an LED-illuminated frequency spectrum analyzer that provides visual feedback for precisely equalizing the tone of your sound. A built-in compressor and limiter controls dynamic response, and a sub-harmonics processer can be engaged to enhance the bass by generating a harmonic one octave below the input signal.
The amplifier includes one DI output, one line-level output, and one headphone output for practice and studio monitoring. The BXD3000H also includes a CD input, which allows you to play along with your favorite songs. The Tone Shaping Controls - Switch between two separate tones, one clean channel and the other distorted via a front panel button or dual foot switch
- Change the sound during different parts of a song or shape the tone of the second channel for use with a different kind of bass such as a 5-string, a fretless, or an acoustic with an electronic pickup
- Clean channel includes one knob for adjusting the gain of the signal
- Distorted channel includes one knob for adjusting the gain, one knob for adjusting the shape of the tone, and one knob for the overall level
- Shape knob changes the shape of the sound's frequency response by lowering or "scooping" out the dialed-in mid frequencies while boosting the low and the high frequencies of the signal
The Dual Foot Switch - The BXD3000H includes a dual-function foot switch for selecting between the clean and distorted instrument channels, as well as engaging the Ultrabass sub-harmonics processor
Graphic Equalizer and Spectrum Analyzer - The BXD3000H features a 7-band graphic equalizer that enables you to precisely adjust the levels of the different frequencies within the frequency spectrum. The 7 sliders of the bands are set at 63Hz, 100Hz, 315Hz, 630Hz, 1.6kHz, 2.5kHz, and 5kHz
- By pressing the FBQ button on the front panel of the amplifier you engage the real-time frequency spectrum analyzer. Each of the seven sliders in the 7-band graphic equalizer will now illuminate via a built-in red LED with the intensity of the light correlating to the intensity of the signal at that frequency. This provides you with instant visual feedback for equalizing your desired frequency response and for eliminating ground hum and low frequency feedback loops
The Built-In Limiter and Adjustable Compressor - The BXD3000H includes a built-in limiter to prevent the amplifier from clipping and protect any connected speakers from receiving too much signal
- The amplifier also includes an adjustable compressor that allows you to narrow the dynamic range of the amplifier by lowering the loud signals and raising the quiet signals for an overall punchier sound
UPC: 794504547016 In the Box Behringer ULTRABASS BXD3000H Bass Amplifier Head Power Cord Dual Footswitch 2 x Rack Mounting Brackets Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ULTRABASS BXD3000H Bass Amplifier Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer BXD3000H Specs | Power Output | 300 W @ 4Ω or 180 W @ 8Ω (not bridgeable) | | Speakers | No | | Inputs | 1x 1/4" TS Instrument
1x RCA CD
1x 1/4" TS FX Return | | Input Impedance | Instrument: 240Ω
CD: 43kΩ (approximately) | | Outputs | 1x 1/4" Headphone Output
1x XLR DI
1x 1/4" TS Line Output
1x 1/4" TS FX Insert Send
1x 1/4" TS Loudspeaker Output | | Output Impedance | Headphone: 47Ω (approximately)
DI: 200Ω (approximately)
FX Send: 2.2kΩ (approximately)
Loudspeaker: Minimum 4Ω | | Controls | 1x 7-Band EQ
2x Gain Knobs
1x Shape Knob
1x Level Knob
1x Ch1/Ch2 Selector Switch
1x FBQ Switch
1x Master Knob
1x Compressor Knob
1x Compressor Switch
1x Ultrabass Knob
1x Ultrabass Switch | | Power Requirements | 100~240V AC, 50/60 Hz | | Dimensions (WxDxH) | 17.7 x 8.9 x 4.6" (450 x 225 x 117 mm) | | Weight | 7.7 lb (3.5 kg) | | | | Package Weight | 13.2 lb | | Box Dimensions (LxWxH) | 19.5 x 13.0 x 6.5" |
