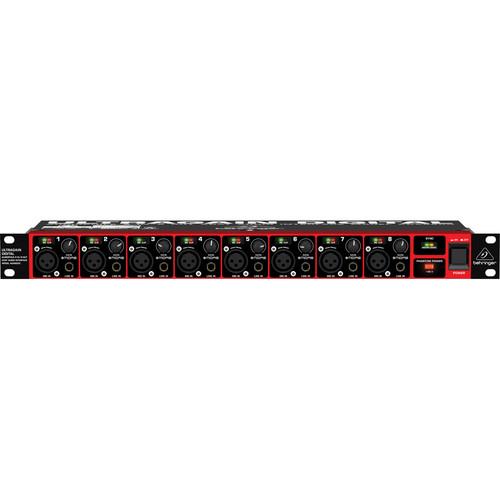

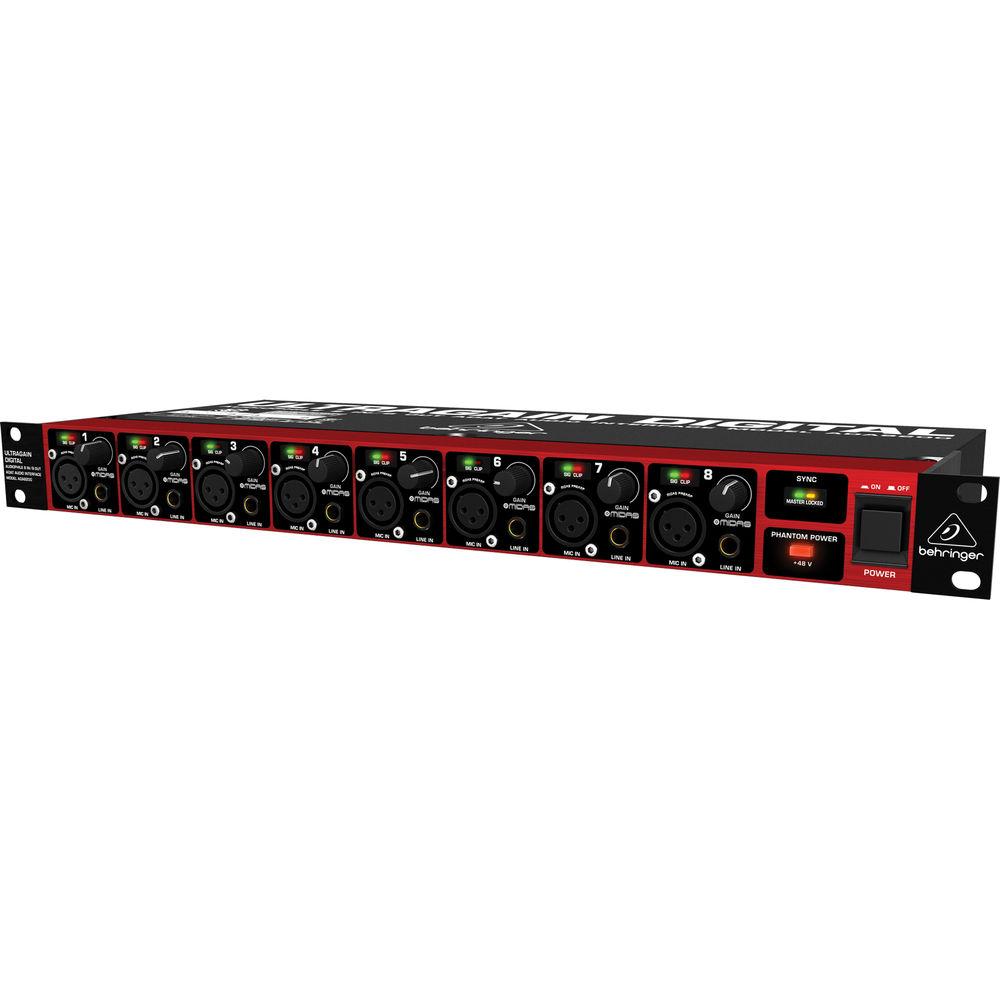

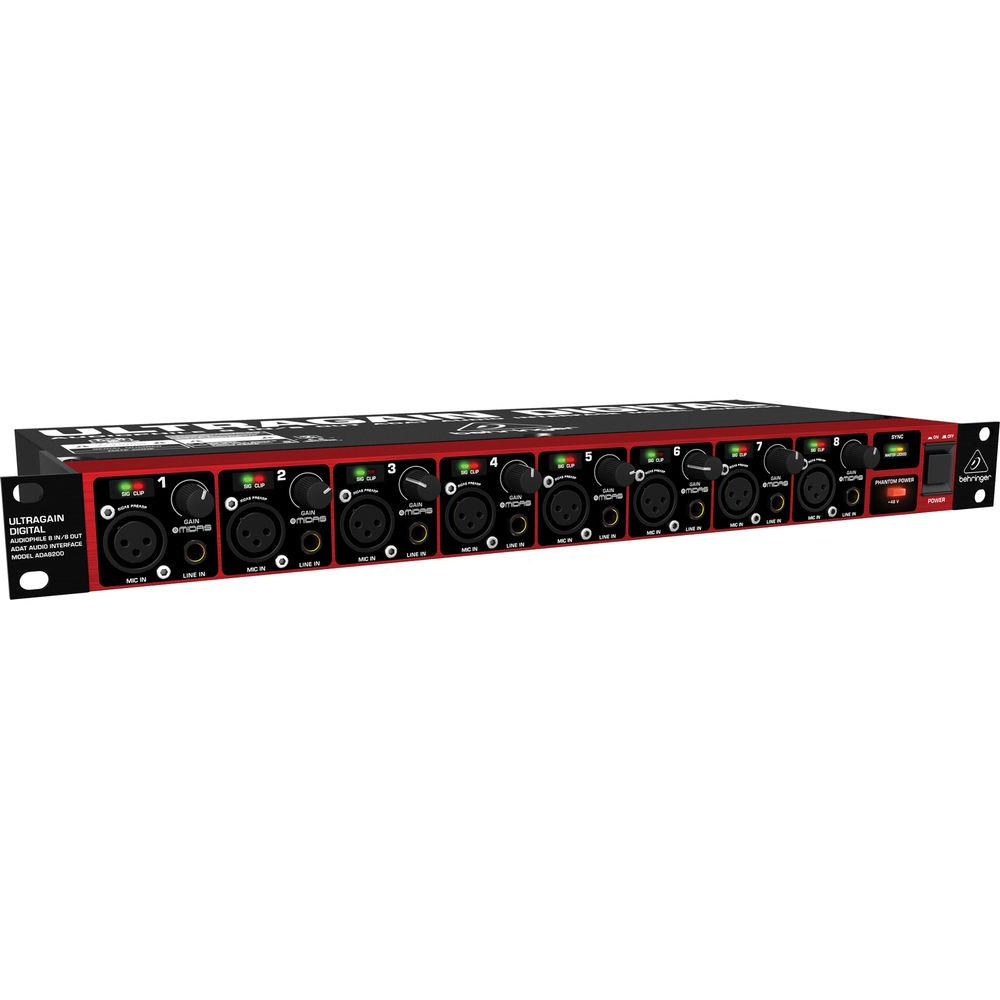

Product description - ULTRAGAIN DIGITAL ADA8200 ADAT Mic Preamp / Interface
The ULTRAGAIN DIGITAL ADA8200 from Behringer is an analog to digital, and digital to analog converter that provides 8 analog inputs and outputs, and 8 digital ADAT inputs and outputs.

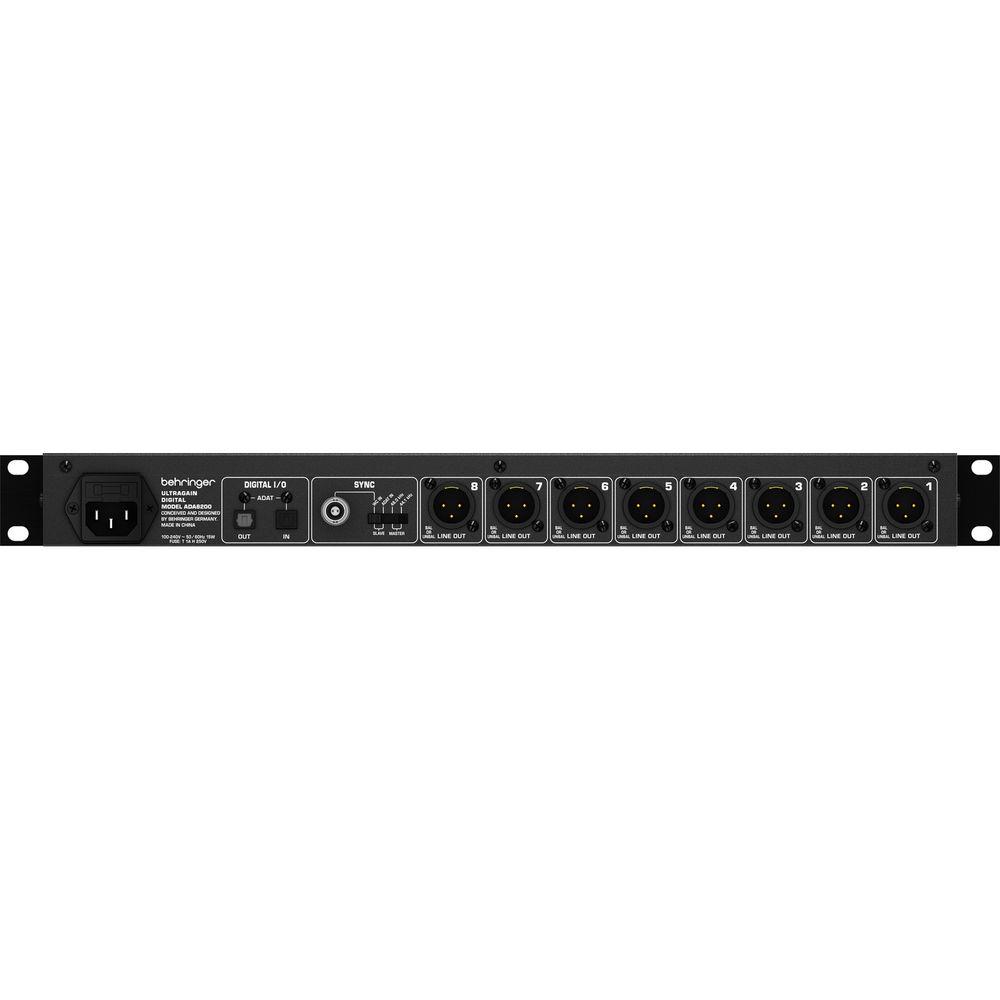

Each analog input features a MIDAS mic preamplifier and XLR and TRS jacks for connecting mics, keyboards, and more. Each analog output features an XLR jack for sending signals to analog mixing consoles, headphone amps and other devices. Housed in a single-space 19" rack-mount enclosure, this unit can be used in your home or project studio to add I/O to your rig for recording and mixing by connecting into your ADAT equipped audio interface. - High-quality 8-channel 24-bit A/D and D/A converter for your digital recording/mixing environment
- 8 MIDAS designed microphone preamps with phantom power
- Cirrus Logic 24-bit converters
- Processes 48 and 44.1 kHz sample rates
- Optical ADAT I/O interface for compatibility
- All microphone/line inputs are routed to the ADAT output
- ADAT input routed to all line outputs
- External sample rate synchronization via wordclock or ADAT input
UPC: 713757157612 In the Box Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT Audio Interface with MIDAS Mic Preamps A/C Power Cord Limited 1-Year Warranty, Extendable to 3-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In 8 Out ADAT Audio Interface with MIDAS Mic Preamps in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer ADA 8200 Specs | | | Design | MIDAS designed microphone preamp | | Type | XLR connector, electronically balanced, discrete input circuitry | | Gain Range | +10 to +60 dB | | Maximum Input Level | +6 dBu @ +10 dB gain for 0 dB FS | | Impedance | 2.7 kΩ balanced | | Phantom Power | +48 V, switchable | | | | Type | ¼" TRS connector, electronically balanced, discrete input circuitry | | Impedance | appr. 20 kΩ balanced, appr. 10 kΩ unbalanced | | Gain Range | -10 to +40 dB | | Maximum Input Level | +26 dBu @ -10 dB gain for 0 dB FS | | | | Type | XLR connector, electronically balanced | | Impedance | appr. 1 kΩ balanced, appr. 500 Ω unbalanced | | Max. Output Level | +16 dBu @ 0 dB FS | | | | Type | TOSLINK, optical connector | | Format | ADAT, 8 channels, 24-bit @ 44.1 / 48 kHz | | | | Type | TOSLINK, optical connector | | Format | ADAT, 8 channels, 24-bit @ 44.1 / 48 kHz | | | | Source | Internal 44.1 / 48 kHz, ADAT input, word clock input | | Word Clock | Type: BNC connector
Input level: 2 to 6 V peak-to-peak
Frequency range: 44.1 to 48 kHz | | | | Frequency Range | 10 Hz to 24 kHz @ 48 kHz sample rate | | THD | < 0.008% | | Crosstalk | < -87 dB | | | | Power Supply | 100 ~ 240 V AC | | Power Consumption | 15 W | | Fuse | T 1A 250 V | | Mains | Standard IEC receptacle | | | | Dimensions (H x W x D) | 1.75 x 19.00 x 8.50" (44.5 x 482.6 x 217.0 mm) | | Weight | 4.6 lb (2.1 kg) | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 21.0 x 12.1 x 4.4" |
