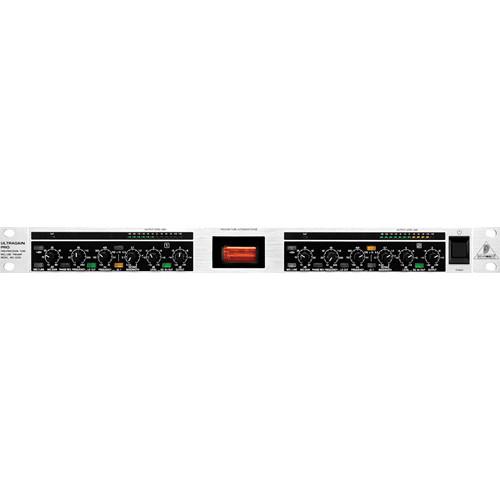

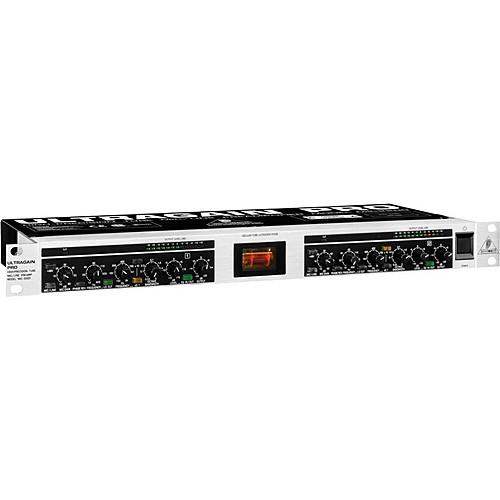

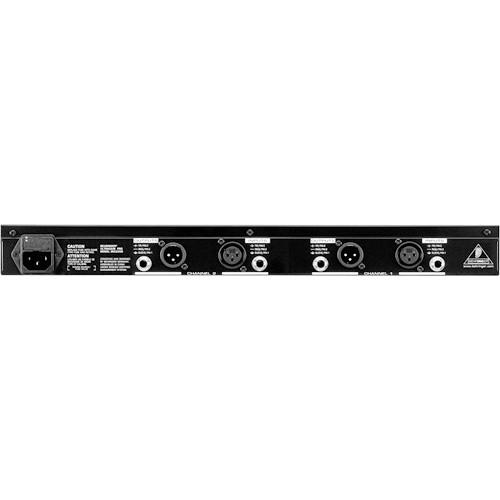

User Manual for Behringer ULTRAGAIN PRO MIC2200 2-Channel Tube Microphone Preamplifier Line Driver DI Box Click to enlarge the picture
Contents of the user manual for the Behringer ULTRAGAIN PRO MIC2200 2-Channel Tube
- Product category: Microphone Preamps Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Microphone Preamps
 |
User manual for the Behringer ULTRAGAIN PRO MIC2200 2-Channel Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - ULTRAGAIN PRO MIC2200 Vacuum Tube Microphone/Line Preamplifier
In today's digital world the classic tube sound is experiencing a renaissance. In reaction to this demand, Behringer has integrated a 12AX7 vacuum tube into the Behringer ULTRAGAIN PRO MIC2200 2-Channel Tube Microphone Preamplifier/Line Driver/DI Box. The low-noise 2-channel microphone/line preamp provides detail, and lends the warm tube sound to instrumental and vocal recordings. The unit also offers a high-pass filter, with a sweepable range from 15 to 320 Hz, useful for removing rumble and low frequency handling noise, and a parametric EQ with adjustable center frequency, bandwidth and amplitude. Frequency switching allows the user to sweep the entire frequency range from 10 Hz to 20 kHz. The ULTRAGAIN PRO MIC2200 can also function as DI box, converting unbalanced instrument signals into clean, balanced signals. In addition to providing a soft mute function for the +48V phantom power, the ULTRAGAIN PRO MIC2200 provides excellent service when a need occurs to convert home-recording levels, -10 dBV, to +4 dBu level, for interfacing into professional environments. - Extremely low-noise, dual microphone/line preamp
- Integrated high-quality 12AX7 vacuum tube
- Extreme bandwidth from 10 Hz to 200 kHz for open, transparent sound
- Two additional high-end parametric EQ's
- Fully sweepable, switchable high-pass filter (12 dB/octave)
- Soft mute function for +48 V phantom power suppresses switching noise
- Extremely flexible "Direct Inject Box" function
- Independent level conversion from home to professional level (-10 dBV / +4 dBu)
UPC: 736211576644 In the Box Behringer ULTRAGAIN PRO MIC2200 2-Channel Tube Microphone Preamplifier/Line Driver/DI Box Power Cable Limited 10-Year Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ULTRAGAIN PRO MIC2200 2-Channel Tube Microphone Preamplifier Line Driver DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer MIC2200 Specs | Number of Channels | 2 | | Inputs | 2 x XLR, 2 x TRS phone | | Output | 2 x XLR, 2 x TRS phone | | Phantom Power | +48V | | Multi Function | EQ | | Gain Range | +10 dB to +60 dB | | Maximum Output Level | +21 dBu balanced and unbalanced | | Frequency Response | 10 Hz to 200 kHz | | Noise | >94 dBU, unweighted, 22 Hz to 22 kHz | | Power Requirements | 110V AC, 60 Hz | | Dimensions | 1U rack mount, 8 1/2" (21.6 cm) deep | | Specialties | Precise 12-segment output level display
Servo-balanced, gold-plated XLR and 1/4" TRS connectors | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 20.7 x 12.0 x 4.4" |
