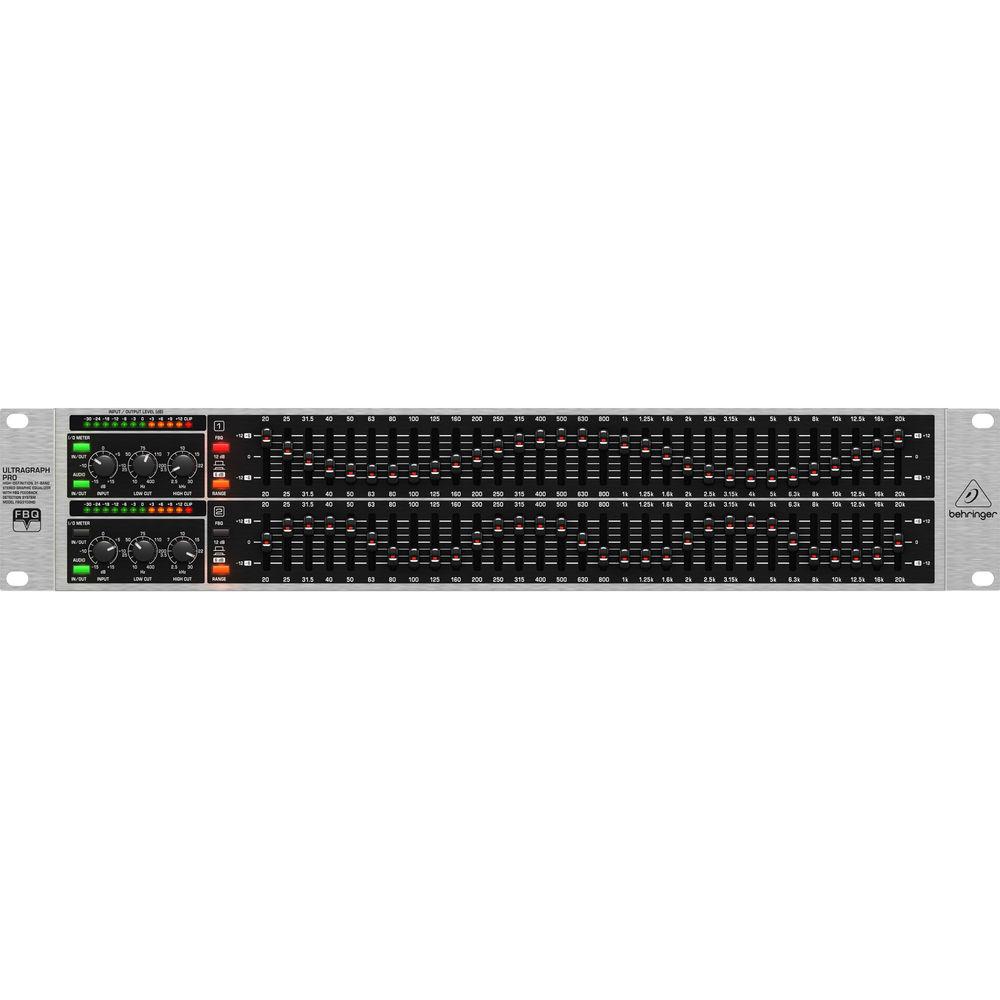

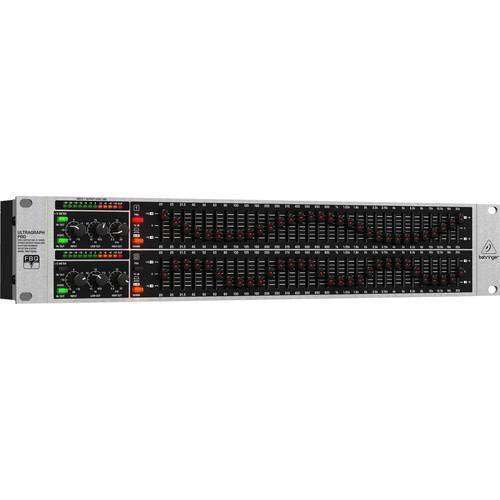

User Manual for Behringer ULTRAGRAPH-PRO FBQ3102HD Dual Channel 31-Band Graphic EQ Click to enlarge the picture
Contents of the user manual for the Behringer ULTRAGRAPH-PRO FBQ3102HD Dual Channel 31-Band
- Product category: Equalizers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Equalizers
 |
User manual for the Behringer ULTRAGRAPH-PRO FBQ3102HD Dual Channel 31-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - ULTRAGRAPH PRO FBQ3102HD High-Definition 31-Band Stereo Graphic Equalizer
Equally suited to both live and studio environments, the ULTRAGRAPH-PRO FBQ3102HD from Behringer is dual-channel 31-band EQ featuring a proprietary FBQ feedback detection system, a handy tool for identifying problematic frequencies in a room, or for use as an audio analyzer.
Additional hi- and low-cut filters, sweepable in frequency, aid in mitigating unwanted hiss or rumble, while ultra-low noise 4580 operational amplifiers seek to bolster the sonic performance of this unit. Utilizing an on-board crossover frequency selector, a dedicated mono XLR out helps separate frequencies that are more suitable for the subwoofer than the mains. The unit also provides both 1/4" TRS and XLR connection points. - Notable Features
-
- 31-band graphic equalizer for two-channel implementation (stereo or dual mono)
- FBQ feedback detection system for identifying problematic frequencies in a live context, or for use as an audio analyzer
- Servo-balanced inputs and outputs with 1/4" TRS and gold-plated XLR connectors
- Additional sweepable hi- and low-cut filter on both channels
- Ultra-low noise 4580 operational amplifiers
- Dedicated mono subwoofer output with adjustable crossover frequency
- 12-segment LED output metering and input gain controls
- Relay-controlled hard-bypass with an auto-bypass function during power failure (fail-safe relay)
UPC: 748252153340 In the Box Behringer ULTRAGRAPH-PRO FBQ3102HD Dual Channel 31-Band Graphic EQ AC Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ULTRAGRAPH-PRO FBQ3102HD Dual Channel 31-Band Graphic EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer FBQ3102HD Specs | Filter Type | Graphic | | Number of Channels | 2x | | Inputs | 2x XLR
2x 1/4" TRS phone | | Outputs | 2x XLR
1x XLR for subwoofer
2x 1/4" TRS phone | | THD & Noise | 0.008% | | Maximum Input Level | +21 dBu balanced and unbalanced | | Indicators | LED input/output levels at -30, -24, -18, -12, -6, -3, 0, +6, +9, +12 dB, and CLIP | | Frequency Bands | 31 per channel, ISO frequencies | | Bandwidth | 1/3 octave | | Range (Boost/Cut) | +/-6 dB or +/-12 dB, switchable | | Frequency Response | 10 Hz to 30 kHz | | Frequency Range | 20 Hz to 20 kHz in 1/3 octave bands | | Signal to Noise Ratio | >94 dB @ +4 dBu, 22 Hz to 22 kHz | | Crossover Control | Dedicated mono subwoofer output with adjustable crossover frequency (30 to 200 Hz) | | Power Consumption | 35 W | | Mains Voltage | 100 to 240 VAC, 50/60 Hz | | Dimensions (H x W x D) | 3.5 x 19.0 x 5.9" / 8.9 x 48.3 x 15.0 cm | | Weight | 4.4 lb / 2 kg | | | | Package Weight | 6.05 lb | | Box Dimensions (LxWxH) | 20.3 x 8.9 x 5.7" |
