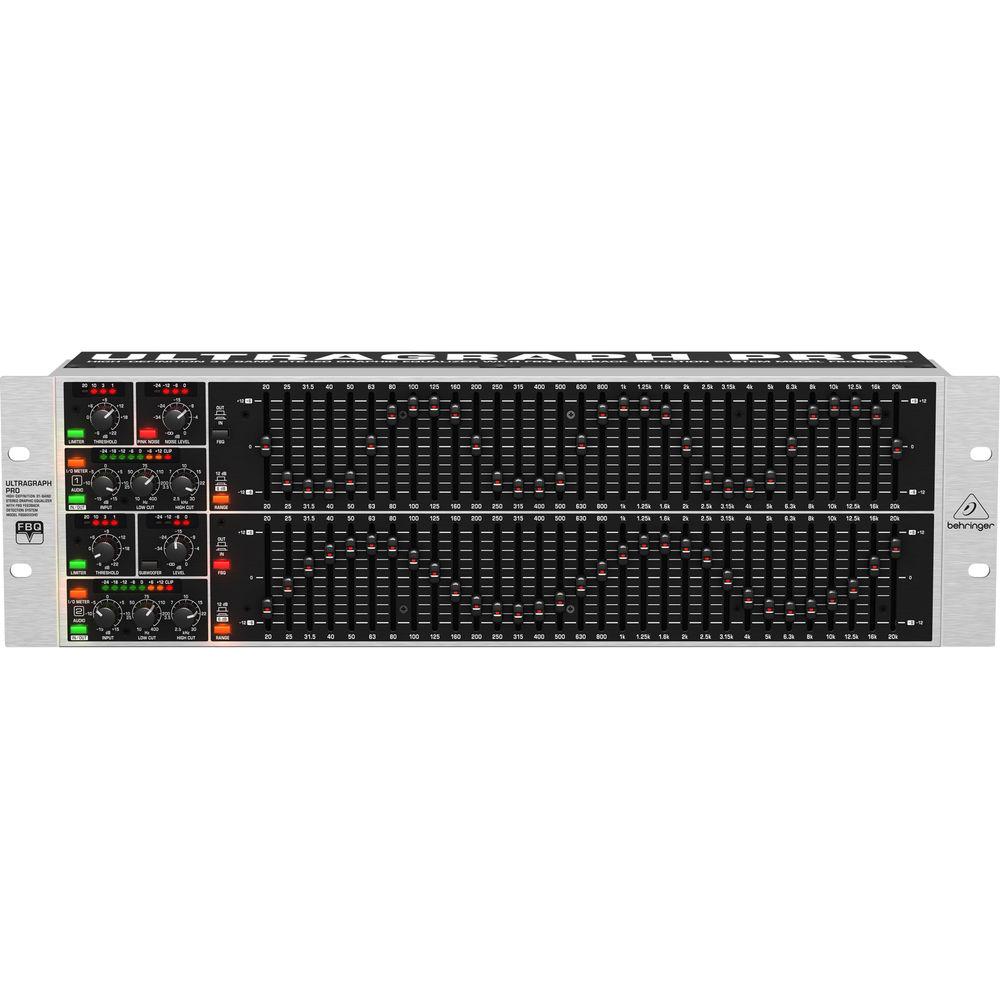

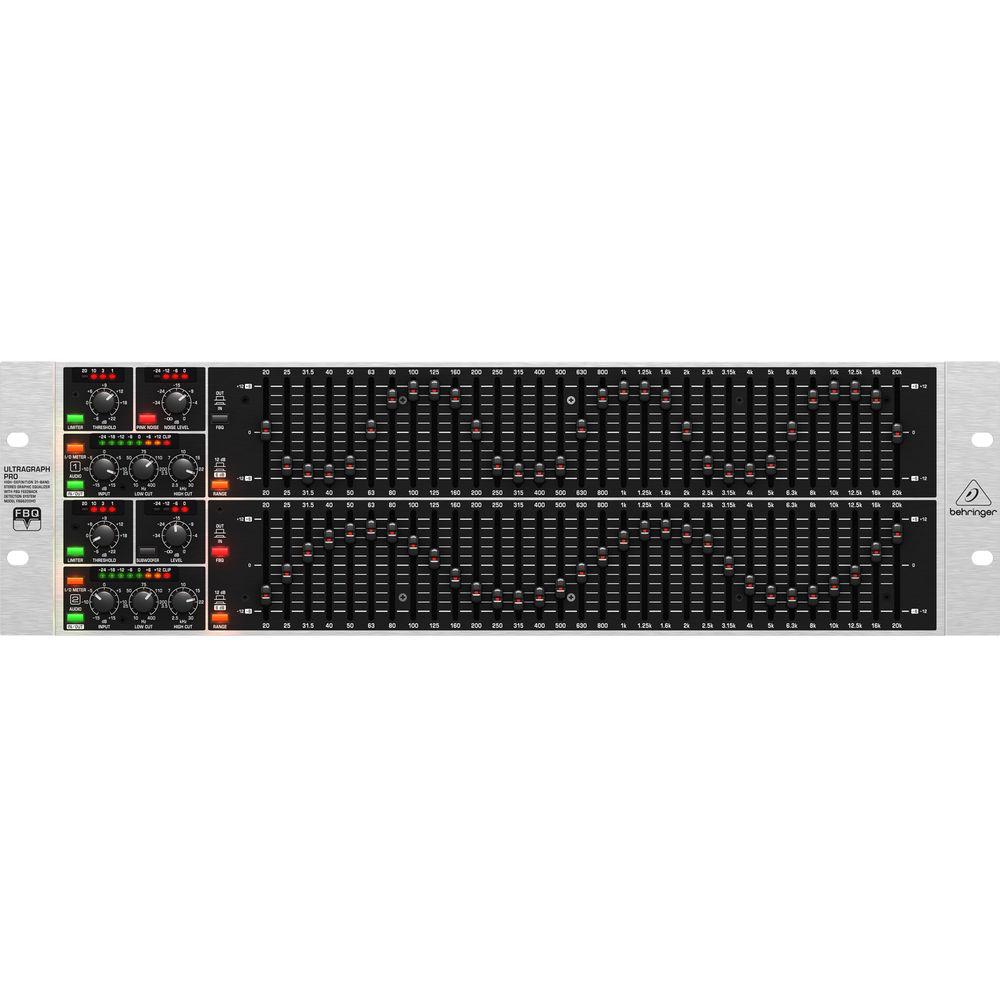

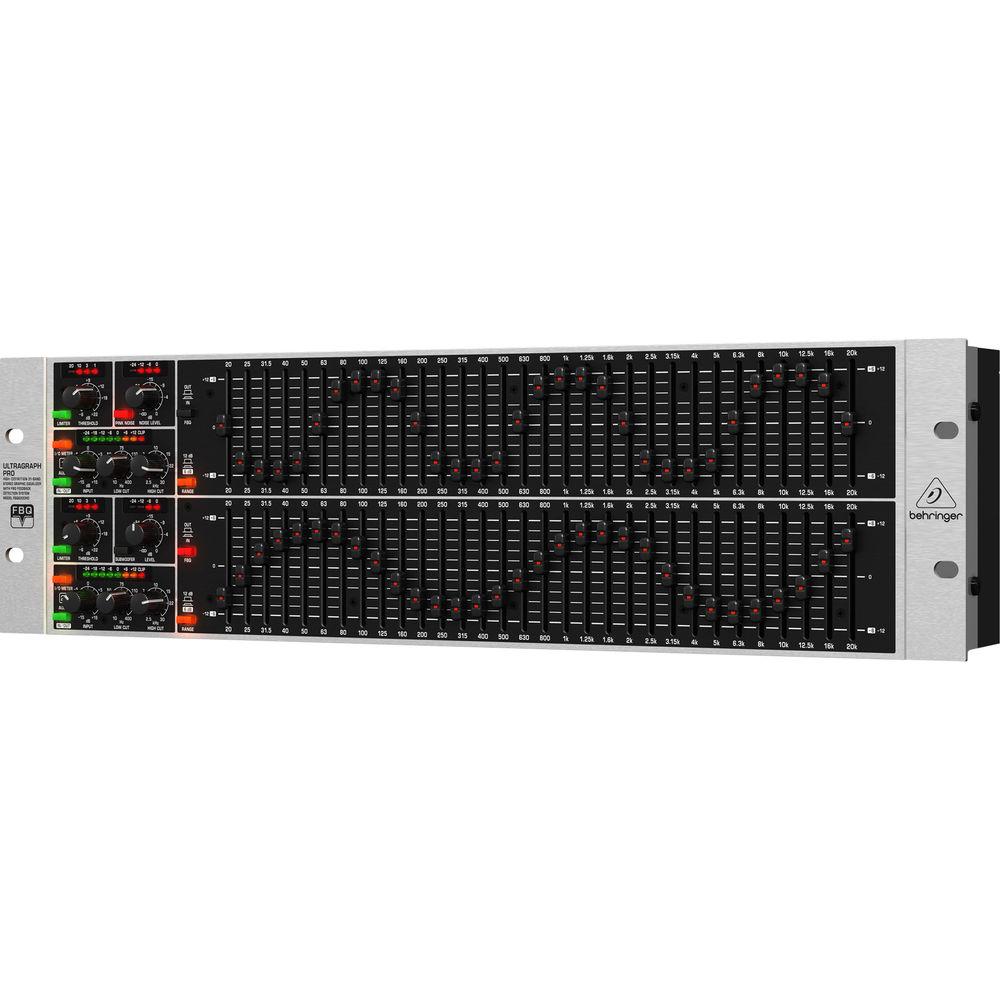

Product description Equally suited to both live and studio environments, the ULTRAGRAPH-PRO FBQ6200HD from Behringer is dual-channel 31-band EQ featuring a proprietary FBQ feedback detection system, a handy tool for identifying problematic frequencies in a room, or for use as an audio analyzer.
Additional hi- and low-cut filters, sweepable in frequency, aid in mitigating unwanted hiss or rumble, while ultra-low noise 4580 operational amplifiers seek to bolster the sonic performance of this unit. Utilizing an on-board crossover frequency selector, a dedicated mono XLR output—with variable output control—helps separate frequencies that are more suitable for the subwoofer than the mains. The unit also provides both 1/4" TRS and XLR connection points.
An on-board limiter on both channels allows you to protect your system from audio overloads. Pink noise generators offer test signals to help adapt the unit to the specific frequency characteristics of various and different rooms - Notable Features
-
- 31-band graphic equalizer for two-channel implementation (stereo or dual mono)
- FBQ feedback detection system for identifying problematic frequencies in a live context, or for use as an audio analyzer

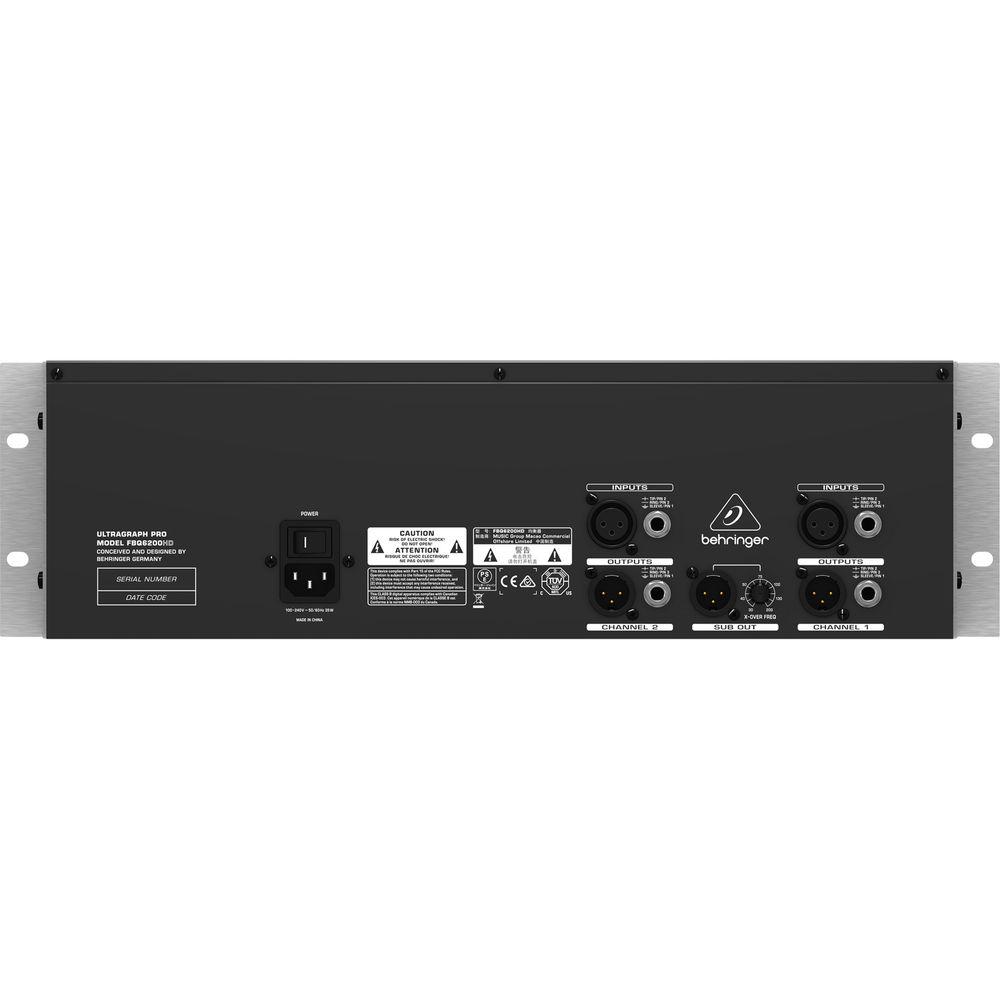

- Servo-balanced inputs and outputs with 1/4" TRS and gold-plated XLR connectors
- Additional sweepable hi- and low-cut filter on both channels
- Ultra-low noise 4580 operational amplifiers
- Dedicated mono subwoofer output with adjustable crossover frequency and output level control
- 8-segment LED output metering and input gain controls
- 4-segment LED output metering on subwoofer
- Relay-controlled hard-bypass with an auto-bypass function during power failure (fail-safe relay)
UPC: 748252153449 In the Box Behringer ULTRAGRAPH-PRO FBQ6200HD Dual Channel 31-Band Graphic EQ AC Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ULTRAGRAPH-PRO FBQ6200HD Dual Channel 31-Band Graphic EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer FBQ6200HD Specs | Filter Type | Graphic | | Number of Channels | 2x | | Function Switches | FBQ: Activates FBQ detection system
Audio in/out: Switch to bypass
I/O meter in/out: Switches the meter display from input to output
Range: Shifts the maximum cut/boost range for all 31 bands
Limiter: Activates limiter
Pink Noise: Activates noise generator
Subwoofer: Activates Subwoofer output | | Inputs | 2x XLR
2x 1/4" TRS phone | | Outputs | 2x XLR
1x XLR for subwoofer
2x 1/4" TRS phone | | THD & Noise | 0.008% | | Maximum Input Level | +21 dBu balanced and unbalanced | | Indicators | LED input/output levels at -24, -18, -12, -6, 0, +6, +12 dB, as well as CLIP
LED subwoofer levels at -18, -12, 0, +12 dB, as well as CLIP | | Frequency Bands | 31 per channel, ISO frequencies | | Bandwidth | 1/3 octave | | Range (Boost/Cut) | +/-6 dB or +/-12 dB, switchable | | Frequency Response | 10 Hz to 30 kHz | | Frequency Range | 20 Hz to 20 kHz in 1/3 octave bands | | Signal to Noise Ratio | >94 dB @ +4 dBu, 22 Hz to 22 kHz | | Crossover Control | Dedicated mono subwoofer output with adjustable crossover frequency (30 to 200 Hz) | | Power Consumption | 35 W | | Mains Voltage | 100 to 240 VAC, 50/60 Hz | | Dimensions (H x W x D) | 5.2 x 19.0 x 5.4" / 13.3 x 48.3 x 13.8 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 20.2 x 8.9 x 7.5" |
