User Manual for Behringer ULTRALINK MS8000 8-Channel Microphone Splitter Click to enlarge the picture
Contents of the user manual for the Behringer ULTRALINK MS8000 8-Channel Microphone Splitter
- Product category: Splitters & Combiners Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Splitters & Combiners
 |
User manual for the Behringer ULTRALINK MS8000 8-Channel Microphone Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

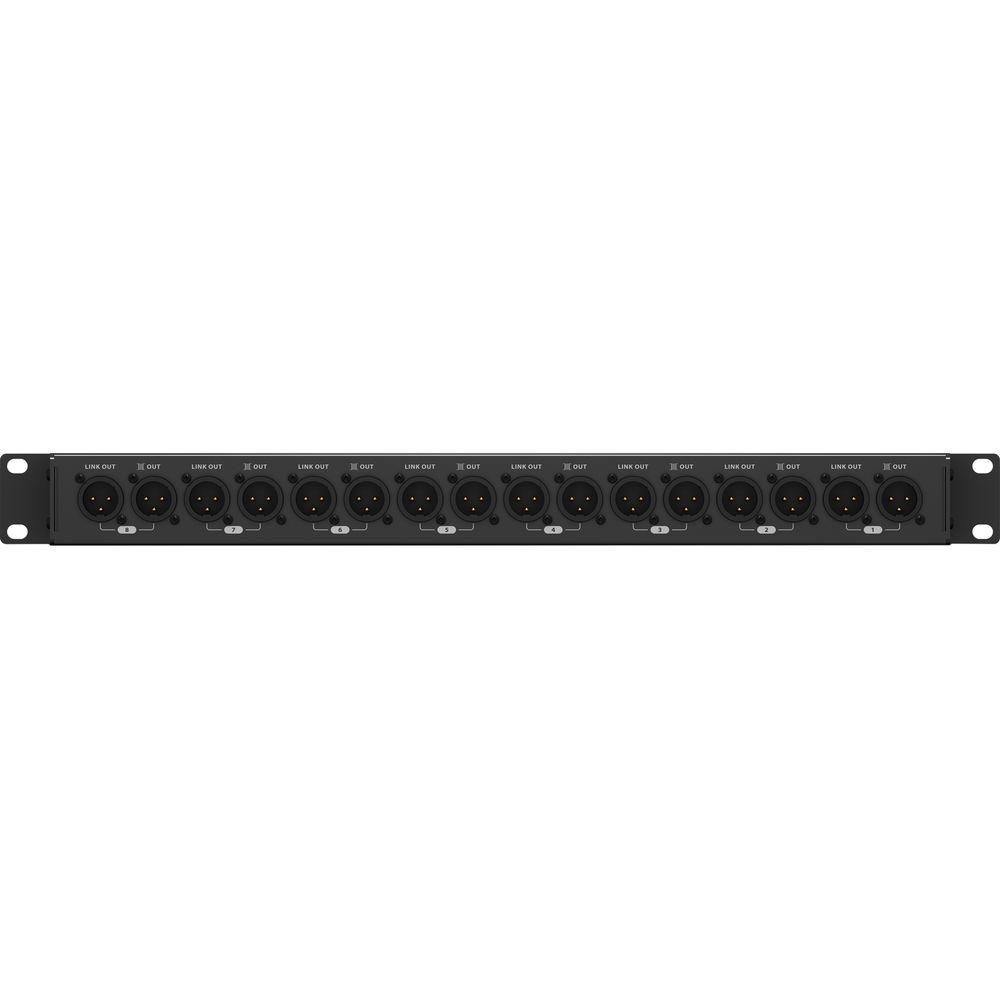

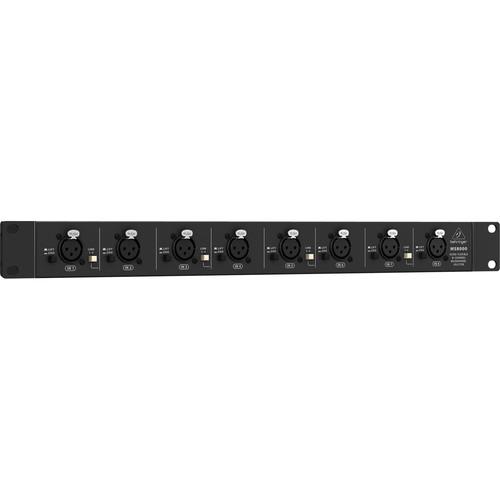

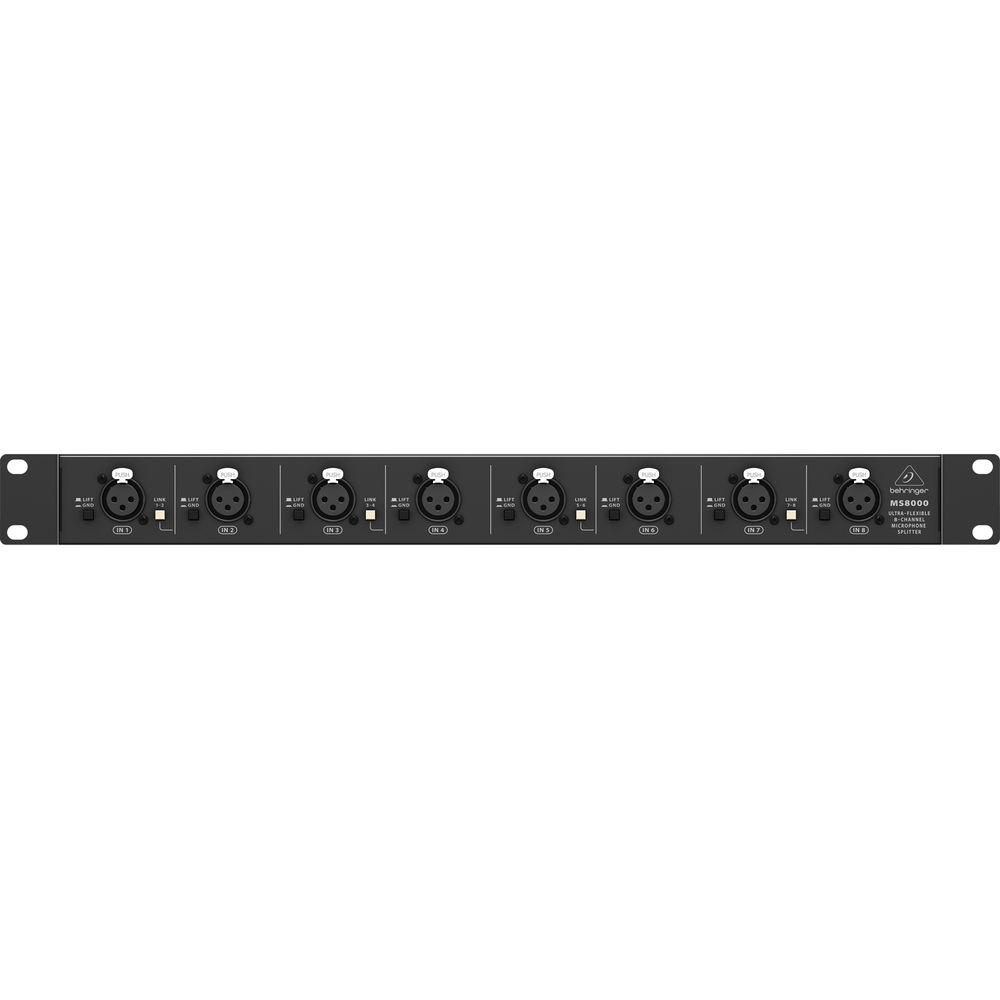

Product description The ULTRALINK MS8000 from Behringer is an eight-channel microphone splitter suitable for recording consoles, monitoring systems, interfaces, and more. It features eight XLR inputs and sixteen XLR outputs, with each input automatically split into two outputs—one pre-transformer and one post-transformer—in order to feed different types of gear. Press any link button on the front panel and one input will be routed into four outputs, allowing you to send a vocal mic to the FOH console, a recording interface, in-ear monitors, and a broadcast truck, all at the same time. Furthermore, this unit features ground lift switches to eliminate hum on every channel, as well as phantom power on eight of the sixteen outputs. UPC: 748252155849 In the Box Behringer ULTRALINK MS8000 8-Channel Microphone Splitter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ULTRALINK MS8000 8-Channel Microphone Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer MS8000 Specs | | | Connectors | 8x XLR inputs | | Impedance | 1 kOhm, balanced | | Maximum Input Level | 30 dBu at 1 kHz | | Controls | 4x Link
8x Lift/Ground | | | | Connectors | Link: 8x XLR outputs, parallel to inputs
Direct: 8x XLR outputs | | Voltage Transformation Ratio | 1:1.12 | | Impedance | 2.7 kOhms, balanced | | Maximum Output Level | 38 dBu at 1 kHz | | | | Frequency Response | 30 Hz to 30 kHz (±0.5 dB at +4 dBu) | | THD+N | 0.02% at 1 kHz, input level +4 dBu | | Signal to Noise Ratio | 104 dBu | | CMRR | >80 dB, typical | | Insertion Loss | +8 dB at 100 kOhms
-5 dB at 600 Ohms | | Power Requirement | Passive | | | | Dimensions (H x W x D) | 1.7 x 19.0 x 2.6" / 44 x 483 x 65 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 21.0 x 4.5 x 3.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
