User Manual for Behringer ULTRALINK PRO MX882 V2 8-Channel Splitter Mixer Click to enlarge the picture
Contents of the user manual for the Behringer ULTRALINK PRO MX882 V2 8-Channel
- Product category: Install Sound Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Install Sound Mixers
 |
User manual for the Behringer ULTRALINK PRO MX882 V2 8-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

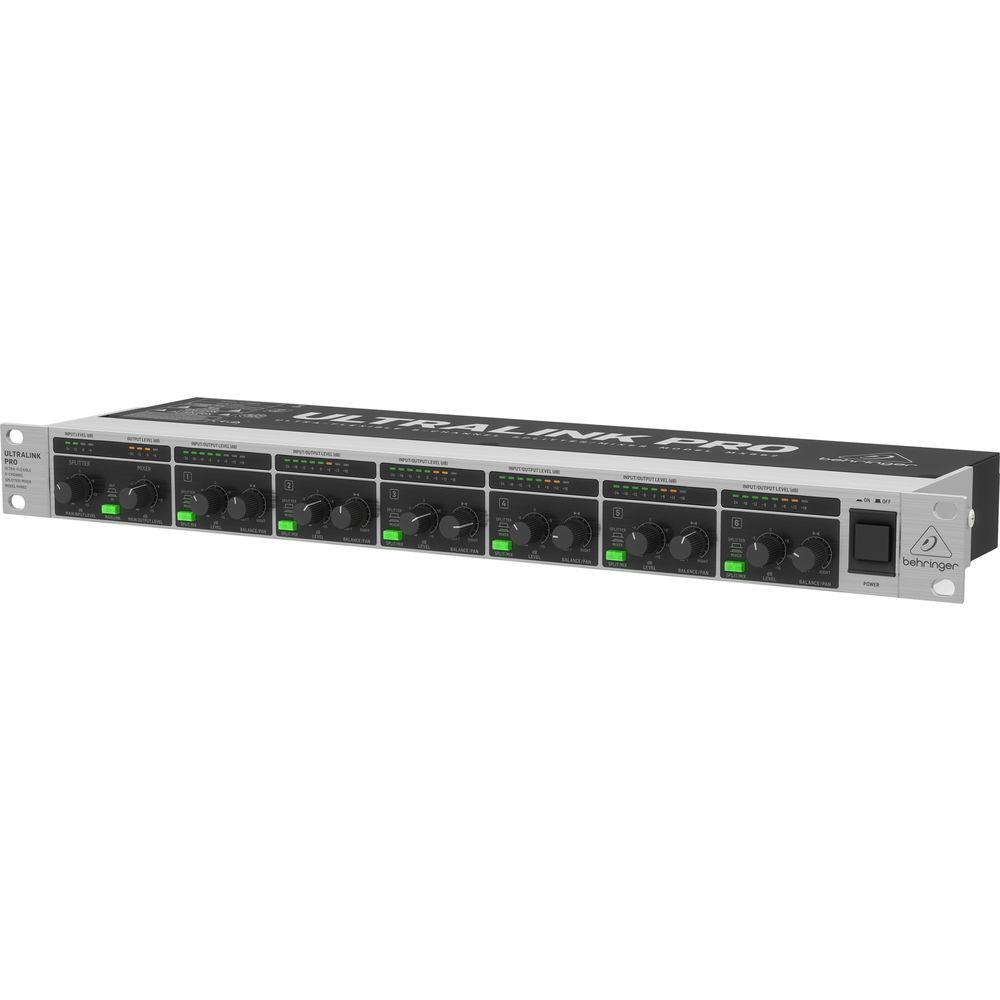

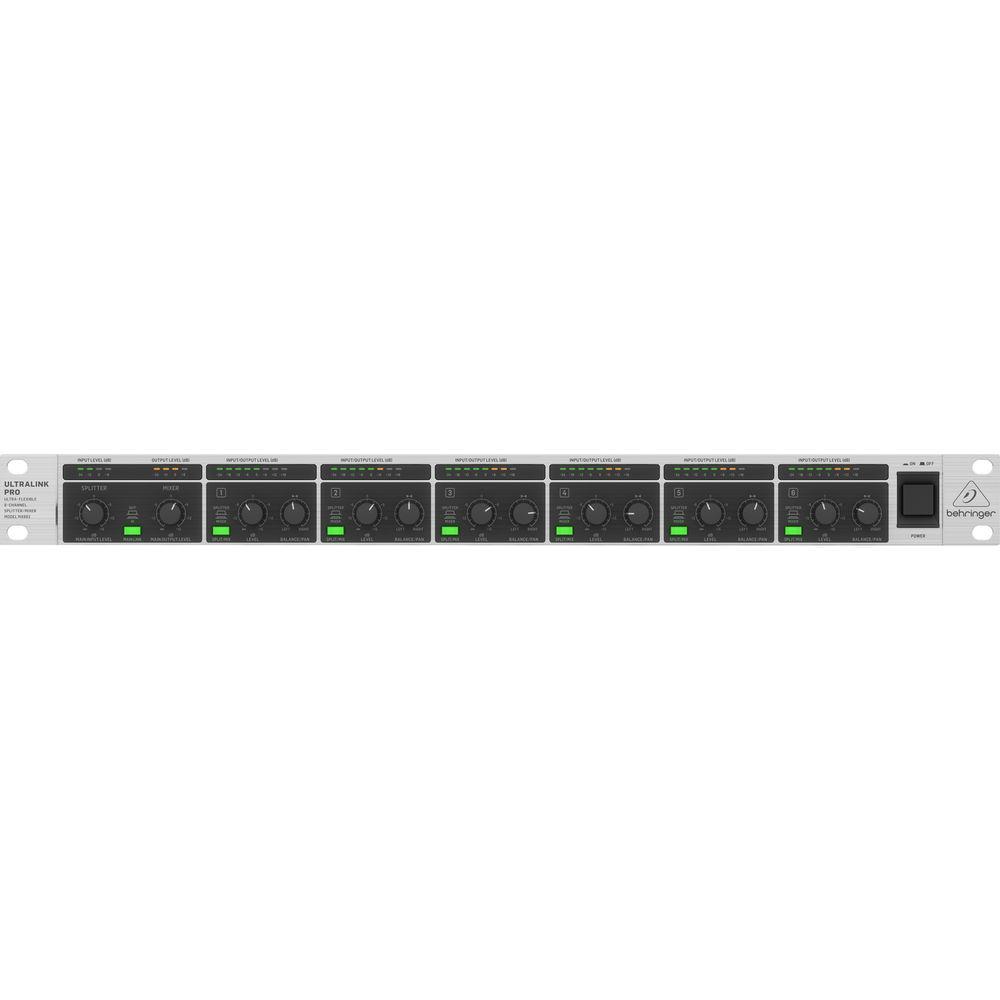

Product description The Behringer ULTRALINK PRO MX882 V2 is an 8-channel splitter/mixer designed to sum, distribute, or level-match signals for musicians, audio engineers, and system installers in clubs, houses of worship, and live stage applications. It can be configured as an 8-input/2-output mixer, a 2-input/8-output splitter, or a 6-input/6-output level matcher for converting between -10 dBV and +4 dBu. Per-channel split/mix mode switches enable easy, flexible setup. The ULTRALINK PRO MX882 V2 boasts a wide, flat frequency response and versatile connectivity including stereo XLR main I/O jacks, four XLR channel inputs and outputs, and two 1/4" channel inputs and outputs. 4-segment level indicators are provided for the main input and output, while the individual channels feature 8-segment LED meters. An internal switch-mode power supply delivers low power consumption and noise-free operation. - Designed for distributing a stereo signal to several outputs (splitter mode), combining multiple signals into a stereo output (mixer mode), or adapting levels of signals for a variety of audio applications (buffer amplifier)
- Ideal for use as a keyboard/drum submixer or as a distribution amplifier for PA systems in clubs, theaters, houses of worship, hotels, communication systems, and more
- Switchable splitter/mixer functionality on a channel-by-channel basis
- Per-channel level controls allow up to +15 dB of gain
- In Split mode, the per-channel balance/pan knob controls the amount of main input signal routed to the channel output
- In Mix mode, the per-channel balance/pan knob adjusts the signal's placement within the stereo field
- Main Link switch allows the stereo main input to be fed to the stereo main output

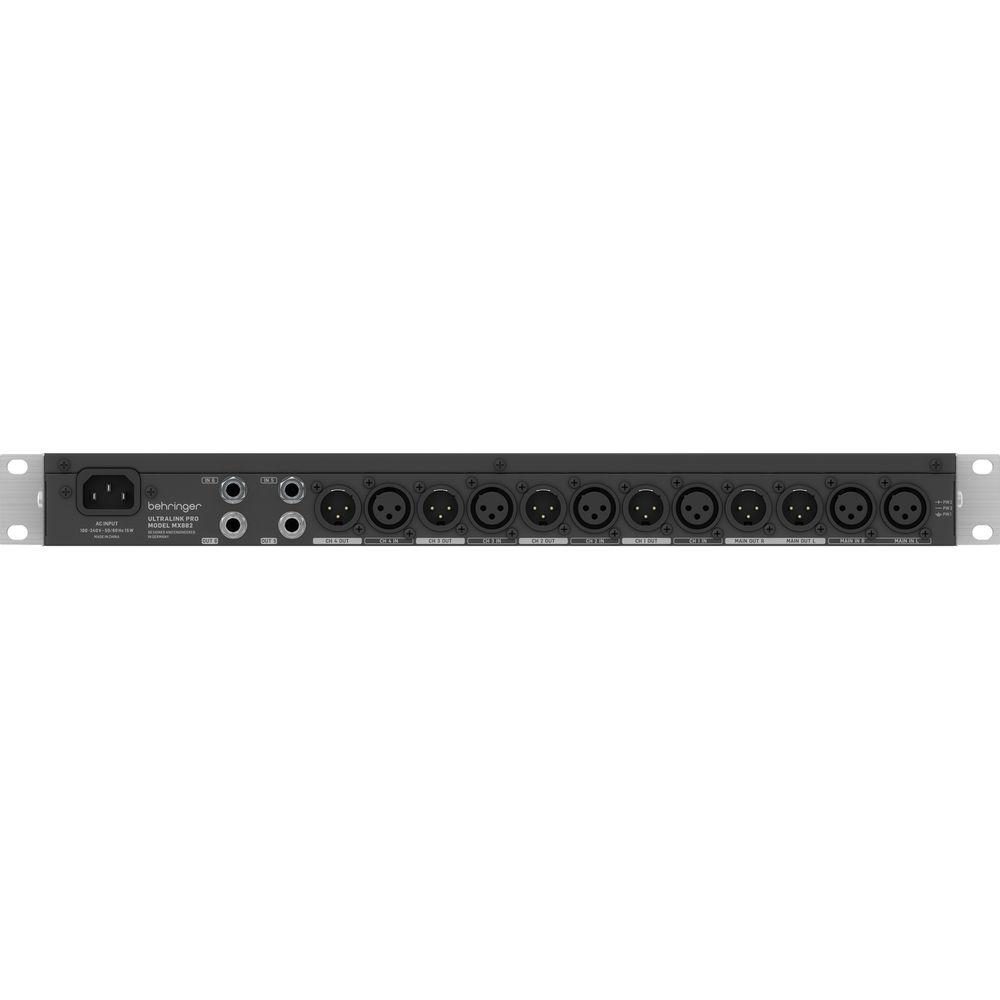

- Stereo XLR balanced main I/O
- Channel 1-4 I/O via XLR 3-pin connectors
- Channel 5-6 I/O via 1/4" TRS jacks
- 4-segment LED indicators for main I/O levels
- 8-segment LED indicators for channel I/O levels
- Internal switch-mode power supply for noise-free audio and low power consumption
- Rack-mountable enclosure occupies 1 RU
UPC: 653341311337 In the Box Behringer ULTRALINK PRO MX882 V2 8-Channel Splitter/Mixer Limited 1-Year Warranty with Extension to 3 Years Upon Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ULTRALINK PRO MX882 V2 8-Channel Splitter Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Behringer ULTRALINK PRO MX882 V2 8-Channel Splitter Mixer can be downloaded in PDF format at the link stated below.
Technical parametersBehringer MX882 V2 Specs | Inputs | 2 x XLR 3-pin balanced main inputs
4 x XLR 3-pin balanced channel inputs
2 x 1/4" TRS balanced channel inputs | | Outputs | 2 x XLR 3-pin balanced main outputs
4 x XLR 3-pin balanced channel outputs
2 x 1/4" TRS balanced channel outputs | | Frequency Response ± 3dB | 10 Hz to 130 kHz | | Signal-to-Noise Ratio (SNR) | >95 dBu (unweighted, 22 Hz to 22 kHz) | | Total Harmonic Distortion (THD) | 0.003% typical at +4 dBu, unity gain | | Input Impedance | 40 kOhms balanced
20 kOhms unbalanced | | Output Impedance | 100 Ohms | | Maximum Input Level | +21 dBu | | Maximum Output Level | +21 dBu | | Nominal Operating Level | -10 dBV to +4 dBu | | CMRR | Typically >55 dB at 1 kHz | | Power Requirement | 100 to 240 VAC, 50/60 Hz
IEC connection | | Power Consumption | 15 W | | Dimensions (H x W x D) | 1.7 x 19.0 x 5.9" / 44 x 483 x 149 mm | | Weight | 3.7 lb / 1.7 kg | | Audio Indicators | 4-Digit LED Input Display (dB): -24, -12, 0, +6
4-Digit LED Output Display (dB): -24, -12, 0, +6
8-Digit LED I/O Displays (dB): -24, -18, -12, -6, 0, +6, +12, +18 | | | | Package Weight | 4.7 lb | | Box Dimensions (LxWxH) | 20.8 x 9.8 x 4.3" |
