User Manual for Behringer Ultralink ULM300USB 2.4 GHz Handheld Digital Wireless System & Dual-Mode Receiver Click to enlarge the picture
Contents of the user manual for the Behringer Ultralink ULM300USB 2.4 GHz Handheld
- Product category: Wireless Systems Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Wireless Systems
 |
User manual for the Behringer Ultralink ULM300USB 2.4 GHz Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

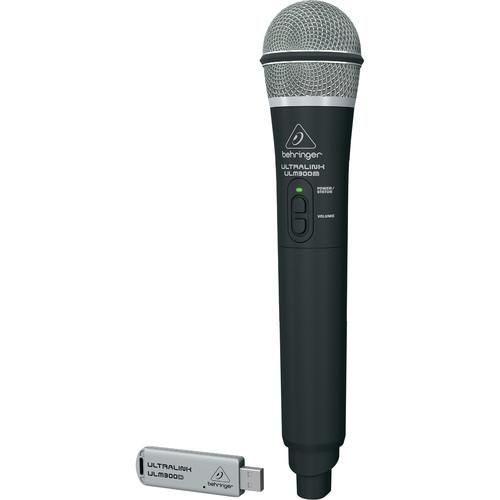

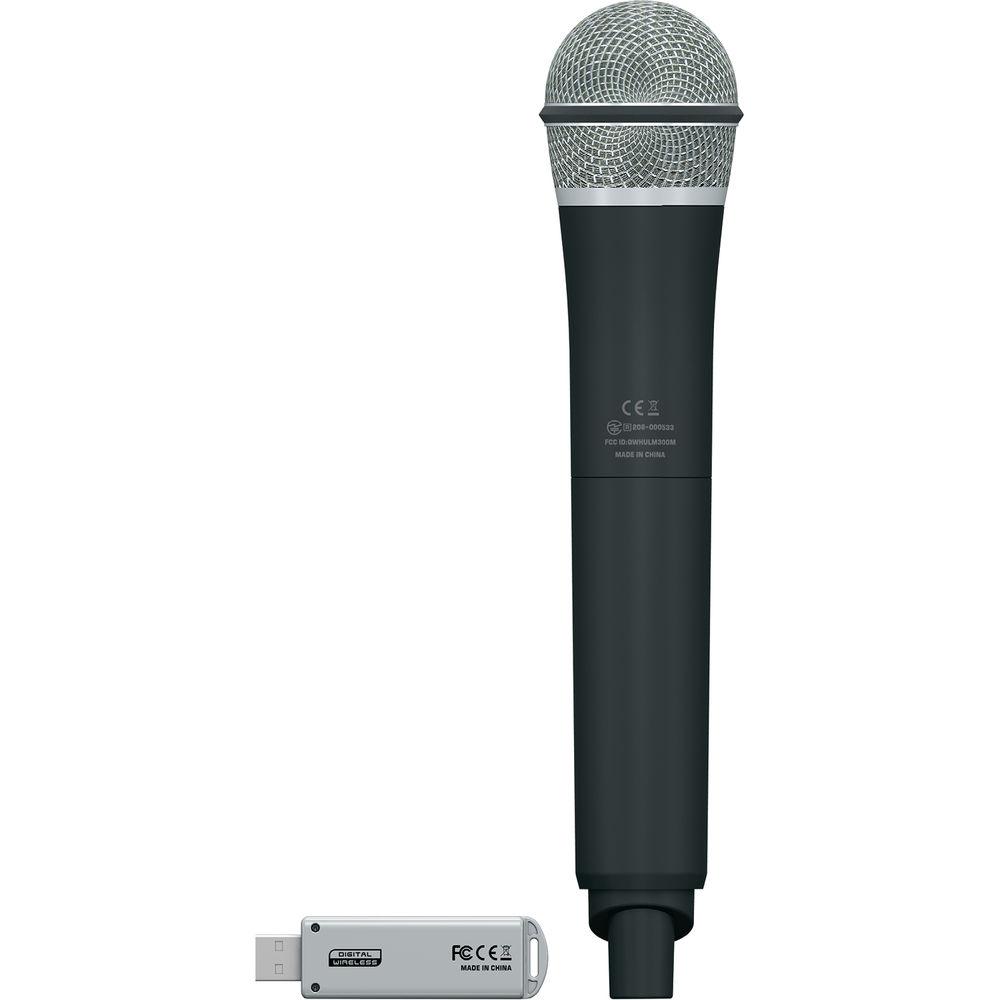

Product description The Ultralink ULM300USB 2.4 GHz Handheld Digital Wireless System & Dual-Mode Receiver from Behringer is for capturing audio to a Mac or Windows computer's USB port. It can be used to record directly into your favorite DAW application or to Behringer's wireless-ready mixers and powered speakers (sold separately). The wireless system operates in the license-free 2.4 GHz range, which is well out of the way of TV stations and cell phone towers, and has a maximum range of 200'. It is digitally encrypted so your signal gets through in all its pristine, high-definition quality without the random artifacts that often plague other wireless systems. Also, you get an honest 24 hours of performance time from a pair of AA alkaline batteries, which are readily available anywhere. Furthermore, the ULM300USB is easy to operate and is built with easy-to-understand and function volume buttons on the transmitter. It also has a handy panic-mute function should you run into a feedback zone. Finally, operating in the 2.4 GHz band allows the ULM300USB wireless microphone system to be used across the globe without any special licensing requirements. - Package includes the ULM300M handheld microphone and ULM300D dual-mode USB receiver
- High-quality microphone capsule for dedicated vocal applications
- Ultra-compact USB receiver with dual-mode analog/digital audio interface
- Digital 2.4 GHz wireless connectivity offers superior sound quality

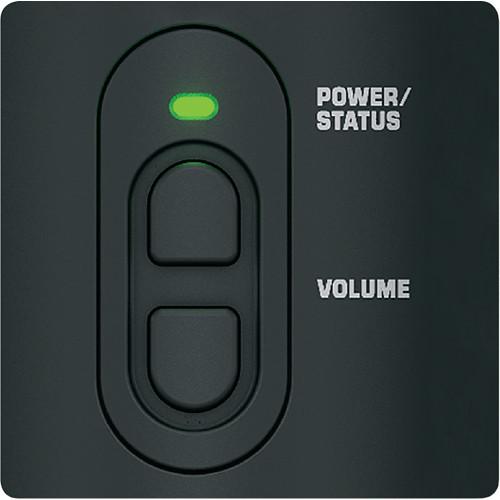

- Integrated volume-up and volume-down buttons on the handheld microphone transmitter
- Panic-mute feature on microphone
- Receiver powered via USB interface
- Auto-sensing of analog or USB digital audio connection
- 2.4 GHz ISM band operation allows license-free use on a worldwide basis
UPC: 748252164940 In the Box Behringer Ultralink ULM300USB 2.4 GHz Handheld Digital Wireless System & Dual-Mode Receiver Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Ultralink ULM300USB 2.4 GHz Handheld Digital Wireless System & Dual-Mode Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer ULM300USB Specs | RF Output | < 10 dBm (10 mW) | | Operating Range | 200' (60 m) | | Dynamic Range | 93 dB, A-weighted | | Equivalent Input Noise | -120 dBu | | Frequency Response | 10 Hz to 20 kHz, ±1 dB (wireless link) | | Sampling Rate | 48 kHz | | Resolution | 24-bit | | Encoding | 4-bit ADPCM (192 kbps) | | Latency | 14.3 ms | | RF Frequency | 2.4 GHz ISM band (2.404 to 2.468 GHz, 17 channels) | | Current Consumption | USB: 70 mA @ 5 VDC | | Battery Type | 2 x AA (LR6) alkaline | | Battery Life | 24 hours | | Dimensions (H x W x D) | Microphone: 10.2 x 2.1 x 2.1" (260 x 53 x 53 mm)
Wireless Receiver: 0.3 x 3.0 x 0.9" (805 x 76.0 x 22.0 mm) | | Weight | Microphone: 0.7 lb (0.3 kg)
Wireless Receiver: 0.02 lb (0.01 kg) | | | | Package Weight | 0.87 lb | | Box Dimensions (LxWxH) | 13.75 x 4.45 x 2.7" |
