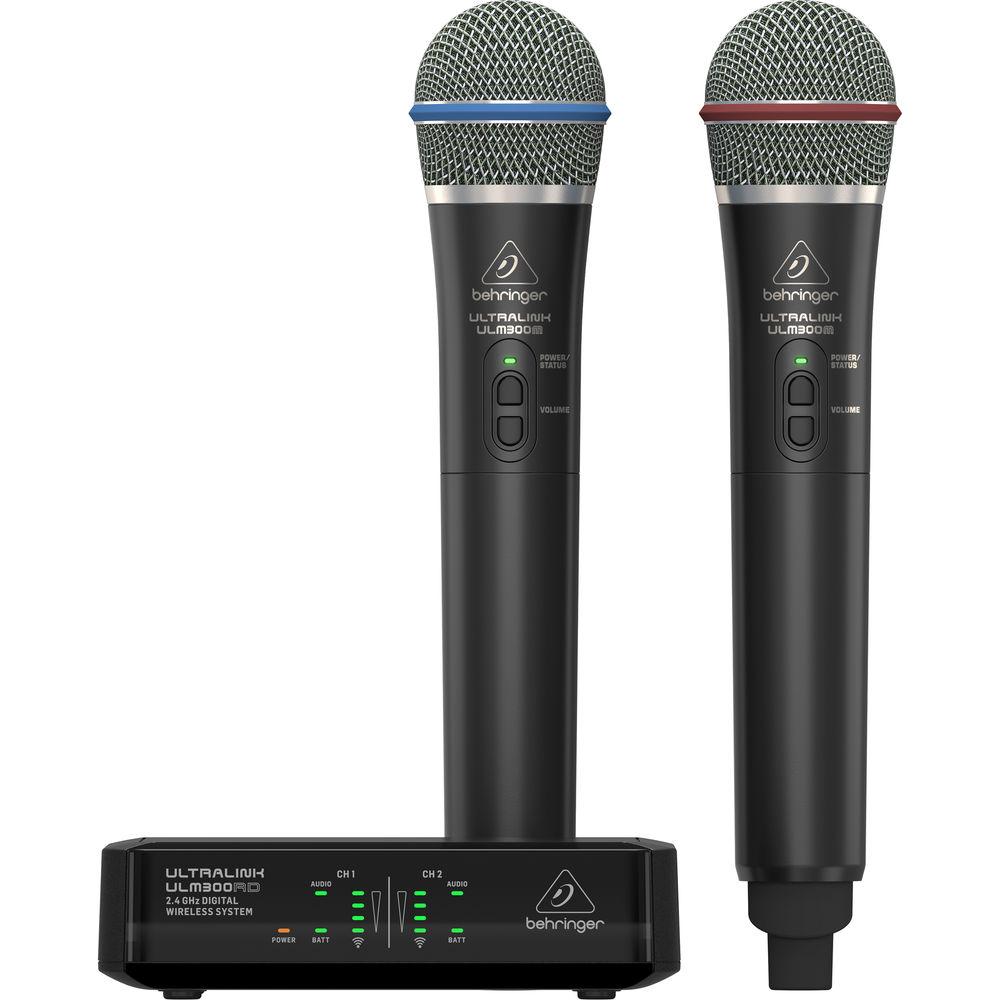

User Manual for Behringer ULTRALINK ULM302MIC 2.4 GHz Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Behringer ULTRALINK ULM302MIC 2.4 GHz Wireless
- Product category: Wireless Systems Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Wireless Systems
 |
User manual for the Behringer ULTRALINK ULM302MIC 2.4 GHz Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

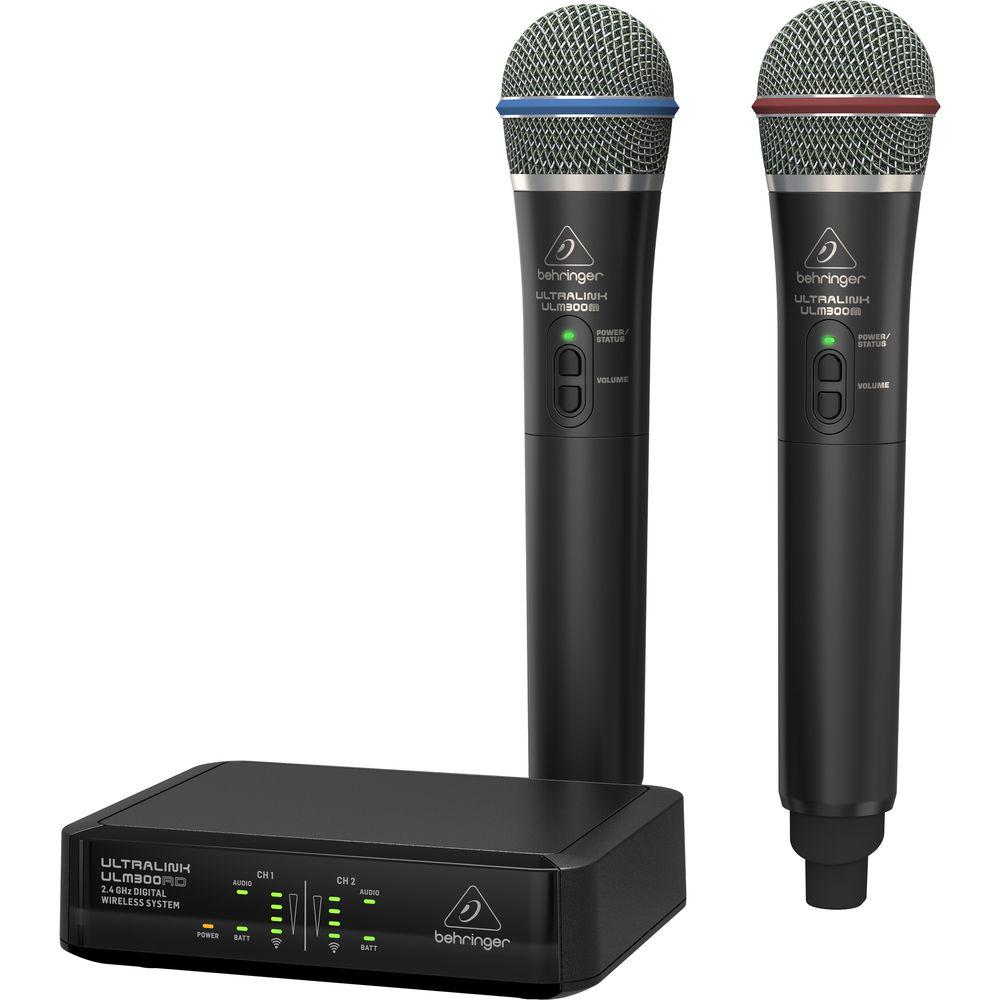

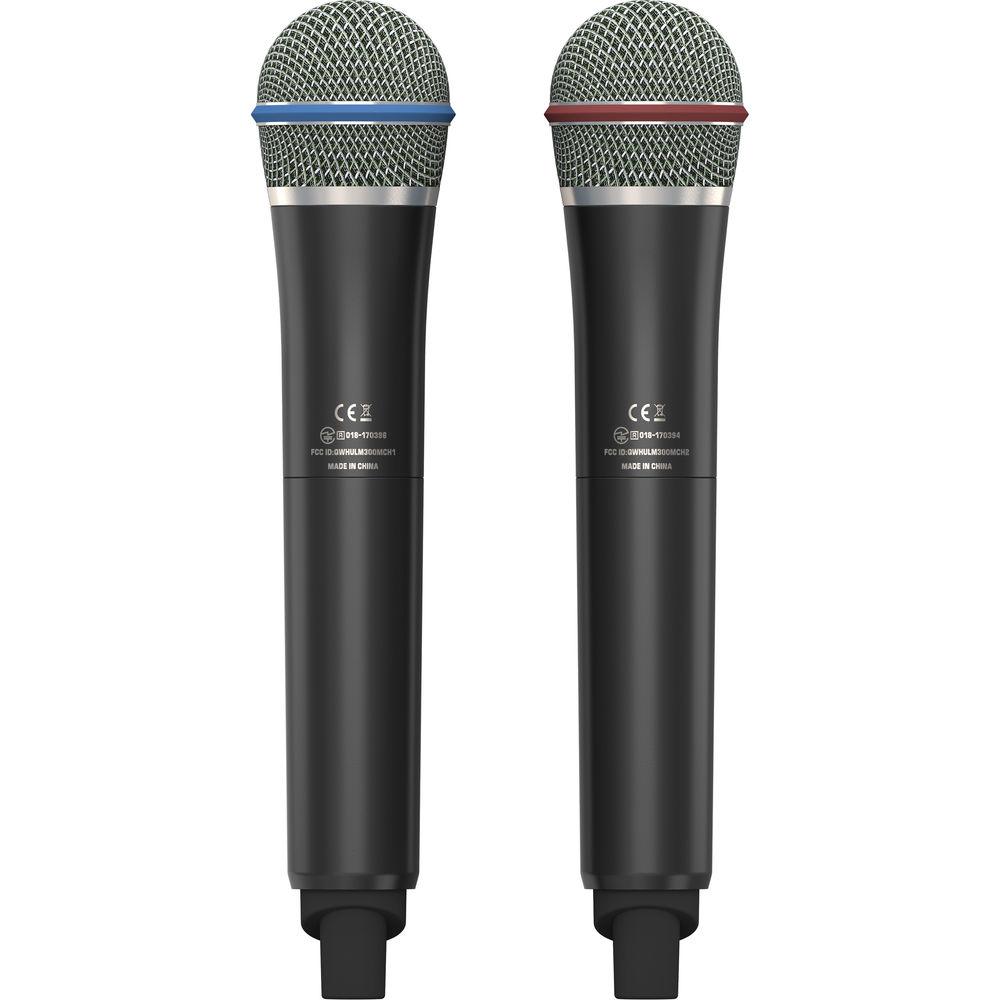

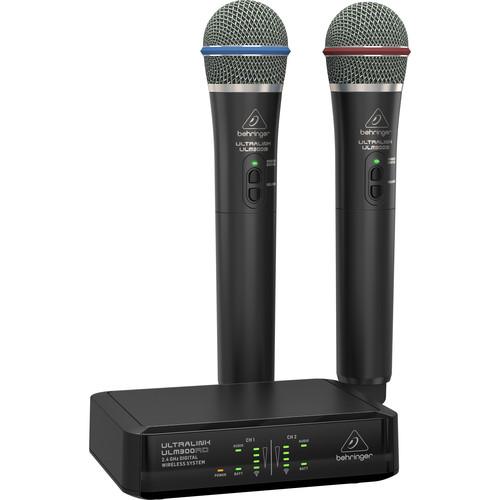

Product description The Behringer ULTRALINK ULM302MIC is a 2.4 GHz wireless microphone system designed to provide out-of-the-box functionality and voice-optimized performance for DJs, vocalists, presenters, and public speakers in clubs, concert venues, conferences, and live stage applications. The included handheld wireless mics and dual-channel receiver automatically pair and communicate via the license-free 2.4 GHz frequency band. Two AA batteries (available separately) allow up to 24 hours of operating time for the mics, which feature integrated volume and mute functions. The wireless receiver, powered via the included 5 VDC power supply, can be used up to 200’ away from the mic and offers balanced XLR and unbalanced 1/4" outputs for simple connection to mixers or PA systems. LED indicators for power and battery status, audio presence, and signal strength ensure that you’re never unsure of what’s happening with your microphone system. - Handheld wireless microphones automatically pair to the dual-channel receiver via digital 2.4 GHz wireless connectivity
- Two AA batteries (available separately) supply each mic with up to 24 hours of operating time
- Maximum range of 200' free of interference from TV stations and cell towers

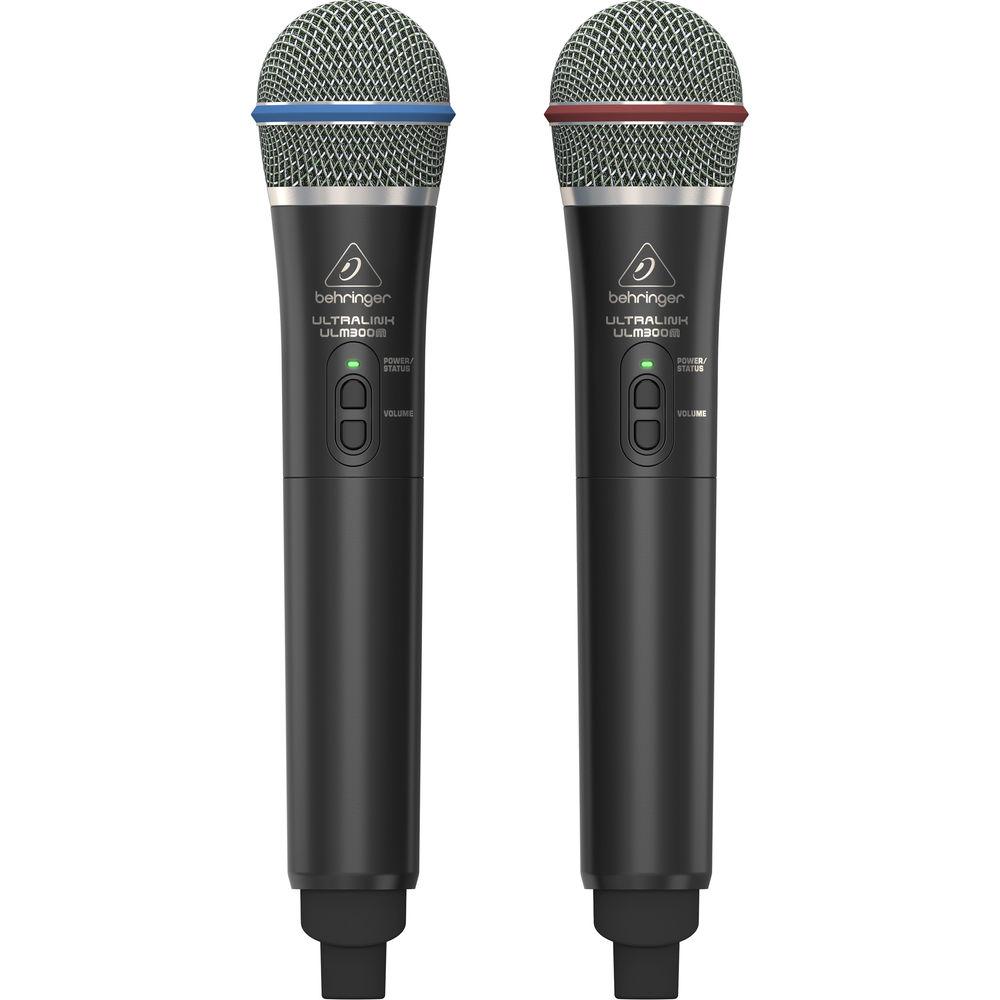

- Volume up and down buttons on each mic
- "Panic Mute" feature—press and hold the Volume Down button to mute each mic

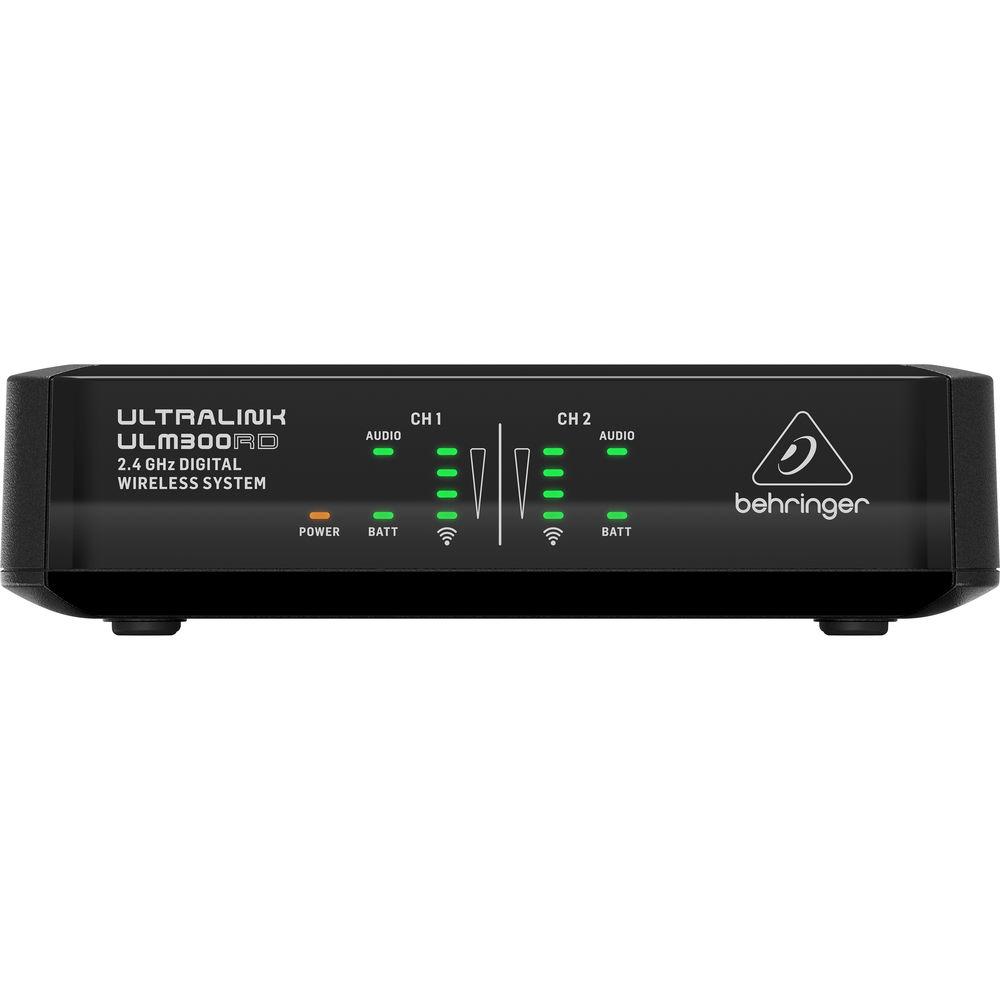

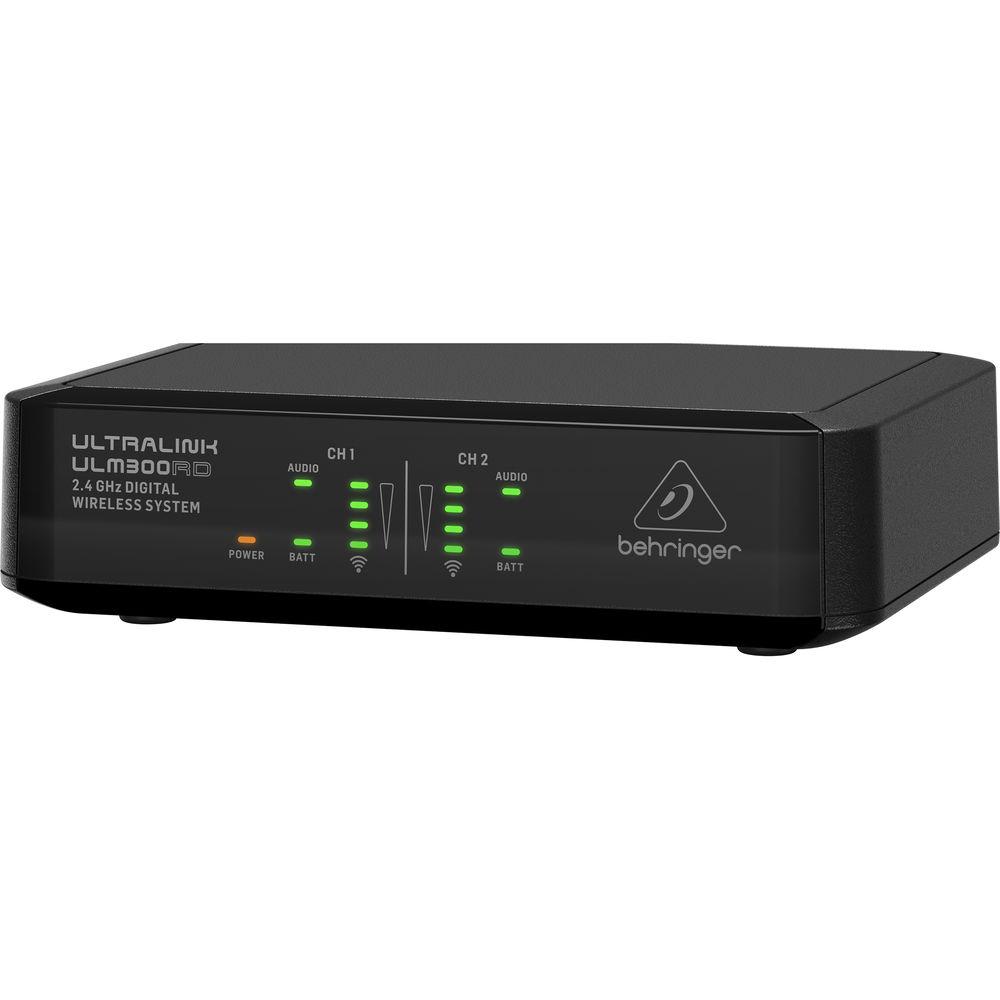

- LED indicators for power and battery status, audio presence, and signal strength

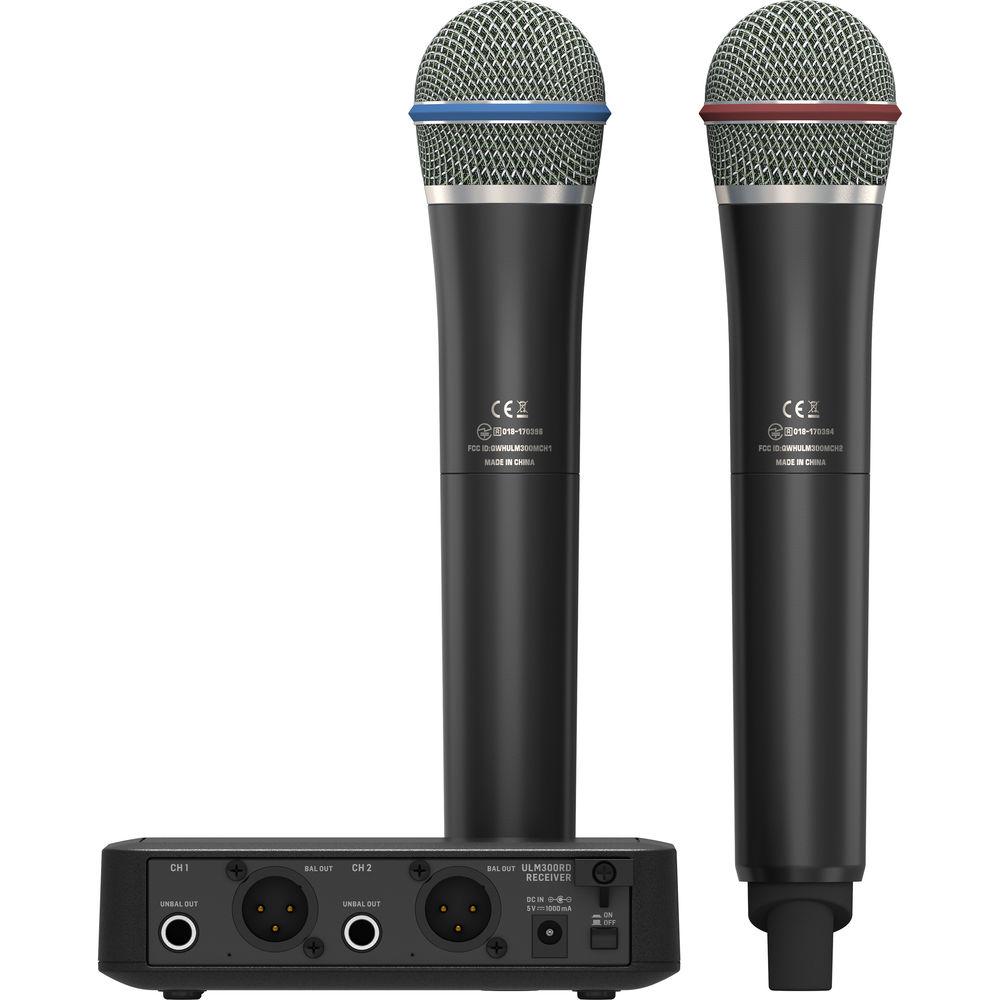

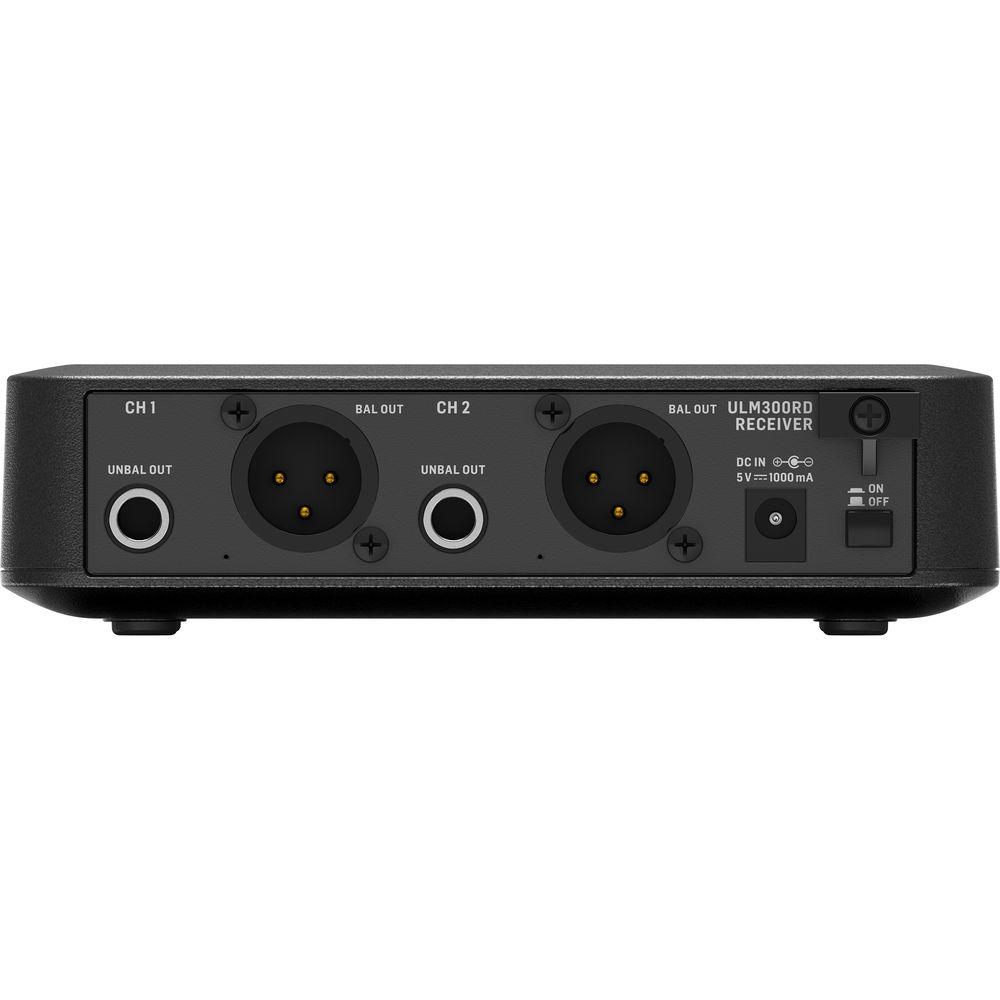

- Balanced XLR 3-pin and unbalanced 1/4" TS outputs
UPC: 653341315236 In the Box Behringer ULTRALINK ULM302MIC 2.4 GHz Wireless Microphone System (Dual-Channel, 2 Mics) 5 VDC Power Supply Limited 1-Year Warranty with 2-Year Extension upon Online Registration within 90 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ULTRALINK ULM302MIC 2.4 GHz Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer ULM302MIC Specs | RF Output | <10 dBm (10 mW) | | Operating Range | 200' / 61 m maximum | | Dynamic Range | 95 dB (A-weighted) | | EIN | -115 dBu, unweighted AT 24 dB gain (600 Ohms) | | Frequency Response | 20 Hz to 20 kHz, +0.1/-1 dB | | Sample Rate | 48 kHz | | Resolution | 24-bit | | Encoding | 4-bit ADPCM (192 kb/s) | | Latency | 14.5 ms | | RF Frequency | 2.404 to 2.476 GHz (37 channels)
2.404 to 2.478 GHz (38 channels) | | Battery Type | 2 x AA (Per Microphone) | | Battery Life (approx.) | > 24 hours, depending on battery type and use pattern | | Dimensions (W x D x H) | Microphones: 10.2 x 2.1 x 2.1" / 260 x 53 x 53 mm
Dual-Channel Receiver: 1.6 x 5.9 x 4.7" / 41 x 150 x 119 mm | | Weight | Microphone: 0.7 lb / 0.3 kg
Dual-Channel Receiver: 0.6 lb / 0.3 kg | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 13.2 x 12.2 x 3.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Behringer ULTRALINK ULM302MIC 2.4 GHz Wireless Microphone System
| Subject: one of my mics doesn't pair with the receiver | | Date: 03.12.2021 04:09:56 | Name: Engelbert Engelbert | | one of the Handheld wireless microphones does not pair automatically pair to its channel receiver via digital 2.4 GHz wireless connectivity. when I purchased it was ok but suddenly won't pair. The light indicator on the mic still works, the receiver one channel is ok but the other won't pair. please help. | | Post reply |
