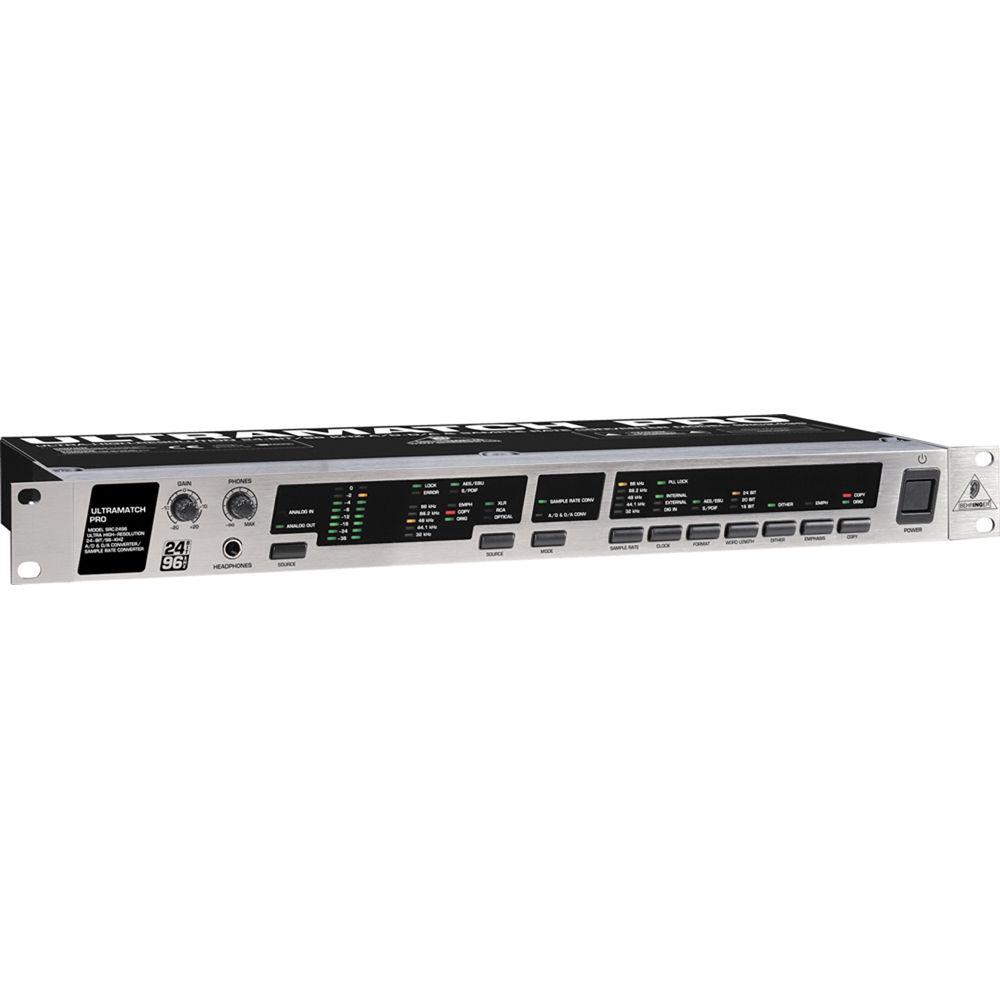

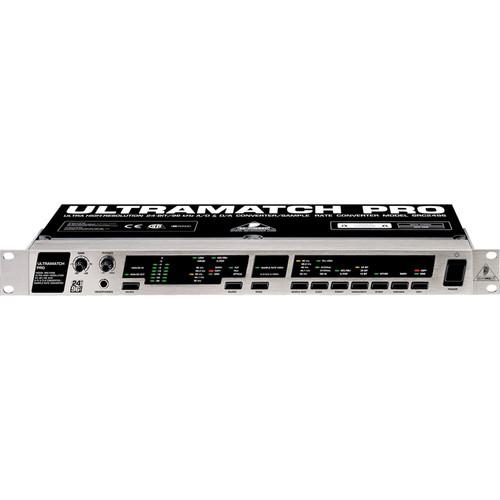

User Manual for Behringer ULTRAMATCH PRO SRC2496 High-Resolution Sample Rate Format Converter Click to enlarge the picture
Contents of the user manual for the Behringer ULTRAMATCH PRO SRC2496 High-Resolution Sample
- Product category: Format Converters Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Format Converters
 |
User manual for the Behringer ULTRAMATCH PRO SRC2496 High-Resolution Sample contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - ULTRAMATCH PRO SRC2496 Audiophile 24-Bit/96 kHz A/D-D/A & Sample Rate Converter
The ULTRAMATCH PRO SRC2496 is a two channel analog to digital and digital to analog converter and sample rate converter. It enables the user to transfer digital audio signals between devices with different sample rates, formats or interfaces and remove dropouts or jitter from digital media and as such is perfectly suitable for studio work. Simultaneously operable outputs offer splitter functionality and the unit features high-quality 24-bit/96kHz A/D and D/A conversion. The ULTRAMATCH PRO SRC2496 can also perform format conversion between AES/EBU and S/PDIF (coaxial or optical) with high-quality signal output at 16, 20, or 24-bit resolution. Universal sample rate synchronization is done via word-clock or digital input. RCA and optical outputs are simultaneously operational with separately selectable inputs, turning this unit into a digital patch bay. - A/D and D/A Converters
- High-end 24-bit/96kHz A/D and D/A converters for ultimate signal purity
- Sample Rate Conversion
- Converts any sample rate between 31 and 100kHz into 32, 44.1, 48, 88.2 or 96kHz sample rates
- Format Converter and Digital Splitter
- Flexible format conversion between AES/EBU and S/PDIF (coaxial or optical) and all three outputs (XLR, RCA, optical) simultaneously operational (splitter)
- Dither
- Dithering automatically adapted for word length conversion
- Universal sample rate synchronization via Wordclock or digital input
- Ultra high-quality signal output with 16, 20 and 24-bit resolution
- Allows parallel A/D and D/A conversion at identical sample rate
- Extremely fast tracking supports varispeed applications
- Self-adjusting anti-aliasing filter with exceptionally steep edge
- Allows direct manipulation of emphasis bits and other significant, digitally transmitted information in order to record virtually any audio signal
- Inputs separately selectable (patchbay functionality)
UPC: 689076812283 In the Box Behringer ULTRAMATCH PRO SRC2496 High-Resolution Sample Rate/Format Converter AC Power Cord Limited 1-Year Warranty, Extendable to 3-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer ULTRAMATCH PRO SRC2496 High-Resolution Sample Rate Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer SRC2496 Specs | ADC | 24-bit/96 kHz, 128/64x oversampling delta-sigma AKM | | DAC | 24-bit/96 kHz, 128x oversampling delta-sigma AKM | | Sample Rates | Internal: 32, 44.1, 48, 88.2 and 96 kHz

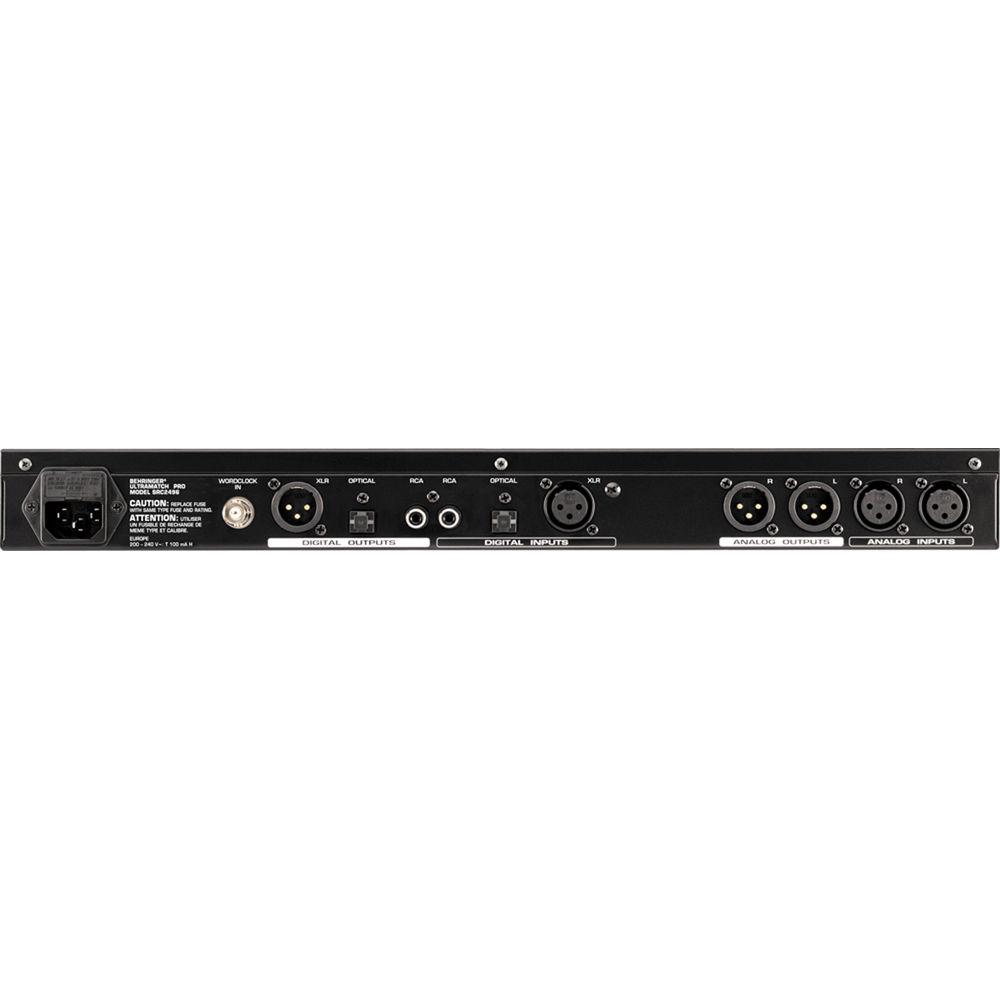

External: Accepts between 31 and 100 kHz, automatic synchronization by PLL | | Analog Inputs | 2 x XLR female, balanced | | Analog Outputs | 2 x XLR male, balanced | | Digital Input | 1 x XLR AES/EBU
1 x TosLink optical S/PDIF
1 x RCA coaxial S/PDIF | | Digital Output | 1 x XLR AES/EBU
1 x TosLink optical S/PDIF
1 x RCA coaxial S/PDIF | | Word Clock | 1 x BNC, input only | | Power Requirements | 120V, 60 Hz | | Dimensions (WxDxH) | 19 x 7.5 x 1.75" (483 x 191 x 44 mm) | | Weight | 4.4 lb (2 kg) | | Specialties | All three digital outputs available simultaneously | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 21.0 x 12.0 x 4.0" |
