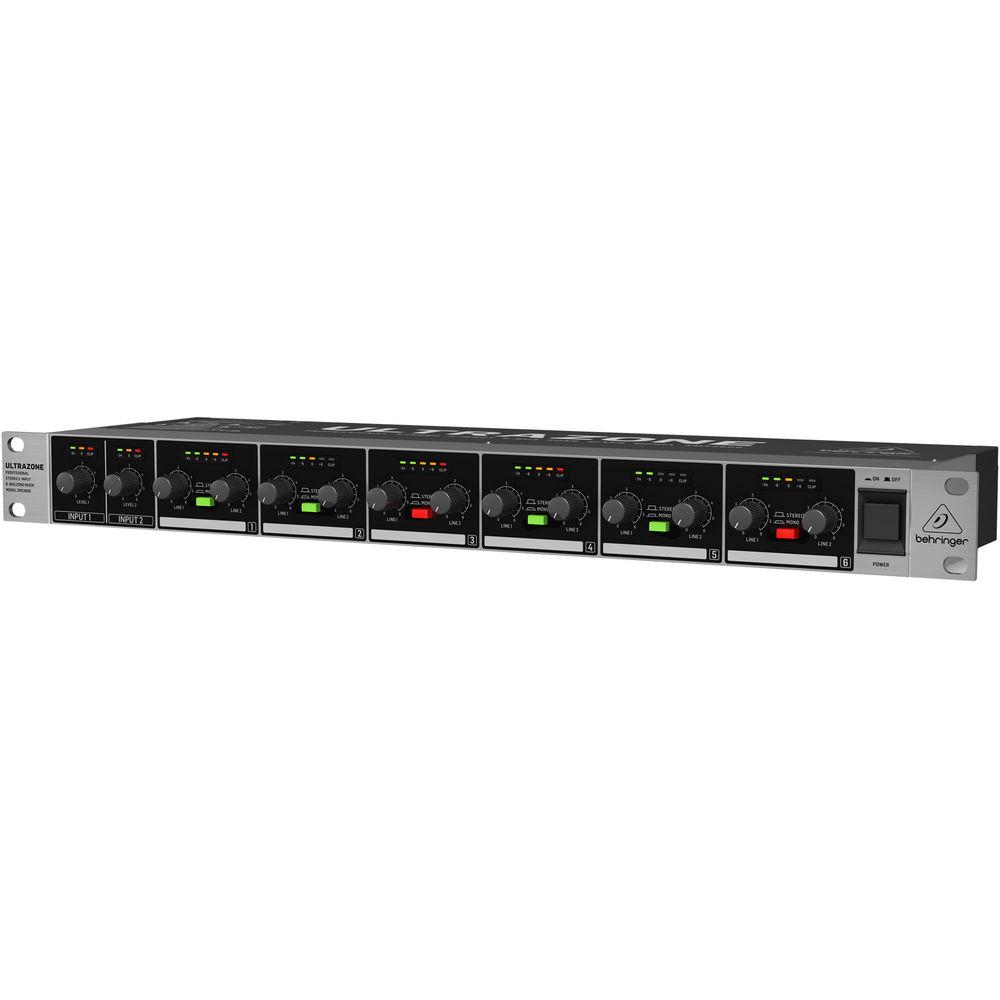

User Manual for Behringer Ultrazone ZMX2600 - Professional Stereo 2-Input 6-Bus Zone Mixer Click to enlarge the picture
Contents of the user manual for the Behringer Ultrazone ZMX2600 - Professional Stereo
- Product category: Install Sound Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Install Sound Mixers
 |
User manual for the Behringer Ultrazone ZMX2600 - Professional Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

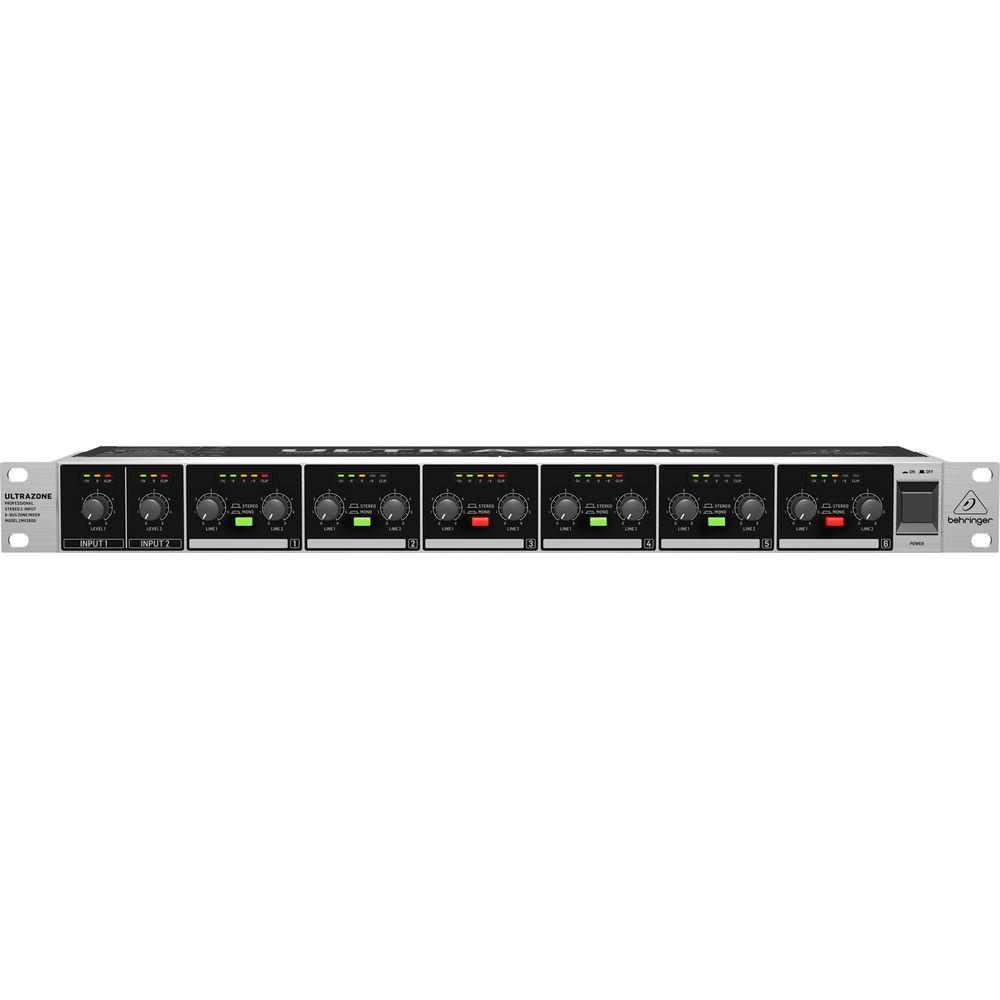

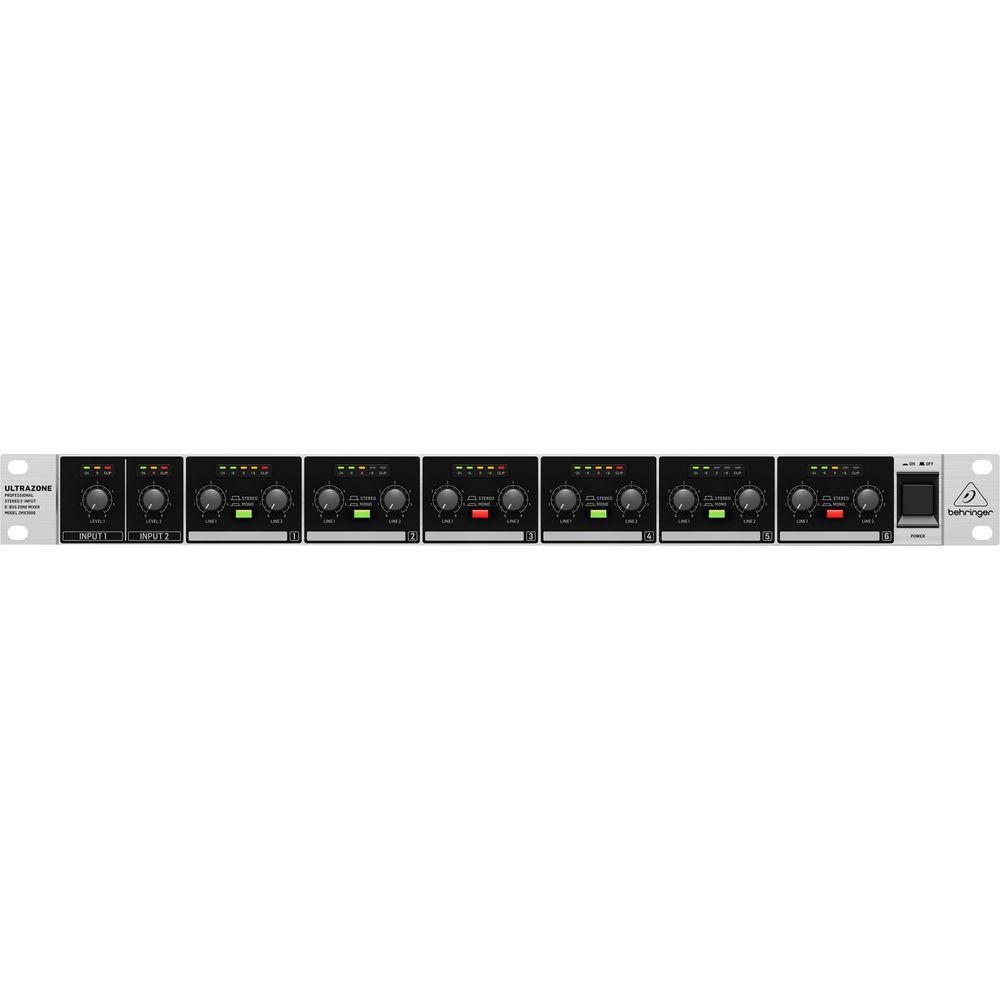

Product description The Behringer Ultrazone ZMX2600 Professional Stereo 2-Input/6-Output Zone Mixer is an efficient and cost-effective solution for audio routing applications for bars, restaurants, commercial retail, offices, etc. The mixer features two balanced XLR inputs with level controls and a 3-segment level LED meter, while the six stereo output zones offer independent control of the two inputs sources, a 5-segment LED level meter for each zone, and includes a mono/stereo switch. Mono sums the left and right and outputs on both XLR outputs of each zone. -
- Flexible and easy-to-use stereo zone mixer for commercial sound systems and fixed installation applications
- Two ultra-low noise line inputs with level controls for stereo or mono sources
- Six stereo zone output channels each featuring source 1 and 2 level controls
- Source 1 and 2 input channels are internally routed to all 6 zone channels
- Stereo/mono switch on each zone sums left and right signal into mono mode
- Separate 5-segment LED meters for each zone channel to indicate signal activity

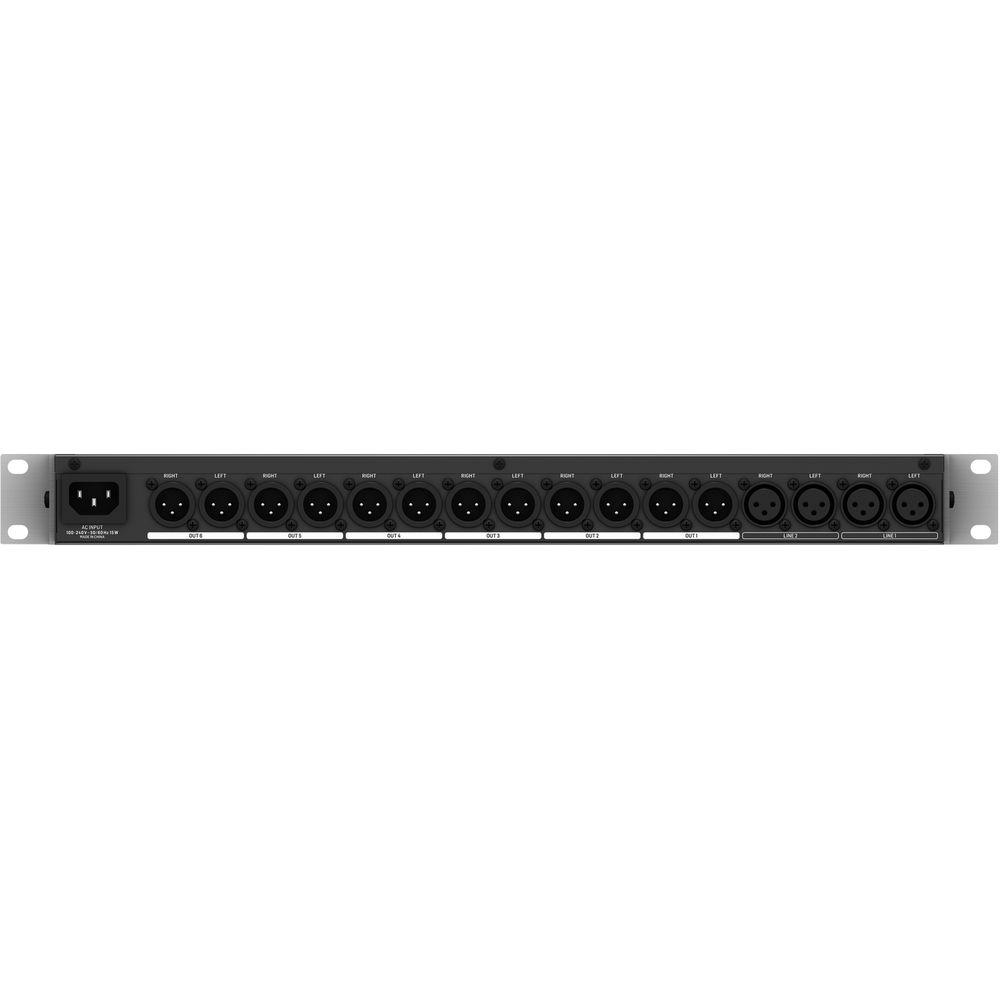

- Servo-balanced inputs and outputs with gold-plated XLR connectors
- "Planet Earth" switching power supply for maximum flexibility (100-240 VAC), noise-free audio, superior transient response plus low power consumption for energy savings
UPC: 748252170743 In the Box Behringer Ultrazone ZMX2600 - Professional Stereo 2-Input 6-Bus Zone Mixer Power Cord Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Ultrazone ZMX2600 - Professional Stereo 2-Input 6-Bus Zone Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer ZMX2600 Specs | | | Type | XLR balanced, L/R | | Impedance | 44 kOhms balanced / 22 kOhms unbalanced | | Maximum Input Level | +21 dBu | | Maximum Gain | +10 dBu | | Crosstalk | >80 dB @ 1 kHz | | CMRR | >40 dB @ 1 kHz, 22 Hz to 22 kHz | | Controls | Stereo input level knob | | Display | -24 dB, 0 dB, clips LEDs | | | | Type | XLR servo balanced, L/R | | Maximum Gain | Maximum Gain: 0 dB
Maximum Gain (Input/Output): 10 dB | | Impedance | 50 Ohms balanced and unbalanced | | Maximum Output Level | 21 dBu balanced and unbalanced | | Crosstalk | Crosstalk (L/R): >80 dB at 1 kHz | | Noise | Noise (All Level Controls Down): -104 dBu A-weighted | | Signal to Noise Ratio (SNR) | 97 dB @ 0 dB A-weighted | | Controls | Output Controls: 2 x Stereo output level knob, mono/stereo switch | | Display | Output Display: -24, -6, 0, +6 dB, clip LEDs | | | | Frequency Response | <10 Hz to 25 kHz ±0.5 dB | | THD + N | Distortion (THD+N): <0.008% | | | | Power | Type: Switch-mode power supply
Voltage: 100 - 240 VAC, 50/60 Hz
Power Consumption: 15 W
Connector: Standard IEC connector | | Dimensions (H x W x D) | 1.7 x 19.0 x 5.7" / 43.2 x 482.6 x 144.8 mm | | Weight | 3.8 lb / 1.7 kg | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 20.7 x 9.7 x 4.2" |
