Product description - X-MADI High-Performance 32-Channel MADI Expansion Card for X32

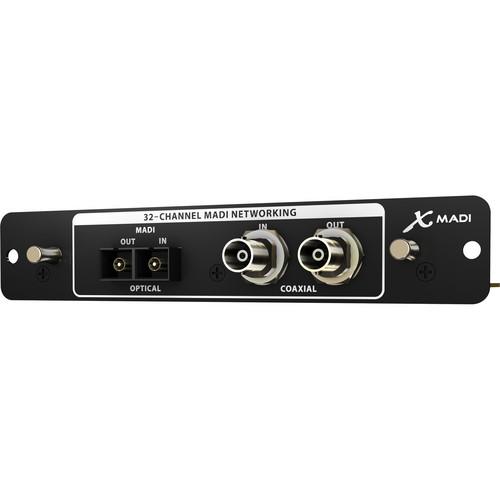

The Behringer X-MADI 32-Channel MADI Expansion Card for X32 Digital Mixing Console is designed to expand the recording capacities of the mixer through the MADI or AES10 protocol. The card plugs into the expansion port on the back of the mixer and provides 32 simultaneous bi-directional channels of I/O through two optical duplex SC-plugs (IEC874-19) or through two BNC terminals. The optical sc-plugs support multimode fiber optic cable lengths of up to 2 km and the BNC terminals support 75Ω coaxial cables up to 100 m. The BNC terminals can be used simultaneously with the optical SC-plugs as a redundant network for fiber optic installations.
The system supports both the 56-Channel MADI format (AES10-1991) and the 64-Channel MADI format (AES10-2003). With the card installed, the X32 digital mixing console will allow you to select a 32-channel block out of the available 64 MADI channels. UPC: 696859054600 In the Box Behringer X-MADI 32-Channel MADI Expansion Card for X32 Digital Mixing Console Limited 1-Year Warranty, Extendable to 3-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer X-MADI 32-Channel MADI Expansion Card for X32 Digital Mixing Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer X-MADI Specs | I/O | 32 bi-directional MADI
2x optical duplex SC-plugs (in and out)
2x BNC terminals | | Cable Length | Optical: Up to 6,562' (2 km)
Coaxial: Up to 328' (100 m) | | Cable Impedance | 75 Ω coaxial | | Supported Formats | 56-Channel MADI (AES10-1991)
64-Channel MADI (AES10-2003) | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.785 lb | | Box Dimensions (LxWxH) | 8.1 x 7.05 x 2.05" |
