Behringer X-TOUCH COMPACT Universal Control Surface

Search your instruction manual in PDF to download

User Manual for Behringer X-TOUCH COMPACT Universal Control Surface

Click to enlarge the picture
Behringer X-TOUCH COMPACT Universal Control Surface Contents of the user manual for the Behringer X-TOUCH COMPACT Universal Control Surface
  • Product category: Control Surfaces Behringer
  • Brand: Behringer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Behringer Control Surfaces

Behringer X-TOUCH COMPACT Universal Control Surface Behringer X-TOUCH COMPACT Universal Control Surface Behringer X-TOUCH COMPACT Universal Control Surface
User manual for the Behringer X-TOUCH COMPACT Universal Control Surface contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Behringer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!



Product description

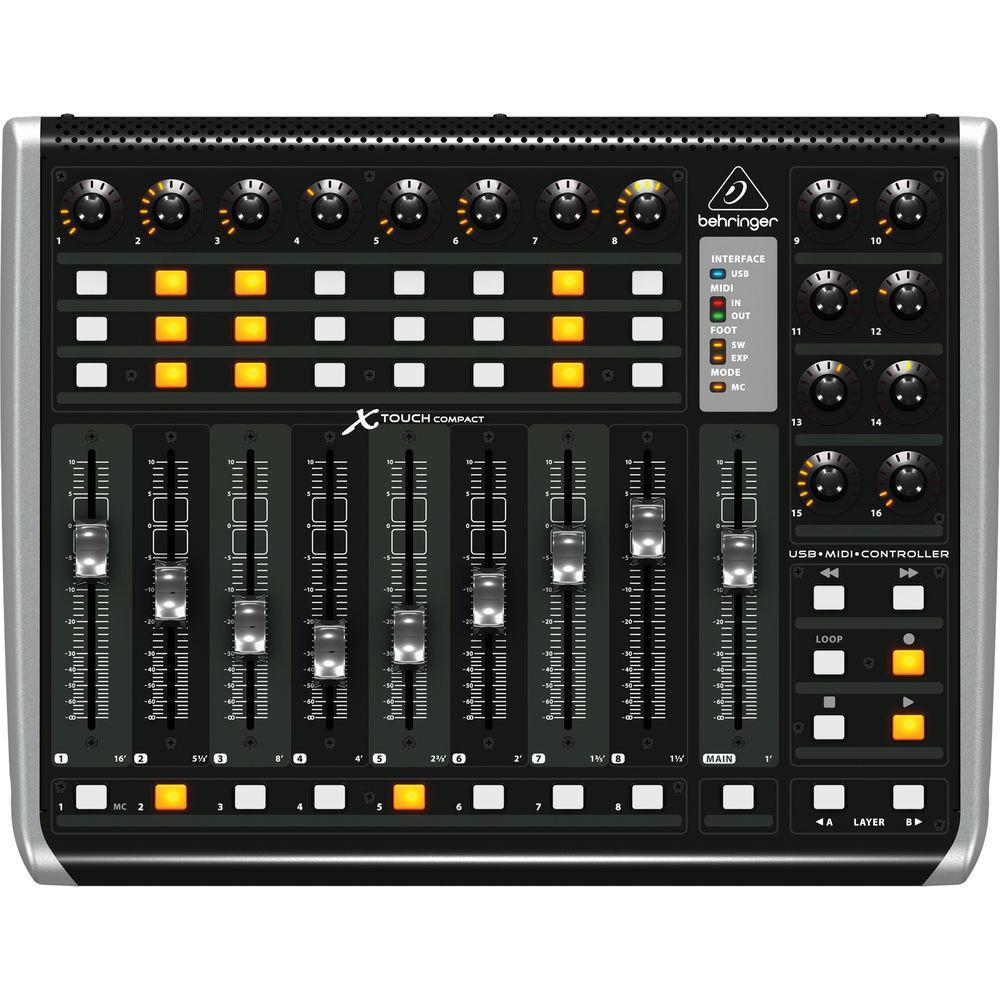

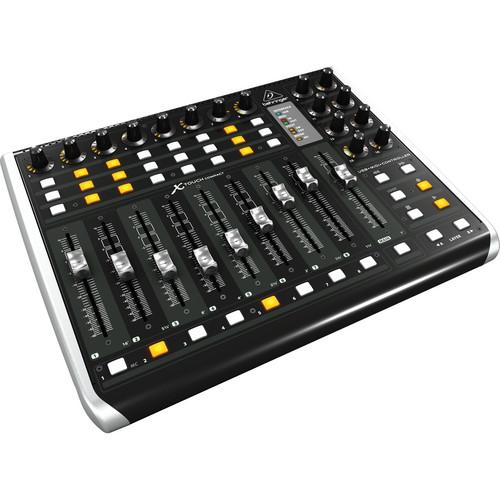

  • X-TOUCH COMPACT Universal USB/MIDI Controller with 9 Touch-Sensitive Motor Faders
The X-TOUCH COMPACT Universal Control Surface from Behringer is designed to provide you with hands-on control over your DAW and MIDI controllable instruments via Mackie control protocol. It features 9 touch sensitive, motorized 100mm faders, 16 rotary controls with LED collars, and an additional 39 dedicated illuminated buttons, including transport control. The controller's dual-layer mode allows you to switch between DAW and instrument control with the press of a button.

The controller can connect to your Mac or PC via USB and can function as a MIDI interface thanks to its 5-pin DIN MIDI I/O/. Its 2 additional USB ports allow you to connect 2 other controllers for simultaneous use. While the X-TOUCH COMPACT is pre-configured to work out of the box, an editor application for in-depth configurations can be downloaded from Behringer.
    Universal Control
  • Today's DAWs, instruments, effects and lighting applications are designed to interface with controllers that enable users to make high-precision changes with minimal effort. Built-in Mackie Control emulation allows your X-TOUCH COMPACT to work with virtually any professional audio production software imaginable - as soon as you take it from the box - no setup required
    Faders That Move with Your Music
  • The X-TOUCH COMPACT features 9 fully automated and touch-sensitive 100mm motorized faders. Every move or automation you write can be seen in the movements of each fader in real time, synced with your DAW
    Control More
  • Dual-Layer Mode provides fast switching between DAW and instrument control. Preconfigured control elements let you connect the X-TOUCH COMPACT for instant operation right out of the box
    Illuminated Buttons
  • 16 rotary controls featuring LED-collars that provide an amber-hued visual read out coupled with 39 illuminated buttons to make the X-TOUCH COMPACT a feast for the eyes as well as the hands. They provide direct access to preconfigured or user-mapped key functions. Know in color if a channel is muted or soloed and see how hot the level is pumping as you make changes during recording or mixing. Arm multiple tracks or adjust panning at the same time. The built-in USB interface allows you to connect the COMPACT directly to your Mac or PC for right out-of-the-box installation - no drivers required
    A Tale of Two MIDIs
  • USB and 5-pin MIDI integration means you'll be able to interface with more of your favorite devices. Connect to a computer via the primary USB port, while simultaneously connecting an external MIDI device
    Connect, Control, Expand
  • The dedicated footswitch connector and one foot controller input provides external remote control. The powered multi-TT USB hub provides connectivity for 2 more controllers so it can grow with your career. A "Planet Earth" switching power supply gives you maximum flexibility and efficiency for energy savings
UPC: 748252139542 In the Box Behringer X-TOUCH COMPACT Universal Control Surface
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Behringer X-TOUCH COMPACT Universal Control Surface in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Behringer X-TOUCH COMPACT Specs

    Controls 9 x automated, touch-sensitive 3.9" / 100 mm motorized faders
    16 x rotary controls with LED collars
    39 x dedicated illuminated buttons

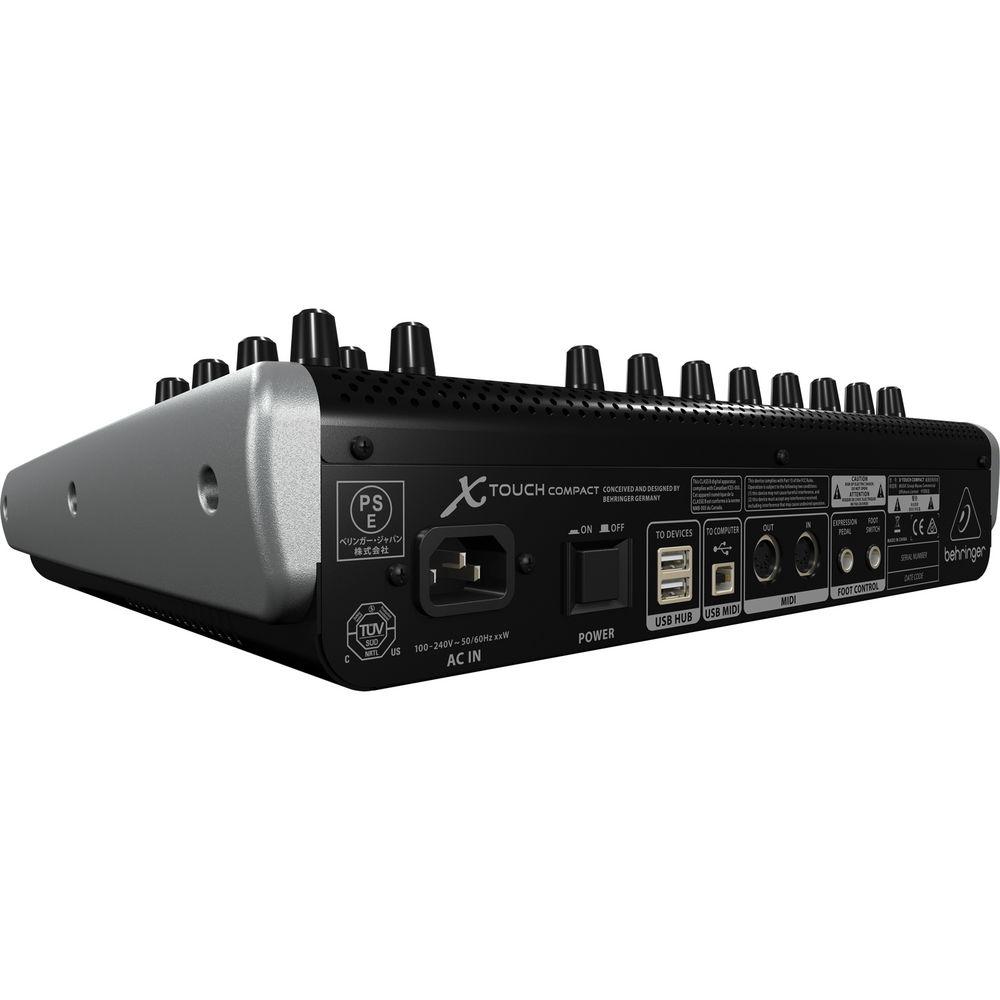

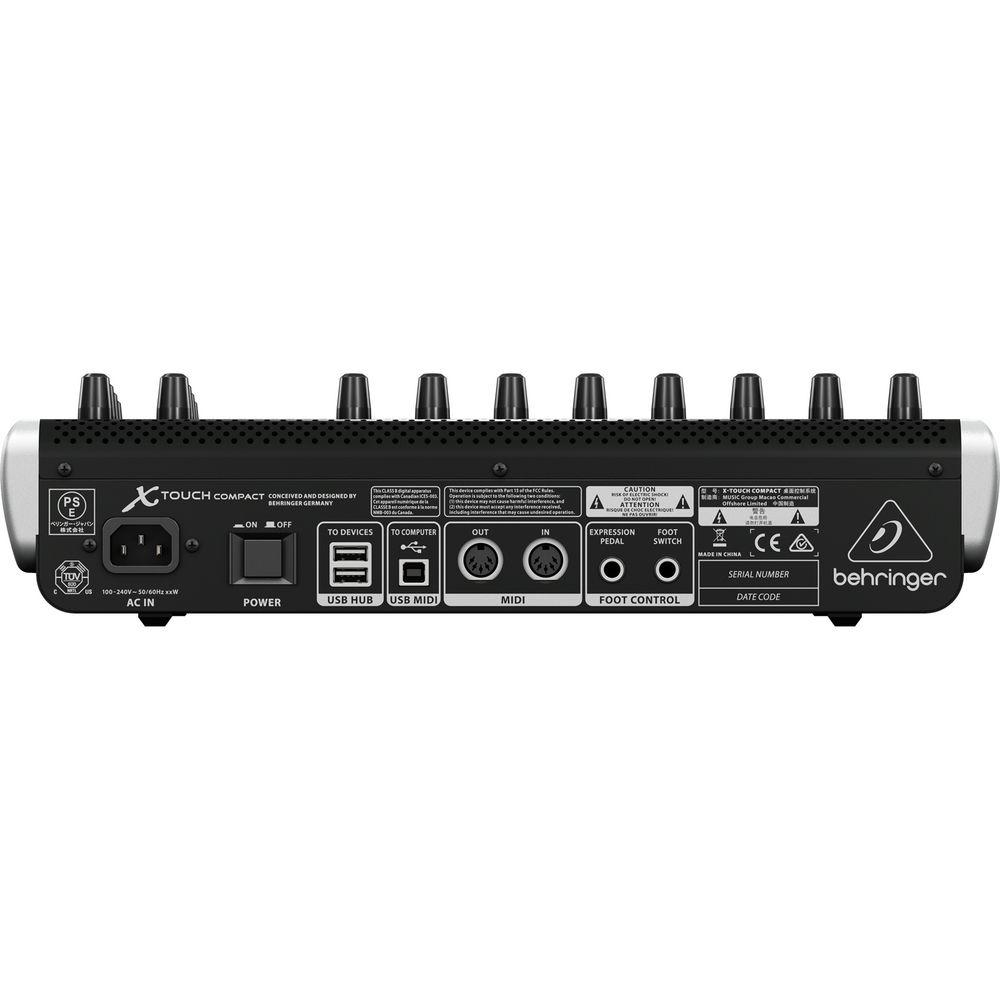

    Connections USB Hub Type: Multi-TT USB 2.0
    USB Hub Ports: 2 x USB Type A
    USB to Computer Port: 1 x USB Type B
    1 x 5-pin DIN MIDI input
    1 x 5-pin DIN MIDI output
    1 x 1/4" / 6.3 mm TS footswitch (sustain) input
    1 x 1/4" / 6.3 mm TS foot control (expression) input Hub active only when unit is in USB mode
    Protocols Supported Mackie Control
    Power Supply Type: Internal switch mode power supply
    Voltage: 100 - 240 VAC, 50/60 Hz
    Fuse: T 1A H 250 V
    Power Consumption: 25 W
    Mains Connection: Standard IEC receptacle
    Temperature (Operating) 41 to 104ºF / 5 to 40ºC
    Dimensions (H x W x D) 3.9 x 15.4 x 11.9" / 100 x 391 x 301 mm
    Weight 8.2 lb / 3.7 kg
    Package Weight 10.9 lb
    Box Dimensions (LxWxH) 19.5 x 14.9 x 6.7"
