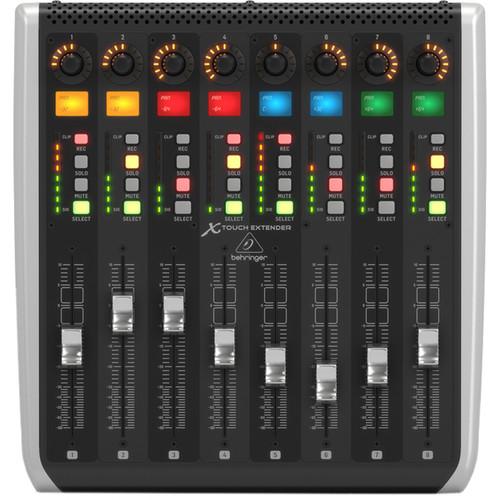

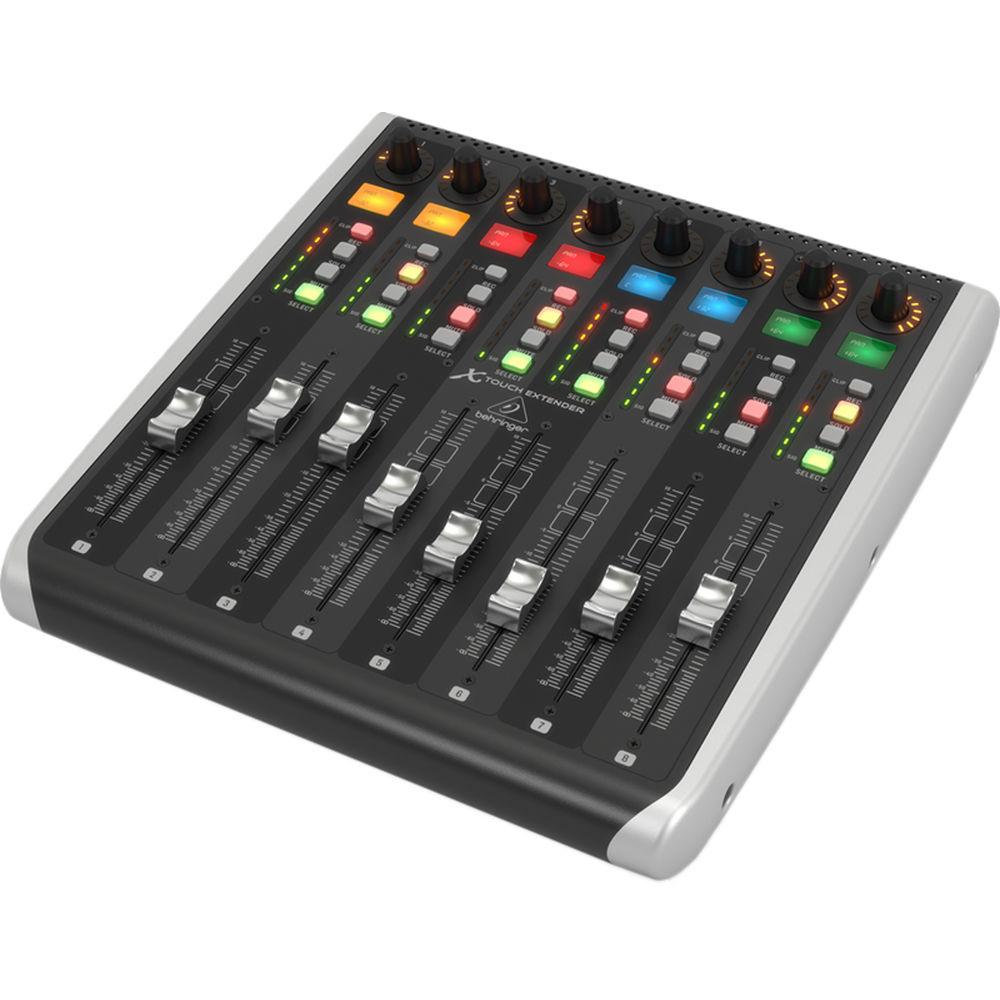

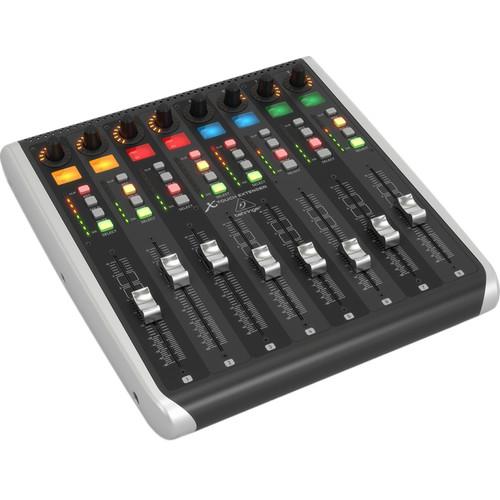

User Manual for Behringer X-TOUCH EXTENDER MIDI Controller With 8 Touch-Sensitive Motor Faders Click to enlarge the picture
Contents of the user manual for the Behringer X-TOUCH EXTENDER MIDI Controller With
- Product category: Control Surfaces Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Control Surfaces
 |
User manual for the Behringer X-TOUCH EXTENDER MIDI Controller With contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description Extend Thyself: An 8-Channel MIDI Controller Begging to be X-Touched Read More fwevbtuddaawwaxqcfyzsaadwdts The Behringer X-TOUCH EXTENDER is a MIDI controller suitable for both studio and live applications, allowing you to forego the mouse in favor of a more traditional, console-based approach. It can complement your existing X-TOUCH Universal Control Surface, or it can connect to your host computer all on its own.The X-TOUCH EXTENDER provides eight faders, and each fader gives you a rotary control, an LCD scribble strip, and a set of control buttons (select, mute, solo, and record arm are offered). Furthermore, each motorized and touch-sensitive fader gives you a 100mm throw, while the rotary control up top provides a 13-segment LED collar to show you your exact placement of specific, selectable parameters (for instance, panning). Other visual indicators abound, such as 8-segment LED metering on every channel, clip indicators, and colorful scribble strips with easy-to-read parameter displays.The X-TOUCH EXTENDER supports standard MIDI control protocol, as well as Mackie Control and HUI. Thus, it may be used with every compatible piece of music-production software. It is compatible with Mac and Windows computers. The unit can also function as a USB hub, with two USB 2.0 ports that supply 5V of power. Through these ports, you can grow your setup with additional X-TOUCH Extenders or the X-TOUCH Universal Control Surface. A full license of Tracktion—a fully functional DAW—is included with this device. - Key Features at a Glance
-
- For studio and live applications
- Supports Mackie Control, HUI, and standard MIDI control protocol, thus providing seamless integration with all compatible music-production software
- Multiple X-TOUCH and EXTENDER units can be combined to give you a large-scale control surface for mixing applications
- Eight 100mm motorized faders, fully automated and touch-sensitive
- Eight dynamic LCD scribble strips for instant overview of track names and parameters
- Eight rotary controls with LED-collars for on-the-fly adjustments of your favorite parameters
- Built-in USB MIDI interface for direct connection to Mac or Windows computers
- 2-port powered Multi-TT USB hub for connecting additional controllers
- Ethernet interface for RTP (Real-Time Protocol) MIDI remote control
- Tracktion included
UPC: 653341304735 In the Box Behringer X-TOUCH EXTENDER MIDI Controller With 8 Touch-Sensitive Motor Faders License for Tracktion AC Power Cord USB Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer X-TOUCH EXTENDER MIDI Controller With 8 Touch-Sensitive Motor Faders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

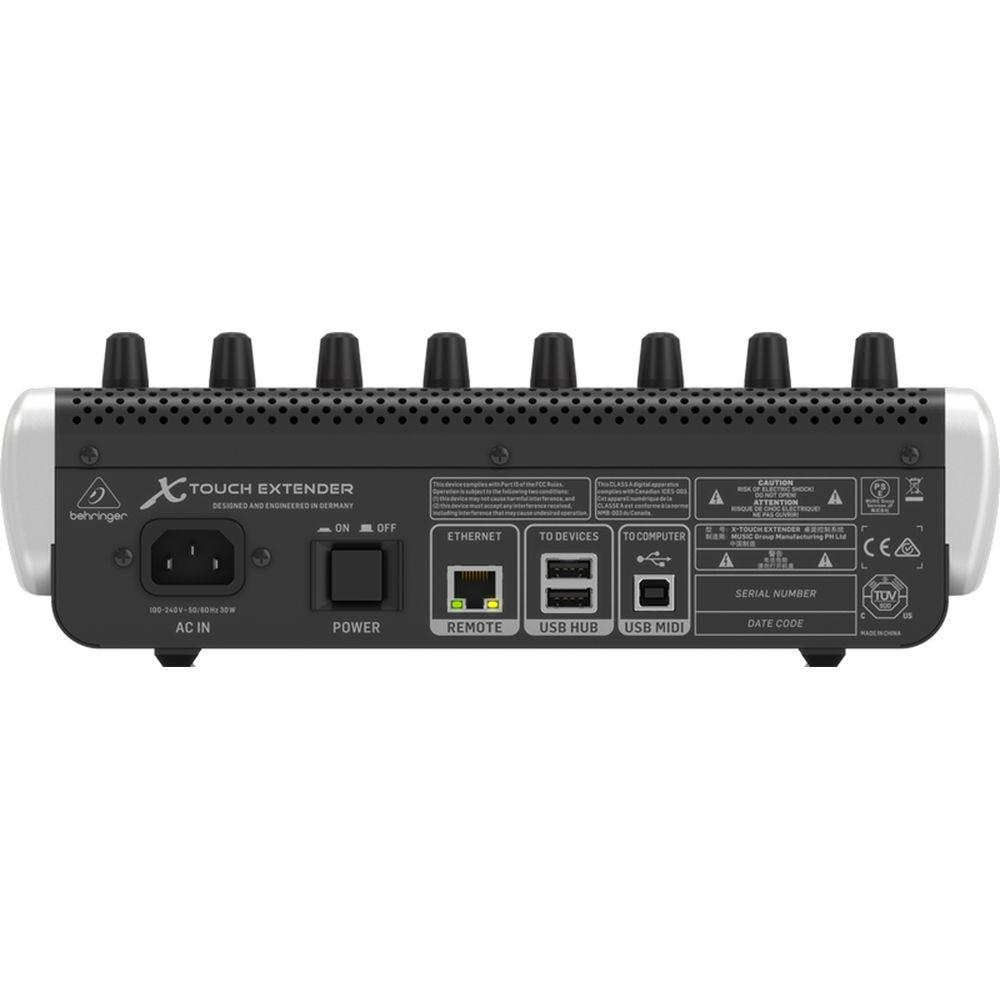

Technical parametersBehringer X-TOUCH EXTENDER Specs | Rotary Control Switch | 8 x rotary/push control with 13-segment LED collar | | Buttons | 32 x with LED backlights | | Faders | 8 x motorized, touch-sensitive, 3.9" / 100 mm | | Power | On/off switch | | Display | Rotary Control: 13-segment LED collar (x8)
Channel Level: 8-segment LED with SIG and CLIP (x8)
Channel Display: Color LCD scribble strip (x8) | | USB | 1 x USB 2.0, Type-B (to computer)
1 x Multi-TT USB 2.0, Type-A (USB hub capable of supplying 5 V to external devices) | | Ethernet | 1 x RJ45, remote | | Power Type | Internal switch-mode power supply | | Voltage | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 30 W | | Mains Power | Standard IEC receptacle | | Operating Temperature | 41 to 104°F / 4 to 40°C | | Dimensions (H x W x D) | 3.8 x 11.4 x 11.9" / 97.0 x 290.0 x 303.0 mm | | Weight | 6.8 lb / 3.1 kg | | | | Package Weight | 9.35 lb | | Box Dimensions (LxWxH) | 15.6 x 14.9 x 6.6" |
