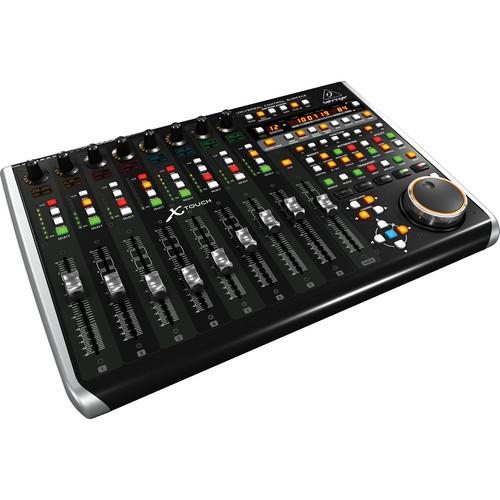

User Manual for Behringer X-TOUCH Universal Control Surface Click to enlarge the picture
Contents of the user manual for the Behringer X-TOUCH Universal Control Surface
- Product category: Control Surfaces Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Control Surfaces
 |
User manual for the Behringer X-TOUCH Universal Control Surface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

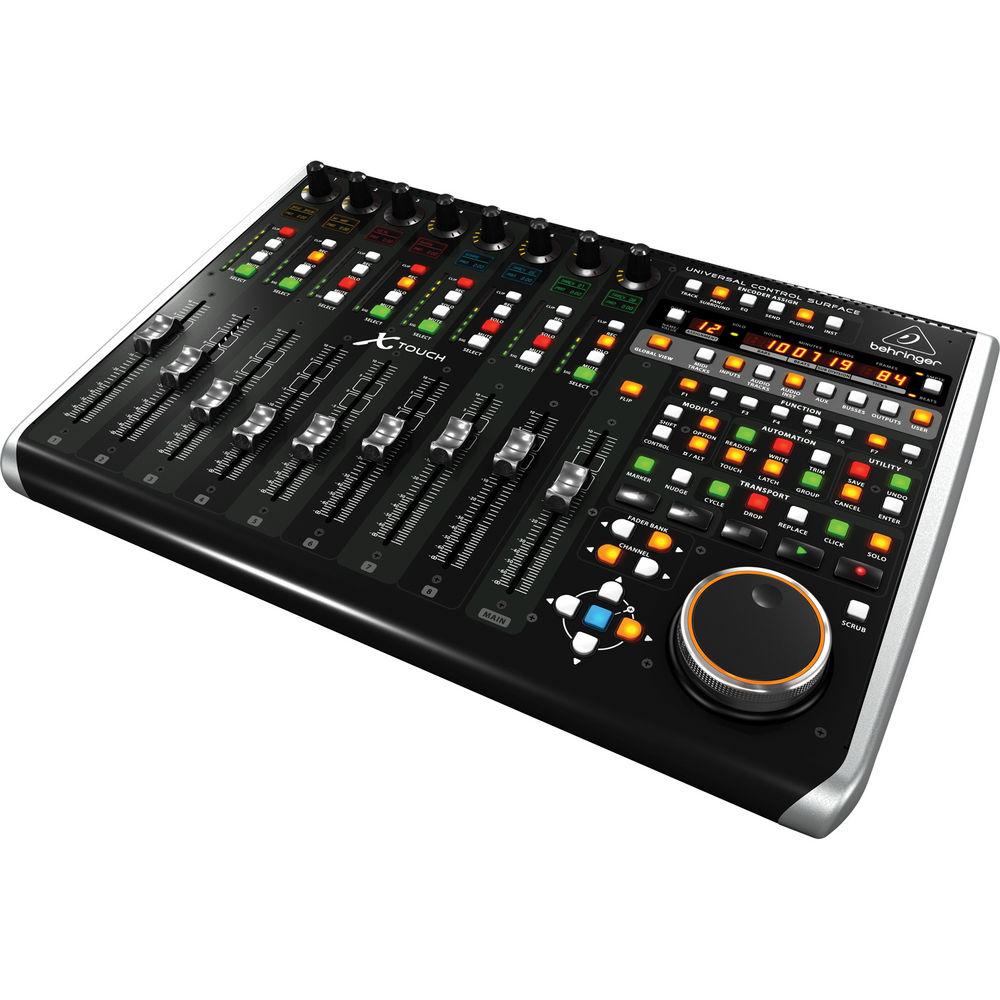

Product description - X-TOUCH Universal Control Surface
The X-TOUCH Universal Control Surface from Behringer is designed to provide you with hands-on control over your DAW via HUI or Mackie control protocols. It features 9 touch-sensitive, motorized 100mm faders, 8 rotary controls with LED collars, and an 8-segment LED meter per channel. Its controls are rounded out by 92 illuminated dedicated buttons, a jog wheel, and tape-style transport controls for playback.
The controller can connect to your Mac or PC via either Ethernet for Real-Time Protocol MIDI or USB MIDI. It also features a 2-port USB hub, allowing you to connect 2 other controllers for simultaneous use, while the 5-pin DIN MIDI I/O allows it to act as a MIDI interface. Your track names and parameters are displayed on the X-TOUCH's LCD scribble strips, allowing you to always know what tracks you are in control of. - Universally Yours
- When it comes to integration, the X-TOUCH has you covered with the most widely used protocols in the industry. With included support for HUI and Mackie Control, you can be sure it will work seamlessly with all compatible music production software, allowing you to focus on what counts… the music
- Faders that Move with Your Music
- The X-TOUCH features 9 fully automated and touch-sensitive 100mm motorized faders. Every move or automation you write can be seen in the movements of each fader in real time, synced with your DAW
- LCD Scribble Strips - Instant Readout
- LCD scribble strips are on the top of each channel fader, giving you an instant visual readout of which track and parameter you are adjusting. Customize the color and description of each channel for quick recognition and faster mix recalls, compared to the traditional tape and sharpie approach to labeling
- Illuminated Buttons
- With over 92 dedicated illuminated buttons, 8 rotary controls with LED collars, 8-segment LED meters per channel and an LED time code display, the X-TOUCH is a feast for the eyes as well as the hands. Know in color if a channel is muted or soloed and see how hot the level is pumping as you make changes during recording or mixing. Arm multiple tracks or adjust panning at the same time and marvel at how you ever relied on a mouse to do a controller's job
- The Feel
- Navigation is streamlined with the features on the X-TOUCH's surface. The large jog/shuttle wheel and tape-style transport controls provide intuitive control over the most used actions in your DAW. Race between fader banks with the touch of a button and make changes with the turn of actual knobs, the movement of real faders or the push of physical, illuminated buttons. It's like bringing your on-screen DAW controls to life
- Connect, Control, Expand
- With class-compliant USB functionality, the X-TOUCH is instantly recognizable by Mac and Windows PCs. Its 5-pin MIDI port allows you to connect and communicate with an external device. The 2 dedicated footswitch connectors and one foot controller provide external remote control. The powered multi-TT USB hub provides connectivity for 2 more controllers so it can grow with your career. And the power and control can expand through an integrated Ethernet port allowing you to connect to a wireless network. That gives you the ability to control any X32 Series mixer from your X-TOUCH remotely
- 9 fully automated and touch-sensitive 100mm motorized faders
- 8 dynamic LCD Scribble Strips for instant overview of track names and parameters
- Ethernet interface for RTP (Real-Time Protocol) MIDI
- 8 rotary controls with LED-collars for on-the-fly adjustments of your favorite parameters
- 92 dedicated illuminated buttons for direct access of key functions
- 8-segment LED meters per channel for precise level control
- Large jog/shuttle wheel and tape-style transport controls for intuitive operation
- Built-in 2x2 USB/MIDI interface for direct connection to Mac or PC computers and one external MIDI device
- 2 dedicated footswitch connectors and one foot controller input for external remote control
- 2-port powered multi-TT USB hub for connecting additional controllers
- "Planet Earth" switching power supply for maximum flexibility (100 - 240 V) and low power consumption for energy saving
UPC: 748252139443 In the Box Behringer X-TOUCH Universal Control Surface Limited 1-Year Warranty, Extendable to 3-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer X-TOUCH Universal Control Surface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer X-Touch Specs | Controls | 9 x Automated, touch-sensitive 3.9" / 100 mm motorized faders
8 x Rotary controls with LED collars
92 x Dedicated illuminated buttons for key functions

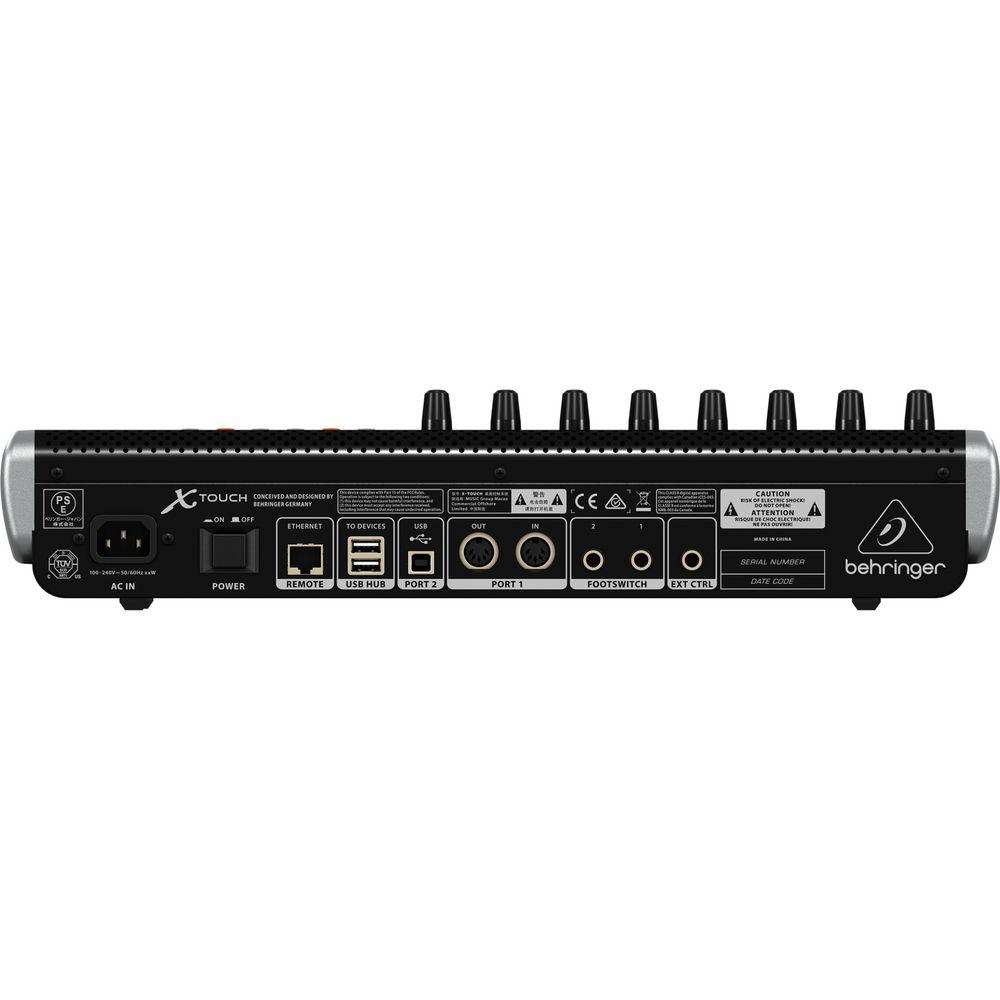

1 x Jog/shuttle wheel | | Connections | 1 x Ethernet port (RJ45)
2 x USB Type A ports
1 x USB Type B port
1 x 5-pin DIN MIDI input
1 x 5-pin DIN MIDI output
2 x 1/4" / 6.3 mm footswitch inputs
1 x 1/4" / 6.3 mm external control input | | Display | Channel Display: 8 x dynamic LCD scribble strips
Channel Level: 8 x 8-segment LED channel meters | | Protocols Supported | HUI
Mackie Control | | Power | Type: Internal switch mode power supply
Voltage: 100 - 240 VAC, 50/60 HZ
Fuse: T 1A H 250 V
Mains Connection: Standard IEC receptacle | | Temperature Range (Operation) | 41 to 104ºF / 5 to 40ºC | | Dimensions (H x W x D) | 3.9 x 17.8 x 11.9" / 100 x 452 x 301 mm | | Weight | 9.4 lb / 4.3 kg | | | | Package Weight | 12.2 lb | | Box Dimensions (LxWxH) | 21.9 x 15.0 x 6.6" |
