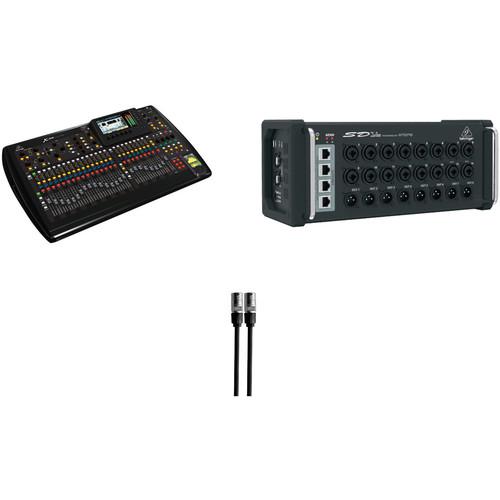

User Manual for Behringer X32 Console and SD16 Stage Box Kit

• Product category: Digital Mixers Behringer
• Brand: Behringer
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Behringer Digital Mixers

Product description

• Behringer X32 40-Channel, 25-Bus Digital Mixing Console
  • Product Demo
  The X32 40-Channel, 25-Bus Digital Mixing Console from Behringer provides a wealth of features in a compact design, ideal for professional live and recording applications. The mixer features 32 fully programmable MIDAS-designed mic preamps. The Main LCR (left, center, right) channels, 16 mix busses, and 6 independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for excellent sonic tailoring capabilities.

  The mixer has 16 analog XLR outputs, as well as 6 balanced line-level 1/4" Aux inputs and outputs and two 1/4" headphone jacks. The talkback section allows you to communicate with the integrated mic or an external mic. The mixer also has a pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability for use with 48-channel digital snakes for ultra-low jitter and latency. The system also has an integrated expansion port that ships with a 32 x 32 XUF FireWire/USB audio card installed.

  The built-in Virtual FX offers 8 true-stereo FX slots that deliver high-end simulations of popular processors, such as Lexicon 480L and PCM70, EMT250 and Quantec QRS, etc. The integrated high-power 40-bit floating-point DSP system delivers "unlimited" dynamic range, no internal overload, and near-zero latency between inputs and outputs for top-quality performance. The mixer also has 6 mute groups and 8 DCA groups on 8 dedicated faders for easy access.

  The intuitive interface offers tremendous ease-of-use with a dedicated channel strip section that has direct-access controls. There is also a high-resolution 7" color TFT display with associated controls and individual RGB backlit graphic LCDs on every channel. The unit has 25 motorized 100mm faders for extensive user-definable control.

  The system has a USB flash connector to provide file storage for uncompressed recordings, show presets, and system updates. There are also connections that support the P-16 personal monitoring system, AES/EBU stereo digital outputs, and MIDI. Adjustable line delays are available on all of the physical inputs and outputs.

  Other features of the X32 include networked remote control or show setups with the included remote editor software via USB and Ethernet ports. You can even conveniently handle the scene management duties of complex productions. All of these features are packed into a compact and durable enclosure to ensure a long life of professional use.
  • A pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability to be ready for use with 48-channel digital snakes for ultra-low jitter and latency
  • The system also has an integrated expansion port that ships with a 32 x 32 XUF FireWire/USB audio card installed.
  • The high-resolution 7" color TFT display has associated controls and individual RGB backlit graphic LCDs on every channel
  • There are 25 motorized 100mm faders for extensive user-definable control
  • A USB flash connector provides file storage for uncompressed recordings, show presets, and system updates. There are also connections that support the P-16 personal monitoring system, AES/EBU stereo digital outputs, and MIDI
  • Adjustable line delays are available on all of the physical inputs and outputs
  • The included remote editor software lets you coordinate networked remote control or show setups via USB or Ethernet. You can even conveniently handle the scene management duties of complex productions
  UPC: 794504549614
• Behringer SD16 - I/O Stage Box with 16 Preamps
  • Product Demo
  The Behringer SD16 - I/O Stage Box with 16 Preamps is designed to connect the onstage talent to the Front of House (FOH) console. The stagebox provides 16 remote-controlled Midas-designed preamplifiers as well as eight servo-balanced analog XLR outputs. Two of the programmable inputs are compatible with Hi-Z sources so you can connect keyboards, acoustic, and bass guitars, etc. A USB port is included for fast and easy system updates via your PC.

  An integrated 2-port Ultranet distribution hub is included for direct connection to the company's P16-M personal monitor mixers without the need for any additional hard wire. The compact unit features rugged protective bumpers and the option to be rack mounted using the included rack ears.

  A single Cat 5e cable connects the stagebox, and up to three stageboxes can be cascaded together for a total of 48 inputs and 24 balanced outputs. An onboard Ultranet distribution hub provides power and 16 channels of audio to two of the company's Powerplay P16-M personal monitor mixers.
  Remote Controllable Preamps
  • Includes award-winning Midas-designed microphone preamplifiers with +48V phantom power and destination routing
  Servo-Balanced XLR Outputs
  • Allows you to connect to your amp racks, active loudspeakers, or monitors using Cirrus Logic 24-bit converters
  Ultranet
  • Transmits up to 16 independent channels of 24-bit digital audio and control data via a single Cat 5e cable between compatible digital devices
  Klark Teknik AES50
  • 48 bidirectional audio channels over Cat 5e cable (48 kHz)
  • 24 bidirectional audio channels over Cat 5e cable (96 kHz)
  • Single cable duplex interconnection for audio and sample clocks
  • Ethernet physical layer audio data transmission
  • High channel count and low deterministic latency
  • Accurate phase-aligned clock distribution.
  • Comprehensive error detection and management
  • Provision for redundant networking
  • Minimal configuration - total ease of deployment and use
  • Ethernet TCP/IP protocol-compatible auxiliary data channel
  • Royalty-free implementations available as Xilinx FPGA cores
  • OEM modules available from developer partners
  UPC: 748252154149
• Pro Co Sound NE8MC Cat5e RJ45 etherCON Cable (150')
  • Product Demo
  The NE8MC Cat5e RJ45 etherCON Cable from Pro Co Sound is a shielded, riser-rated cable with rugged RJ45 connectors on each end making it a robust, lockable solution. This cable is ideal for harsh and demanding environments as well as a variety of commercial applications where durability is required. Furthermore, it's shielded to prevent interference from other devices to ensure a strong and stable signal. UPC: 703272131884

• X32 40-Channel, 25-Bus Digital Mixing Console zqcwzxwrrycr
• Power Cord
• Limited 10-Year Warranty

• SD16 - I/O Stage Box with 16 Preamps zqcwzxwrrycr

• Pro Co Sound - NE8MC Cat5e RJ45 etherCON Cable (150')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Behringer X32 40-Channel, 25-Bus Digital Mixing Console

  Input Channels	32 input channels, 8 aux channels, 8 fx return channels
  Effects Engine	8 x true stereo 16 x mono
  Scene File Memory	100 recall scenes, including preamp and fader settings
  Bit Depth	40-bit floating point
  Audio Converters	24-bit @ 44.1/48 kHz, 114 dB dynamic range
  I/O Delay	0.8 mS, input to output console latency 1.1 mS, stagebox in -> console -> stagebox out network latency

  Mic Preamps	32 x XLR inputs, programmable mic preamps
  Talkback Mic Input	1 x XLR
  RCA	2 x input (1 x L/R) 2 x output (1 x L/R)
  Line Outputs	16 x XLR
  Monitor Outputs	2 x XLR 2 x 1/4" TRS balanced
  AUX Inputs	6 x 1/4" TRS balanced
  AUX Outputs	6 x 1/4" TRS balanced
  Headphone Outputs	2 x 1/4" TRS stereo
  AES/EBU Audio Output	1 x XLR digital
  AES50 Ports	2 x SuperMAC
  Expansion Port	1 x 32-channel I/O card, various standards available
  P-16 Connector	1 x Ultranet (no power supplied)
  MIDI In/Out	1 x MIDI In 1 x MIDI Out
  USB Ports	1 x USB type A - audio and data export/import 1 x USB type B - for remote control
  Ethernet Connector	1 x RJ45 - for remote control

  Designer	MIDAS
  THD + Noise	< 0.006% A-weighted (20 dB gain, 0 dBu out)
  Input Impedances	5kΩ unbalanced 10kΩ balanced
  Maximum Input Level	+23 dBu without clipping
  Phantom Power	+48V, switchable per channel
  Equivalent Input Noise	-128 dBu (input shorted)
  CMRR	> 70 dB @ 20 dB gain (typical) > 80 dB @ 40 dB gain

  Frequency Range	10 Hz to 22 kHz @ 48 kHz sample rate, 0 dB to -1 dB
  Dynamic Range	Analog: 106 dB, typical A/D: 109 dB, typical D/A: 108 dB
  Cross Talk	100 dB rejection @ 1 kHz, adjacent channels
  Output Level	XLR: +4 dBu, nominal +21 dBu, maximum
  Output Impedance	XLR: 75Ω
  Input Impedance	1/4" TRS: 40kΩ balanced, 20kΩ unbalanced
  Maximum Input Level	1/4" TRS: +16 dBu without clipping
  Nominal Output Level	1/4" TRS: +4 dBu
  Output Impedance	1/4" TRS: 300Ω balanced, 150Ω unbalanced
  Headphone Output Level	+25 dBm (stereo)
  Headphone Output Impedance	40Ω
  Residual Noise	-87 dBu A-weighted

  Screens	Main screen: 7", 800 x 480, 262k color TFT Channel LCD screen: 128 x 64, LCD with RGB color backlight
  Metering	24-segment (-57 dB to clip)

  Power Supply	Switch-mode autorange 100 to 240V (50/60 Hz)
  Power Consumption	120W

  Dimensions (W x D x H)	35.4 x 20.8 x 7.9" (900 x 528 x 200 mm)
  Weight	45.4 lb (20.6 kg)

  Box Dimensions (LxWxH)	40.0 x 26.0 x 13.0"

• Behringer SD16 - I/O Stage Box with 16 Preamps

  A/D and D/A Conversion	24-bit at 44.1/48 kHz, 114 dB dynamic range
  Latency	1.1 ms

  Preamps	16 (Programmable mic preamps, designed by Midas, balanced XLR/TRS combo)
  Line Outputs	8 (balanced XLR)
  Networking	AES50 SuperMac Networking, Neutrik etherCON: 2
  USB	1x type B port (for system updates)
  Inputs	48
  Outputs	24
  RJ45 Connector	Ultranet: 4x

  Design	Midas
  THD + N	<0.005%, A-weighted (20 dB gain, 0 dBu out)
  Phantom Power	+48 V, switchable per input
  Equivalent Input Noise	-128 dB, A-weighted, XLR (input shorted)
  CMRR	At 20 dB gain (typical): >60 dB At 40 dB gain: >65 dB

  Frequency Range	10 to 22,000 Hz
  Dynamic Range	Analog mic in to analog out (typical): 105 dB A/D Dynamic range, mic preamp to converter (typical): 109 dB D/A Dynamic range, converter and output: 108 dB
  Crosstalk	90 dB at 1 kHz, adjacent channels
  Impedance	Mic input XLR jack, unbalanced/balanced: 5 kOhms Hi-Z input TRS jack, unbalanced/balanced: 1 MOhm Line input impedance TRS jack, unbalanced/balanced: 20 kOhms
  Input Level	Non clip maximum level, TRS: +21 dBu

  Output Impedance	50 ohms, XLR, unbalanced/balanced
  Output Level	+4 dBu, XLR, nominal/maximum
  Residual Noise	XLR: -88 dBu, A-weighted

  Networking	AES50 SuperMac networking at 48 or 44.1 kHz, 24-bit PCM: 2x 48 channels, bidirectional AES50 SuperMac Cable Length: Up to 328' (100 m) Ultranet networking at 48 or 44.1 kHz, 16-bit PCM: 1x 16 channels, unidirectional Ultranet Cable Length: up to 246' (75 m) Ultranet Phantom power for P16-M personal mixers: 2x powered outputs

  Power Supply	100 to 240 V (50/60 Hz)
  Power Consumption	45 W

  Operating Temperature	41 to 104°F (5 to 40°C)
  Dimensions	13.1 x 5.9 x 5.5" (333 x 149 x 140 mm)
  Weight	7.1 lb (3.2 kg)

  Box Dimensions (LxWxH)	15.1 x 8.4 x 7.8"

• Pro Co Sound NE8MC Cat5e RJ45 etherCON Cable (150')

  Cable Length	150' / 45.7 m
  Ethernet Standards	Cat 5e
  Connector 1	RJ45 Male
  Connector 2	RJ45 Male

  Box Dimensions (LxWxH)	12.2 x 11.2 x 2.9"
