Product description - X32 Version 2.0 Firmware at Prolight + Sound 2014

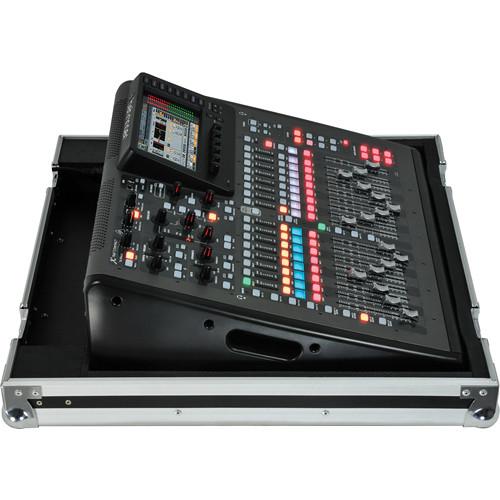

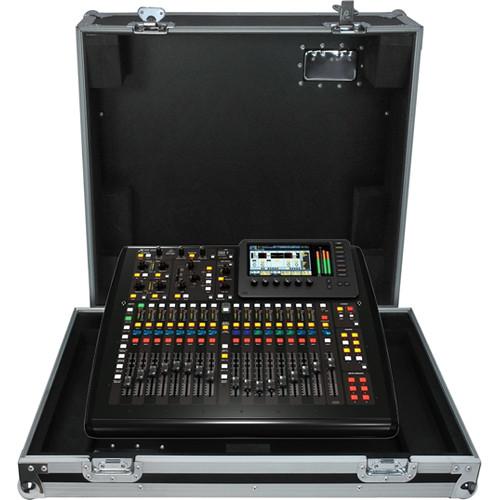

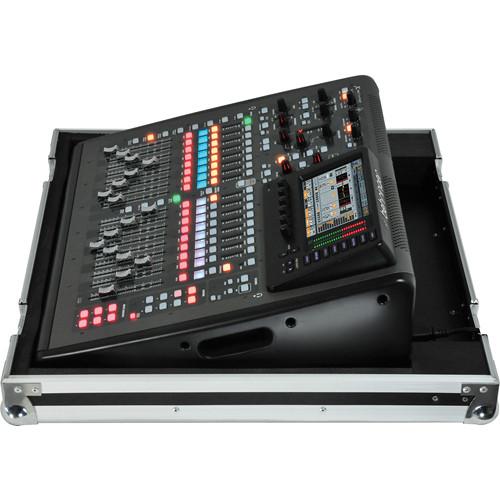

The X32-TP Compact Digital Mixer Touring Package from Behringer is designed for live sound reinforcement applications on the road. The package consists of the compact version of Behringer's flagship X32 40-input, 25-bus digital mixing console pre-packaged in a touring-grade road case specifically designed for the device.
The mixer features 16 fully programmable MIDAS-designed mic preamps. The Main LCR (left, center, right) channels, 16 mix busses, and 6 independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for fine tuning a live mix.
The mixer has 16 analog XLR outputs, as well as 6 balanced line-level 1/4" Aux inputs and outputs, and two 1/4" headphone jacks. The talkback section allows you to communicate with the integrated mic or an external mic. The mixer also has a pair of AES50 ports that feature Klark Teknik SuperMAC networking capability for use with 48-channel digital snakes for ultra-low jitter and latency. The system also has an integrated expansion port that ships with a 32 x 32 XUF FireWire/USB audio card installed.
The built-in Virtual FX offers 8 true-stereo FX slots that deliver high-end simulations of popular processors, such as Lexicon 480L and PCM70, EMT250 and Quantec QRS, etc. The integrated high-power 40-bit floating-point DSP system delivers "unlimited" dynamic range, no internal overload, and near-zero latency between inputs and outputs. The mixer also has 6 mute groups and 8 DCA groups.
The intuitive interface offers ease-of-use with a dedicated channel strip section that has direct-access controls. There is also a high-resolution 7" color TFT display with associated controls and individual RGB backlit graphic LCDs on every channel. The unit has 17 motorized 100mm faders for extensive user-definable control.
The system has a USB flash connector to provide file storage for uncompressed recordings, show presets, and system updates. There are also connections that support the P-16 personal monitoring system, AES/EBU stereo digital outputs, and MIDI. Adjustable line delays are available on all of the physical inputs and outputs.
Other features of the X32 Compact include networked remote control or show setups with the included remote editor software via USB and Ethernet ports. You can even conveniently handle the scene management duties of complex productions. All of these features are packed into a compact and durable enclosure for professional use. - Touring Grade Road Case

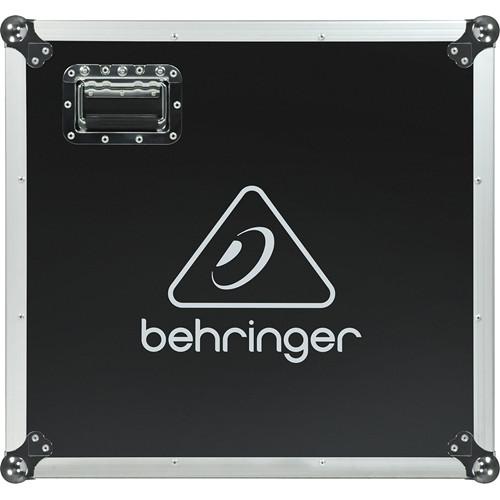

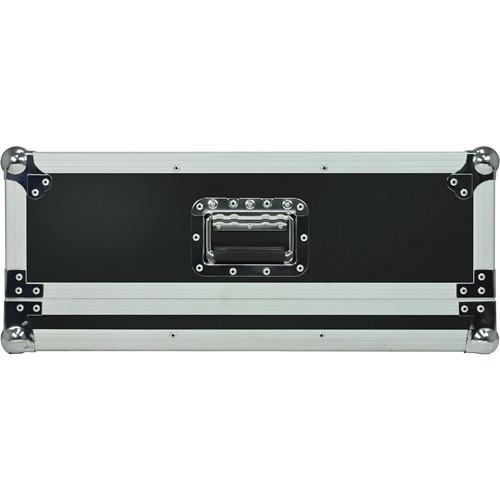

- Protects the mixer while traveling and includes built in handles, latches, and stackable corners for placing the case on top of the lid
- Free Control Software Applications
- Behringer iPad and iPhone apps for professional remote operation are free downloads on the Apple App Store. All of the X32's features can be managed concurrently from various locations and instances of the XiQ, XiControl, and XControl apps
- Versatile and Expandable
- The X32 Compact can act as the nucleus of a flexible and expandable audio system. The built-in 32 x 32 USB recording interface, 8 stereo effects engines, zero-latency monitoring and 100% total recall deliver the tools to handle a wide variety of projects
UPC: 696859054358 In the Box Behringer X32-TP Compact Digital Mixer Touring Package Bag Power Cable Limited 1-Year Warranty, Extendable to 3-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer X32-TP Compact Digital Mixer Touring Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer X32-TP Specs | | | Number of Channels | 32 input channels
8 aux in channels
8 FX return channels
16 buses, 6 matrices
Main LRC | | Effects Engine | Internal:
8 true-stereo
16 mono | | Scene File Memory | 100 total recall scenes (including preamp and fader) | | Signal Processing | 40-bit floating point | | Conversion | Cirrus Logic A/D CS5368, D/A CS4385
24-bit @ 44.1 / 48 kHz
114 dB dynamic range | | Latency Timings | Local I/O: 0.8 mS (local in > console processing > local out)
Networked I/O: 1.1 mS (stagebox in > console processing > stagebox out) | | Total I/O Channels | 150 / 160 | | | | Mic/Line Inputs | 16 x XLR balanced | | Line Outputs | 8 x XLR balanced | | AUX Inputs | 6 x 1/4" TRS
2 x RCA line-level (1 x L/R) | | AUX Outputs | 6 x 1/4" TRS
2 x RCA line-level (1 x L/R) | | Talkback Mic Input | 1 x XLR (no internal mic) | | Monitor Outputs | 2 x 1/4" TRS balanced | | Headphone Output | 2 x 1/4" TRS stereo | | AES50 Ports | 2 x SuperMAC | | Expansion Port | 1 x 32-channel I/O card, various standards available | | P-16 Connector | 1 x Ultranet (no power supplied) | | MIDI In/Out | 1 / 1 | | Ethernet Port | 1 x RJ45 (for remote control) | | USB Port | 1 x USB 2.0 type A (for audio and data import/export) | | | | Designer | MIDAS | | THD + Noise | < 0.006% A-weighted (20 dB gain, 0 dBu out) | | Input Impedances | 5kΩ unbalanced
10kΩ balanced | | Maximum Input Level | +23 dBu without clipping | | Phantom Power | +48V, switchable per channel | | Equivalent Input Noise | -128 dBu (input shorted) | | CMRR | > 70 dB @ 20 dB gain (typical)
> 80 dB @ 40 dB gain | | | | Frequency Range | 10 Hz to 22 kHz @ 48 kHz sample rate, 0 dB to -1 dB | | Dynamic Range | Analog in to analog out: 106 dB
A/D dynamic range, preamp and converter: 109 dB
D/A dynamic range, converter and output: 108 dB | | Cross-Talk Rejection | 100 dB @ 1 kHz, adjacent channels | | Residual Noise | -87 dBu, A-weighted | | Input Impedance | TRS: 40kΩ balanced, 20kΩ unbalanced | | Maximum Input Level | TRS: +16 dBu without clipping | | Output Level | XLR: +4 dBu, nominal; +21 dBu, maximum
TRS: +4 dBu, nominal; +16 dBu maximum | | Output Impedance | XLR: 75Ω, balanced or unbalanced
TRS: 300Ω balanced, 150Ω unbalanced | | Headphone Output | Impedance: 40Ω
Level: +25 dBm (stereo) | | | | Display | 7", 800 x 480, 262k color TFT (Main Screen) | | LCD Screen | 128 x 64 LCD with RGB color backlight (Channel Selector Screen) | | Metering | 3 x 24-segment LED meters | | | | Power Supply | 100 to 240V (50/60 Hz) switch-mode autorange | | Power Consumption | 120 W | | | | Dimensions (W x D x H) | 8.5 x 24.6 x 20" (215 x 625 x 510 mm) without road case | | Weight | 33.9 lb (15.4 kg) without road case | | | | Package Weight | 74.0 lb | | Box Dimensions (LxWxH) | 29.5 x 27.3 x 12.3" |
