Product description - X32 Version 2.0 Firmware at Prolight + Sound 2014

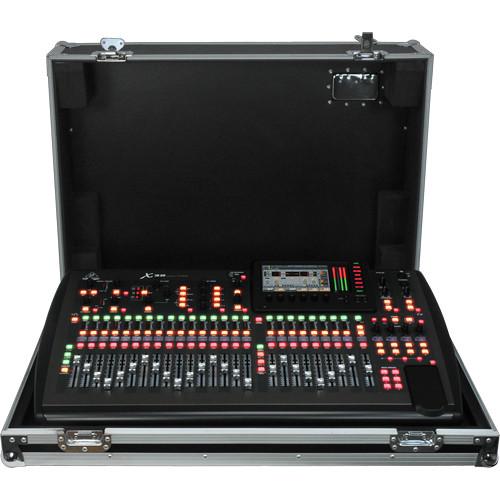

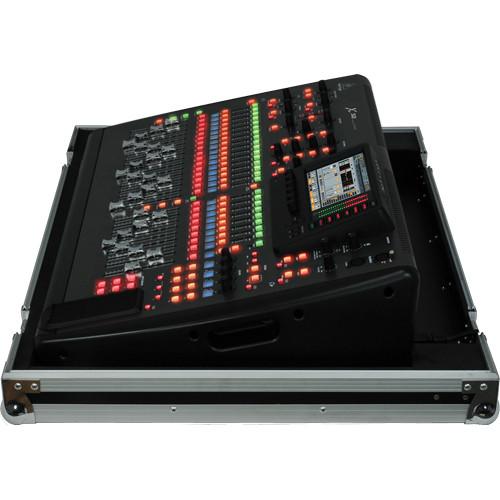

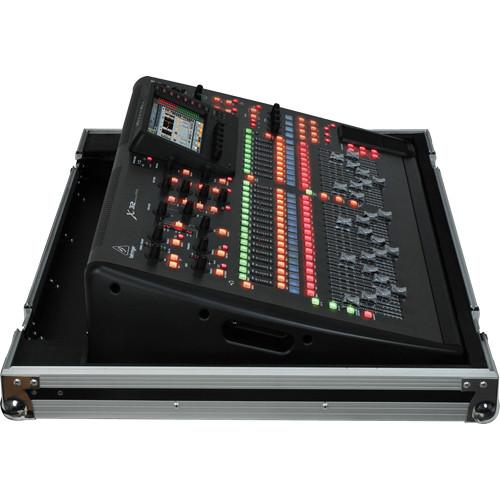

The X32 40-Channel, 25-Bus Digital Mixing Console from Behringer designed for live sound reinforcement applications on the road. The package consists of Behringer's flagship X32 40-input, 25-bus digital mixing console pre-packaged in a touring-grade road case specifically designed for the device.
The mixer features 32 fully programmable MIDAS-designed mic preamps. The Main LCR (left, center, right) channels, 16 mix busses, and 6 independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for fine tuning the live mix.
The mixer has 16 analog XLR outputs, as well as 6 balanced line-level 1/4" Aux inputs and outputs and two 1/4" headphone jacks. The talkback section allows you to communicate with the integrated mic or an external mic. The mixer also has a pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability for use with 48-channel digital snakes for ultra-low jitter and latency. The system also has an integrated expansion port that ships with a 32 x 32 XUF FireWire/USB audio card installed.
The built-in Virtual FX offers 8 true-stereo FX slots that deliver high-end simulations of popular processors, such as Lexicon 480L and PCM70, EMT250 and Quantec QRS, etc. The integrated high-power 40-bit floating-point DSP system delivers "unlimited" dynamic range, no internal overload, and near-zero latency between inputs and outputs. The mixer also has 6 mute groups and 8 DCA groups on 8 dedicated faders for easy access.
The intuitive interface offers a dedicated channel strip section that has direct-access controls. There is also a high-resolution 7" color TFT display with associated controls and individual RGB backlit graphic LCDs on every channel. The unit has 25 motorized 100mm faders for extensive user-definable control.
The system has a USB flash connector to provide file storage for uncompressed recordings, show presets, and system updates. There are also connections that support the P-16 personal monitoring system, AES/EBU stereo digital outputs, and MIDI. Adjustable line delays are available on all of the physical inputs and outputs.
Other features of the X32 include networked remote control or show setups with the included remote editor software via USB and Ethernet ports. You can even conveniently handle the scene management duties of complex productions. All of these features are packed into a compact and durable enclosure for professional use. - Touring Grade Road Case

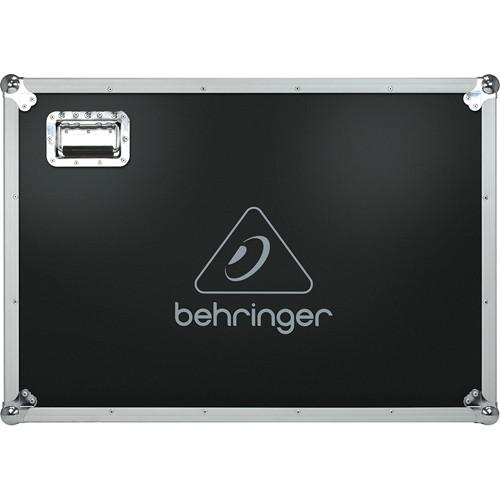

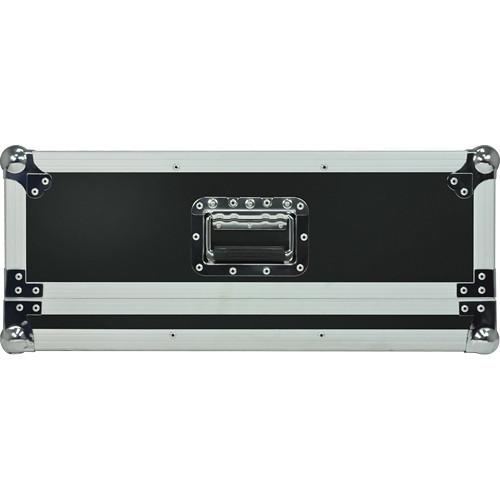

- Protects the mixer while traveling and includes built in handles, latches, and stackable corners for placing the case on top of the lid
- Networking
- A pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability to be ready for use with 48-channel digital snakes for ultra-low jitter and latency
- Expansion Port
- The system also has an integrated expansion port that ships with a 32 x 32 XUF FireWire/USB audio card installed
- Display
- The high-resolution 7" color TFT display has associated controls and individual RGB backlit graphic LCDs on every channel
- Faders
- There are 25 motorized 100mm faders for extensive user-definable control
- Connections
- A USB flash connector provides file storage for uncompressed recordings, show presets, and system updates. There are also connections that support the P-16 personal monitoring system, AES/EBU stereo digital outputs, and MIDI
- Delays
- Adjustable line delays are available on all of the physical inputs and outputs
- Remote Editor Software
- The included remote editor software lets you coordinate networked remote control or show setups via USB or Ethernet. You can even conveniently handle the scene management duties of complex productions
UPC: 696859054341 In the Box Behringer X32-TP Digital Mixer Touring Package Power Cord Limited 1-Year Warranty, Extendable to 3-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer X32-TP Digital Mixer Touring Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer X32-TP Specs | | | Input Channels | 32 input channels, 8 aux channels, 8 fx return channels | | Effects Engine | 8 x true stereo
16 x mono | | Scene File Memory | 100 recall scenes, including preamp and fader settings | | Bit Depth | 40-bit floating point | | Audio Converters | 24-bit @ 44.1/48 kHz, 114 dB dynamic range | | I/O Delay | 0.8 mS, input to output console latency
1.1 mS, stagebox in -> console -> stagebox out network latency | | | | Mic Preamps | 32 x XLR inputs, programmable mic preamps | | Talkback Mic Input | 1 x XLR | | RCA | 2 x input (1 x L/R)
2 x output (1 x L/R) | | Line Outputs | 16 x XLR | | Monitor Outputs | 2 x XLR
2 x 1/4" TRS balanced | | AUX Inputs | 6 x 1/4" TRS balanced | | AUX Outputs | 6 x 1/4" TRS balanced | | Headphone Outputs | 2 x 1/4" TRS stereo | | AES/EBU Audio Output | 1 x XLR digital | | AES50 Ports | 2 x SuperMAC | | Expansion Port | 1 x 32-channel I/O card, various standards available | | P-16 Connector | 1 x Ultranet (no power supplied) | | MIDI In/Out | 1 x MIDI In
1 x MIDI Out | | USB Ports | 1 x USB type A - audio and data export/import
1 x USB type B - for remote control | | Ethernet Connector | 1 x RJ45 - for remote control | | | | Designer | MIDAS | | THD + Noise | < 0.006% A-weighted (20 dB gain, 0 dBu out) | | Input Impedances | 5kΩ unbalanced
10kΩ balanced | | Maximum Input Level | +23 dBu without clipping | | Phantom Power | +48V, switchable per channel | | Equivalent Input Noise | -128 dBu (input shorted) | | CMRR | > 70 dB @ 20 dB gain (typical)
> 80 dB @ 40 dB gain | | | | Frequency Range | 10 Hz to 22 kHz @ 48 kHz sample rate, 0 dB to -1 dB | | Dynamic Range | Analog: 106 dB, typical
A/D: 109 dB, typical
D/A: 108 dB | | Cross Talk | 100 dB rejection @ 1 kHz, adjacent channels | | Output Level | XLR:
+4 dBu, nominal
+21 dBu, maximum | | Output Impedance | XLR:
75Ω | | Input Impedance | 1/4" TRS:
40kΩ balanced, 20kΩ unbalanced | | Maximum Input Level | 1/4" TRS:
+16 dBu without clipping | | Nominal Output Level | 1/4" TRS:
+4 dBu | | Output Impedance | 1/4" TRS:
300Ω balanced, 150Ω unbalanced | | Headphone Output Level | +25 dBm (stereo) | | Headphone Output Impedance | 40Ω | | Residual Noise | -87 dBu A-weighted | | | | Screens | Main screen: 7", 800 x 480, 262k color TFT
Channel LCD screen: 128 x 64, LCD with RGB color backlight | | Metering | 24-segment (-57 dB to clip) | | | | Power Supply | Switch-mode autorange 100 to 240V (50/60 Hz) | | Power Consumption | 120W | | | | Dimensions (W x D x H) | 35.4 x 20.8 x 7.9" (900 x 528 x 200 mm) without road case | | Weight | 45.4 lb (20.6 kg) without road case | | | | Package Weight | 101.0 lb | | Box Dimensions (LxWxH) | 39.5 x 28.0 x 12.0" |
