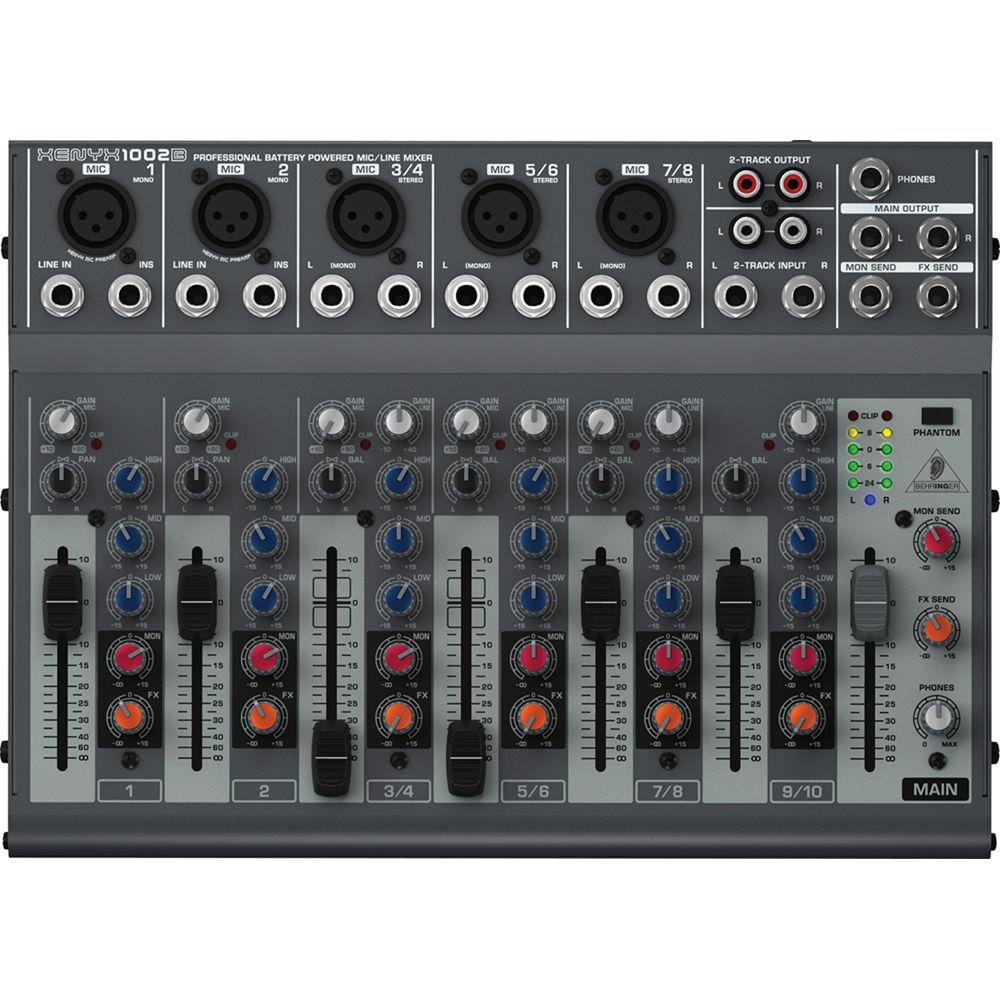

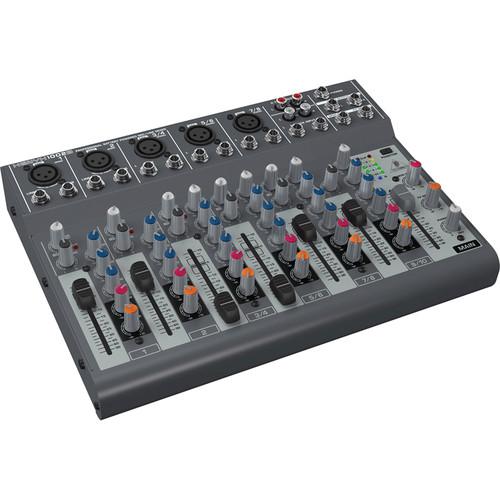

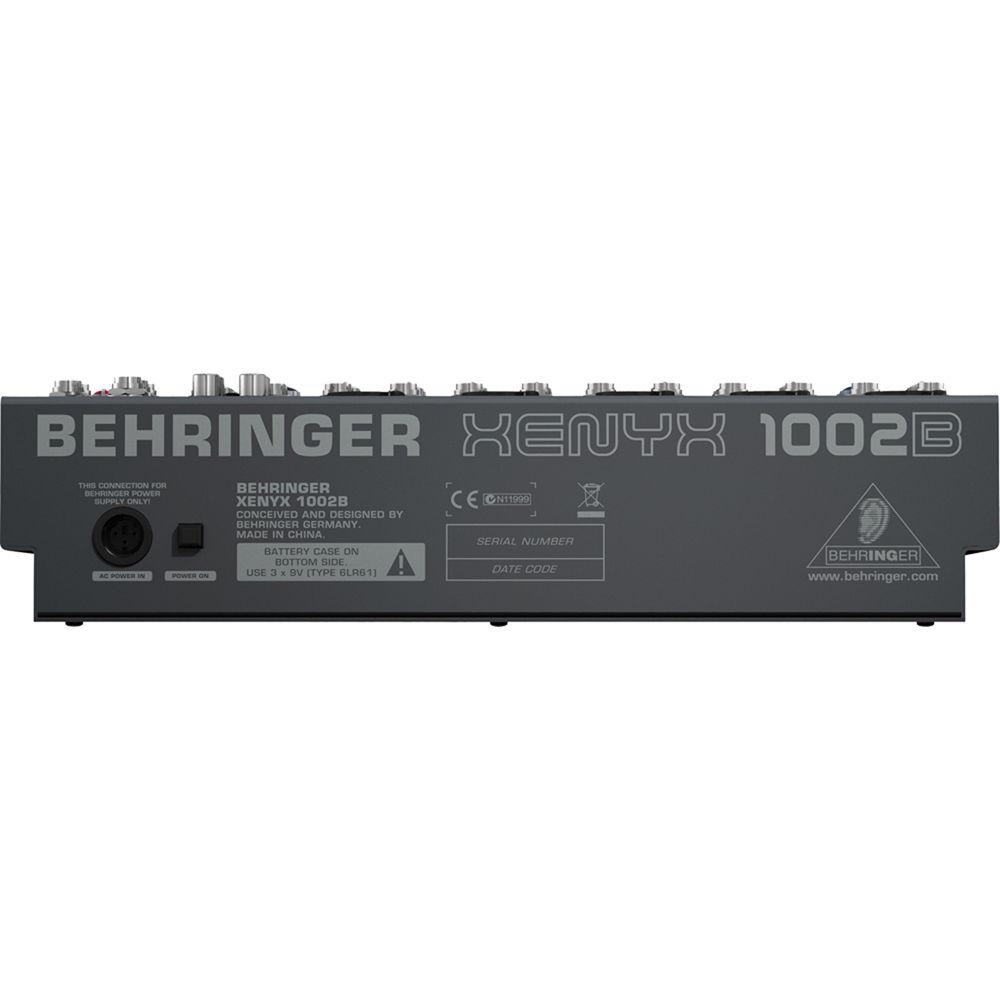

User Manual for Behringer XENYX 1002B - Battery-Operated 10-Channel Audio Mixer Click to enlarge the picture
Contents of the user manual for the Behringer XENYX 1002B - Battery-Operated 10-Channel
- Product category: Analog Recording Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Analog Recording Mixers
 |
User manual for the Behringer XENYX 1002B - Battery-Operated 10-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - XENYX 1002B Premium 10-Input 2-Bus Mixer
From Behringer, the XENYX series audio mixers are designed to provide real-world features and pristine audio fidelity while remaining cost-effective and practical.The XENYX 1002B is a compact 10-channel audio mixer with 5 microphone inputs and 5 stereo-paired line-level inputs. The mixer may be powered with the supplied power supply, or 9V batteries for remote use. An additional stereo I/O is provided for connecting Tape and CD devices. The compact 1002B is well suited for project recording, home video editing, small PA systems and mixing on the road. - Premium ultra-low noise analog mixer with optional battery operation
- 2 State-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
- Neo-classic British 3-band EQs for warm and musical sound
- 4 Balanced, high-headroom stereo inputs with 3 additional mic inputs
- One post-fader FX send and one pre-fader MON send per channel for external FX devices and monitor applications
- Clip LEDs on all channels and dedicated inserts on all mono channels
- Main output plus separate Phones and CD/Tape outputs
- Switchable phantom power for condenser microphones
- Long-wearing 60mm logarithmic-taper master fader and sealed rotary controls
- External power supply for noise-free audio and effective transient response
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by BEHRINGER Germany
UPC: 705105732633 In the Box Behringer XENYX 1002B - Battery-Operated 10-Channel Audio Mixer AC Power Supply Limited 3-Year Warranty (valid only if you purchased the product from a MUSIC Group authorized Reseller) User Manual PDF 3.1mbwawezdtucdterx Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX 1002B - Battery-Operated 10-Channel Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer 1002B Specs | Total # Of Inputs | 10 Inputs | | Mic/Line Inputs | Mic (Xenyx Mic Preamp): XLR connector, electronically balanced, discrete input circuit
Gain Range: +14 dB to +60 dB
Max Input Level: +12 dBu @ +10 dB gainLine: 1/4" TS Phone1/4” TRS jack, electronically balanced
Impedance: 20 kOhms balanced, 10 kOhms unbalanced
Gain Range: -10 dB to +40 dB
Max Input Level: +22 dBu @ 0 dB gain | | Stereo Line Inputs | Line: 2x ¼” TRS jack, balanced
Impedance: 20 kOhms balanced, 10 kOhms unbalanced
Gain Range: -20 dB to +20 dBMax
Input Level: +22 dBu @ 0 dB gain
CD/Tape In: RCA connector
Impedance: 10 kOhms
Max Input Level: +22 dBu | | AUX Sends | 1/4" Mono jack, unbalanced
Impedance: 120 ohms
Max Output Level: +22 dBu | | Inserts | 1/4" TRS jack, unbalanced
Max input level: +22 dBu | | Main Output | 1/4" TRS jack, electronically balanced
Impedance: 240 ohms balanced, 120 ohms balanced
Max Output Level: +28 dBu | | Headphone Output | 1/4" TRS jack, unbalanced
Max Output Level: +19 dBu/150 ohms (+25 dBm) | | EQ Section | LOW: 50 Hz/+-15 dB MID: 700 Hz/+-15 dB HIGH: 10 kHz/+-15 dB | | Phantom Power | +23 V Phantom with AC Adapter
+18 V Phantom with 9 V Battery | | Metering | Clip LEDs on all channels and dedicated inserts on all mono channels | | Power Supply | Power Consumption: 50 W
Fuse (100-120 V ~50/60 Hz) T 2,0 A H 250 V
Fuse (220-230 V ~50/60 Hz) T 2,0 A H 250 V
Connector: Standard IEC | | Battery | 4-Hour battery life w/high quality alkaline battery | | Dimensions (HxWxD) | 1.5/2.87 x 11.75 x 8.50" (40/73 x 298 x 216 mm) | | Weight | 5.5 lbs (2.5 kg) | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 16.5 x 11.0 x 5.5" |
