Behringer XENYX 1202 12-Channel Audio Mixer

Search your instruction manual in PDF to download

User Manual for Behringer XENYX 1202 12-Channel Audio Mixer

Click to enlarge the picture
Behringer XENYX 1202 12-Channel Audio Mixer Contents of the user manual for the Behringer XENYX 1202 12-Channel Audio Mixer
  • Product category: Analog Recording Mixers Behringer
  • Brand: Behringer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Behringer Analog Recording Mixers

Behringer XENYX 1202 12-Channel Audio Mixer Behringer XENYX 1202 12-Channel Audio Mixer Behringer XENYX 1202 12-Channel Audio Mixer Behringer XENYX 1202 12-Channel Audio Mixer
User manual for the Behringer XENYX 1202 12-Channel Audio Mixer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Behringer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!



Product description

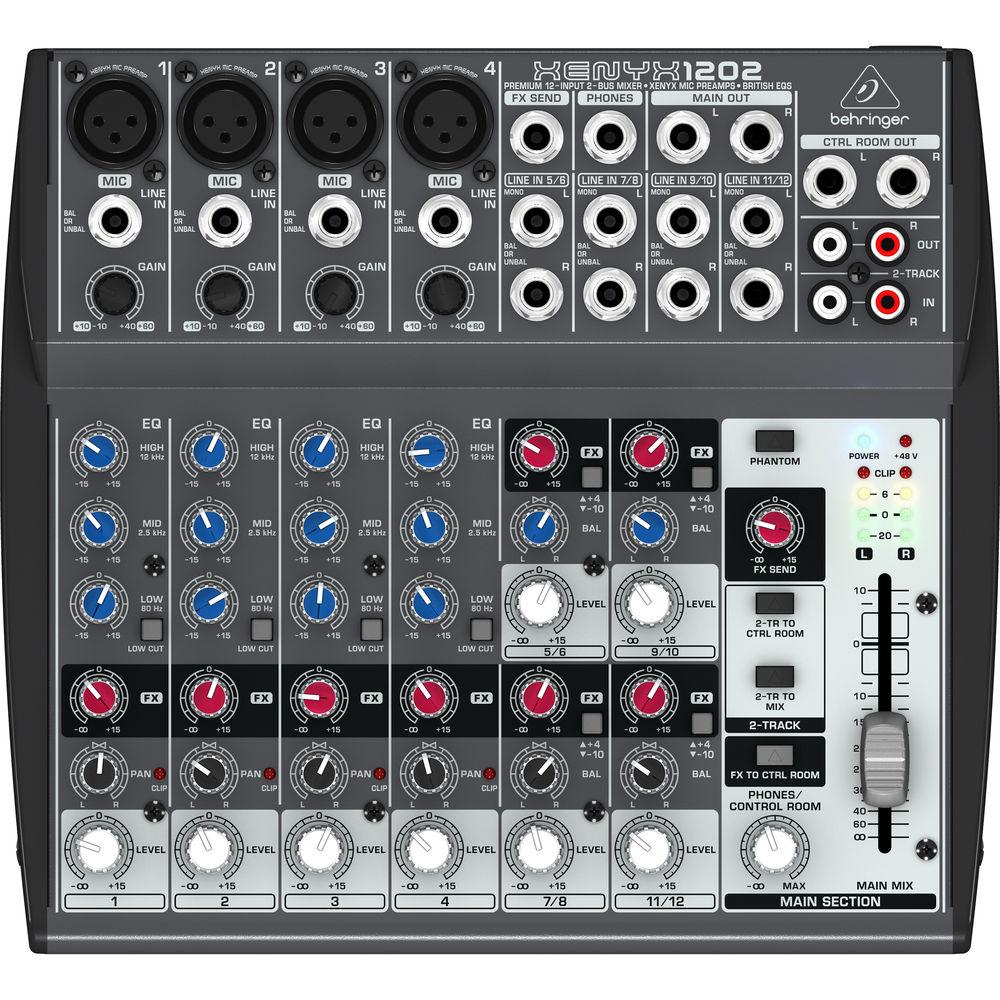

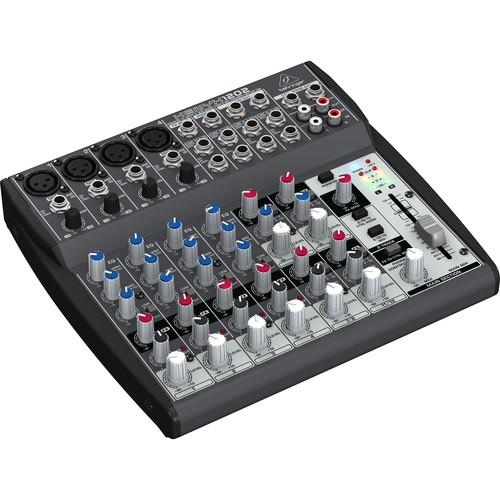

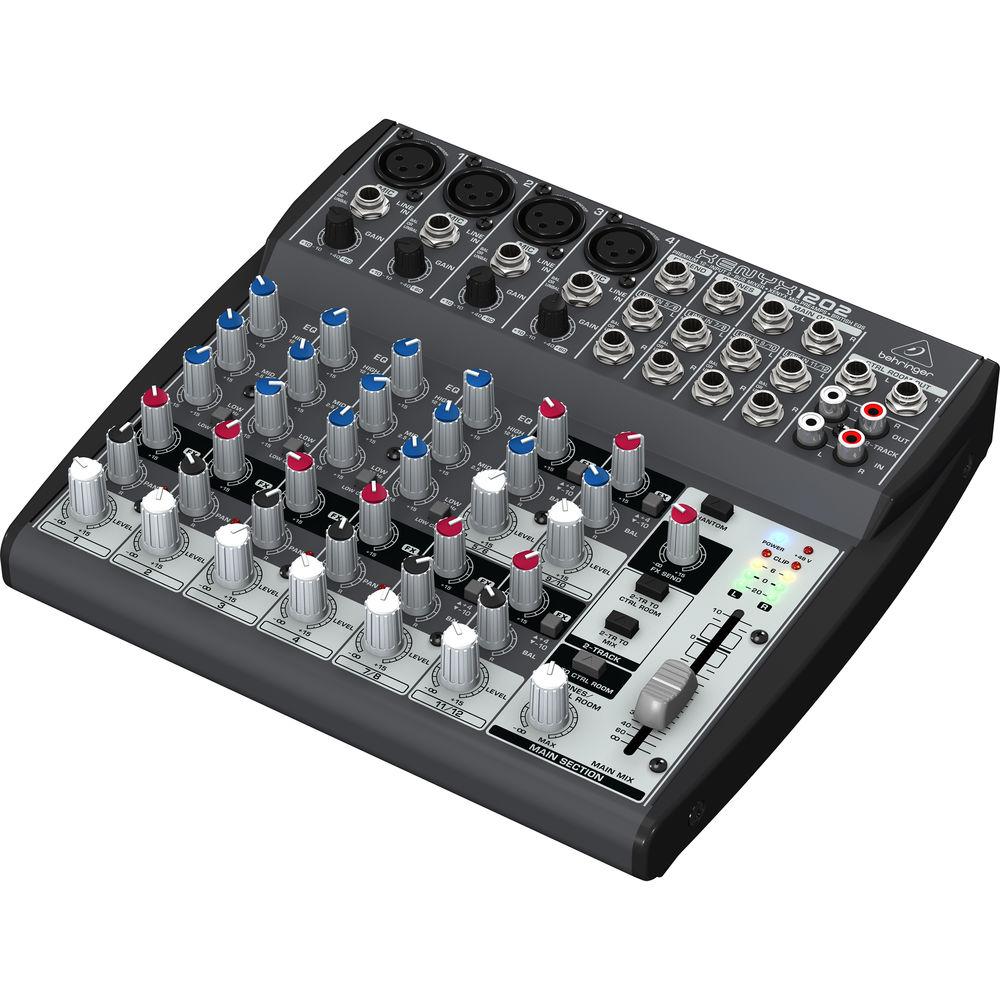

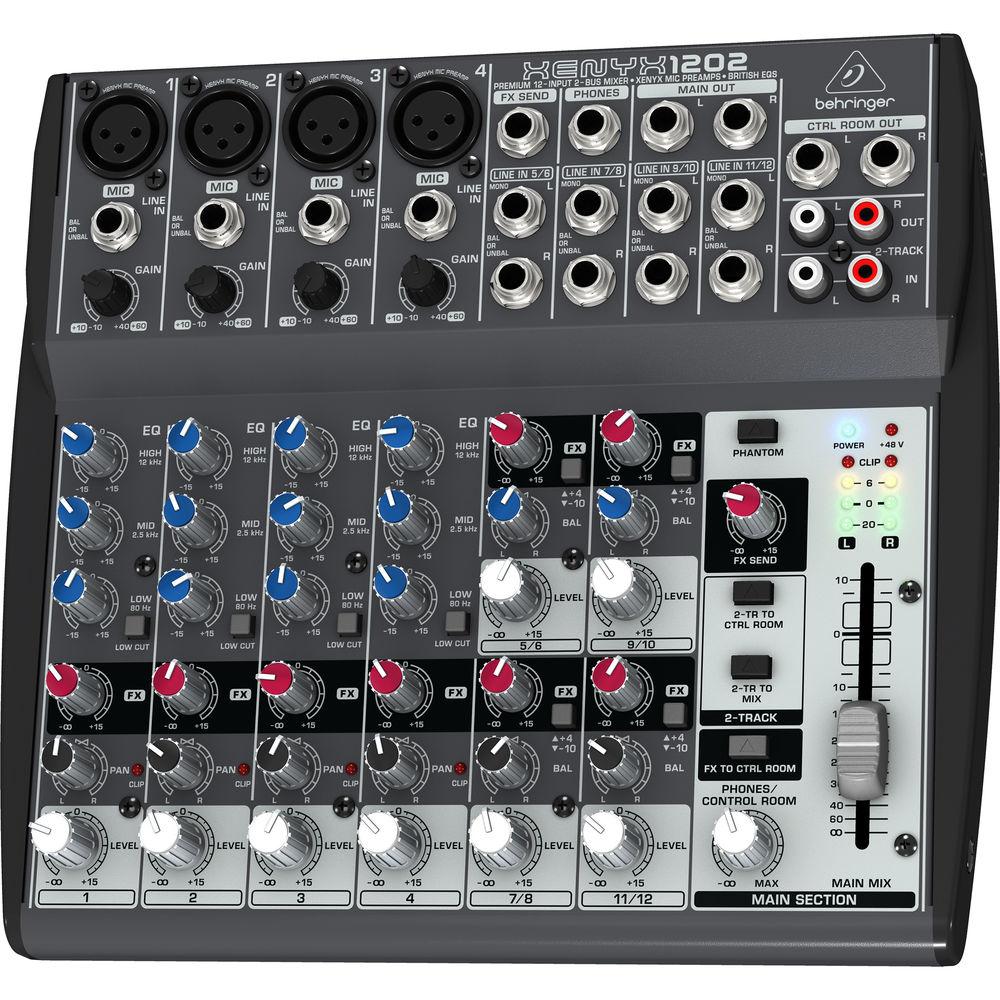

The Behringer XENYX 1202 is a mixer that offers clear and natural sound in a small and portable format. With twelve inputs, four high-quality XENYX mic preamps, and a 60mm logarithmic-taper master fader, this versatile mixer is ideal for a wide variety of mixing and recording applications, from small-stage gigs to home-studios, mid-size corporate events, and more.The XENYX 1202 is quick to set up and operate with all connections and controls easily reachable on the top of the unit. The first four input channels feature XENYX mic preamps on four XLR connectors, as well as four 1/4" inputs for line-level signals. Switchable, onboard 48V phantom power allows you to plug in both dynamic and studio-grade condenser microphones. A gain knob lets you adjust the input level and a clip LED alerts you if you are overdriving the input. British-style 3-band EQs provide warm and musical tone corrections for your vocals and instruments.The four sets of stereo inputs each feature +4/-10 switches used to match the mixer's input sensitivity with the incoming signal. This helps avoid signal degradation when connecting stereo keyboards or playback devices to the mixer. Pan (or balance) and level controls are included for all channels. Each channel is equipped with a post-fader FX send, which you can use to send signal to an external processor of your choice.The 2-Track section provides an easy way to connect an external 2-track recorder and/or playback device. The 2-Track inputs are assignable to either the main mix or to the control room/phones outputs. The main mix fader controls the signal at both the main outs and 2-Track outputs, while a dedicated knob adjusts the volume for the phone/control room outputs.
    Key Features
    • Compact and versatile 12-channel analog mixer for small-stage gigs or mid-size corporate events
    • Four quality XENYX microphone preamps with 130 dB of dynamic range
    • Switchable 48V phantom power
    • Four balanced mono line inputs
    • Four balanced stereo pairs of line inputs
    • Neo-classic, British-style 3-band EQs for warm and musical sound
    • One mono post-fader FX-send knob per channel for sending to external processor
    • Main mix outputs and separate control room, phones, and stereo 2-Track outputs
    • 2-Track inputs assignable to main mix or control room/phones outputs
    • Mic channels with low-noise and distortion-free circuitry for natural sound reproduction
    • Long-wearing 60mm logarithmic-taper master fader and sealed rotary controls
    • Designed and engineered in Germany
UPC: 689076413787 In the Box Behringer XENYX 1202 12-Channel Audio Mixer
  • PSU5-UL Power Supply
  • Limited 1-Year Warranty Extends Additional 2 Years upon Registration within 90 Days
  • User Manual PDF 2.2mbreacxsud Table of Contents




    Upload User Manual

    Have you got an user manual for the Behringer XENYX 1202 12-Channel Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Behringer 1202 Specs

    Microphone Inputs 4 x XLR, electronically balanced, discrete input circuit

    XENYX microphone preamps with 48 V phantom power (switchable)
    Microphone EIN (EIN 20 Hz to 20 kHz)

    At 0 Ohm Source Resistance: -134 dB / 135.7 dB A-weighted
    At 50 Ohms Source Resistance: -131 dB / 133.3 dB A-weighted
    At 150 Ohms Source Resistance: -129 dB / 130.5 dB A-weighted

    Frequency Response: <10 Hz to 150 kHz (-1 dB)

    Frequency Response: <10 Hz to 200 kHz (-3 dB)

    Gain Range: +10 to +60 dB

    Maximum Input Level: +12 dBu at +10 dB gain

    Impedance: 2.6 kOhms, balanced (approximately)

    Signal-to-Noise Ratio: 110 dB / 112 dB A-weighted (0 dBu In at +22 dB gain)

    Distortion (THD+N): 0.005% / 0.004% A-weighted
    Line Inputs 4 x 1/4" / 6.3 mm TRS, electronically balanced

    Impedance: 20 kOhms balanced / 10 kOhms unbalanced (approximately)

    Gain Range: -10 to +40 dB

    Maximum Input Level: +22 dBu at 0 dB gain
    Stereo Line Inputs 4 x pairs of 1/4" / 6.3 mm TRS, electronically balanced

    Impedance: 20 kOhms (approximately)

    Maximum Input Level: +22 dBu
    Fade-Out/Crosstalk Attenuation Main Fader Closed: 90 dB

    Channel Muted: 89.5 dB

    Channel Fader Muted: 89 dB
    Frequency Response Microphone Input to Main Out:
    <10 hz to 90 khz (+0 db> <10 hz to 160 khz (+0 db>
    Equalization (EQ mono channels)

    Low: 80 Hz (±15 dB)
    Mid: 2.5 kHz (±15 dB)
    High: 12 kHz (±15 dB)
    FX Send 1 x 1/4" / 6.3 mm TS, unbalanced

    Impedance: 120 Ohms (approximately)

    Maximum Output Level: +22 dBu
    Main Outputs 2 x 1/4" / 6.3 mm TRS, unbalanced

    Impedance: 120 Ohms (approximately)

    Maximum Output Level: +22 dBu
    Control Room Outputs 2 x 1/4" / 6.3 mm TS, unbalanced

    Impedance: 120 Ohms (approximately)

    Maximum Output Level: +22 dBu
    Headphone Output 1 x 1/4" / 6.3 mm TRS, stereo, unbalanced

    Maximum Output Level: +19 dBu / 150 Ohms (+25 dB)
    2-Track I/O 1 x pair RCA, stereo, unbalanced CD/tape inputs

    1 x pair RCA, stereo, unbalanced tape outputs
    Noise Main Mix at -∞, Channel Fader at -∞: -106 dB / -109 dB A-weighted

    Main Mix at 0 dB, Channel Fader at -∞: -95 dB / -98 dB A-weighted

    Main Mix at 0 dB, Channel Fader at 0 dB: -84 dB / -87 dB A-weighted

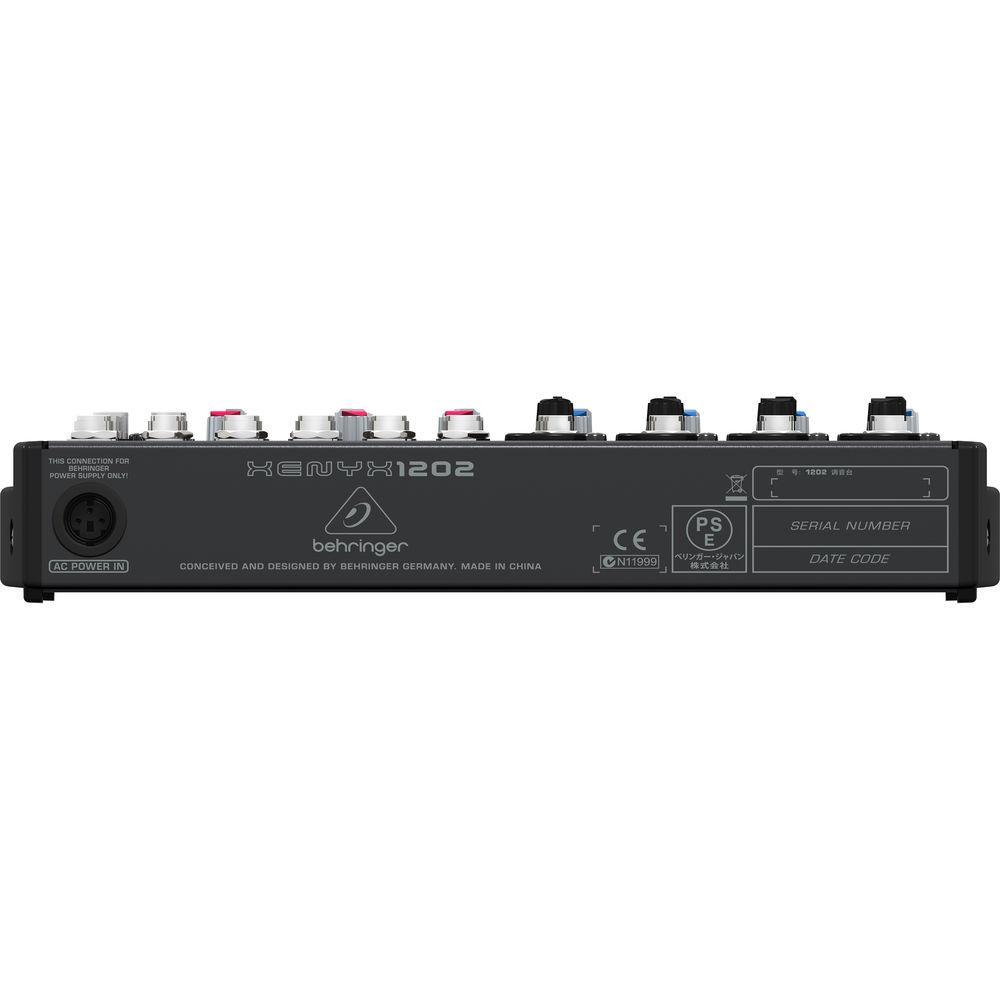

    AC Adapter Input: 120 V, 60 Hz

    Power Consumption: 13 W
    Dimensions (H x W x D) 1.9 x 9.5 x 8.7" / 47 x 242 x 220 mm
    Weight 4.8 lb / 2.2 kg
    Package Weight 6.2 lb
    Box Dimensions (LxWxH) 14.4 x 12.3 x 5.0"
