Behringer XENYX 502 5-Channel Compact Audio

Search your instruction manual in PDF to download

User Manual for Behringer XENYX 502 5-Channel Compact Audio Mixer

Click to enlarge the picture
Behringer XENYX 502 5-Channel Compact Audio Mixer Contents of the user manual for the Behringer XENYX 502 5-Channel Compact Audio
  • Product category: Analog Recording Mixers Behringer
  • Brand: Behringer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Behringer Analog Recording Mixers

Behringer XENYX 502 5-Channel Compact Audio Mixer Behringer XENYX 502 5-Channel Compact Audio Mixer Behringer XENYX 502 5-Channel Compact Audio Mixer Behringer XENYX 502 5-Channel Compact Audio Mixer
User manual for the Behringer XENYX 502 5-Channel Compact Audio contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Behringer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!



Product description

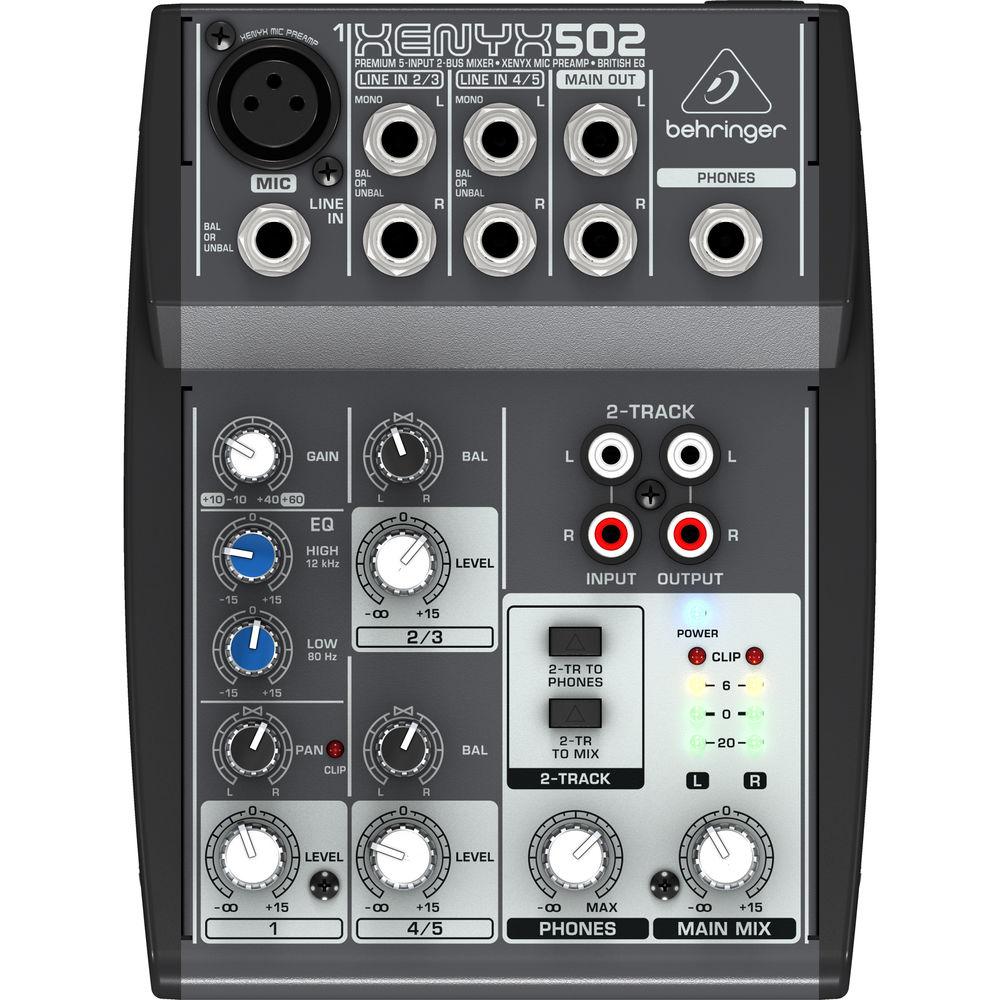

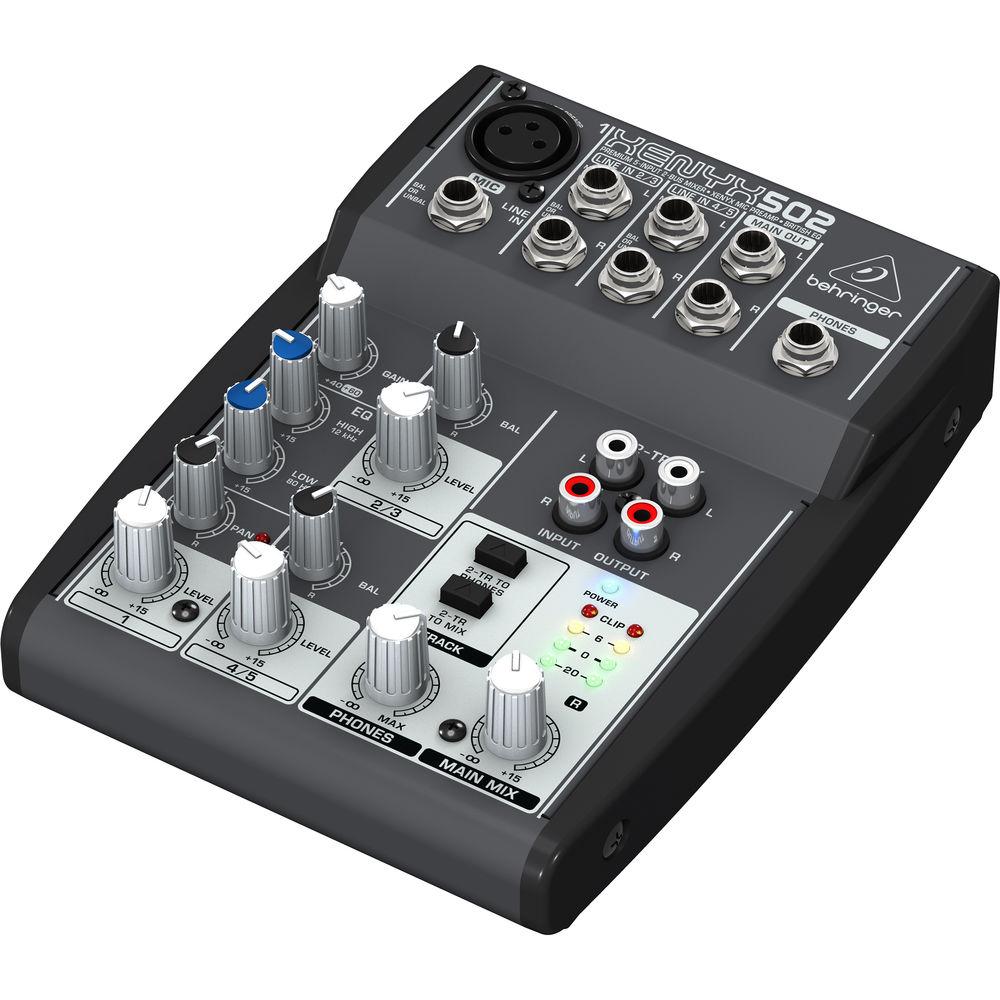

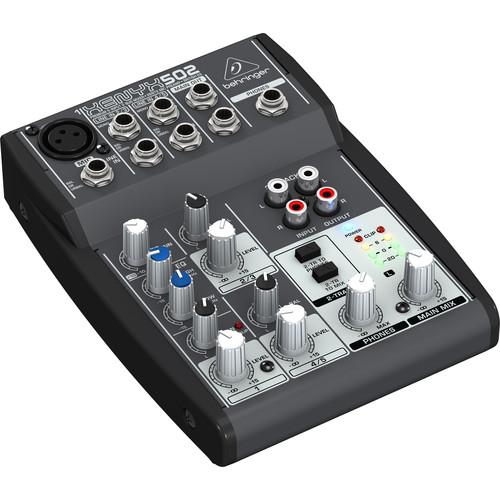

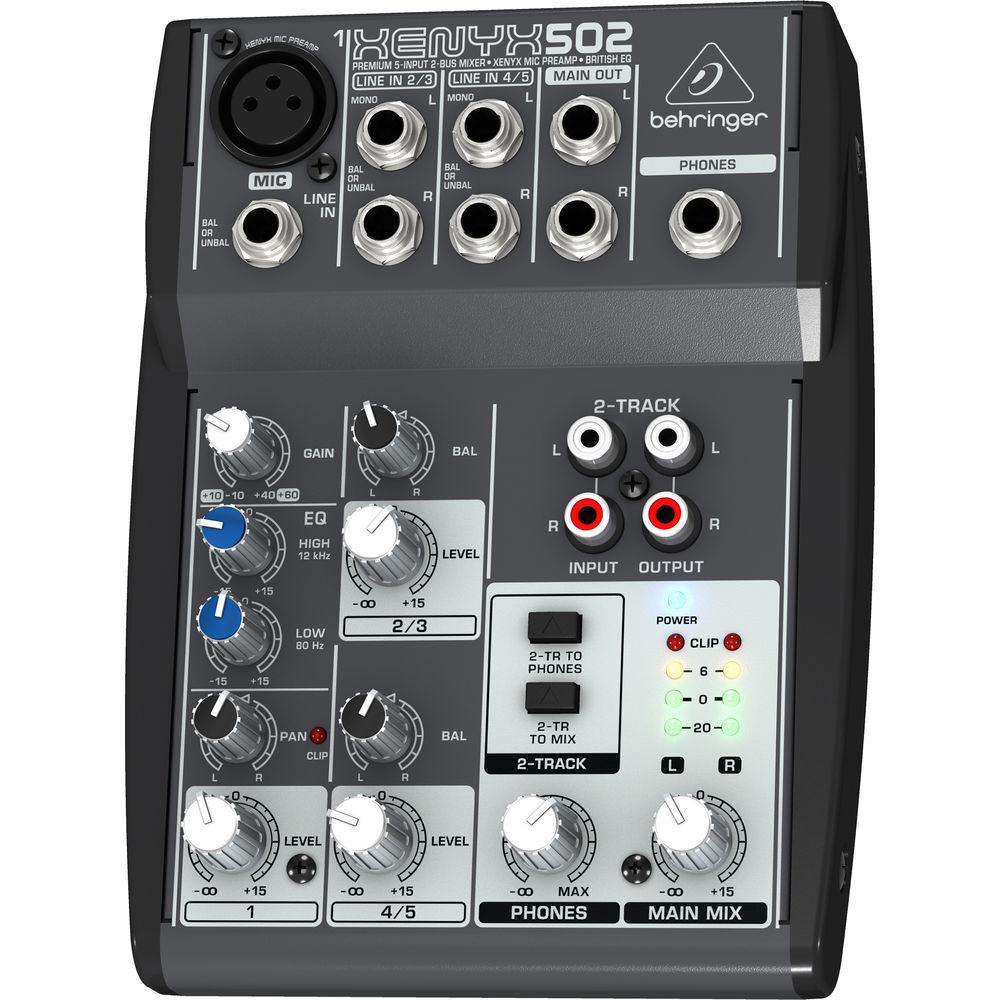

From Behringer, the XENYX series audio mixers are designed to provide real-world features while remaining cost effective and practical. The XENYX 502 is a compact 5-channel audio mixer with a single microphone input and 5 line-level inputs. There is a microphone input and inputs 2/3 and 4/5 are stereo paired for use with keyboards, player/recorders and other stereo devices. An additional stereo I/O is provided for connecting tape and CD devices. The compact 502 is well-suited for project recording, home video editing, small PA systems and more.
    5 Total Input Channels
  • The XENYX 502 features a total of 5 line inputs on 1/4" phone connectors and a single XLR microphone input
    Stereo Inputs
  • Channels 2/3 and 4/5 feature stereo paired 1/4" phone line inputs for keyboards, recorders and other stereo devices
    Compact and Portable
  • The 502's ultra compact profile is ideal for the road and easy storage
UPC: 689076752770 In the Box Behringer XENYX 502 5-Channel Compact Audio Mixer
  • Limited 10-Year Warranty
  • User Manual PDF 2.2mbreacxsud Table of Contents




    Upload User Manual

    Have you got an user manual for the Behringer XENYX 502 5-Channel Compact Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Behringer 502 Specs

    Total # Of Inputs 5 Inputs
    Mic/Line Inputs 1 Mic: 3-Pin XLR
    5 Line: 1/4" TRS Phone
    Stereo Line Inputs 2 Stereo: L/R Paired 1/4" TRS Phone channels 2/3 and 4/5
    In-Line Inputs/Returns No
    AUX Sends No
    AUX Returns No
    Inserts No
    BUS (Group) Outputs Stereo Main Only: L/R 1/4" TRS Phone
    2 Trk Master I/O CD/Tape -
    Input: L/R RCA Phono
    Output: L/R RCA Phono
    ALT I/O No
    Monitor Outputs Phones: 1/4" Stereo
    EQ Section Low: 80 Hz +/- 15 dB
    High: 12 kHz +/- 15 dB
    Solo/Mute No
    Channel Level Control Rotary Controls
    Trim/Gain Control No
    Phantom Power Yes
    Metering Stereo: 4-segment Peak LED meters
    Frequency Response 10 Hz to 20 kHz (-3 dB)
    Dynamic Range Not Specified by Manufacturer
    Signal-to-Noise Ratio 110 dB / 112 dB A-weighted
    Total Harmonic Distortion (THD) 0.005% / 0.004% A-weighted

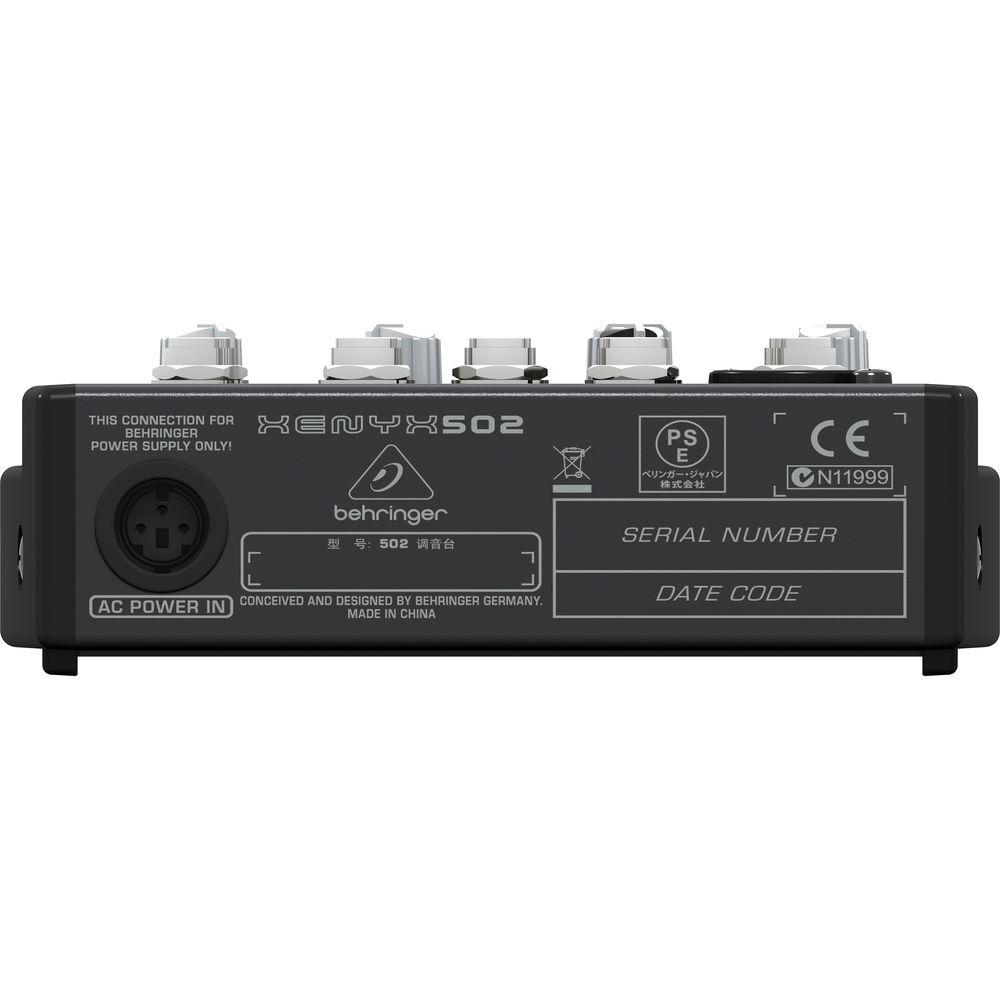

    Power Supply 13W
    USA/Canada 120 V~, 60 Hz, MXUL5 adapter
    Dimensions (HxWxD) 1.85 x 5.27 x 6.97" (47 x 134 x 177 mm)
    Weight 1.21 lb (0.55 kg)
    Package Weight 3.245 lb
    Box Dimensions (LxWxH) 11.85 x 8.9 x 3.5"
