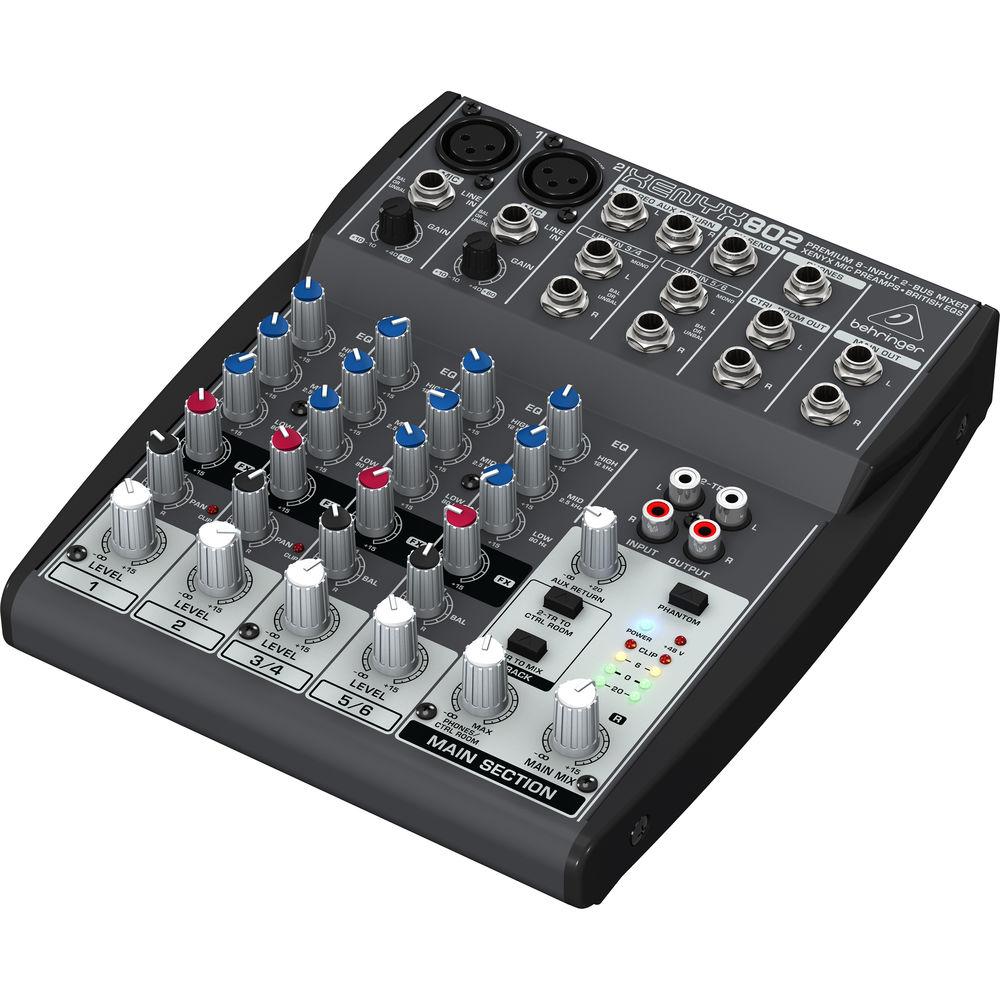

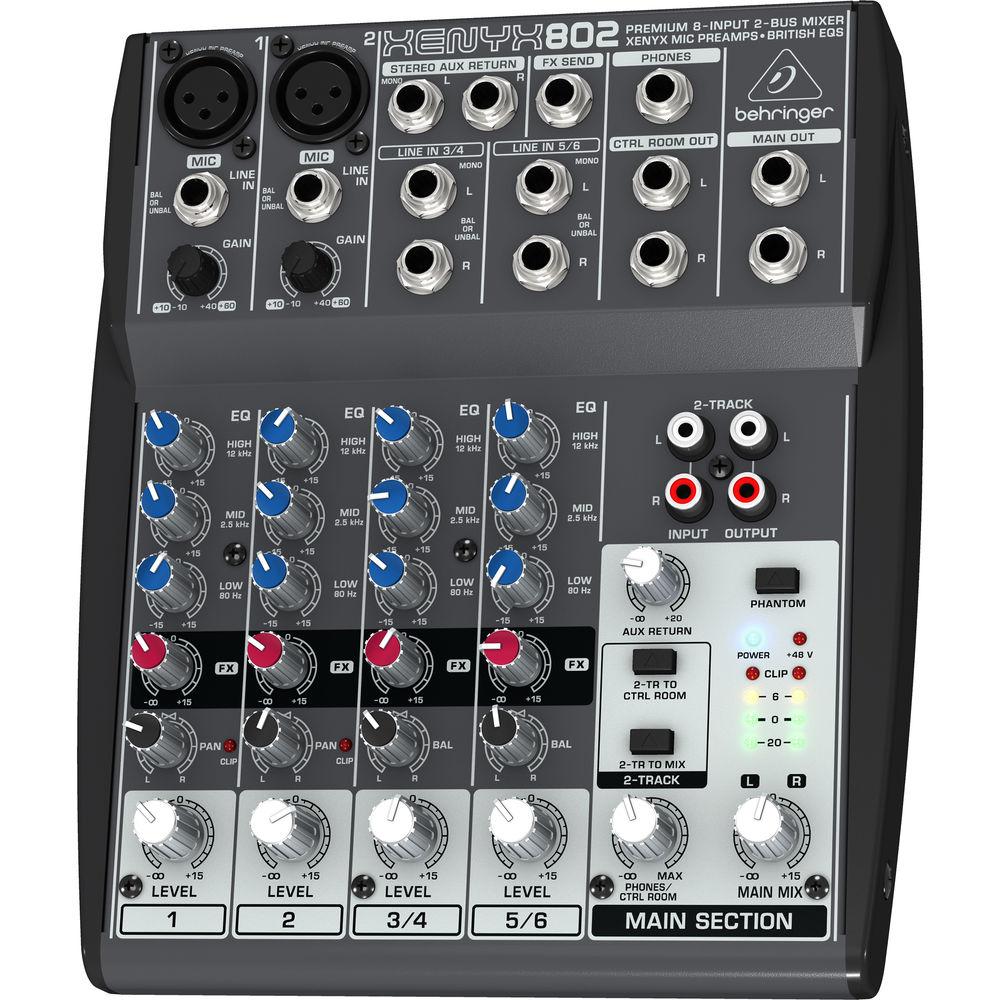

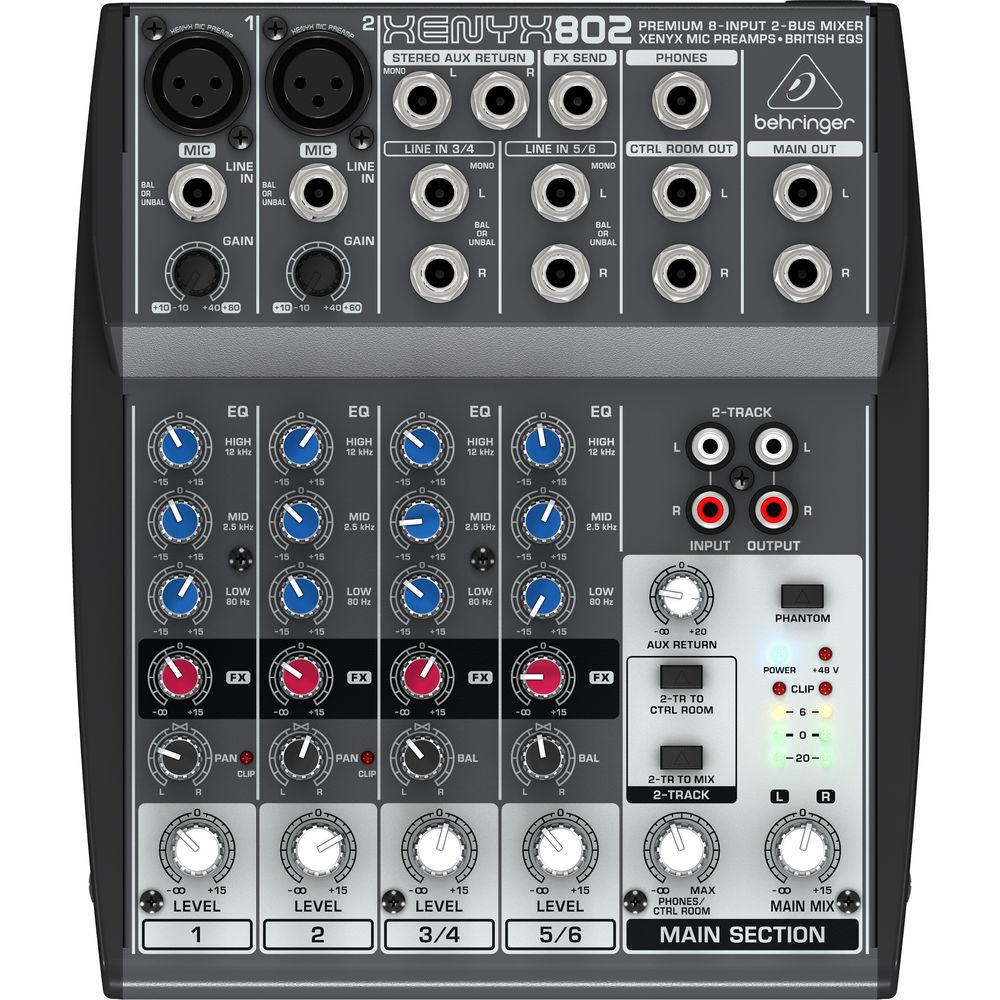

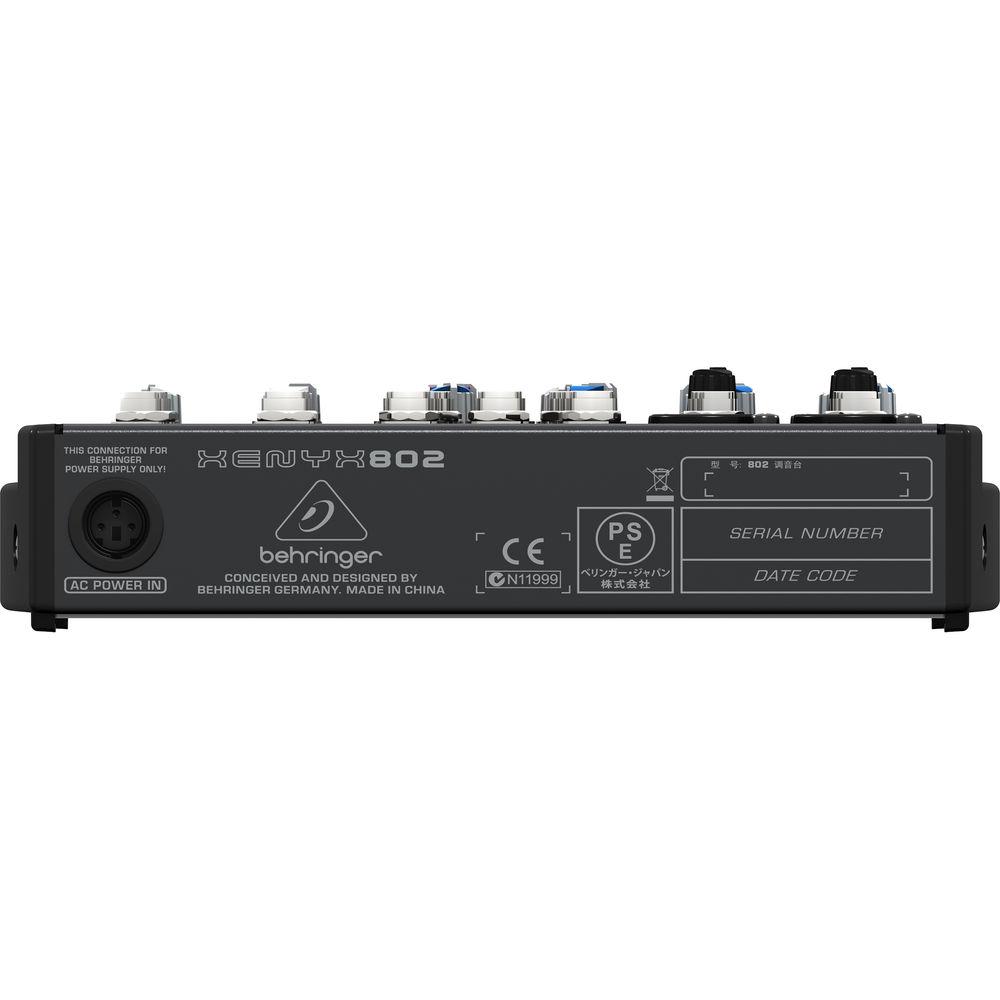

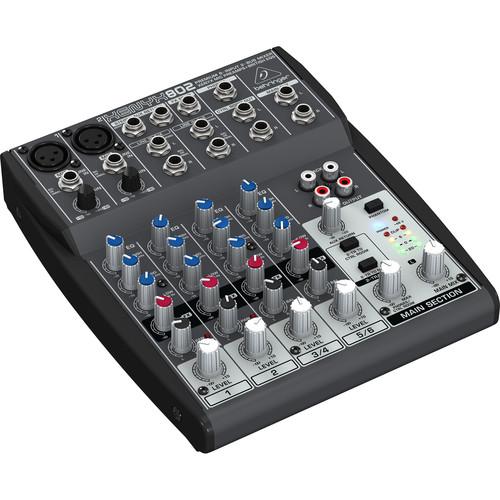

User Manual for Behringer XENYX 802 8-Channel Compact Audio Mixer Click to enlarge the picture
Contents of the user manual for the Behringer XENYX 802 8-Channel Compact Audio
- Product category: Analog Recording Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Analog Recording Mixers
 |
User manual for the Behringer XENYX 802 8-Channel Compact Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - XENYX 802 Premium 8-Input 2-Bus Mixer with XENYX Mic Preamps and British EQs
The Behringer XENYX 802 is a mixer that offers clear and natural sound in a small and portable format. With eight inputs and two high-quality XENYX mic preamps, this versatile mixer is well suited for mixing and recording solo gigs at the local coffee shop, small corporate events, songwriting projects, and more.The XENYX 802 is quick to set up and operate with all the connections and controls easily reachable on the top of the unit. The first two input channels feature XENYX mic preamps on two XLR connectors, as well as two 1/4" inputs for line-level signals. Switchable, onboard 48V phantom power allows you to plug in both dynamic and studio-grade condenser microphones. A gain knob lets you adjust the input level, and a clip LED alerts you if you are overdriving the input. British-style 3-band EQs provide warm and musical tone corrections for your vocals and instruments.The two sets of stereo inputs enable you to connect stereo keyboards or playback devices to the mixer. Pan (balance) and level controls are included for all inputs. Each channel is equipped with a post-fader FX send for sending signal to an external processor of your choice. There is also a stereo aux return, which can be used to return effects or as a separate stereo input.The 2-Track section provides an easy way to connect an external 2-track recorder and/or playback device. The 2-Track inputs are assignable to either the main mix or to the control room/phones outputs. The main mix knob controls the signal at both the main outs and 2-Track outputs, while a dedicated knob adjusts the volume for the phone/control room outputs. - Key Features
-
- Compact and versatile 8-channel analog mixer for solo gigs or small corporate events
- Two quality XENYX microphone preamps with 130 dB of dynamic range
- Switchable 48V phantom power
- Two balanced mono line inputs
- Two balanced stereo pairs of line inputs
- Neo-classic, British-style 3-band EQs for warm and musical sound
- One mono post-fader FX-send knob per channel for sending signal to external processor
- Stereo aux return for FX applications or as a separate stereo input
- Main mix outputs and separate control room, phones, and stereo 2-Track outputs
- 2-Track inputs assignable to main mix or control room/phones outputs
- Mic channels with low-noise and distortion-free circuitry for natural sound reproduction
- Designed and engineered in Germany
UPC: 689076750370 In the Box Behringer XENYX 802 8-Channel Compact Audio Mixer PSU3-UL Power Supply Limited 1-Year Warranty Extends Additional 2 Years upon Registration within 90 Days User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX 802 8-Channel Compact Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer 802 Specs | Microphone Inputs | 2 x XLR, electronically balanced, discrete input circuit
XENYX microphone preamps with 48 V phantom power (switchable) | | Microphone EIN | (EIN 20 Hz to 20 kHz)
At 0 Ohm Source Resistance: -134 dB / 135.7 dB A-weighted
At 50 Ohms Source Resistance: -131 dB / 133.3 dB A-weighted
At 150 Ohms Source Resistance: -129 dB / 130.5 dB A-weighted
Frequency Response: <10 Hz to 150 kHz (-1 dB)
Frequency Response: <10 Hz to 200 kHz (-3 dB)
Gain Range: +10 to +60 dB
Maximum Input Level: +12 dBu at +10 dB gain
Impedance: 2.6 kOhms, balanced (approximately)
Signal-to-Noise Ratio: 110 dB / 112 dB A-weighted (0 dBu In at +22 dB gain)
Distortion (THD+N): 0.005% / 0.004% A-weighted | | Line Inputs | 2 x 1/4" / 6.3 mm TRS, electronically balanced
Impedance: 20 kOhms balanced / 10 kOhms unbalanced (approximately)
Gain Range: -10 to +40 dB
Maximum Input Level: +22 dBu at 0 dB gain | | Stereo Line Inputs | 2 x pairs of 1/4" / 6.3 mm TRS, electronically balanced
Impedance: 20 kOhms (approximately)
Maximum Input Level: +22 dBu | | Fade-Out/Crosstalk Attenuation | Main Fader Closed: 90 dB
Channel Muted: 89.5 dB
Channel Fader Muted: 89 dB | | Frequency Response | Microphone Input to Main Out:
<10 Hz to 90 kHz (+0 db/-1 dB)
<10 Hz to 160 kHz (+0 db/-3 dB) | | Equalization | Low: 80 Hz (±15 dB)
Mid: 2.5 kHz (±15 dB)
High: 12 kHz (±15 dB) | | FX Send | 1 x 1/4" / 6.3 mm TS, unbalanced
Impedance: 120 Ohms (approximately)
Maximum Output Level: +22 dBu | | Stereo Aux Returns | 1 x pair of 1/4" / 6.3 mm TRS, electronically balanced
Impedance: Approximately 20 kOhms (balanced), 10 kOhms (unbalanced)
Maximum Input Level: +22 dBu | | Main Outputs | 2 x 1/4" / 6.3 mm TRS, unbalanced
Impedance: 120 Ohms (approximately)
Maximum Output Level: +22 dBu | | Control Room Outputs | 2 x 1/4" / 6.3 mm TS, unbalanced
Impedance: 120 Ohms (approximately)
Maximum Output Level: +22 dBu | | Headphone Output | 1 x 1/4" / 6.3 mm TRS, stereo, unbalanced
Maximum Output Level: +19 dBu / 150 Ohms (+25 dB) | | 2-Track I/O | 1 x pair RCA, stereo, unbalanced CD/tape inputs
1 x pair RCA, stereo, unbalanced tape outputs | | Noise | Main Mix at -∞, Channel Fader at -∞: -106 dB / -109 dB A-weighted
Main Mix at 0 dB, Channel Fader at -∞: -95 dB / -98 dB A-weighted
Main Mix at 0 dB, Channel Fader at 0 dB: -84 dB / -87 dB A-weighted | | AC Adapter | Input: 120 V, 60 Hz
Power Consumption: 13 W | | Dimensions (H x W x D) | 1.9 x 7.4 x 8.7" / 47 x 189 x 220 mm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 13.2 x 10.6 x 4.0" |
