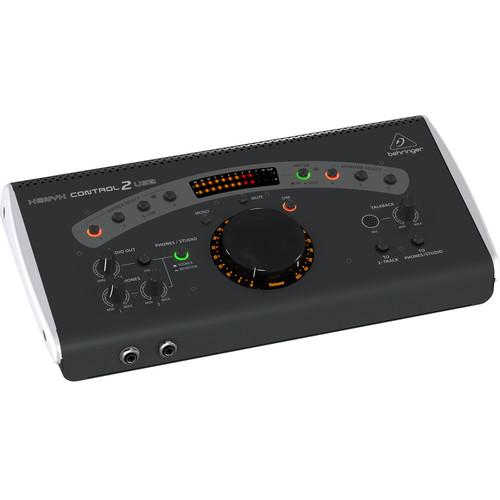

User Manual for Behringer Xenyx Control2USB Control & Communication Center Click to enlarge the picture
Contents of the user manual for the Behringer Xenyx Control2USB Control & Communication
- Product category: Studio Monitor Controllers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Studio Monitor Controllers
 |
User manual for the Behringer Xenyx Control2USB Control & Communication contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description Behringer: Xenyx Control2USB Monitor Controller Read More The Xenyx Control2USB from Behringer is a high-end studio control and communication center with VCA control and a USB audio interface. It can be used to put master volume, talkback, source selection, and monitor control right at your fingertips when recording or mixing in a studio environment. It features a large control knob, allowing you to make minute adjustments to volume. The Control2USB lets you set levels fast and accurately, which can be critical to the final sound when it comes to mastering an important project. It also utilizes a high-end Voltage Controlled Amplifier (VCA) to provide even more precise level adjustments. Furthermore, the built-in USB audio interface lets you connect directly to your computer and its digital library, with no additional hardware or drivers required. In addition, the Control2USB lets you switch between 3 pairs of studio monitors. You can add or remove a subwoofer and listen through small monitors or any other combination at the press of a button. - Premium, ultra-low noise and high-headroom studio control and communication center
- All-in-one master volume controller, source selector, monitor switcher, and talkback box
- 4 stereo inputs with independent level control plus an additional monitor mix input for your DAW
- 3 independent and adjustable monitor outputs to connect up to 3 sets of studio monitors
- Built-in talkback microphone with level control for direct communication with musicians
- Large volume knob with true VCA control for extremely precise level adjustments
- Built-in stereo USB audio interface, perfect for computer-based studios
- Premium-quality phono preamp for direct turntable connection
- 2 powerful headphones amplifiers with separate volume control
- Convenient mono, mute, and dim functions right at your fingertips
- High-precision dual 12-segment LED meters with input/output source switch
- "Planet Earth" switching power supply for maximum flexibility (100-240V)
UPC: 748252158345 In the Box Behringer Xenyx Control2USB Control & Communication Center AC Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Xenyx Control2USB Control & Communication Center in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer CONTROL2USB Specs | Line Level | 1/4" (6.3 mm) balanced or unbalanced: 10 Hz to 40 kHz (+0 dB/-1 dB)
Phono Input: 20 Hz to 20 kHz (±1 dB) | | Distortion (THD) | Line-level inputs to line level outputs (unity gain): <0.02 %, 20 Hz to 20 kHz @ +4 dBu
Phono Input: <0.10 %, 20 Hz to 20 kHz @ +4 dBu | | Noise Floor | Unity gain with input 1, 2, and 3 assigned: -86 dBu, 20 Hz to 20 kHz
Monitor A, B, and C outputs, studio output, DAW, 2-track A & B outputs: -90 dBu, 20 Hz to 20 kHz
Phono input: -75 dBu, 20 Hz to 20 kHz
Equivalent input noise (E.I.N.): -119 dBu, 20 Hz to 20 kHz | | Dynamic Range | Line inputs: 107 dB
Phone input: 88 dB | | Crosstalk | Adjacent inputs: 95 dB @ 1 kHz
Left to right/right to left: 85 dB @ 1 kHz
Muted/level off: 95 dB @ 1 kHz | | Control Range | Input level: ±10 dB
Output level: -12 dB to 0 dB
Dim switch: 0 dB/-20 dB | | Input Voltage | Line inputs (+4 dB level setting): +4 dBu/+30 dBu (nominal/maximum)
Line inputs (-10 dB level setting): -10 dBu/+15 dBu (nominal / maximum)
Phono input @ 1 kHz, nominal gain: 5 mV/90 mV (nominal/maximum) | | Output Voltage | All line-level outputs (+4 dB level setting): +4 dBu/+21 dBu (nominal/maximum)
All line-level outputs (-10 dB level setting): -10 dBu/+8 dBu (nominal/maximum) | | Maximum Voltage Gain | Input 1, 2, and 3 to:
Monitor A, B, and C outputs: +32 dB
DAW, 2-track A & B, and phones (rear) outputs: +22 dB
Studio output: 32 dB
Phones 1 & 2 outputs: 32 dB (output loaded @ 100 kOhms)
Monitor mix input to:
Phones (rear) outputs: 12 dB
Studio output: 22 dB
Phones 1 & 2 outputs: 22 dB (output loaded @ 100 kOhms)
Phono input @ 1 kHz to:
Monitor A, B, and C outputs: 65 dB
DAW, 2-track A & B, and phones (rear) outputs: 55 dB
Studio output: 66 dB
Phones 1 & 2 outputs: 66 dB (output loaded @ 100 kOhms) | | Input Impedance | Line input: 20 kOhms balanced/14 kOhms unbalanced
Phono input: 40 kOhms | | Output Impedance | Line output: 200 Ohms balanced/100 Ohms unbalanced
Headphone output: 50 Ohms | | VU Meter | Input/Output:
12-segment LED: Clip, +10, +7, +4, +2, 0, -2, -4, -7, -10, -20, -30 dB | | Talkback | Automatic gain control (AGC): Yes
Nominal output level: +4 dBu (+4 dB output level setting)
Output level range: ∞ to 10 dB | | Power Supply | Mains voltage: 100-240 VAC, 50/60 Hz
Fuse: T1AH 250 V
Power consumption: 15 W
Mains connection: Standard IEC receptacle | | USB | Audio: Stereo in/out
Connector: Type B
Sample rate: 44.1/48 kHz | | Dimensions (H x W x D) | 3.4 x 15.3 x 7.8" (87 x 389 x 198 mm) | | Weight | 5.3 lb (2.4 kg) | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 15.8 x 10.8 x 5.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Behringer Xenyx Control2USB Control & Communication Center
| Subject: behringer control2usb light around knob doesnt light up | | Date: 28.01.2021 05:52:09 | Name: kenny | | Just Bought this item and light around knob does not work?. I am I doing something wrong or is it faulty , also when I turn the level volume on back of units monitor input I can still hear the monitors sound (speaker)Is this supposed to be like that? | | Post reply |
