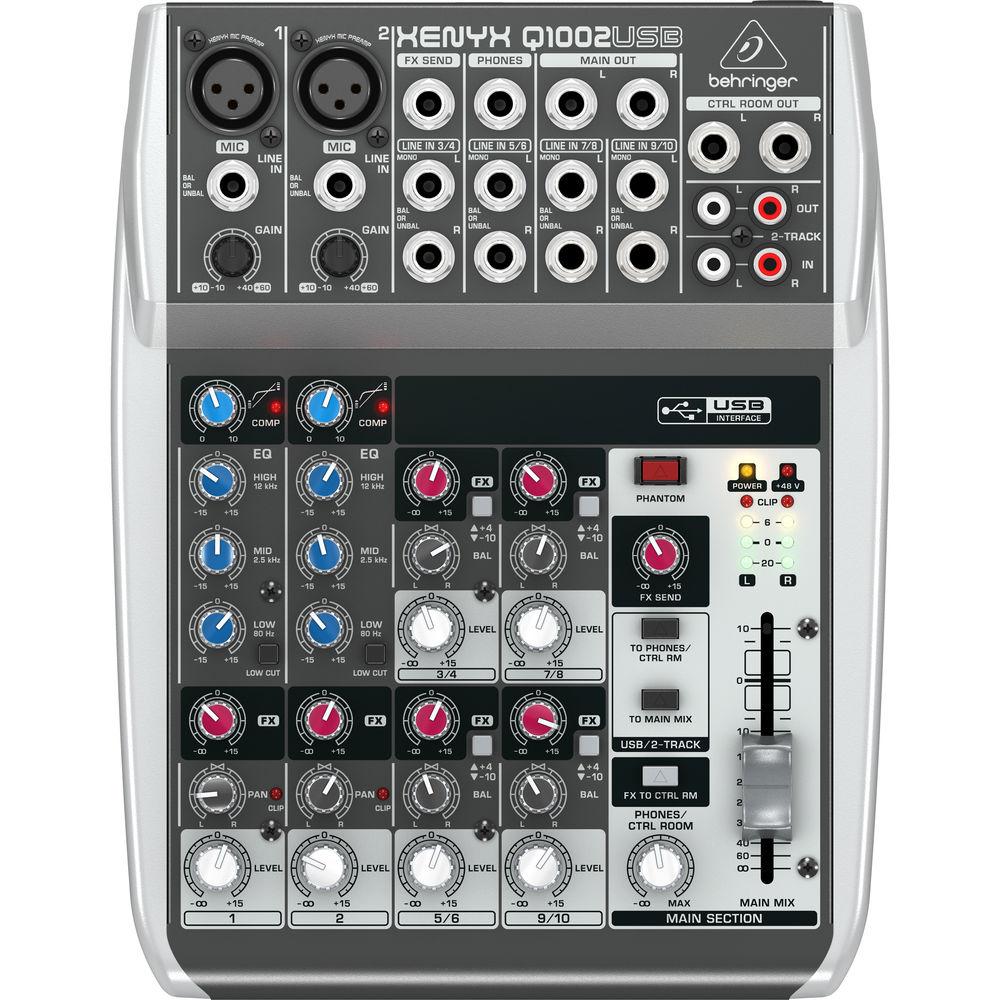

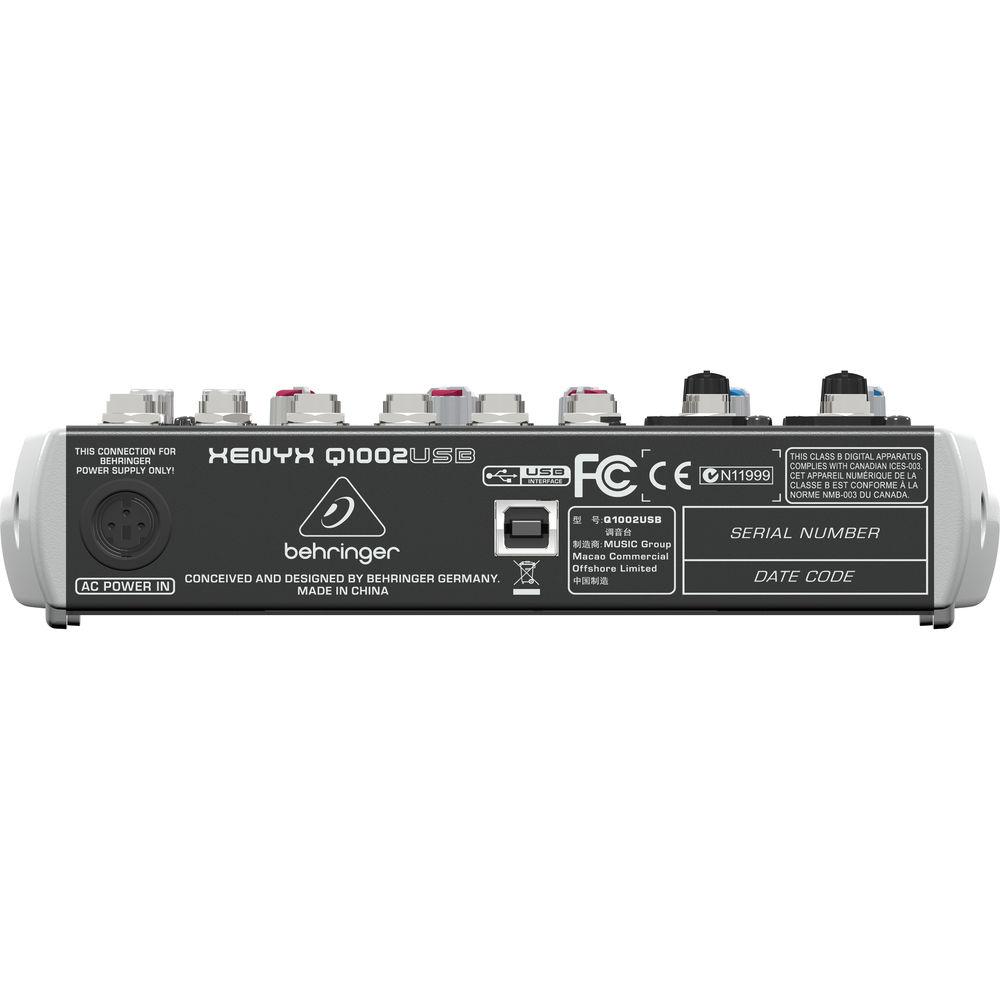

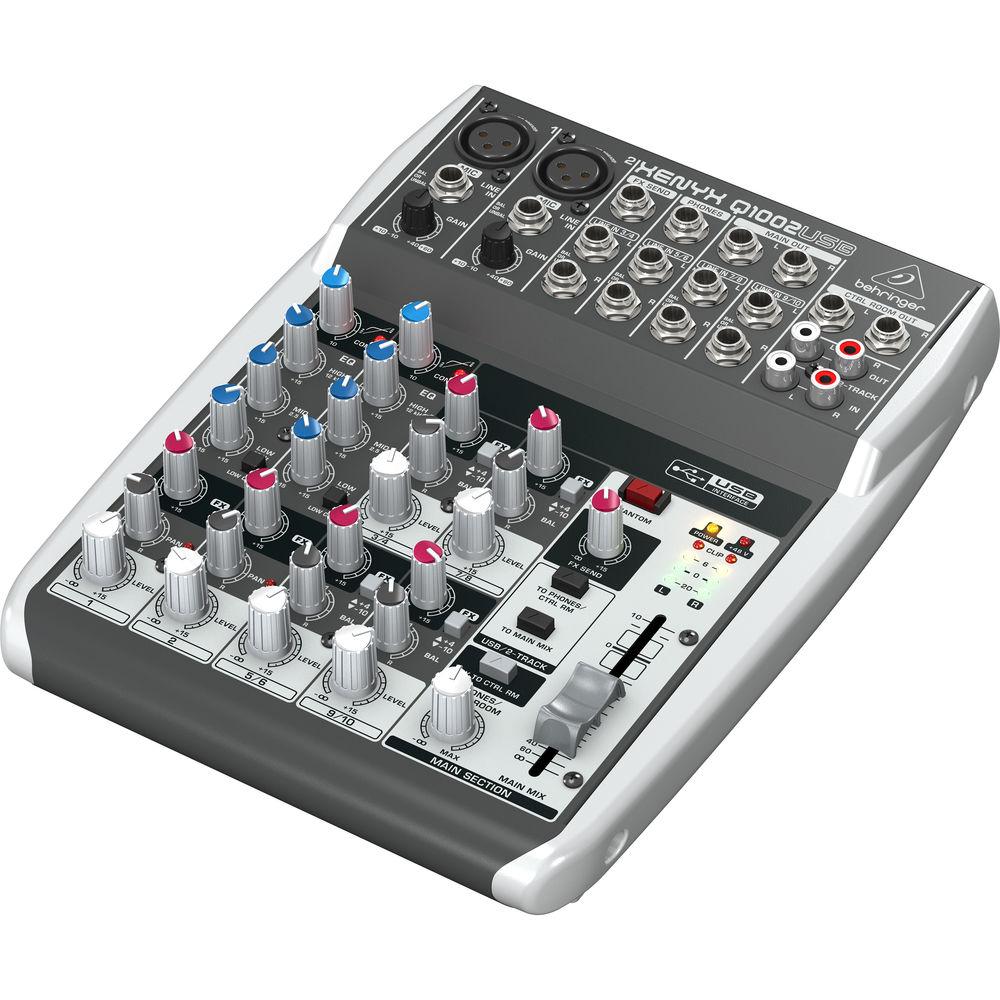

User Manual for Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Mixer with USB Output Click to enlarge the picture
Contents of the user manual for the Behringer XENYX Q1002USB 10-Input, 2-Bus Small
- Product category: Analog Recording Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Analog Recording Mixers
 |
User manual for the Behringer XENYX Q1002USB 10-Input, 2-Bus Small contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - XEYNX QX1002USB Small Format Mixer & USB Audio Interface
The Behringer XENYX Q1002USB is a 10-input, 2-bus small format mixer that features two XENYX microphone preamps, "one-knob" mono compressors and 3-band EQs. The XENYX Q1002USB also features a built-in USB/audio interface. This mixer can handle a live gig as well as serve as your audio interface for recording.
The high-headroom XENYX mic preamps offer 130dB of dynamic range with a bandwidth that extends from 10Hz to 200kHz. The "one-knob" compressors come standard on both mono channels. Additionally, the mono channels also have 3-band EQ with a low-band at 80Hz, mid at 2.5kHz, high at 12kHz as well as low cut filter.
The built-in stereo USB audio interface allows you to directly connect your Mac or PC. Any signal source connected to the mixer can be recorded straight to your hard drive. Additionally, with purchase, Behringer's website provides free downloads of Audacity, Podifier, Juice, Podnova and Golden Ear. All of this software collectively includes more than 100 virtual instruments and 50 FX plug-ins; turning your computer into a complete home-based or mobile recording studio. - XENYX Q1002USB Additional Features
- One post-fader FX send per channel for external processors
Main mix outputs
Control room outputs
2-Track outputs
Headphone output
2-Track inputs
FX to control room out function UPC: 794504548112 In the Box Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Mixer with USB Output Power Cable USB Cable Limited 10-Year Warranty Guides & Manuals rrfrwcvfrtdvdducbywbtrxfreafvvzc Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Mixer with USB Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Mixer with USB Output can be downloaded in PDF format at the link stated below.
Technical parametersBehringer Q1002USB Specs | | | Total # Of Inputs | 10 | | Channels | 2 mono
4 stereo | | USB Audio | Type B connector
2 channels in / 2 channels out
48 kHz sample rate | | Busses | Stereo mix buss, mono FX buss | | | | Type | XLR connector, balanced, discrete input circuit | | Mic Preamps | 2 x XENYX preamp | | Equivalent Input Noise | -134 dB / -136 dB A-weighted @ 0Ω source resistance
-131 dB / -133 dB A-weighted @ 50Ω source resistance
-129 dB / -131 dB A-weighted @ 150Ω source resistance | | Frequency Response | < 10 Hz to 150 kHz (-1 dB)
< 10 Hz to 200 kHz (-3 dB) | | Gain Range | +10 to +60 dB | | Maximum Input Level | +12 dBu @ +10 dB Gain | | Impedance | 1.9kΩ | | Signal-to-Noise Ratio | 110 dB A-weighted (0 dBu In @ +22 dB gain) | | THD + N | 0.005% / 0.004% A-weighted | | Phantom Power Supply | +48V | | | | Type | 1/4" TRS connector, balanced | | Impedance | 20kΩ, 10kΩ unbalanced | | Gain Range | -10 to +40 dB | | Maximum Input Level | +22 dBu @ 0 dB gain | | | | Type | Dual 1/4" TRS connectors, balanced | | Impedance | 20kΩ, 10kΩ unbalanced | | Gain Range | -20 to +20 dB | | Maximum Input Level | +22 dBu | | | | Type | Dual RCA connectors | | Input Impedance | 18kΩ | | Maximum Input Level | +22 dBu | | Output Impedance | 1kΩ | | Maximum Output Level | +22 dBu | | | | EQ Controls | 3-band EQ on mono channels:
Low: ±15 dB @ 80 Hz
Mid: ±15 dB @ 2.5 kHz
High: ±15 dB @ 12 kHz | | | | Aux Sends | 1/4" TRS connector, balanced
Impedance: 120Ω
Maximum output level: +22 dBu | | Aux Returns | 1/4" TRS connector, balanced
Impedance: 20kΩ, 10kΩ unbalanced
Maximum input level: +22 dBu | | | | Type | 1/4" TRS connector, balanced | | Impedance | 120Ω balanced | | Maximum Output Level | +22 dBu | | | | Type | 1/4" TRS connector, balanced | | Impedance | approx. 120Ω | | Maximum Output Level | +22 dBu | | | | Type | 1/4" TRS stereo connector, unbalanced | | Maximum Output Level | +21 dBu / 150Ω (+25 dBm) | | | | Compressor | Independent compressor on each mono channel | | Metering | 4-LED per side | | Faders | 1 x 60 mm master fader | | Noise | Main mix @ -∞, channel fader @ -∞
-106 dB / -109 dB A-weighted
Main mix @ 0 dB, channel fader @ -∞
-93 dB / -96 dB A-weighted
Main mix @ 0 dB, channel fader @ 0 dB
-84 dB / -87 dB A-weighted | | | | Power Consumption | 13W | | Dimensions (W x D x H) | 7.7 x 9.8 x 2.0" (195 x 248 x 50 mm) | | Weight | 2.4 lb (1.1 kg) | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 4.3" |
