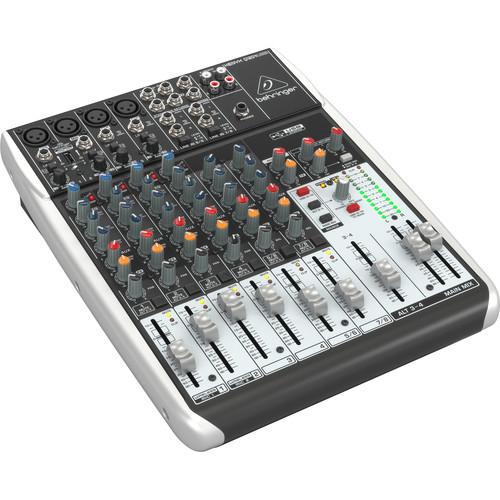

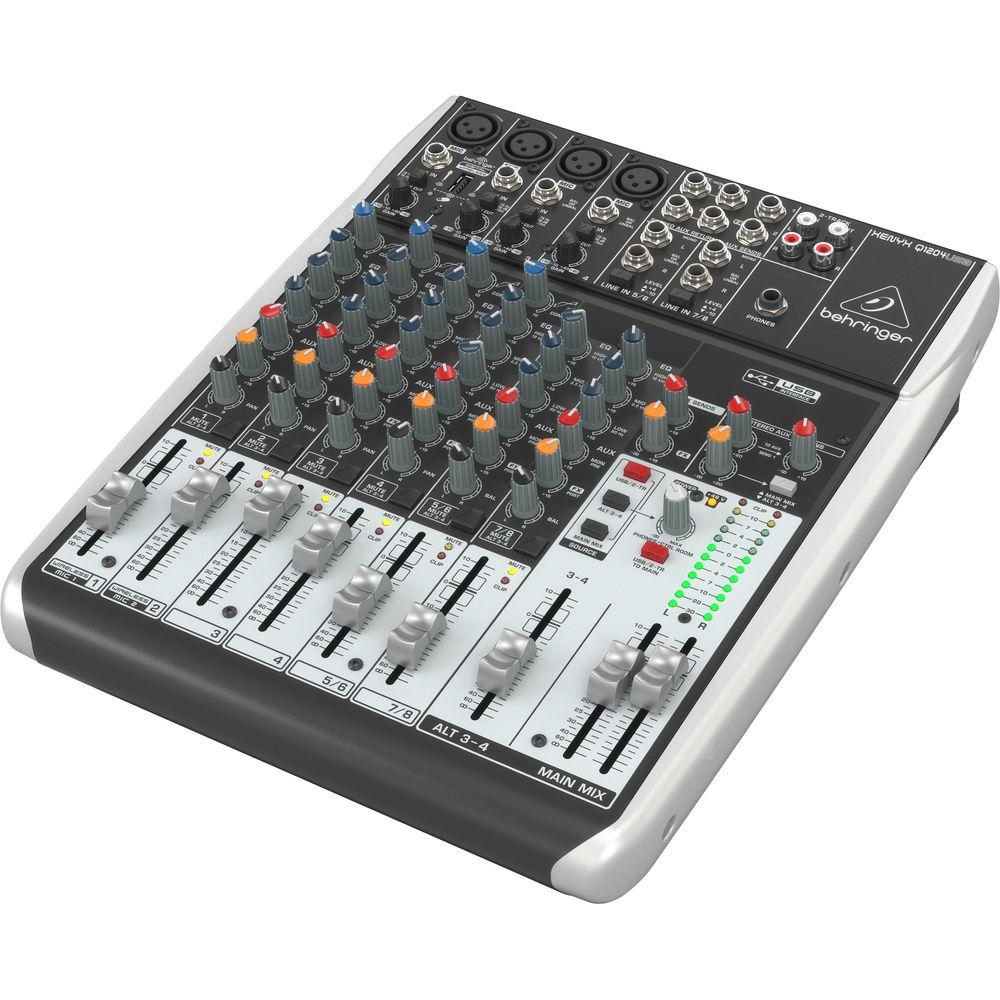

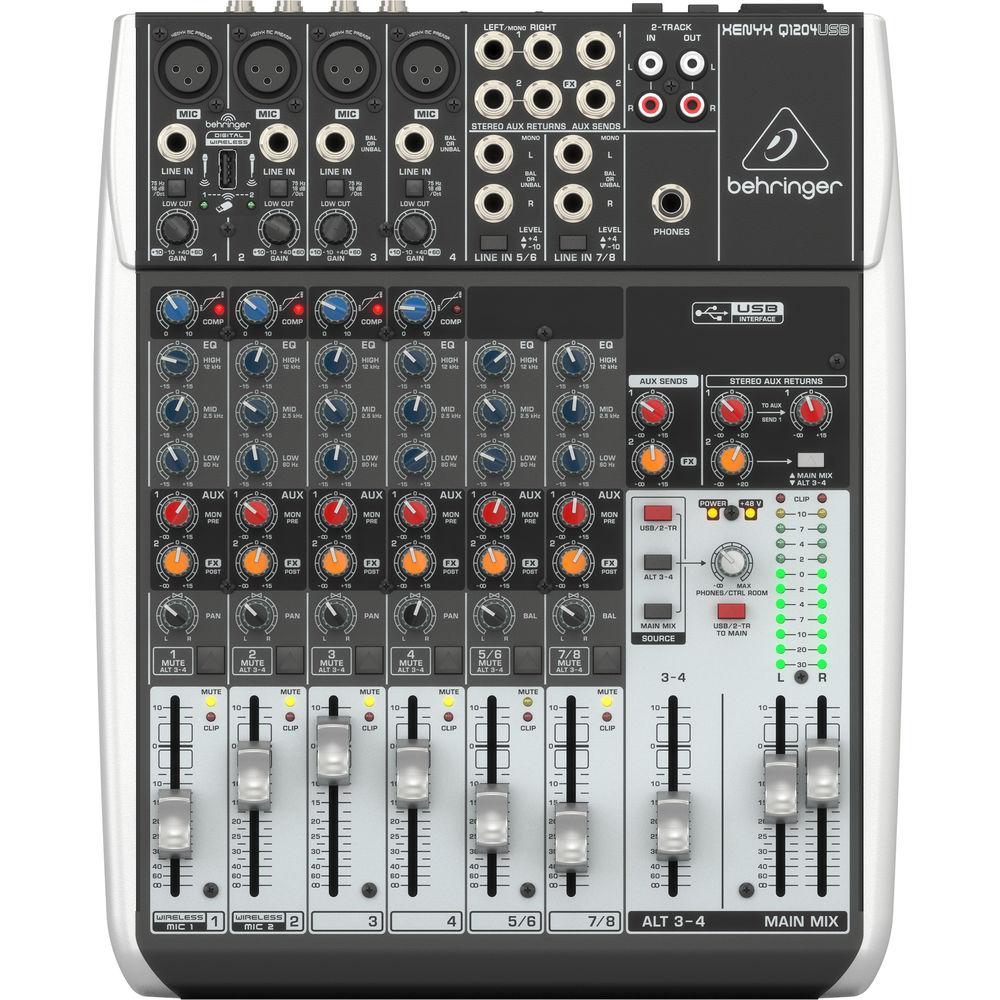

Product description The Behringer XENYX Q1204USB-12-Input USB Audio Mixer is a 12-input audio mixer with an integrated USB computer audio interface. It enables you to mix together and shape the sound of multiple audio signals, and route the audio to several outputs. The mixer features four XENYX microphone preamps, 3-band "British"-style EQ, and four easy-to-use one-knob compressors.It provides four mono channels and two stereo channels, making it suitable for small and medium-sized audio projects. There are two aux sends, which enable you to route individual channels to stage monitors or external effects, and two stereo aux FX returns. Every channel features a 3-band EQ with a swept mid, which can help you make vocals and instruments stand out in a mix. The built-in USB interface allows for a bi-directional transfer of audio to and from your computer.The four built-in compressors are designed to simplify the process of controlling dynamics in your mix. With a single knob you can dial in the amount of compression you need for any given sound. The four XENYX preamps offer 130dB of dynamic range, and the 3-band "British"-style EQs allow you to finely tune your mix. For outputs, the mixer includes two gold-plated XLR main outputs, two 1/4" alternate outputs, and two 1/4" control room outputs. The mixer is suitable for recording studios, video editing suites, live sound mixing, podcasting and more. - Low-noise, high-headroom analog mixer
- Four phantom-powered XENYX microphone preamps
- Four compressors with easy "one-knob" functionality and control LED
- "British"-style 3-band EQs for adjusting your tone
- Built-in stereo USB audio interface to connect directly to a computer; download audio recording, editing, and podcasting software plus 150 instrument and effect plug-ins and ultra-low latency driver from Behringer website.
- Two aux sends per channel: one pre/post fader switchable for monitoring/FX applications, one post fader (for internal FX or as external send)
- Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
- Two subgroups with separate outputs for added routing flexibility
- Compatible with Behringer's wireless USB digital microphone system
- Long-wearing full-sized 60mm faders and sealed rotary controls
- Switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for saving energy
UPC: 713757153911 In the Box Behringer XENYX Q1204USB -12-Input USB Audio Mixer Power Cable USB Cable Rackmount Hardware Limited 10-Year Warranty Quick-Start Guide PDF 5.3mbzvqsuedcedvvafrewfztzy Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX Q1204USB -12-Input USB Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer Q1204USB Specs | Total # Of Inputs | 12 inputs | | Mic/Line Inputs | 4 x XLR microphone inputs with preamps
4 x 1/4" TRS line-level inputs | | Stereo Line Inputs | 2 x 1/4" TRS left & right paired inputs
2 x 2-track RCA inputs | | AUX Sends | 2 | | AUX Returns | 2 stereo returns | | Inserts | 4 | | BUS (Group) Outputs | 2 sub groups | | 2 Trk Master I/O | 2 x balanced XLR outputs
2 x 1/4" TRS outputs | | ALT I/O | 2 x 1/4" TRS sub outputs
Stereo RCA 2-track outputs | | Monitor Outputs | 2 x 1/4" TRS control room outputs
1 x 1/4" stereo headphone output | | EQ Section | 3-Band EQ with mid sweep on every channel | | Solo/Mute | Mute and solo buttons on every channel | | Channel Level Control | 60 mm faders | | Trim/Gain Control | Yes | | Metering | 12-Segment stereo LED meters
Clip LEDs on every channel | | | | Type | XLR, electronically balanced, discrete input circuit | | Mic Input Noise (E.I.N.) | 20 to 20,000 Hz
At 0 Ω source resistance: -132 dB / -134 dB A-weighted
At 50 Ω source resistance: -131 dB / -132 dB A-weighted
At 150 Ω source resistance: -128 dB / -131 dB A-weighted | | Frequency Response | Preamp:
< 10 to 150,000 Hz (-1 dB)
< 10 to 200,000 Hz (-3 dB)
Mic input to main output:
<10 to 160,000 Hz (± 3 dB) | | Dynamic Range | Not specified by the manufacturer | | Gain Range | 10 to 60 dB | | Maximum Input Level | +12 dBu at +10 dB Gain | | Impedance | Approximately 2 kΩ balanced | | Signal-to-Noise Ratio | 108 dB / 110 dB A-weighted (0 dBu In @ +22 dB gain) | | Total Harmonic Distortion (THD) | 0.005% / 0.004% A-weighted | | Phantom Power | Switchable, +48V | | | | Type | 1/4" TRS connector, balanced | | Impedance | Approximately 20 kΩ balanced
10 kΩ unbalanced | | Gain Range | -10 to +40 dB | | Maximum Input Level | 30 dBu | | | | Type | 2 x 1/4" TRS connector, balanced
2-Track: 1 x RCA pair | | Impedance | Stereo: Approximately 20 kΩ balanced, 10 kΩ unbalanced
2-Track: 10 kΩ | | Gain Range | -20 dB to 20 dB | | Maximum Input Level | 22 dBu | | EQ Type Mono Channels | Low: 80 Hz, ±15 dB
Mid: 2,500 Hz, ±15 dB
High: 12,000 Hz, ±15 dB | | | | AUX Sends | Type: 2 x 1/4" TRS connector, balanced
Impedance: Approximately 120 Ω
Maximum Output Level: 22 dBu | | AUX Returns | Type: 2 x 1/4" TRS connector, electronically balanced
Impedance: Approximately 20 kΩ balanced, 10 kΩ unbalanced

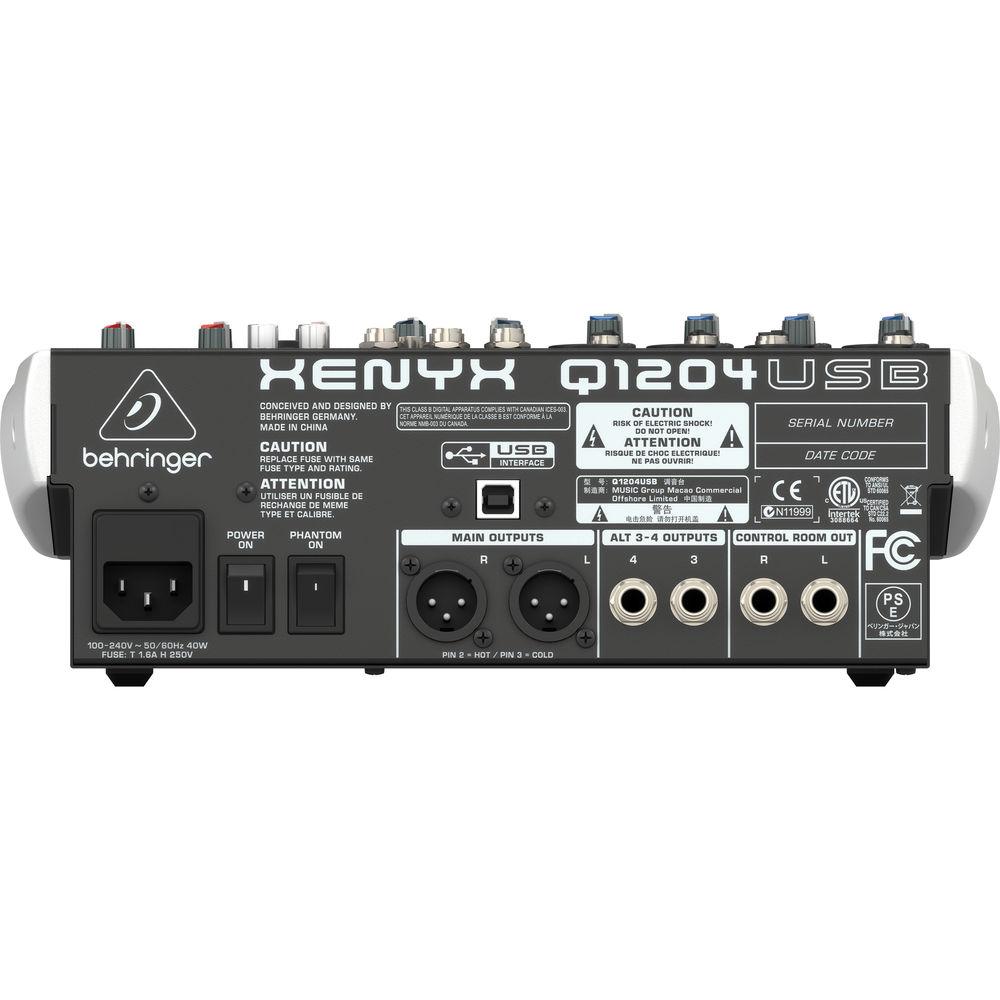

Maximum Input Level: 22 dBu | | Main Outputs | XLR, balanced
Impedance: Approximately 240 Ω balanced, 120 Ω unbalanced
Maximum Output Level: 28 dBu | | Control Room Outputs | Type: 1/4" TRS, balanced
Impedance: Approximately 120 Ω
Maximum Output Level: 22 dBu | | Headphone Outputs | Type: 1/4" TRS connector, unbalanced
Impedance: 25 Ω
Maximum Output Level: 21 dBu at 150 Ω (+25 dBm) | | Wireless | USB dongle: Accepts signal from 2 independent Behringer ULM mics | | USB | Audio: Stereo In/Out
Connector: Type B
Converter: 16-bit
Sample Rate: 48 kHz | | Noise | Main mix at -∞ with channel fader at -∞: -105 dB / -108 dB A-weighted
Main mix at 0 dB with channel fader at -∞: -95 dB / -97 dB A-weighted
Main mix at 0 dB with channel fader at 0 dB: -83 dB / -85 dB A-weighted | | | | Mains | 100 to 240 V, 50/60 Hz | | Power Consumption | 40 W | | Fuse | 100 to 240 V: T 1.6 A H 250 V | | Connection | Standard IEC receptacle | | Dimensions (W x D x H) | 10.4 x 13 x 3.50" (265 x 330 x 90.0 mm) | | Weight | 6.2 lb (2.8 kg) | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 16.0 x 14.6 x 5.8" |
