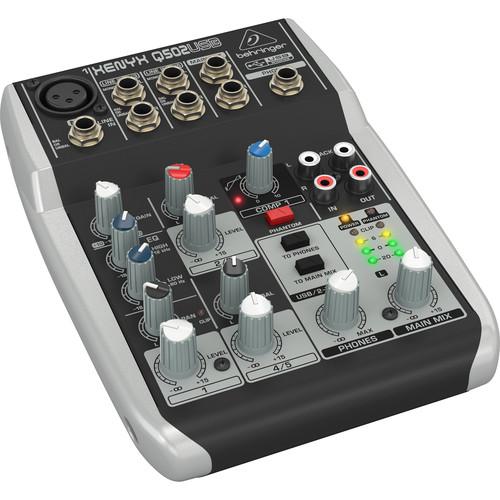

User Manual for Behringer XENYX Q502USB 5-Channel USB Mixer Click to enlarge the picture
Contents of the user manual for the Behringer XENYX Q502USB 5-Channel USB Mixer
- Product category: Analog Recording Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Analog Recording Mixers
 |
User manual for the Behringer XENYX Q502USB 5-Channel USB Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

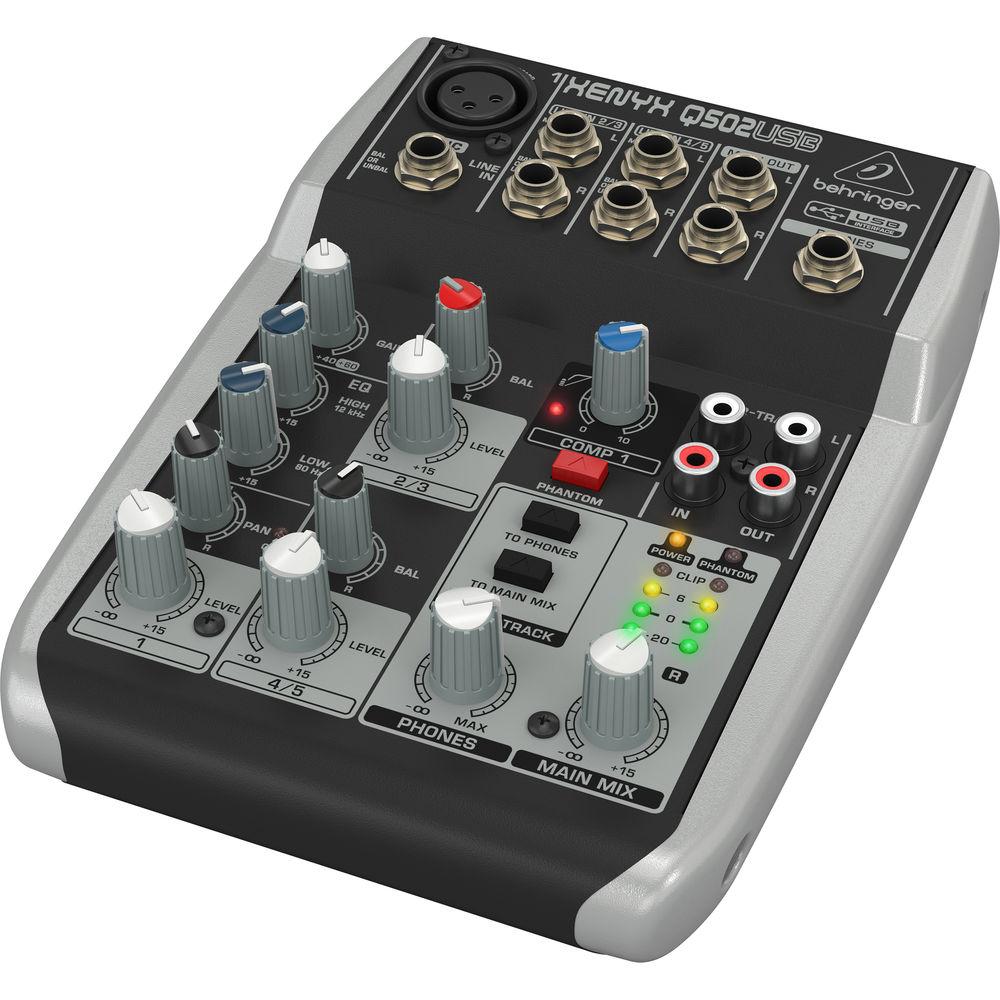

Product description - XENYX Q502USB Small Format Mixer & USB Audio Interface

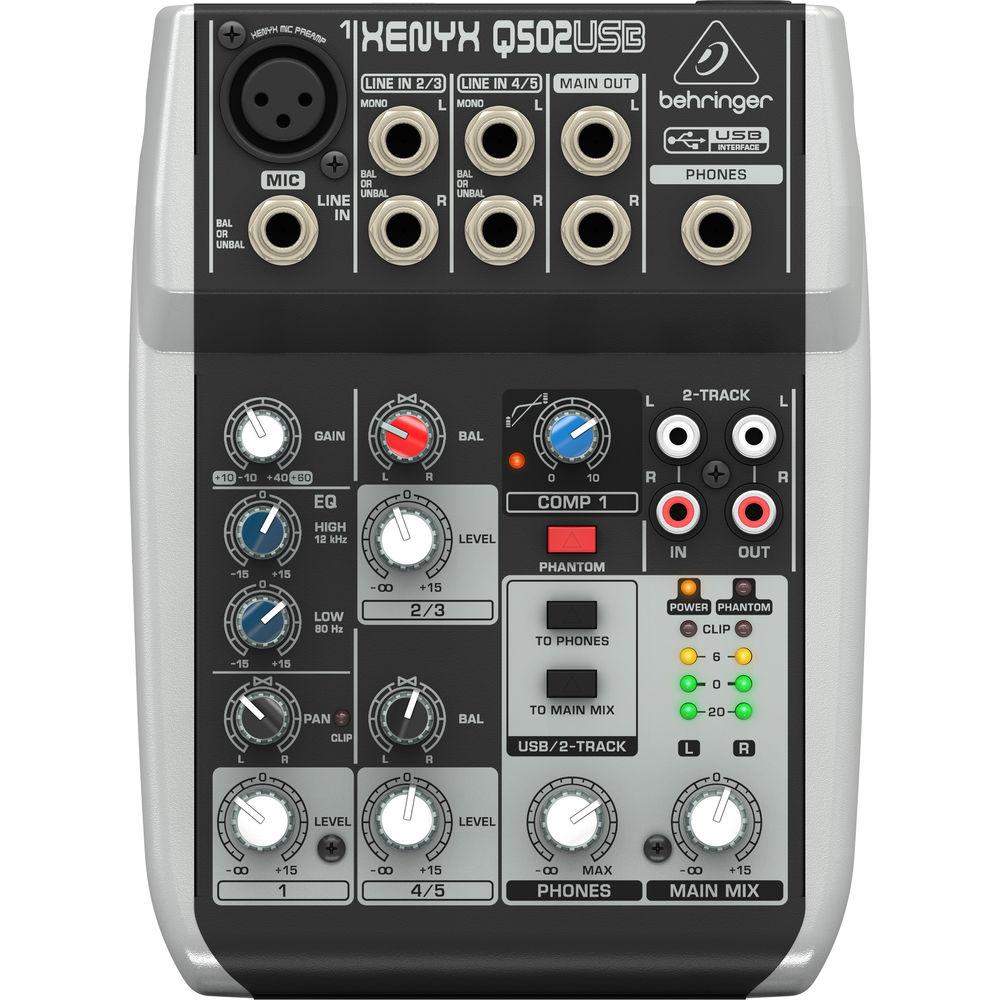

The Behringer XENYX Q502USB is a mixer that offers clear and natural sound in a compact and portable format. With five inputs, one high-quality XENYX mic preamp, and a USB interface, this mixer is ideal for a variety of mix and recording applications, from small-stage gigs to home-studios, limited-size corporate events, and more.The XENYX Q502USB is quick to set up and operate with all connections and controls easily reachable on the top of the unit. The first input channel features a XENYX mic preamp, which delivers 130 dB of dynamic range, low-distortion signal, and a wide frequency response extending from 10 Hz to 200 kHz. Switchable 48V phantom power allows you to plug in both dynamic and studio-grade condenser microphones.The channel also offers a 1/4" input for a line-level signal, a British-style, 2-band EQ to provide warm and musical tone corrections for your vocals and instruments, and an easy-to-use, "one-knob" compressor to gently smooth out signal peaks for punchy and present bass lines, drums, and vocals. A gain knob let you adjust the input level and a clip LED alerts you when the signal is too high and about to distort. Dedicated knobs set the mix level and pan position. The two sets of stereo inputs each feature pan (or balance) and level controls.The XENYX Q502USB is equipped with a stereo USB audio interface for recording your mix directly to a computer. Along with it comes the recording and editing software needed to turn your computer system into a home recording studio. The 2-Track section provides an easy way to connect an external 2-track recorder and/or playback device. The 2-Track inputs are assignable to either the main mix or to the phones outputs. Dedicated knobs adjust the volume for the main mix and phones outputs. - Key Features
-
- One high-quality, XENYX microphone preamp with 130 dB of dynamic range, for dynamic and condenser microphones
- Switchable 48V phantom power
- Mic channel with low-noise and distortion-free circuitry for natural sound reproduction
- One balanced mono line input
- Two balanced stereo pairs of line inputs
- Built-in stereo USB audio interface to record directly to your computer
- Free audio recording, editing, and podcasting software, plus 150 instrument/effect plug-ins downloadable at behringer.com
- Neo-classic, British-style 2-band EQ on mono channel for warm and musical sound
- Studio-grade compressor with super-easy "one-knob" functionality and control LED
- Main mix outputs plus headphones and stereo 2-Track outputs
- 2-Track inputs assignable to main mix or control room/phones outputs
- Designed and engineered in Germany
UPC: 794504547917 In the Box Behringer XENYX Q502USB 5-Channel USB Mixer PSU3-UL Power Supply Limited 1-Year Warranty Extends Additional 2 Years upon Registration within 90 Days Guides & Manuals uxxcsctdwrauscbvwtvyevszyzyrwasruaxzvs Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX Q502USB 5-Channel USB Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Behringer XENYX Q502USB 5-Channel USB Mixer can be downloaded in PDF format at the link stated below.
Technical parametersBehringer Q502USB Specs | Microphone Input | 1 x XLR, Balanced, Discrete Input Circuit
XENYX Microphone Preamp with 48 V Phantom Power (Switchable) | | Microphone EIN | (EIN 20 Hz to 20 kHz)
At 0 Ohm Source Resistance: -134 dB / -136 dB A-Weighted
At 50 Ohms Source Resistance: -131 dB / -133 dB A-Weighted
At 150 Ohms Source Resistance: -129 dB / -131 dB A-Weighted
Frequency Response: <10 Hz to 150 kHz (-1 dB)
Frequency Response: <10 Hz to 200 kHz (-3 dB)
Maximum Input Level: +12 dBu at +10 dB Gain
Impedance: 1.4 kOhms, Balanced
Signal-to-Noise Ratio: 110 dB A-Weighted (0 dBu In at +22 dB Gain)
Distortion (THD+N): 0.006% / 0.005% A-Weighted | | Line Input | 1 x 1/4" / 6.3 mm TRS, Balanced
Impedance: 20 kOhms Balanced, 10 kOhms Unbalanced
Gain Range: -10 to +40 dB
Maximum Input Level: +22 dBu at 0 dB Gain | | Stereo Line Inputs | 2 x Pairs of 1/4" / 6.3 mm TRS, Balanced
Impedance: 20 kOhms Balanced,10 kOhms Unbalanced
Gain Range: -20 dB TO +20 dB
Maximum Input Level: +22 dBu | | 2-Track I/O | Input:
1 x Stereo Pair RCA, Unbalanced 2-Track Inputs
Impedance: 18 kOhms
Maximum Input Level: +22 dBu
Output:
1 x Pair RCA, Stereo, Unbalanced 2-Track Outputs
Impedance: 1 kOhm
Maximum Input Level: +22 dBu | | Equalization | Low: 80 Hz (
