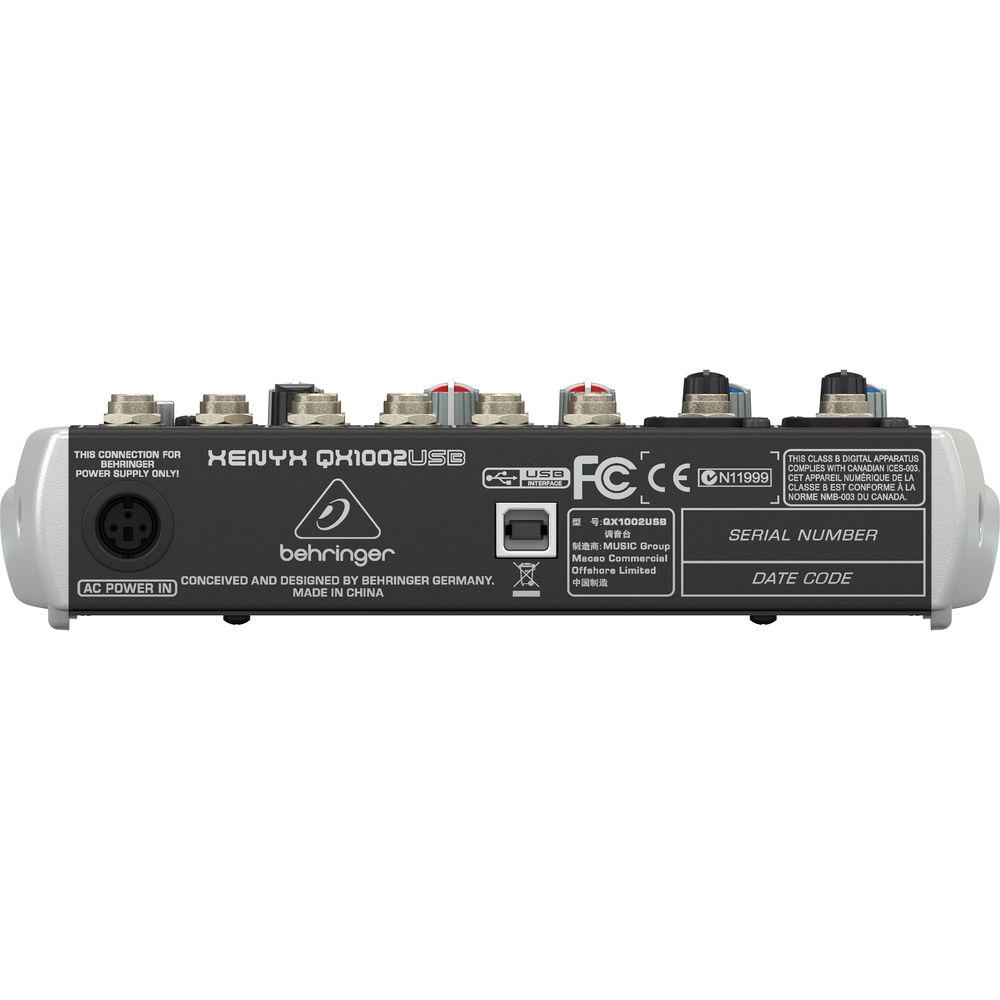

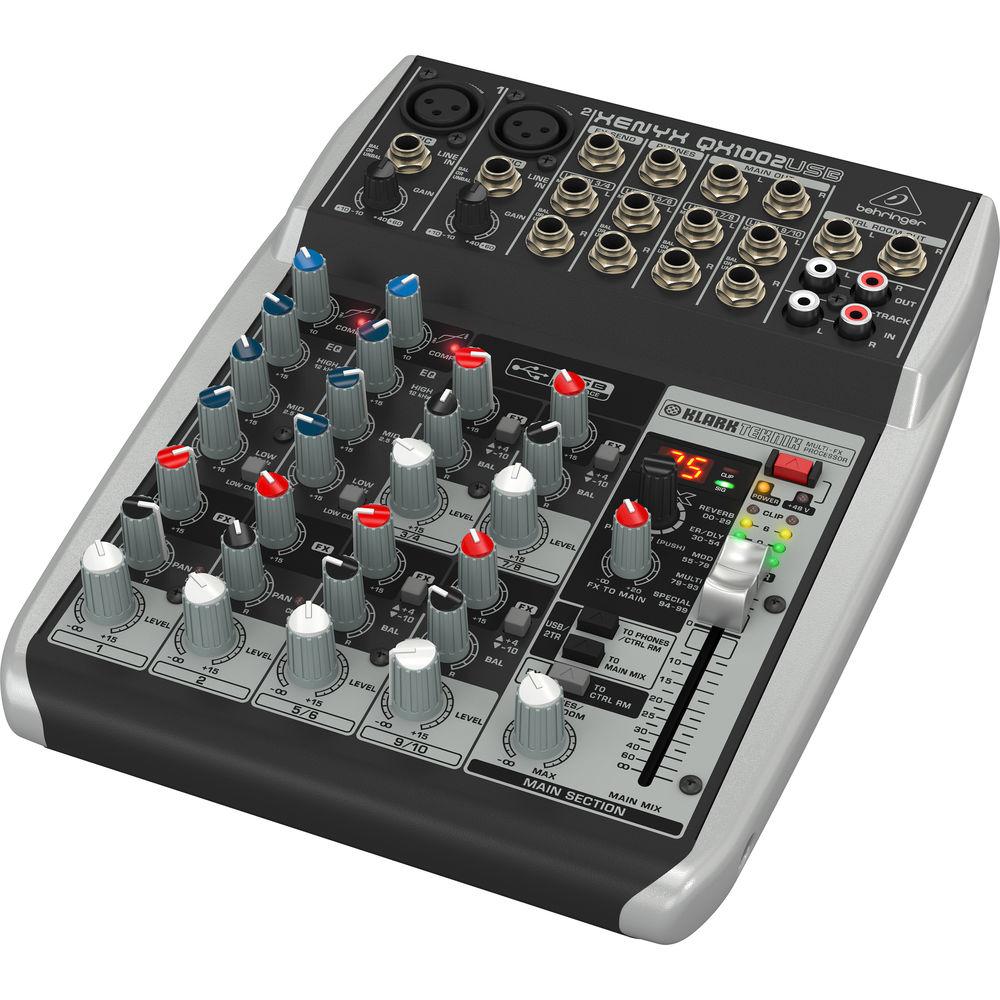

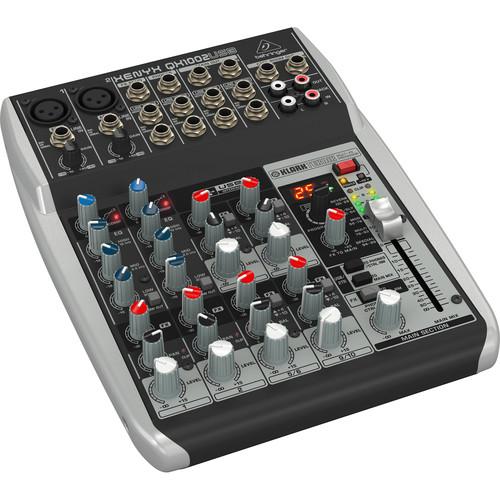

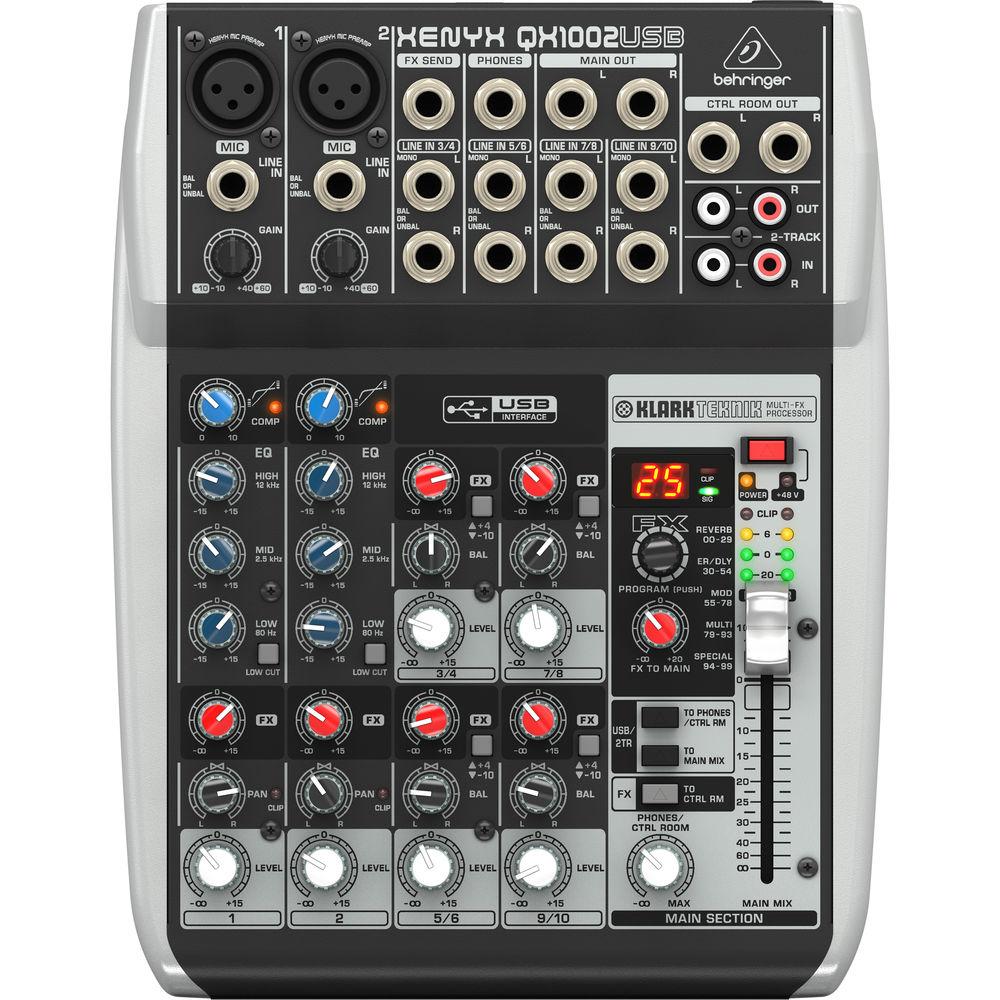

User Manual for Behringer XENYX QX1002USB 10-Channel USB Mixer with Multi-FX Processor Click to enlarge the picture
Contents of the user manual for the Behringer XENYX QX1002USB 10-Channel USB Mixer
- Product category: Analog Recording Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Analog Recording Mixers
 |
User manual for the Behringer XENYX QX1002USB 10-Channel USB Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - XEYNX QX1002USB Small Format Mixer & USB Audio Interface
The Behringer XENYX QX1002USB is a mixer that offers clear and natural sound in a compact and portable format. With ten inputs, two high-quality XENYX mic preamps, a multi-FX processor with legendary Klark Teknik reverb, and a USB interface, this versatile mixer is ideal for a wide variety of mix and recording applications, from small-stage gigs to home-studios, mid-size corporate events, and more.The XENYX QX1002USB is quick to set up and operate with all connections and controls easily reachable on the top of the unit. The first two input channels feature XENYX mic preamps, which deliver 130 dB of dynamic range, low-distortion signals, and a wide frequency response extending from 10 Hz to 200 kHz. Switchable 48V phantom power allows you to plug in both dynamic and studio-grade condenser microphones. These channels also offer two 1/4" inputs for line-level signals.Each mono channel features a British-style, 3-band EQ to provide warm and musical tone corrections for your vocals and instruments, as well as an easy-to-use, "one-knob" compressor to gently smooth out signal peaks for punchy and present bass lines, drums, and vocals that sit right in the mix. Gain knobs let you adjust the input levels and clip LEDs alert you when the signal is too high and about to distort.The four sets of stereo inputs feature +4/-10 switches used to match the mixer's input sensitivity to the incoming signal. This helps avoid signal degradation when connecting stereo keyboards or playback devices to the mixer. Pan (or balance) and level controls are included for all channels.To add depth and dimension to your mix, the built-in, Klark Teknik 24-bit multi-FX processor offers 100 presets including reverb, chorus, flanger, delay, pitch-shifter, and a variety of multi-effects. Each channel is equipped with a post-fader FX send, which you can use to send signal to the onboard FX processor or to an external processor. The FX-to-Main knob allows you to control the level of the effect in your main mix. There is also a built-in, stereo USB audio interface for recording your mix directly to a computer. It even comes with the recording and editing software needed to turn your computer system into a complete home recording studio.The 2-Track section provides an easy way to connect an external 2-track recorder and/or playback device. The 2-Track inputs are assignable to either the main mix or to the control room/phone outputs. The main mix fader controls the signal at both the main outs and 2-Track output, while a dedicated knob adjusts the volume for the phone/control room outputs. - Key Features
-
- 2 high-quality, XENYX microphone preamps with 130 dB of dynamic range, for dynamic and condenser microphones
- Switchable 48V phantom power
- Mic channels with low-noise and distortion-free circuitry for natural sound reproduction
- 2 balanced mono line inputs
- Four balanced stereo pairs of line inputs
- Neo-classic, British-style 3-band EQs for warm and musical sound
- 2 studio-grade compressors with super-easy "one-knob" functionality and control LED
- Legendary Klark Teknik 24-bit FX processor with LCD display
- 100 FX presets include reverbs, delays, modulation, and multi-effects
- Built-in stereo USB audio interface to record directly to your computer
- Free audio recording, editing, and podcasting software, plus 150 instrument/effect plug-ins downloadable at behringer.com
- One mono post-fader FX-send knob per channel for internal FX processor and/or as send to external processor
- Main mix outputs plus separate control room, phones, and stereo 2-Track outputs
- 2-Track inputs assignable to main mix or control room/phones outputs
- Designed and engineered in Germany
UPC: 794504548211 In the Box Behringer XENYX QX1002USB 10-Channel USB Mixer with Multi-FX Processor PSU6-UL Power Supply Limited 1-Year Warranty Extends Additional 2 Years upon Registration within 90 Days User Manual PDF 2.5mbztucqauyxx Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX QX1002USB 10-Channel USB Mixer with Multi-FX Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer QX1002USB Specs | Microphone Inputs | 2 x XLR, Balanced, Discrete Input Circuit
XENYX Microphone Preamps with 48 V Phantom Power (Switchable) | | Microphone EIN | (EIN 20 Hz to 20 kHz)
At 0 Ohm Source Resistance: -133 dB / -137 dB A-Weighted
At 50 Ohms Source Resistance: -130 dB / -134 dB A-Weighted
At 150 Ohms Source Resistance: -127 dB / -131 dB A-Weighted
Frequency Response: <10 Hz to 150 kHz (-1 dB)
Frequency Response: <10 Hz to 200 kHz (-3 dB)
Gain Range: +10 to +60 dB
Maximum Input Level: +12 dBu at +10 dB Gain
Impedance: 1.9 kOhms, Balanced
Signal-to-Noise Ratio: 107 dB / 110 dB A-Weighted (0 dBu In at +22 dB Gain)
Distortion (THD+N): 0.006% / 0.005% A-Weighted | | Line Inputs | 2 x 1/4" / 6.3 mm TRS, Balanced
Impedance: 20 kOhms Balanced, 10 kOhms Unbalanced
Gain Range: -10 to +40 dB
Maximum Input Level: +21 dBu at 0 dB Gain | | Stereo Line Inputs | 4 x pairs of 1/4" / 6.3 mm TRS, Balanced
Impedance: 20 kOhms Balanced / 10 kOhms Unbalanced (+4 dBu Operating Level), 20 kOhms Balanced / 5 kOhms Unbalanced (-10 dBV)
Gain Switch: +4 dBu / -10 dBV
Maximum Input Level: +22 dBu | | 2-Track I/O | Input:
1 x Stereo Pair RCA, Unbalanced 2-Track Inputs
Impedance: 19.5 kOhms
Maximum Input Level: +21 dBu
Output:
1 x Stereo Pair RCA, Unbalanced 2-Track Outputs
Impedance: 1 kOhm
Maximum Input Level: +21 dBu | | Equalization | Low: 80 Hz (
