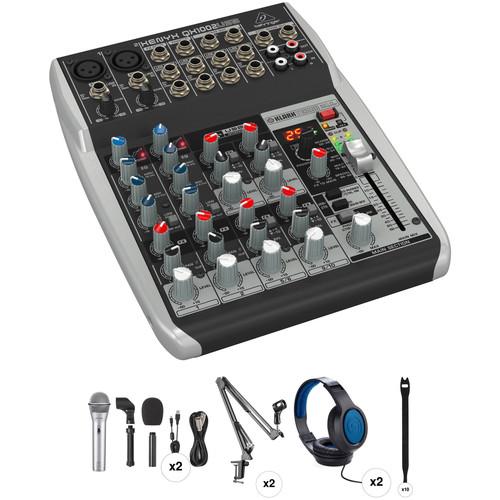

Behringer XENYX QX1002USB Podcasting Kit with

User Manual for Behringer XENYX QX1002USB Podcasting Kit with 2 Samson Q2U Mic Packs, Stands, Headphones & Cables

• Product category: Analog Recording Mixers Behringer
• Brand: Behringer
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Behringer Analog Recording Mixers

Product description

• Behringer XENYX QX1002USB 10-Channel USB Mixer with Multi-FX Processor
  • XEYNX QX1002USB Small Format Mixer & USB Audio Interface
  The Behringer XENYX QX1002USB is a mixer that offers clear and natural sound in a compact and portable format. With ten inputs, two high-quality XENYX mic preamps, a multi-FX processor with legendary Klark Teknik reverb, and a USB interface, this versatile mixer is ideal for a wide variety of mix and recording applications, from small-stage gigs to home-studios, mid-size corporate events, and more.The XENYX QX1002USB is quick to set up and operate with all connections and controls easily reachable on the top of the unit. The first two input channels feature XENYX mic preamps, which deliver 130 dB of dynamic range, low-distortion signals, and a wide frequency response extending from 10 Hz to 200 kHz. Switchable 48V phantom power allows you to plug in both dynamic and studio-grade condenser microphones. These channels also offer two 1/4" inputs for line-level signals.Each mono channel features a British-style, 3-band EQ to provide warm and musical tone corrections for your vocals and instruments, as well as an easy-to-use, "one-knob" compressor to gently smooth out signal peaks for punchy and present bass lines, drums, and vocals that sit right in the mix. Gain knobs let you adjust the input levels and clip LEDs alert you when the signal is too high and about to distort.The four sets of stereo inputs feature +4/-10 switches used to match the mixer's input sensitivity to the incoming signal. This helps avoid signal degradation when connecting stereo keyboards or playback devices to the mixer. Pan (or balance) and level controls are included for all channels.To add depth and dimension to your mix, the built-in, Klark Teknik 24-bit multi-FX processor offers 100 presets including reverb, chorus, flanger, delay, pitch-shifter, and a variety of multi-effects. Each channel is equipped with a post-fader FX send, which you can use to send signal to the onboard FX processor or to an external processor. The FX-to-Main knob allows you to control the level of the effect in your main mix. There is also a built-in, stereo USB audio interface for recording your mix directly to a computer. It even comes with the recording and editing software needed to turn your computer system into a complete home recording studio.The 2-Track section provides an easy way to connect an external 2-track recorder and/or playback device. The 2-Track inputs are assignable to either the main mix or to the control room/phone outputs. The main mix fader controls the signal at both the main outs and 2-Track output, while a dedicated knob adjusts the volume for the phone/control room outputs.
  Key Features
  • • 2 high-quality, XENYX microphone preamps with 130 dB of dynamic range, for dynamic and condenser microphones
    • Switchable 48V phantom power
    • Mic channels with low-noise and distortion-free circuitry for natural sound reproduction
    • 2 balanced mono line inputs
    • Four balanced stereo pairs of line inputs
    • Neo-classic, British-style 3-band EQs for warm and musical sound
    • 2 studio-grade compressors with super-easy "one-knob" functionality and control LED
    • Legendary Klark Teknik 24-bit FX processor with LCD display
    • 100 FX presets include reverbs, delays, modulation, and multi-effects
    • Built-in stereo USB audio interface to record directly to your computer
    • Free audio recording, editing, and podcasting software, plus 150 instrument/effect plug-ins downloadable at behringer.com
    • One mono post-fader FX-send knob per channel for internal FX processor and/or as send to external processor
    • Main mix outputs plus separate control room, phones, and stereo 2-Track outputs
    • 2-Track inputs assignable to main mix or control room/phones outputs
    • Designed and engineered in Germany
  UPC: 794504548211
• 2 x Samson Q2U Recording & Podcasting Pack (Silver)
  • XEYNX QX1002USB Small Format Mixer & USB Audio Interface
  The silver Samson Q2U Recording & Podcasting Pack includes a USB/XLR handheld dynamic microphone, a desktop tripod stand with extension tube, a mic clip, foam windscreen, USB cable, and an XLR mic cable. The Q2U Recording Pack is a cost-effective solution for the stage, rehearsal studios, and project recording applications. The microphone features both XLR and USB outputs that enable flexible digital recording to any Mac or Windows based computer workstation, while simultaneously connected to any analog mixer, preamplifier or PA system.An on/off switch controls the signal at the XLR output, and its cardioid polar pattern eliminates noise and feedback at the off-axis sections of the capsule. The Q2U Recording & Podcasting Pack delivers clear audio quality with a wide frequency response and digital resolution up to 16-bit/48 kHz. The microphone is completely plug-and-play, and there are no drivers to load.

  Key Features

  • Ideal for podcasting, live sound, and music recording applications
  • Dynamic microphone with cardioid polar pattern; good for vocals, instruments, and amplifiers
  • USB output connector for connecting to Mac and Windows computers
  • Plug-and-play, no driver installation required
  • XLR output for connecting to any mixer/PA system
  • On/off switch controls both USB and XLR audio outputs
  • Near-zero-latency headphone monitoring, with level control
  • Dual-color power/clip LED
  • Compatible with most computer-based digital audio workstation softwares
  • USB bus-powered via computer or iPad
  • Solid, die-cast construction with heavy-gauge mesh grille
  • 44.1/48 kHz, 16-bit resolution

  Included Accessories

  • Desktop tripod stand and extension piece for convenient placement in front of your computer
  • Mic clip for use with this desktop stand or with any standard microphone stand
  • Foam windscreen to minimize wind noise and vocal plosives such as pops
  • USB cable (7.38') & XLR mic cable (9.84')
  UPC: 809164022909
• 2 x Musicians Value MCrane1 Microphone Suspension Crane Arm
  • XEYNX QX1002USB Small Format Mixer & USB Audio Interface
  The MCrane1 Microphone Suspension Crane Arm from Musicians Value is a spring-loaded suspension arm that can support a microphone with a shockmount/holder, and a microphone pop filter. The MCrane1 arm can be used in several environments for voice-over, podcast, and radio or DJ applications. A desk-mount clamp is included that allows the arm to swivel for smooth and precise positioning. In addition, it is forward and backward adjustable and height adjustable. UPC: 817802015411
• 2 x Samson SR350 Over-Ear Stereo Headphones (Special Edition Blue)
  • XEYNX QX1002USB Small Format Mixer & USB Audio Interface
  Styled in a blue color specifically issued for , the Samson SR350 Over-Ear Stereo Headphones are circumaural, closed-back dynamic headphones with 35mm drivers and a 20 Hz to 20 kHz frequency range. They can be used to deliver a solid performance and effective isolation when monitoring audio for music playback, classroom listening, fitness applications, and more.Featuring a lightweight, over-ear design and wide cushioning on its ear pads, the headphones have an adjustable headband, which provides serious comfort. The low-profile fit makes them ideal for smartphones too.
  Ear Bud Upgrade
  • The SR350 are a solid introduction to over-ear headphones. They make an excellent gift for music lovers still using the ear buds that come with their smartphones
  Sound with Style
  • The headphones are carefully contoured to the shape of the head for a secure, yet attractive fit. It's a look that works with any outfit or occasion you can think of
  Lightweight Listening
  • Featuring all lightweight components, the headphones are ideal for a mobile lifestyle and suitable for a variety of fitness and travel applications. These headphones offer hours of ultra-portable, fatigue-free listening for even your longest listening sessions
  UPC: 809164023241
• Pearstone 0.5 x 12" Touch Fastener Straps (Black, 10-Pack)
  • XEYNX QX1002USB Small Format Mixer & USB Audio Interface
  The black 10-pack of Pearstone 0.5 x 12" Touch Fastener Straps provides a cost-effective way to bundle and organize cables. The straps are easy to use, featuring a loop-through slot and touch fastener attachment. Each tie can be refastened at least 200 times.
  • Reusable hundreds of times
  • One-piece, double-sided touch fastener
  Easy to Use
  • • Wrap the strap around the first cable, fuzzy side out; feed the tail through the slot
    • Pull the tail completely through the slot and push tab down to fasten
    • Gather other cables to your first cable to make a tight bundle
    • Wrap the strap around the bundle and fasten by pressing the strap onto itself
  UPC: 847628021426

• XENYX QX1002USB 10-Channel USB Mixer with Multi-FX Processor xwzvvccdesvuavdytearaacv
• PSU6-UL Power Supply
• Limited 1-Year Warranty Extends Additional 2 Years upon Registration within 90 Days

• 2 x Samson - Q2U Recording & Podcasting Pack (Silver)

• 2 x Musicians Value - MCrane1 Microphone Suspension Crane Arm

• 2 x Samson - SR350 Over-Ear Stereo Headphones (Special Edition Blue)

• Pearstone - 0.5 x 12" Touch Fastener Straps (Black, 10-Pack)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Behringer XENYX QX1002USB 10-Channel USB Mixer with Multi-FX Processor

  Microphone Inputs	2 x XLR, Balanced, Discrete Input Circuit XENYX Microphone Preamps with 48 V Phantom Power (Switchable)
  Microphone EIN	(EIN 20 Hz to 20 kHz) At 0 Ohm Source Resistance: -133 dB / -137 dB A-Weighted At 50 Ohms Source Resistance: -130 dB / -134 dB A-Weighted At 150 Ohms Source Resistance: -127 dB / -131 dB A-Weighted Frequency Response: <10 Hz to 150 kHz (-1 dB) Frequency Response: <10 Hz to 200 kHz (-3 dB) Gain Range: +10 to +60 dB Maximum Input Level: +12 dBu at +10 dB Gain Impedance: 1.9 kOhms, Balanced Signal-to-Noise Ratio: 107 dB / 110 dB A-Weighted (0 dBu In at +22 dB Gain) Distortion (THD+N): 0.006% / 0.005% A-Weighted
  Line Inputs	2 x 1/4" / 6.3 mm TRS, Balanced Impedance: 20 kOhms Balanced, 10 kOhms Unbalanced Gain Range: -10 to +40 dB Maximum Input Level: +21 dBu at 0 dB Gain
  Stereo Line Inputs	4 x pairs of 1/4" / 6.3 mm TRS, Balanced Impedance: 20 kOhms Balanced / 10 kOhms Unbalanced (+4 dBu Operating Level), 20 kOhms Balanced / 5 kOhms Unbalanced (-10 dBV) Gain Switch: +4 dBu / -10 dBV Maximum Input Level: +22 dBu
  2-Track I/O	Input: 1 x Stereo Pair RCA, Unbalanced 2-Track Inputs Impedance: 19.5 kOhms Maximum Input Level: +21 dBu Output: 1 x Stereo Pair RCA, Unbalanced 2-Track Outputs Impedance: 1 kOhm Maximum Input Level: +21 dBu
  Equalization	Low: 80 Hz ( Rating 100% users recommend this product to others. And what about you? This product has already been rated by 54 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
