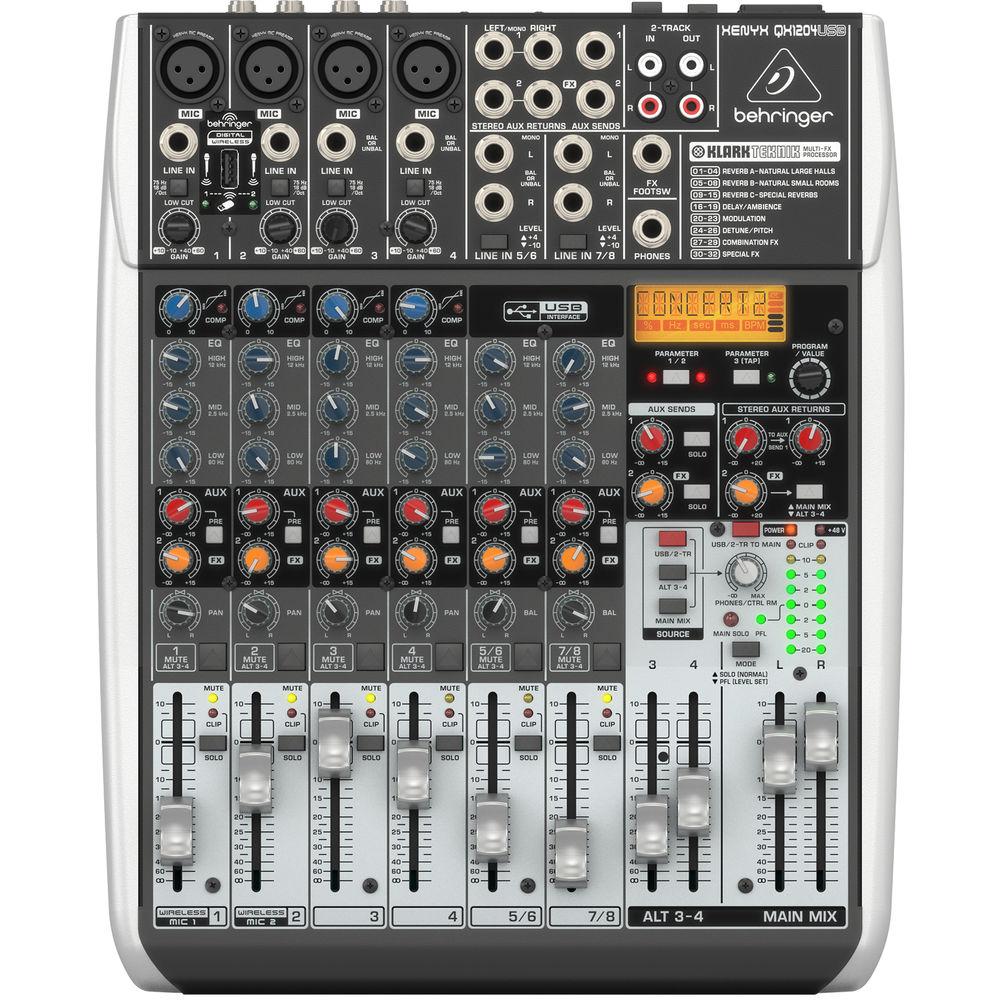

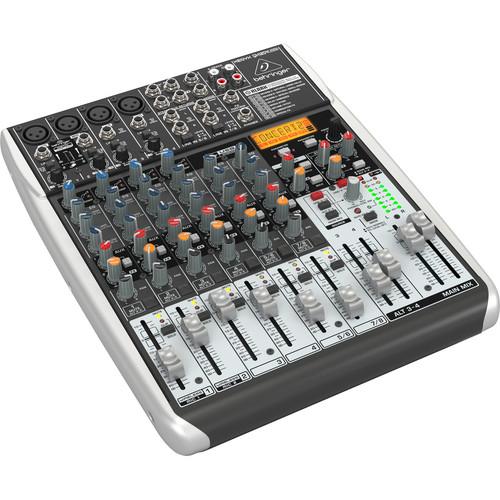

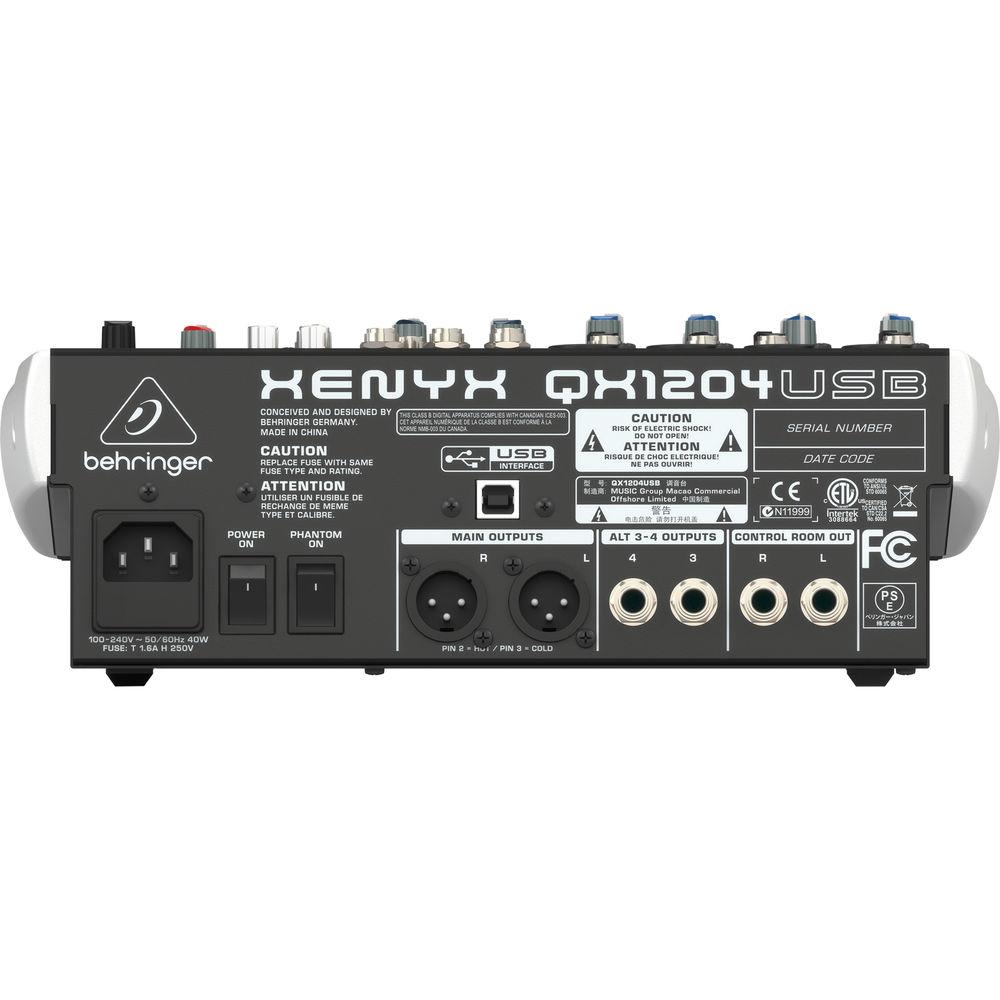

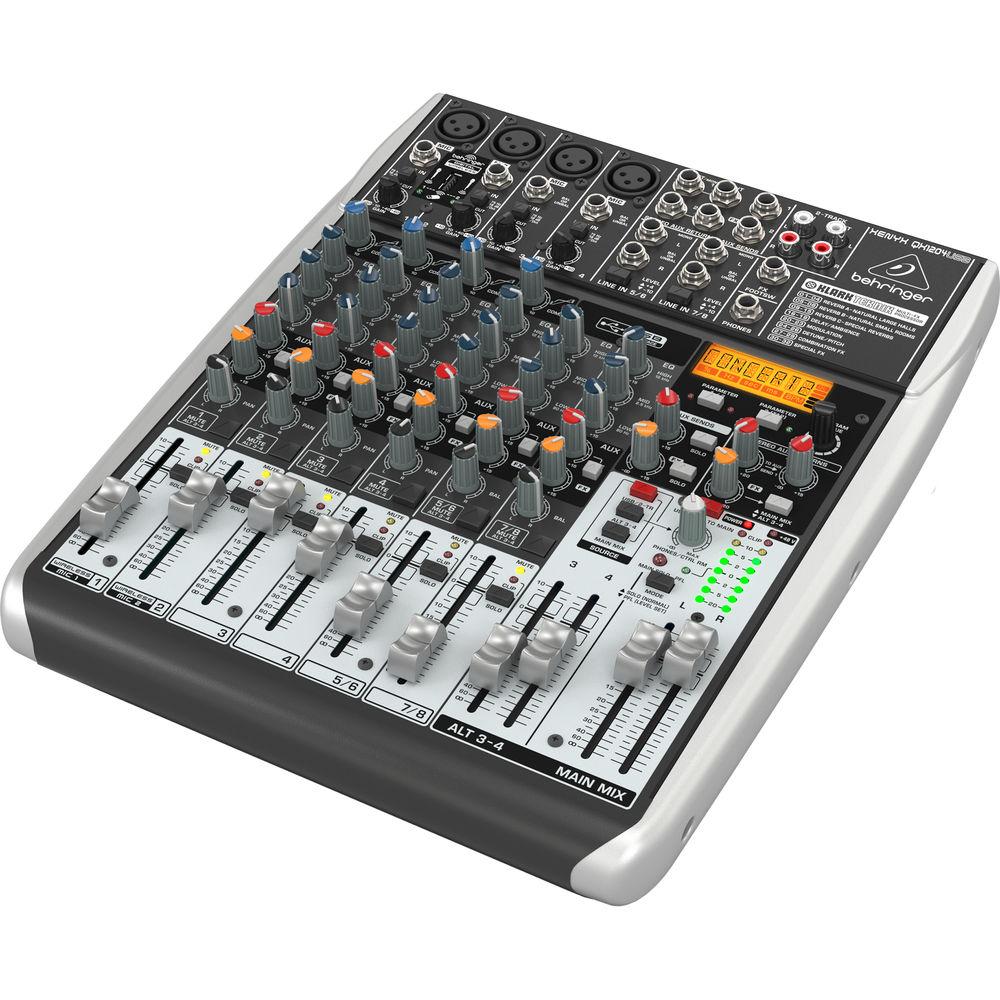

User Manual for Behringer XENYX QX1204USB 12-Channel USB Mixer with Multi-FX Processor Click to enlarge the picture
Contents of the user manual for the Behringer XENYX QX1204USB 12-Channel USB Mixer
- Product category: Analog Recording Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Analog Recording Mixers
 |
User manual for the Behringer XENYX QX1204USB 12-Channel USB Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - XENYX QX1204USB Small Format Mixer & USB Audio Interface
The Behringer XENYX QX1204USB is a versatile 12-channel mixer equally well suited for sound-reinforcement applications and project recording studios. It employs four, high-quality XENYX mic preamps to deliver a clear and natural sound with 130 dB of dynamic range, low distortion, and a wide frequency response extending from 10 Hz to 200 kHz. British-style, 3-band EQs provide warm and musical tone corrections for your vocals and instruments, while easy-to-use, "one-knob" compressors gently smooth out signal peaks for punchy and present bass lines, drums, and vocals that sit right in the mix.The XENYX QX1204USB is packed with powerful features to get the job done. Should your singer prefer the convenience of performing without a mic cable, the mixer is wireless-ready with a USB jack on the top panel for connecting two Behringer ULM digital wireless microphone systems (available separately). The onboard multi-effect processor brings you the legendary Klark Teknik reverb effect as well as chorus, flange, delay, and pitch-shift, all great for adding depth and dimension to your mix. There is also a built-in, stereo USB audio interface for recording your mix directly to a computer, at audio resolutions up to 16-bit/48 kHz. It even comes with the recording and editing software needed to turn your computer system into a complete home recording studio.A set of flexible routing and monitoring options makes it easy to integrate the XENYX QX1204USB into your existing set up. The mixer offers one aux and one FX send per channel for sending signals to the FX processor or out of the console to other gear. It also comes with an Alt 3/4 stereo bus with separate outputs on two 1/4" TRS balanced connectors, for added routing flexibility. The main outputs carry the signal on XLR balanced connectors, while the control room outputs are on two 1/4" TRS balanced connectors.Other features include clip LEDs to help you set the correct mic levels, solo buttons, main-mix and Alt 3/4 routing switches (functions as a mute button), and PFL functions on all channels. Designed to withstand the rigors of live gigs, the QX1204USB is built with long-wearing, 60mm logarithmic-taper faders and sealed rotary controls. - Key Features
-
- 4 high-quality, phantom-powered XENYX mic preamps for dynamic and condenser microphones
- 130 dB of dynamic range for high headroom
- Low-noise and low-distortion circuitry
- 4 studio-grade compressors with super-easy "one-knob" functionality and control LED
- Legendary Klark Teknik FX processor with LCD display, dual-parameters, Tap function, and storable user parameter settings
- 100 FX presets include reverbs, delays, modulation, and multi-effects
- Wireless-ready for two Behringer ULM digital wireless microphone systems (available separately)
- Built-in 2-in/2-out stereo USB audio interface to connect the mixer directly to your computer
- Free audio recording, editing, and podcasting software, plus 150 instrument/effect plug-ins downloadable at behringer.com
- Neo-classic, British-style 3-band EQs with semi-parametric mid band for warm and musical sound
- 2 aux sends per channel: One pre-/post-fader and switchable for monitoring/FX applications, and one post-fader for internal FX processor or as send to external FX processor
- Clip LEDs, mute, main mix and subgroup routing switches, solo, and PFL functions on all channels
- ALT 3/4 stereo subgroups with separate outputs for added routing flexibility
- 2 multi-functional stereo aux returns with flexible routing
- Balanced main mix outputs with gold-plated XLR connectors plus separate control room, headphones, and 2-track outputs
- Control room/phones outputs with multi-input source matrix—record inputs assignable to main mix or control room/phones outputs
- Long-wearing 60mm logarithmic-taper faders and sealed rotary controls
- "Planet Earth" switching power supply for maximum flexibility (100-240V), noise-free audio, superior transient response, and low power consumption for energy saving
- Designed and engineered in Germany
UPC: 794504549911 In the Box Behringer XENYX QX1204USB 12-Channel USB Mixer with Multi-FX Processor Power Cord Limited 1-Year Warranty Extends Additional 2 Years upon Registration within 90 Days User Manual PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX QX1204USB 12-Channel USB Mixer with Multi-FX Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer QX1204USB Specs | Microphone Inputs | 4 x XLR, Balanced, Discrete Input Circuit
XENYX Microphone Preamps with 48 V Phantom Power (Switchable) | | Microphone EIN | (EIN 20 Hz to 20 kHz)
At 0 Ohm Source Resistance: -134 dB / -136 dB A-Weighted
At 50 Ohms Source Resistance: -132 dB / -135 dB A-Weighted
At 150 Ohms Source Resistance: -131 dB / -133 dB A-Weighted
Frequency Response: <10 Hz to 150 kHz (-1 dB)
Frequency Response: <10 Hz to 200 kHz (-3 dB)
Gain Range: +10 to +60 dB
Maximum Input Level: +12 dBu at +10 dB Gain
Impedance: 2 kOhms, Balanced
Signal-to-Noise Ratio: 108 dB / 110 dB A-Weighted (0 dBu In at +22 dB Gain)
Distortion (THD+N): 0.005% / 0.004% A-Weighted | | Line Inputs | 4 x 1/4" / 6.3 mm TRS, Balanced
Impedance: 20 kOhms Balanced / 10 kOhms Unbalanced
Gain Range: -10 to +40 dB
Maximum Input Level: 30 dBu | | Frequency Response | Microphone Input to Main Out: <10 Hz to 160 kHz (±3 dB) | | Stereo Line Inputs | 2 x Pairs of 1/4" / 6.3 mm TRS, Balanced
Impedance: 20 kOhms Balanced / 10 kOhms Unbalanced
Gain Range: -20 dB to +20 dB
Maximum Input Level: +22 dBu | | 2-Track I/O | Input:
1 x Pair RCA, Stereo, Unbalanced CD/Tape Inputs
Impedance: 10 kOhms
Maximum Input Level: +22 dBu
Output:
1 x Pair RCA, Stereo, Unbalanced Tape Outputs
Impedance: 10 kOhms
Maximum Input Level: +22 dBu | | Equalization | 3-Band EQs:
Low: 80 Hz (±15 dB)
Mid: 2.5 kHz (±15 dB)
High: 12 kHz (±15 dB) | | AUX Sends | 2 x 1/4" / 6.3 mm TRS, Balanced
Impedance: 120 Ohms
Maximum Output Level: +22 dBu | | AUX Returns | 2 x Pairs of 1/4" / 6.3 mm TRS, Balanced
Impedance: 20 kOhms, Balanced / 10 kOhms Unbalanced
Maximum Input Level: +22 dBu | | Main Outputs | 2 x XLR, Balanced
Impedance: 240 Ohms, Balanced / 120 Ohms, Unbalanced
Maximum Output Level: +28 dBu | | Control Room Outputs | 2 x 1/4" / 6.3 mm TRS, Balanced
Impedance: 120 Ohms
Maximum Output Level: +22 dBu | | Headphone Output | 1 x 1/4" / 6.3 mm TRS, Stereo, Unbalanced
Impedance: 25 Ohms
Maximum Output Level: +21 dBu, 150 Ohms (+25 dBm) | | DSP | Type: Klark Teknik
Converter: 24-Bit Sigma-Delta, 64-/128-Times Oversampling
Sample Rate: 40 kHz | | Wireless Access Point | USB Dongle: Accepts Signals from 2 x Independent Behringer ULM Wireless Microphones | | USB Interface | Connector: USB Type-B
Audio: Stereo I/O
Converter: 16-Bit
Sample Rate: 48 kHz | | Noise | Main Mix at -∞, Channel Fader at -∞: -105 dB / -108 dB A-Weighted
Main Mix at 0 dB, Channel Fader at -∞: -95 dB / -97 dB A-Weighted
Main Mix at 0 dB, Channel Fader at 0 dB: -83 dB / -85 dB A-Weighted | | Power | Mains Voltage: 100-240 V, 50/60 Hz
Power Consumption: 40 W
Fuse: T 1.6 Ah, 250 V
Mains Connectors: IEC Receptacle | | Dimensions (W x D x H) | 10.4 x 13.0 x 3.5" / 265 x 330 x 90 mm | | Weight | 6.3 lb / 2.9 kg | | | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 16.1 x 14.8 x 5.9" |
