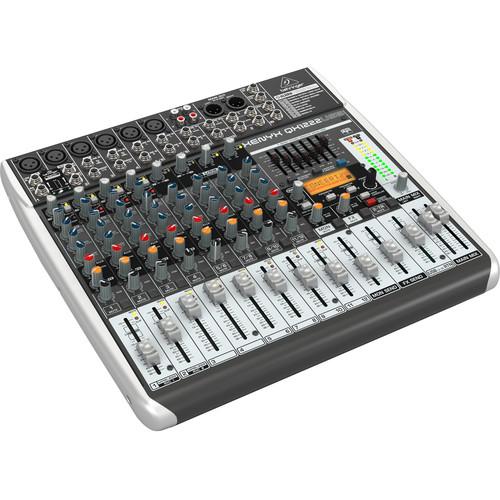

Click to enlarge the picture
Behringer XENYX QX1222USB - 16-Input USB Audio Mixer with Effects Contents of the user manual for the Behringer XENYX QX1222USB - 16-Input USB
  • Product category: Analog Recording Mixers Behringer
  • Brand: Behringer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Behringer Analog Recording Mixers

Behringer XENYX QX1222USB - 16-Input USB Audio Mixer with Effects Behringer XENYX QX1222USB - 16-Input USB Audio Mixer with Effects Behringer XENYX QX1222USB - 16-Input USB Audio Mixer with Effects
User manual for the Behringer XENYX QX1222USB - 16-Input USB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Behringer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!



Product description

  • XENYX QX1222USB Portable Mixer & USB Audio Interface
The Behringer XENYX QX1222USB - 16-Input USB Audio Mixer with Effects is a 16-input 2/2-bus audio mixer with an integrated USB computer audio interface. It enables you to mix together and shape the sound of multiple audio signals, and route the audio to several outputs. The mixer features four XENYX microphone preamps with +48V phantom power, British-style channel EQ, a 7-band graphic EQ, four easy-to-use one-knob compressors, a Klark Teknik effects engine with 32 presets, and is compatible with Behringer's 2.4 GHz wireless microphones. It is suitable for small and medium-sized audio projects. There are two aux sends on every channel (which enable you to route individual channels to stage monitors or external effects), and two stereo aux returns. Every channel features a 3-band British-style EQ with a swept mid, which can really help you make vocals and instruments stand out in a mix. The XPQ 3D stereo surround effect allows you to make a broader stereo image.

The built-in USB interface allows for a bi-directional transfer of audio to and from your computer. The unit comes with recording, editing, and podcasting software for Mac, Windows, and Linux operating systems. The built-in 24-bit dual-engine Klark Teknik FX effects processor features 32 presets that include reverb, chorus, flanger, delay, pitch shifter, multi-effects, and more. You can edit the parameters of every preset, and a tap tempo button is included to sync time-based effects. The four built-in compressors are designed to simplify the process of controlling dynamics in your mix. With a single knob, you can dial in the amount of compression you need for any given sound. The four XENYX preamps offer 130dB of dynamic range, and the 3-band British-style EQs allow you to finely tune your mix. The mixer is suitable for recording studios, video editing suites, live sound mixing, podcasting, and more.

A collection of music production and podcasting software such as Tracktion 4, Audacity, Podifier, Juice, Podnova, and Golden Ear are available for download from Behringer.com.
  • Low-noise, high-headroom analog mixer
  • Four phantom-powered XENYX microphone preamps
  • Four compressors with easy "one-knob" functionality and control LED for professional vocal and instrumental sound
  • British-style 3-band EQs for warm and musical sound
  • Full-size faders for MON and FX Sends for precise control
  • Klark Teknik effects processor with 32 editable presets of effects including reverb, chorus, flanger, delay, pitch shifter, multi-effects, tap function and storable user parameter settings
  • Includes XPQ 3D Stereo Surround effect for more lively and engaging sound
  • Includes Voice Canceller effect for removing vocals from music so that you can sing the lead
  • Includes FBQ Feedback Detection for rejecting unwanted noise
  • Built-in stereo USB audio interface to connect directly to a computer; includes audio recording, editing, and podcasting software plus 150 instrument and effect plug-ins and ultra-low latency driver
  • Compatible with 2.4 GHz Behringer wireless microphone system
  • Two aux sends per channel: one pre/post fader switchable for monitoring/FX applications, one post fader (for internal FX or as external send)
  • Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
  • Seven-band stereo graphic equalizer allows you to shape your overall sound to suit the acoustics of your room
  • Control room and headphone outputs with multi-input source matrix
  • Long-wearing full-sized 60mm faders and sealed rotary controls
  • Switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for saving energy
UPC: 713757154017 In the Box Behringer XENYX QX1222USB - 16-Input USB Audio Mixer with Effects
  • Power Cable
  • USB Cable
  • Limited 10-Year Warranty
  • Guides & Manuals Table of Contents




    Upload User Manual

    Have you got an user manual for the Behringer XENYX QX1222USB - 16-Input USB Audio Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Behringer QX1222USB Specs

    Total # Of Inputs 16
    Input Channels Mono: 4
    Stereo: 4
    Preamplifier 4x XENYX
    USB Connection 2-in/2-out
    Buses Mix: 2/2
    Phantom Power +48 V
    EQ Type Mono channel 3-band
    Compressor 4
    Wireless (Features) Built-in compatibility with Behringer wireless microphone system
    AUX Sends Per channel: 1/1
    AUX Returns 2 stereo returns
    Metering 12-segment stereo LED meters
    Clip LEDs on every channel
    Type 6x XLR connector, balanced, discrete input circuit
    Mic Input Noise (E.I.N.) From 20 to 20,000 Hz
    At 0 Ω source resistance: -134 dB/-136 dB A-weighted

    At 50 Ω source resistance: -131 dB/-133 dB A-weighted

    At 150 Ω source resistance: -129 dB/-131 dB A-weighted
    Frequency Response Preamp:
    < 10 to 150,000 Hz (-1 dB)
    < 10 to 200,000 Hz (-3 dB)

    Mic input to main output:
    <10 to 160,000 Hz: ± 3 dB
    Dynamic Range Not specified by the manufacturer
    Gain Range +10 to +60 dB
    Maximum Input Level +12 dBu at +10 dB gain
    Impedance 2 kΩ balanced
    Signal-to-Noise Ratio 107 dB / 110 dB A-weighted (0 dBu In @ +22 dB gain)
    Total Harmonic Distortion (THD) 0.005% / 0.004% A-weighted
    Phantom Power Switchable, +48 V
    Type 1/4" TRS connector, balanced
    Impedance 20 kΩ balanced

    10 kΩ unbalanced
    Gain Range -10 dB to +40 dB
    Maximum Input Level 30 dBu
    Type 4x 1/4" TRS connector, unbalanced
    Impedance 20 kΩ balanced
    10 kΩ unbalanced
    Gain Range -20 dB to +20 dB
    Maximum Input Level +22 dBu
    Tape I/O Type: RCA Connectors

    Impedance: 10 kΩ

    Maximum Input Level: +22 dBu
    EQ Type 3-Band Semi-Parametric
    Low: 80 Hz / ± 15 dB
    Mid: 2,500 Hz; / ± 15 dB
    High: 12,500 Hz / ± 15 dB
    Type 1/4" TRS connector, unbalanced
    Maximum Input Level +22 dBu
    AUX Sends Type: 2x 1/4" TRS connector, unbalanced

    Impedance: 120 Ω

    Maximum Output Level: +22 dBu
    AUX Returns Type: 2x 1/4" TRS connector, unbalanced

    Impedance: 20 kΩ balanced, 10 kΩ unbalanced

    Maximum Input Level: +22 dBu
    Main Outputs Type: XLR, balanced

    Impedance: 240 Ω symmetrical, 120 Ω unbalanced

    Maximum Output Level: +28 dBu
    Control Room Outputs Type: 1/4" TRS connector, balanced

    Impedance: 120 Ω

    Maximum Output Level: +22 dBu
    Headphone Outputs Type: 1/4" TRS connector, unbalanced

    Impedance: 25 Ω

    Maximum Output Level: +21 dBu at 150 Ω (+25 dBm)
    Stereo Tape Outputs/Type Type: RCA connectors

    Impedance: 1 kΩ

    Maximum Output Level: +22 dBU
    DSP Klark Teknik
    Converter: 24-bit Sigma-Delta, 64-/128-times oversampling

    Sampling rate: 40 kHz
    Noise Main mix at -∞ with channel fader at -∞: -100 dB / -102 dB A-weighted

    Main mix at 0 dB with channel fader at -∞: -86 dB / -88 dB A-weighted

    Main mix at 0 dB with channel fader at 0 dB: -81 dB / -83 dB A-weighted
    USB Audio: Stereo In/Out

    Connector: Type B

    Converter: 16-bit

    Sample Rate: 48 kHz
    Mains 100 to 240 V, 50/60 Hz
    Power Consumption 40 W
    Fuse T 1.6 A H 250 V
    Connection Standard IEC receptacle
    Dimensions (W x D x H) 14.6 x 13.3 x 3.5" (370 x 338 x 90 mm)
    Weight 8.4 lb (3.8 kg)
    Package Weight 10.55 lb
    Box Dimensions (LxWxH) 18.5 x 16.5 x 6.0"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5
