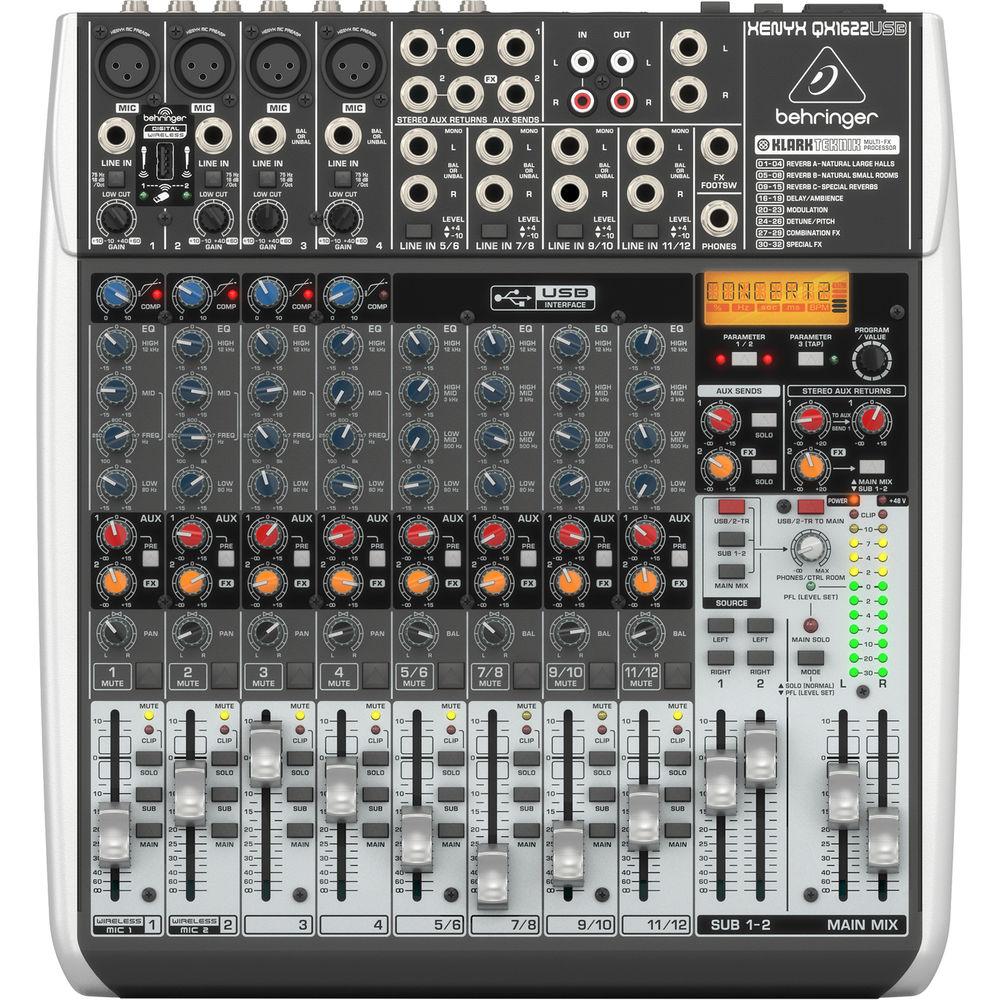

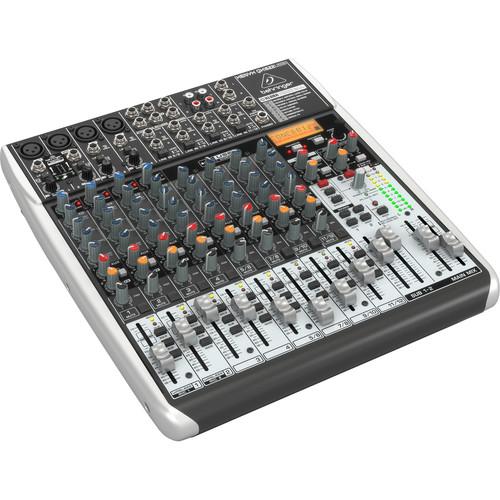

User Manual for Behringer XENYX QX1622USB -16-Input USB Audio Mixer with Effects Click to enlarge the picture
Contents of the user manual for the Behringer XENYX QX1622USB -16-Input USB Audio
- Product category: Analog Recording Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Analog Recording Mixers
 |
User manual for the Behringer XENYX QX1622USB -16-Input USB Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

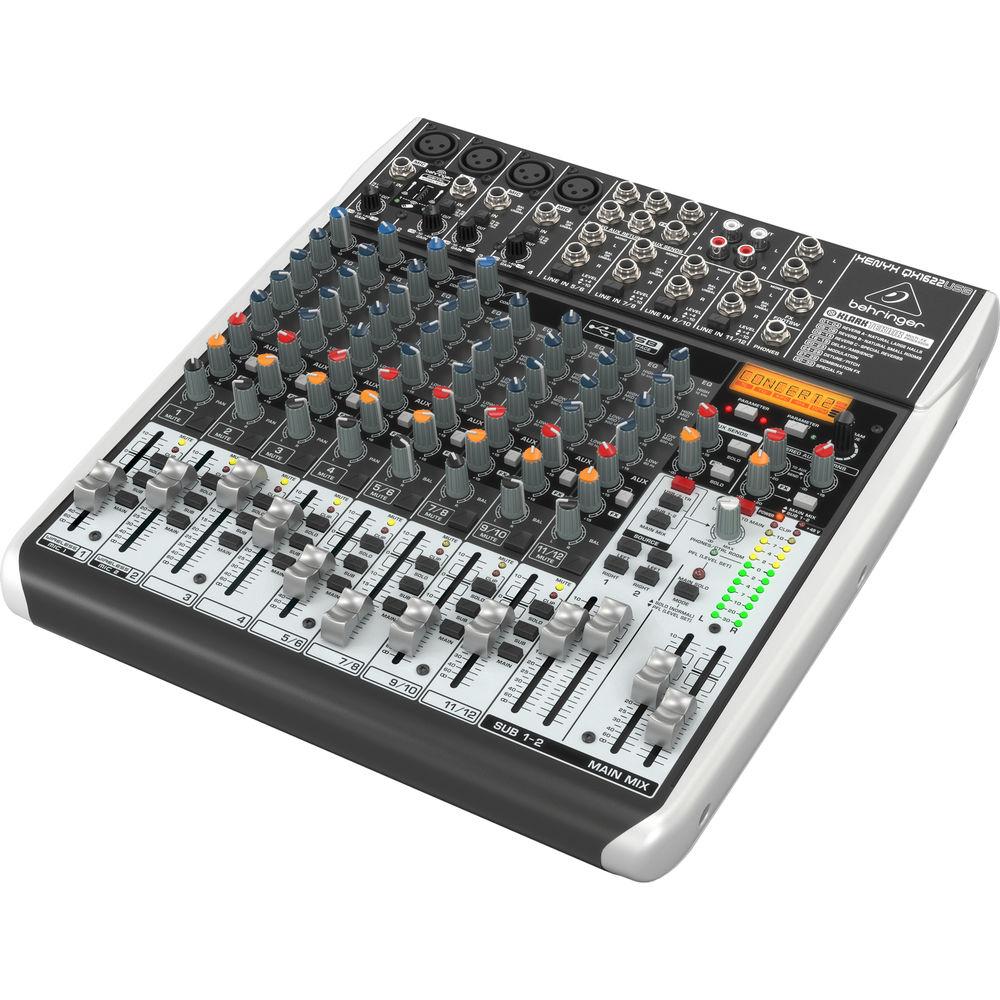

Product description The Behringer XENYX QX1622USB-16-Input USB Audio Mixer with Effects is a 16-input audio mixer with an integrated USB computer audio interface. It enables you to mix together and shape the sound of multiple audio signals, and route the audio to several outputs. The mixer features four microphone preamps, 3-band "British"-style EQ, and four easy-to-use one-knob compressors. It provides four mono channels and four stereo channels, making it suitable for small and medium-sized audio projects. There are two aux sends on every channel, which enable you to route individual channels to stage monitors or external effects, and two stereo aux FX returns. Every channel features a 3-band EQ with a swept mid, which can help you make vocals and instruments stand out in a mix. The built-in USB interface allows for a bi-directional transfer of audio to and from your computer.The built-in 24-bit dual-engine effects processor features 32 presets that include, reverb, chorus, flanger, delay, pitch shifter, and multi-effects. You can edit the parameters of every preset, and a tap tempo button is included to sync time-based effects. The four built-in compressors are designed to simplify the process of controlling dynamics in your mix. With a single knob you can dial in the amount of compression you need for any given sound. The four XENYX preamps offer 130dB of dynamic range, and the 3-band "British"-style EQs allow you to finely tune your mix. The XENYX QX1622USB is suitable for recording studios, video editing suites, live sound mixing, podcasting and more. - Low-noise, high-headroom analog mixer
- Four phantom-powered XENYX microphone preamps
- Four compressors with easy "one-knob" functionality and control LED
- "British"-style 3-band EQs for adjusting your tone
- Effects processor with 16 editable presets including reverb, chorus, flanger, delay, pitch shifter, multi-effects, tap function and storable user parameter settings
- Built-in stereo USB audio interface to connect directly to a computer; includes audio recording, editing, and podcasting software plus 150 instrument and effect plug-ins, and ultra-low latency driver
- Two aux sends per channel: one pre/post fader switchable for monitoring/FX applications, one post fader (for internal FX or as external send)
- Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
- Two subgroups with separate outputs for added routing flexibility
- Compatible with Behringer's wireless USB digital microphone system
- Long-wearing full-sized 60mm faders and sealed rotary controls
- Switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for saving energy
UPC: 713757154116 In the Box Behringer XENYX QX1622USB -16-Input USB Audio Mixer with Effects Power Cable USB Cable Limited 10-Year Warranty User Manual PDF 6.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX QX1622USB -16-Input USB Audio Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

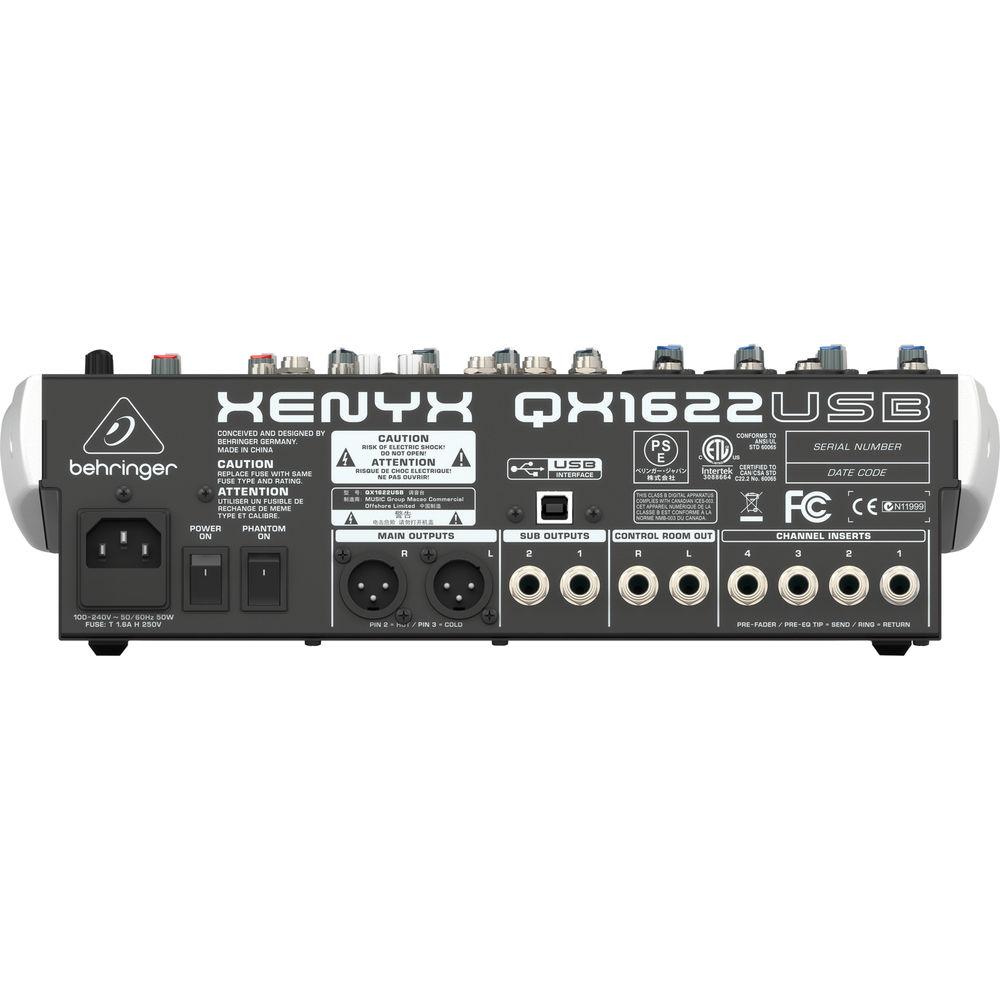

Technical parametersBehringer QX1622USB Specs | Total # Of Inputs | 16 inputs | | Mic/Line Inputs | 4 x XLR microphone inputs
4 x 1/4" TRS line-level inputs | | Stereo Line Inputs | 4 x 1/4" TRS left & right paired inputs | | AUX Sends | 2 | | AUX Returns | 2 stereo returns | | Inserts | 4 | | BUS (Group) Outputs | 2 sub groups | | 2 Trk Master I/O | 2 x balanced XLR outputs
2 x 1/4" TRS outputs | | ALT I/O | 2 x 1/4" TRS sub outputs
stereo RCA 2-track outputs | | Monitor Outputs | 2 x 1/4" TRS control room outputs
1 x 1/4" stereo headphone output | | EQ Section | 3-Band EQ with mid sweep on every channel | | Solo/Mute | Mute and solo buttons on every channel | | Channel Level Control | 60 mm faders | | Trim/Gain Control | Yes | | Metering | 12-Segment stereo LED meters
Clip LEDs on every channel | | | | Type | XLR, electronically balanced, discrete input circuit | | Mic Input Noise (E.I.N.) | 20 to 20,000 Hz
At 0 Ω source resistance: -134 dB / -136 dB A-weighted
At 50 Ω source resistance: -131 dB / -133 dB A-weighted
At 150 Ω source resistance: -129 dB / -131 dB A-weighted | | Frequency Response | Preamp:
< 10 to 150,000 Hz (-1 dB)
< 10 to 200,000 Hz (-3 dB)
Mic input to main output:
<10 to 160,000 Hz: ±3 dB | | Dynamic Range | Not specified by the manufacturer | | Gain Range | 10 to 60 dB | | Maximum Input Level | +12 dBu at +10 dB Gain | | Impedance | Approximately 2 kΩ balanced | | Signal-to-Noise Ratio | 107 dB / 110 dB A-weighted (0 dBu In @ +22 dB gain) | | Total Harmonic Distortion (THD) | 0.005% / 0.004% A-weighted | | Phantom Power | Switchable, +48V | | | | Type | 1/4" TRS connector, balanced | | Impedance | Approximately 20 kΩ
10 kΩ unbalanced | | Gain Range | -10 to +40 dB | | Maximum Input Level | 30 dBu | | | | Type | 4 x 1/4" TRS connector, balanced | | Impedance | Approximately 20 kΩ, 10 kΩ | | Gain Range | -20 to 20 dB | | Maximum Input Level | 22 dBu | | EQ Type Mono Channels | Low: 80 Hz, ± 15 dB
Mid: 100 to 8,000 Hz, ± 15 dB
High: 12,000 Hz, ± 15 dB | | EQ Type Stereo Channels | Low: 80 Hz, ± 15 dB
Low Mid: 500 Hz, ± 15 dB
High Mid: 3,000 Hz, ± 15 dB
High: 12,000 Hz, ± 15 dB | | | | AUX Sends | Type: 1/4" TRS connector, balanced
Impedance: Approximately 120 Ω
Maximum Output Level: 22 dBu | | AUX Returns | Type: 1/4" TRS connector, electronically balanced
Impedance: Approximately 20 kΩ balanced, 10 kΩ unbalanced
Maximum Input Level: 22 dBu | | Main Outputs | XLR, balanced
Impedance: Approximately 240 Ω balanced, 120 Ω unbalanced
Maximum Output Level: 28 dBu | | Control Room Outputs | Type: 1/4" TS balanced
Impedance: Approximately 120 Ω
Maximum Output Level: 22 dBu | | Headphone Outputs | Type: 1/4" TRS connector, unbalanced
Impedance: 25 Ω
Maximum Output Level: +21 dBu / 150Ω (+25 dBm) | | DSP | Type: Klark Teknik
Converter: 24-bit Sigma-Delta, 64/128-times oversampling
Sampling rate: 40 kHz | | Wireless | USB dongle: Accepts signal from 2 independent Behringer ULM mics | | USB | Audio: Stereo In/Out
Connector: Type B
Converter: 16-bit
Sample Rate: 48 kHz | | Noise | Main mix at -∞ with channel fader at -∞: -100 dB / -102 dB A-weighted
Main mix at 0 dB with channel fader at -∞: -88 dB / -91 dB A-weighted
Main mix at 0 dB with channel fader at 0 dB: -82 dB / -85 dB A-weighted | | | | Mains | 100 to 240 V, 50/60 Hz | | Power Consumption | 50 W | | Fuse | 100 to 240 V: T 1.6 A H 250 V | | Connection | Standard IEC receptacle | | Dimensions (W x D x H) | 12.8 x 13.7 x 3.50" (325 x 348 x 90.0 mm) | | Weight | 7.7 lb (3.5 kg) | | | | Package Weight | 10.65 lb | | Box Dimensions (LxWxH) | 16.8 x 16.7 x 5.8" |
