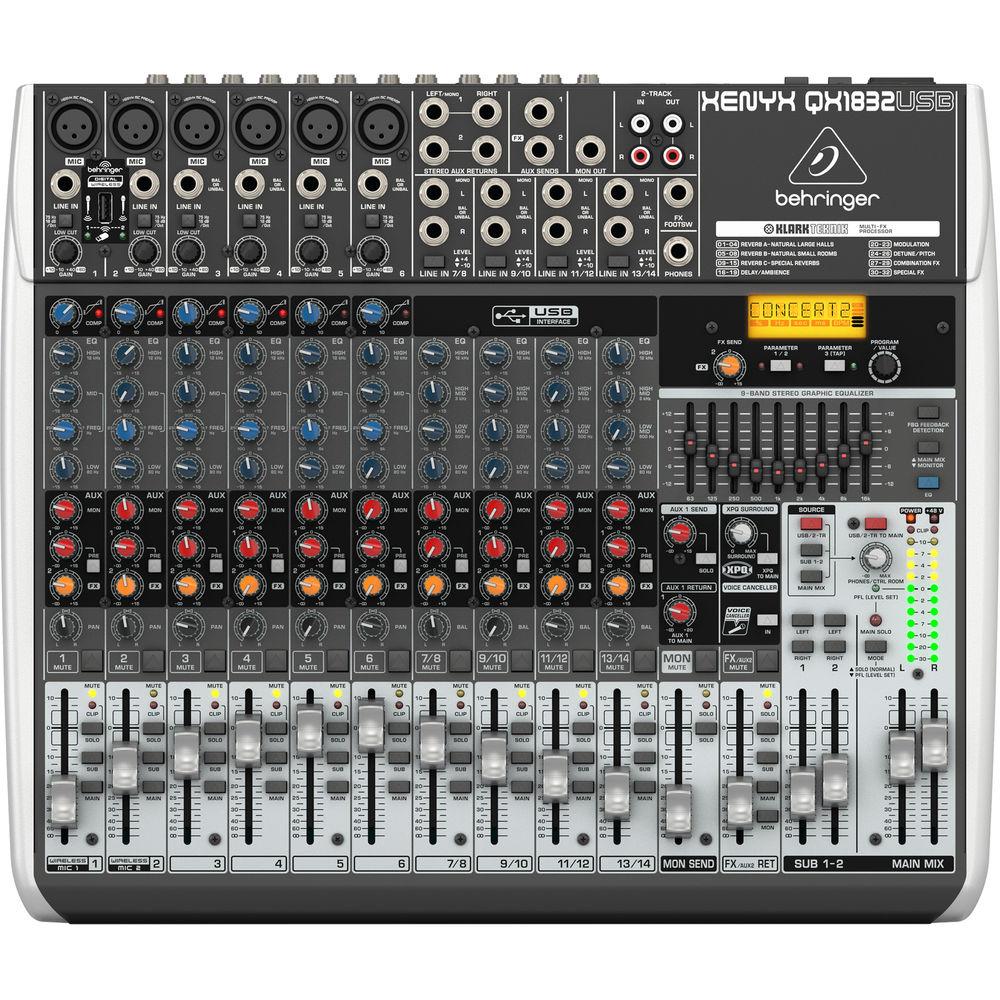

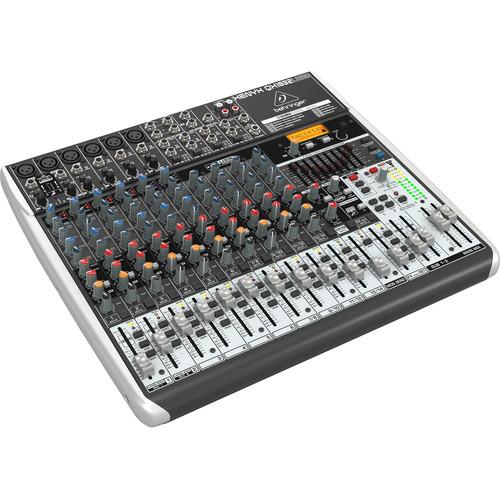

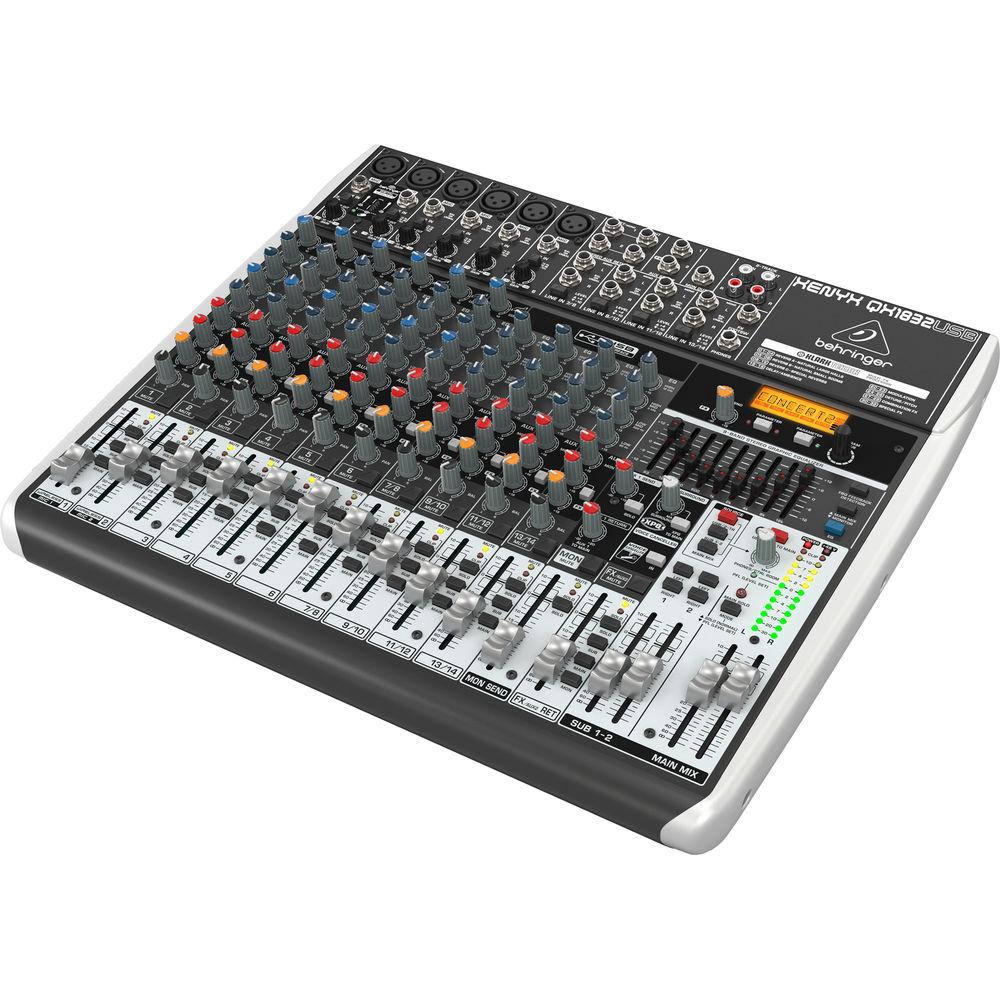

Product description - XENYX QX1832USB Small Format Mixer & USB Audio Interface
The Behringer XENYX QX1832USB is an 18-input audio mixer with an integrated USB computer audio interface. It enables you to mix together and shape the sound of multiple audio signals, and route the audio to several outputs. The mixer features six microphone preamps, "British"-style EQ, and six easy-to-use one-knob compressors.It provides four mono channels and four stereo channels, making it suitable for small- and medium-sized audio projects. There are three aux sends on every channel (which enable you to route individual channels to stage monitors or external effects), and three stereo aux returns. Every channel features a 3-band EQ with a swept mid, which can really help you make vocals and instruments stand out in a mix. The built-in USB interface allows for a bi-directional transfer of audio to and from your computer.The built-in Klark Teknik effects processor features 32 presets that include, reverb, chorus, flanger, delay, pitch shifter, and multi-effects. You can edit the parameters of every preset, and a tap tempo button is included to sync time-based effects. Channels 1 & 2 also feature Behringer's digital wireless connection, allowing two optional wireless microphones to be connected via the USB dongle input. The six built-in compressors are designed to simplify the process of controlling dynamics in your mix. With a single knob, you can dial in the amount of compression you need for any given sound. The six XENYX preamps offer 130 dB of dynamic range, and the 3-band "British"-style EQs allow you to finely tune your mix. The XENYX QX1832USB is suitable for recording studios, video editing suites, live sound mixing, podcasting, and more. -
- Premium low-noise, high-headroom mixer
- 6 phantom-powered XENYX Mic Preamps
- 6 studio-grade compressors with super-easy "one-knob" functionality and control LED for professional vocal and instrumental sound
- High-quality Klark Teknik FX processor with LCD display, dual-parameters, Tap function and storable user parameter settings
- "Wireless-ready" for high-quality Behringer digital wireless system (not included)
- Built-in stereo USB/Audio Interface to connect directly to your computer
- Neo-classic "British" 3-band EQs with semi-parametric mid band for warm and musical sound
- 9-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
- FBQ Feedback Detection System instantly reveals critical frequencies
- XPQ 3D stereo surround effect for more vitality and enhanced stereo image
- Voice Canceller function for easy-to-use sing-along applications
- Channel inserts on each mono channel for flexible connection of outboard equipment
- 3 aux sends per channel: 1 pre fader for monitoring, 1 pre/post fader switchable for monitoring/FX applications, 1 post fader (for internal FX or as external send)
- Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
- 2 subgroups with separate outputs for added routing flexibility and 2 multi-functional stereo aux returns with flexible routing

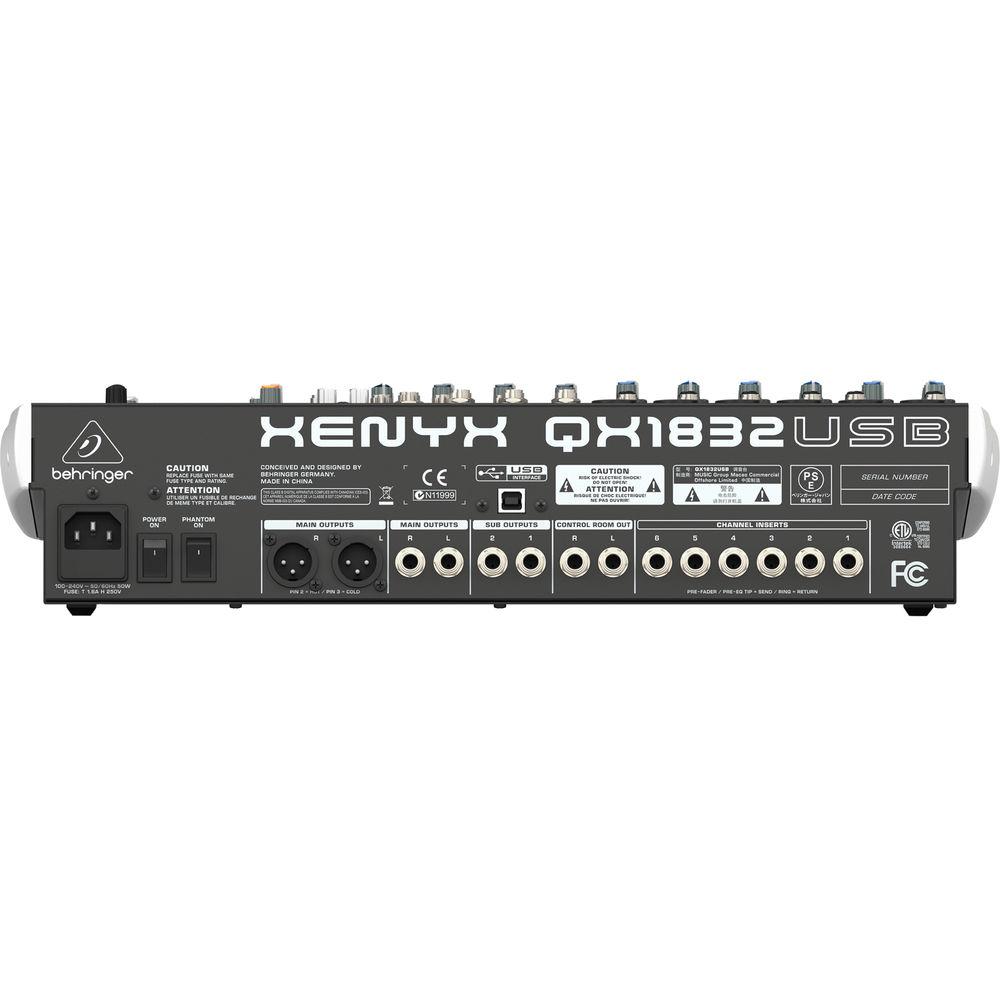

- Balanced main mix outputs with gold-plated XLR connectors, headphone/control room output and stereo rec outputs
- Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
- "Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
UPC: 713757154215 In the Box Behringer XENYX QX1832USB 18-Input USB Audio Mixer with Effects Power Cable USB Cable Limited 10-Year Warranty Quick-Start Guide PDF 7.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX QX1832USB 18-Input USB Audio Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer QX1832USB Specs | Total # Of Inputs | 14 inputs | | Mic/Line Inputs | 6 x XLR microphone inputs
6 x 1/4" / 6.35 mm TRS line-level inputs | | Stereo Line Inputs | 4 x 1/4" / 6.35 mm TRS left & right paired inputs | | AUX Sends | Monitor Send: 1 Aux Sends: 2 | | AUX Returns | 2 stereo returns | | Inserts | 6 | | BUS (Group) Outputs | 2 subgroups | | Master Output | 2 x balanced XLR outputs
2 x 1/4" / 6.35 mm TRS outputs | | Additional Output | Sub Outputs: 2 x 1/4" / 6.35 mm | | Monitor Outputs | 2 x 1/4" / 6.35 mm TRS control room outputs
1 x 1/4" / 6.35 mm stereo headphone output | | Tape I/O | Tape In: 2 x RCA
Tape Out: 2 x RCA | | EQ Section | Channels 1-6: 3-band semi-parametric
Low: 80 Hz ±15 dB
Mid: Variable 100 Hz to 8 kHz ±15 dB
High: 12 kHz ±15 dB
Channels 7-14: 4-band fixed
Low: 80 Hz ±15 dB
Low Mid: 500 Hz ±15 dB
High Mid: 3 kHz ±15 dB
High: 12 kHz ±15 dB | | Graphic EQ | 9-band stereo graphic EQ | | Solo/Mute | Mute and solo buttons on every channel | | Channel Level Control | 2.4" / 60.0 mm faders | | Trim/Gain Control | Yes | | Phantom Power | +48 V phantom | | Metering | 12-segment stereo LED meters
Clip LEDs on every channel | | | | Type | XLR, electronically balanced, discrete input circuit | | Mic Input Noise (E.I.N.) | 20 to 20,000 Hz
At 0 Ohms source resistance: -134 dB / 136 dB A-weighted
At 50 Ohms source resistance: -131 dB / 133 dB A-weighted
At 150 Ohms source resistance: -129 dB / 131 dB A-weighted | | Frequency Response | Preamp:
< 10 to 150,000 Hz (-1 dB)
< 10 to 200,000 Hz (-3 dB)
Mic Input to Main Output:
<10 to 160,000 Hz (±3 dB) | | Gain Range | 10 to 60 dB | | Maximum Input Level | +12 dBu at +10 dB Gain | | Impedance | Approximately 2.6 kOhms balanced | | Signal-to-Noise Ratio | 109 dB / 112 dB A-weighted (0 dBu In @ +22 dB gain) | | Total Harmonic Distortion (THD) | 0.005% / 0.004% A-weighted | | | | Type | 1/4" / 6.35 mm TRS connector, electronically balanced | | Impedance | Approximately 20 kOhms
10 kOhms unbalanced | | Gain Range | -10 to +40 dB | | Maximum Input Level | 30 dBu | | | | Type | 1/4" / 6.35 mm TRS connector, electronically balanced | | Impedance | 20 kOhms balanced
10 kOhms unbalanced | | Gain Range | -20 to +20 dB | | Maximum Input Level | 22 dBu | | | | AUX Sends | Type: 1/4" / 6.35 mm TRS connector, unbalanced
Impedance: Approximately 120 Ohms
Maximum Output Level: 22 dBu | | AUX Returns | Type: 1/4" / 6.35 mm TRS connector, electronically balanced
Impedance: Approximately 20 kOhms balanced, 10 kOhms unbalanced
Maximum Input Level: 22 dBu | | Main Outputs | Type: XLR, electronically balanced and 1/4" / 6.35 mm TRS balanced
Impedance: Approximately 240 Ohms symmetrical, 120 Ohms unbalanced
Maximum Output Level: 28 dBu | | Control Room Outputs | Type: 1/4" / 6.35 mm TRS unbalanced
Impedance: Approximately 120 Ohms
Maximum Output Level: 22 dBu | | Headphone Outputs | Type: 1/4" / 6.35 mm TRS connector, unbalanced
Impedance: 25 Ohms
Maximum Output Level: 19 dBu at 150 Ohms (+25 dBm) | | DSP | Type: Klark Teknik
Converter: 24-bit Sigma-Delta (64/128-time oversampling)
Sampling Rate: 40 kHz | | Wireless | USB Dongle: Accepts signals from 2 independent Behringer ULM microphones (optional) | | USB | Audio: Stereo In/Out
Connector: Type B
Converter: 16-bit
Sample Rate: 48 kHz | | Noise | Main mix at -∞ with channel fader at -∞: -100 dB / -103 dB A-weighted
Main mix at 0 dB with channel fader at -∞: -88 dB / -91 dB A-weighted
Main mix at 0 dB with channel fader at 0 dB: -80 dB / -82 dB A-weighted | | | | Mains | 100 to 240 V, 50/60 Hz | | Power Consumption | 50 W | | Fuse | 100 to 240 V 1.6 A H 250 V | | Connection | Standard IEC receptacle | | Dimensions (W x D x H) | 16.9 x 14.6 x 3.5" / 430.0 x 370.0 x 90.0 mm | | Weight | 10.4 lb / 4.7 kg | | | | Package Weight | 13.4 lb | | Box Dimensions (LxWxH) | 20.7 x 17.4 x 5.9" |
