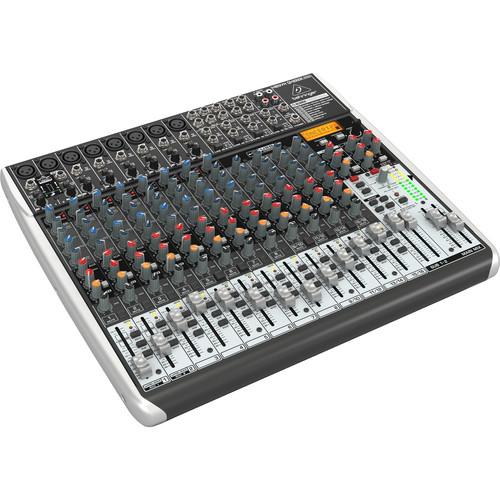

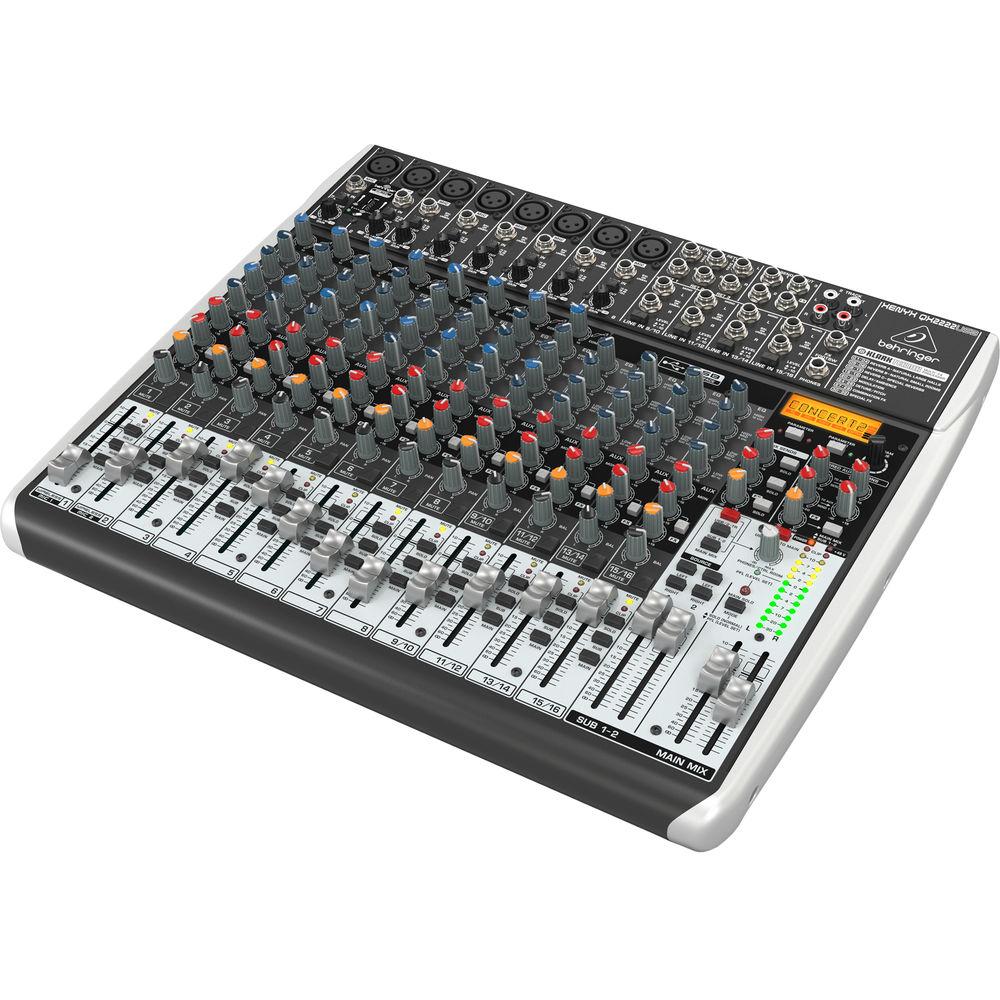

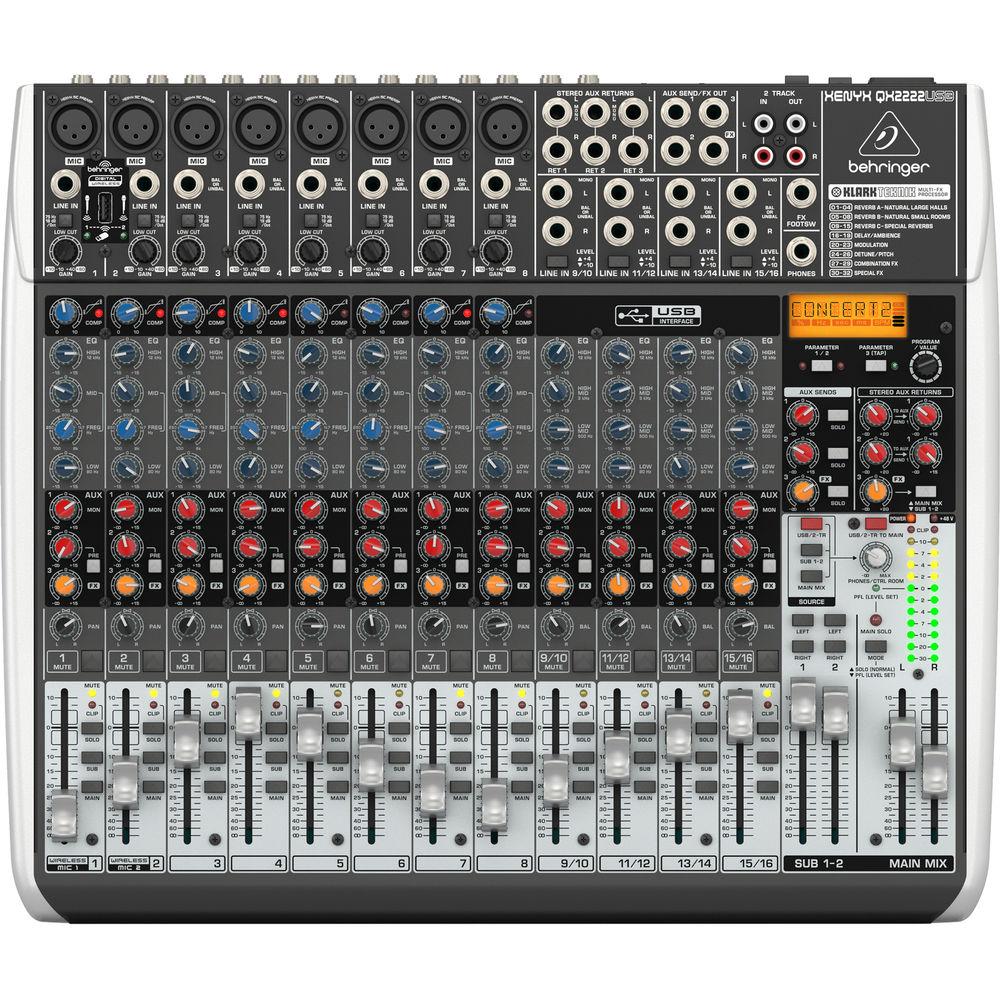

Product description The Behringer XENYX QX2222USB 22-Input USB Audio Mixer with Effects is a 22-input audio mixer with an integrated USB computer audio interface. It enables you to mix together and shape the sound of multiple audio signals, and route the audio to several outputs. The mixer features eight XENYX microphone preamps, 3-band "British"-style EQ, and eight easy-to-use one-knob compressors. There are three aux sends on every channel (which enable you to route individual channels to stage monitors or external effects), and three stereo aux FX returns. The built-in USB interface allows for a bi-directional transfer of audio to and from your computer.The built-in 24-bit dual-engine effects processor features 32 presets that include, reverb, chorus, flanger, delay, pitch shifter, and multi-effects. You can edit the parameters of every preset, and a tap tempo button is included to sync time-based effects. The eight built-in compressors are designed to simplify the process of controlling dynamics in your mix. With a single knob you can dial in the amount of compression you need for any given sound. The eight XENYX preamps offer 130 dB of dynamic range, and the 3-band "British"-style EQs with swept mids allow you to finely tune your mix. The mixer includes a USB port for connecting up to two of Behringer's wireless USB digital microphones. The XENYX QX2222USB is suitable for recording studios, video editing suites, live sound mixing, podcasting, and more. - Low-noise, high-headroom analog mixer
- Eight phantom-powered XENYX microphone preamps
- Eight compressors with easy "one-knob" functionality and control LED
- "British"-style 3-band EQs for adjusting your tone
- Effects processor with 32 editable presets including reverb, chorus, flanger, delay, pitch shifter, multi-effects, tap function and storable user parameter settings
- Built-in stereo USB audio interface to connect directly to a computer; includes downloadable audio recording, editing, and podcasting software plus over 100 instrument and 50 effect plug-ins
- Three aux sends per channel: one pre fader for monitoring, one pre/post fader switchable for monitoring/FX applications, one post fader (for internal FX or as external send)
- Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
- Two subgroups with separate outputs for added routing flexibility
- Compatible with Behringer's wireless USB digital microphone system
- Long-wearing full-sized 60mm faders and sealed rotary controls
- Switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for saving energy
UPC: 713757154314 In the Box Behringer XENYX QX2222USB 22-Input USB Audio Mixer with Effects Power Cable USB Cable Limited 10-Year Warranty Quick-Start Guide PDF 8.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX QX2222USB 22-Input USB Audio Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

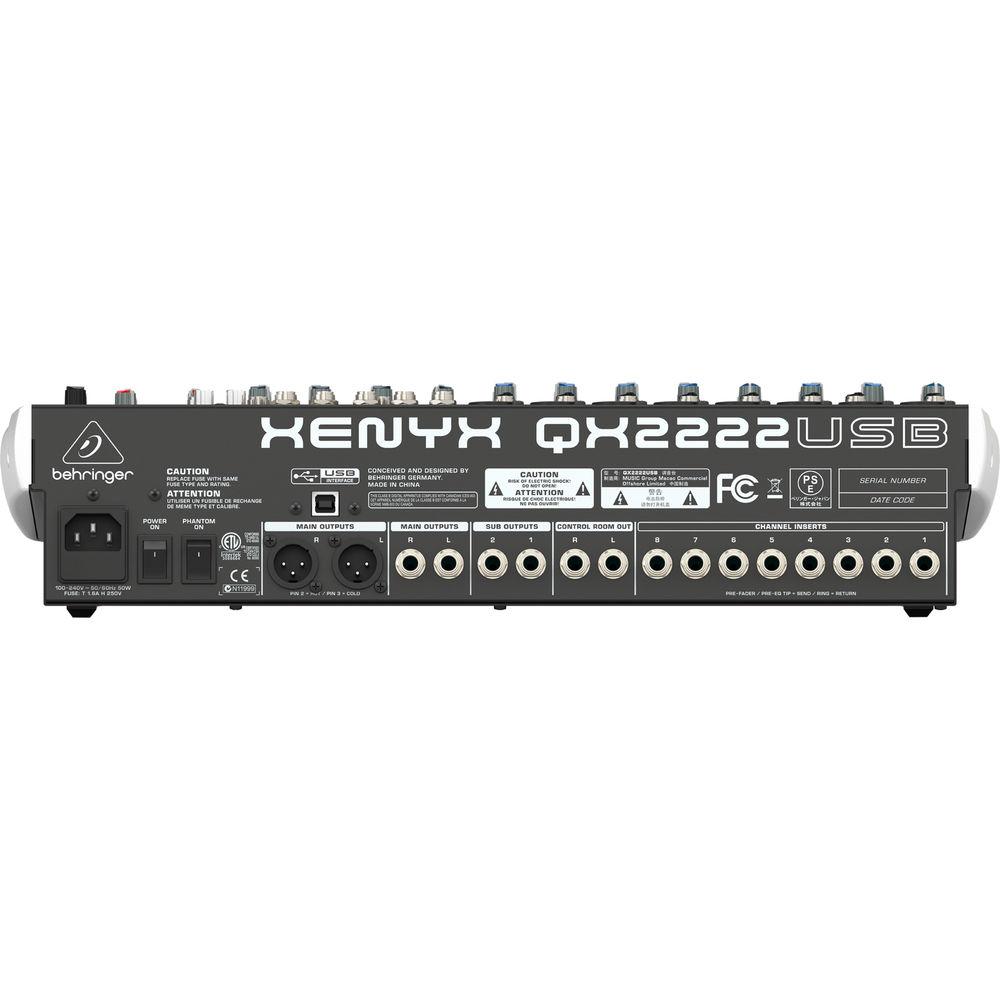

Technical parametersBehringer QX2222USB Specs | Total # Of Inputs | 22 inputs | | Mic/Line Inputs | 8 x XLR microphone inputs
8 x 1/4" TRS line-level inputs | | Stereo Line Inputs | 4 x 1/4" TRS left & right paired inputs | | Aux Sends | 3 x 1/4" TRS connector, balanced | | AUX Returns | 3 x 1/4" TRS connector, balanced | | Inserts | 4 | | BUS (Group) Outputs | 2 sub groups | | 2 Trk Master I/O | 2 x balanced XLR outputs
2 x 1/4" TRS outputs | | ALT I/O | 2 x 1/4" TRS sub outputs
stereo RCA 2-track outputs | | Monitor Outputs | 2 x 1/4" TRS control room outputs
1 x 1/4" stereo headphone output | | EQ Section | 3-Band EQ with mid sweep on every channel | | Solo/Mute | Mute and solo buttons on every channel | | Channel Level Control | 60 mm faders | | Trim/Gain Control | Yes | | Metering | 12-Segment stereo LED meters
Clip LEDs on every channel | | | | Type | XLR, electronically balanced, discrete input circuit | | Mic Input Noise (E.I.N.) | 20 to 20,000 Hz
At 0 Ω source resistance: -134 dB / -136 dB A-weighted
At 50 Ω source resistance: -131 dB / -133 dB A-weighted
At 150 Ω source resistance: -129 dB / -131 dB A-weighted | | Frequency Response | Preamp:
< 10 to 150,000 Hz (-1 dB)
< 10 to 200,000 Hz (-3 dB)
Mic input to main output:
<10 to 160,000 Hz: ± 3 dB | | Dynamic Range | Not specified by the manufacturer | | Gain Range | 10 to 60 dB | | Maximum Input Level | +12 dBu at +10 dB Gain | | Impedance | Approximately 2 kΩ balanced | | Signal-to-Noise Ratio | 106 dB / 108 dB A-weighted (0 dBu In @ +22 dB gain) | | Total Harmonic Distortion (THD) | 0.005% / 0.004% A-weighted | | Phantom Power | Switchable, +48V | | | | Type | 1/4" TRS connector, balanced | | Impedance | Approximately 20 kΩ
10 kΩ unbalanced | | Gain Range | -10 to +40 dB | | Maximum Input Level | 30 dBu | | | | Type | 4 x 1/4" TRS connector, balanced | | Impedance | Approximately 20 kΩ, 10 kΩ | | Gain Range | -20 to 20 dB | | Maximum Input Level | 22 dBu | | EQ Type Mono Channels | Low: 80 Hz, ± 15 dB
Mid: 100 to 8,000 Hz, ± 15 dB
High: 12,000 Hz, ± 15 dB | | EQ Type Stereo Channels | Low: 80 Hz, ± 15 dB
Low Mid: 500 Hz, ± 15 dB
High Mid: 3,000 Hz, ± 15 dB
High: 12,000 Hz, ± 15 dB | | | | AUX Sends | Type: 3 x 1/4" TRS connector, balanced
Impedance: Approximately 120 Ω
Maximum Output Level: 22 dBu | | AUX Returns | Type: 1/4" TRS connector, electronically balanced
Impedance: Approximately 20 kΩ balanced, 10 kΩ unbalanced
Maximum Input Level: 22 dBu | | Main Outputs | XLR, balanced
Impedance: Approximately 240 Ω balanced, 120 Ω unbalanced
Maximum Output Level: 28 dBu | | Control Room Outputs | Type: 1/4" TS balanced
Impedance: Approximately 120 Ω
Maximum Output Level: 22 dBu | | Headphone Outputs | Type: 1/4" TRS connector, unbalanced
Impedance: 25 Ω
Maximum Output Level: +21 dBu / 150Ω (+25 dBm) | | DSP | Type: Klark Teknik
Converter: 24-bit Sigma-Delta, 64/128-times oversampling
Sampling rate: 40 kHz | | Wireless | USB dongle: Accepts signals from 2 independent Behringer ULM mics | | USB | Audio: Stereo In/Out
Connector: Type B
Converter: 16-bit
Sample Rate: 48 kHz | | Noise | Main mix at -∞ with channel fader at -∞: -100 dB / -103 dB A-weighted
Main mix at 0 dB with channel fader at -∞: -85 dB / -88 dB A-weighted
Main mix at 0 dB with channel fader at 0 dB: -78 dB / -80 dB A-weighted | | | | Mains | 100 to 240 V, 50/60 Hz | | Power Consumption | 50 W | | Fuse | 100 to 240 V: T 1.6 A H 250 V | | Connection | Standard IEC receptacle | | Dimensions (H x W x D) | 16.9 x 14.6 x 3.50" (430 x 370 x 90.0 mm) | | Weight | 10.6 lb (4.80 kg) | | | | Package Weight | 14.05 lb | | Box Dimensions (LxWxH) | 20.7 x 18.1 x 5.8" |
