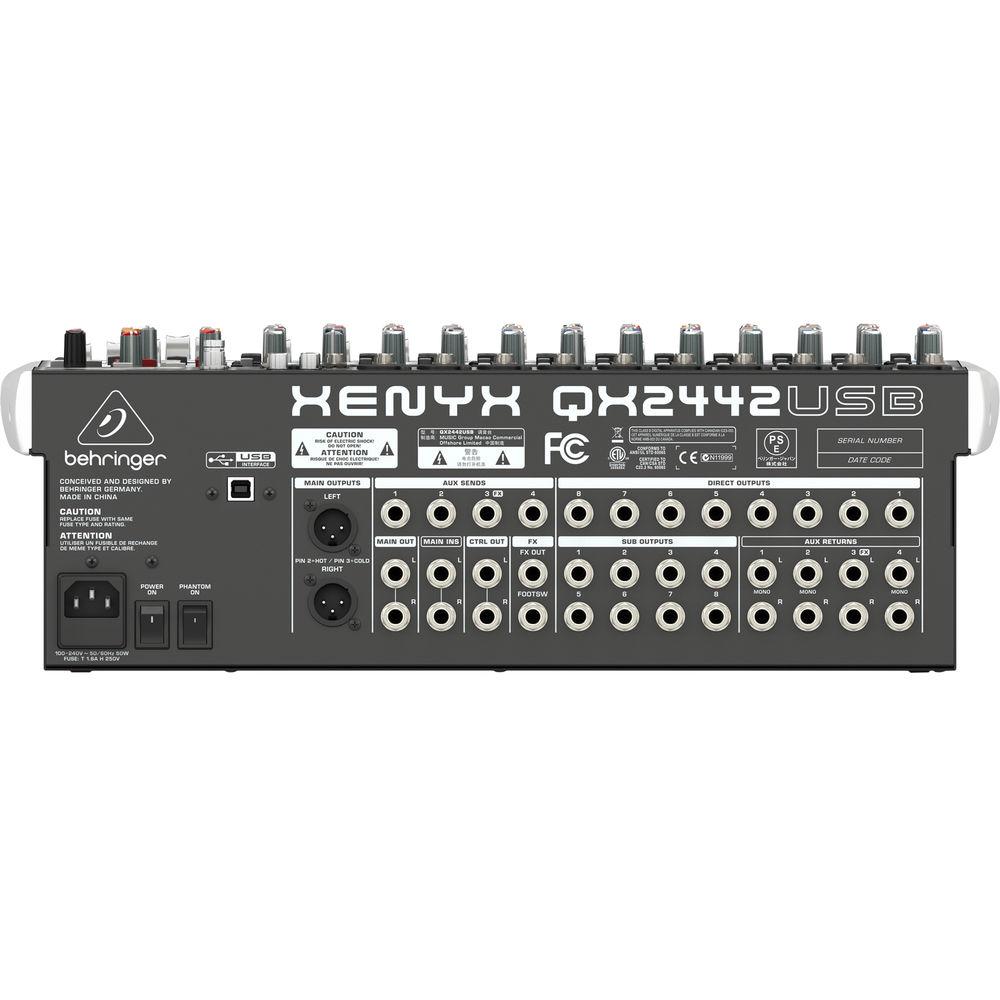

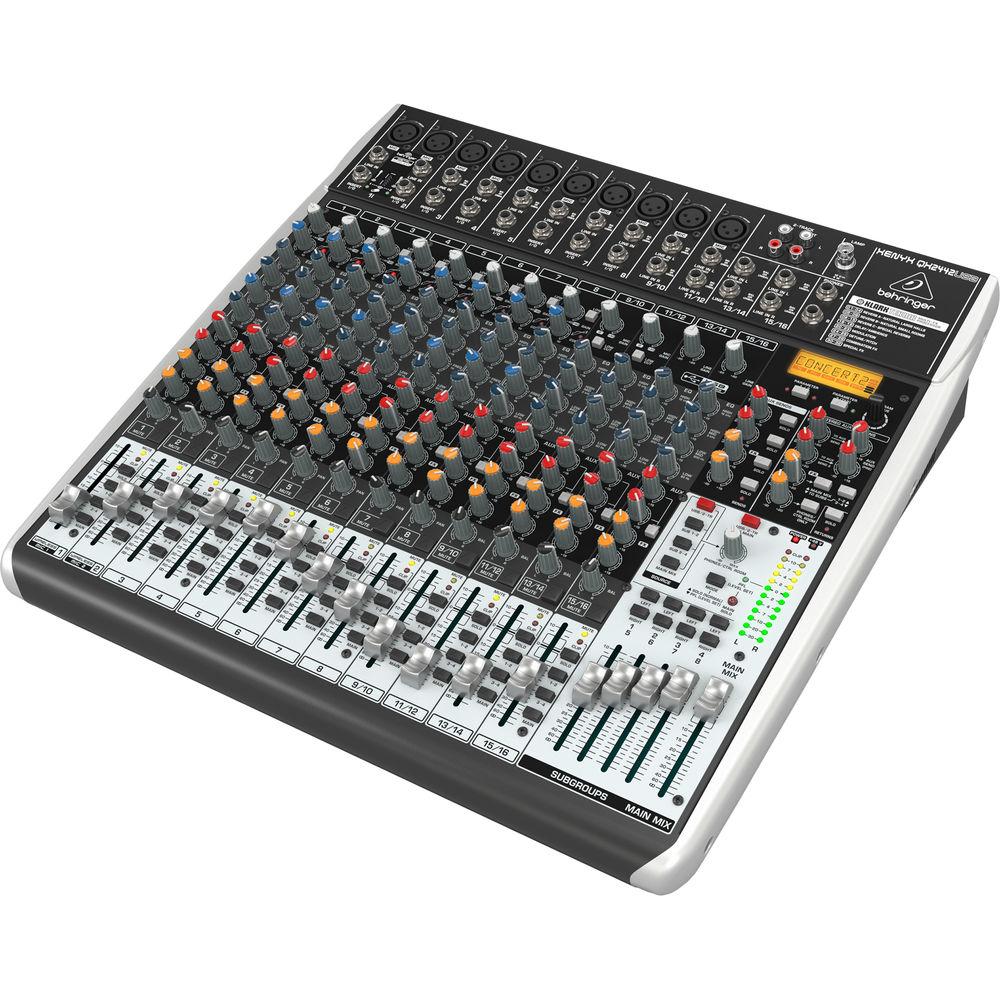

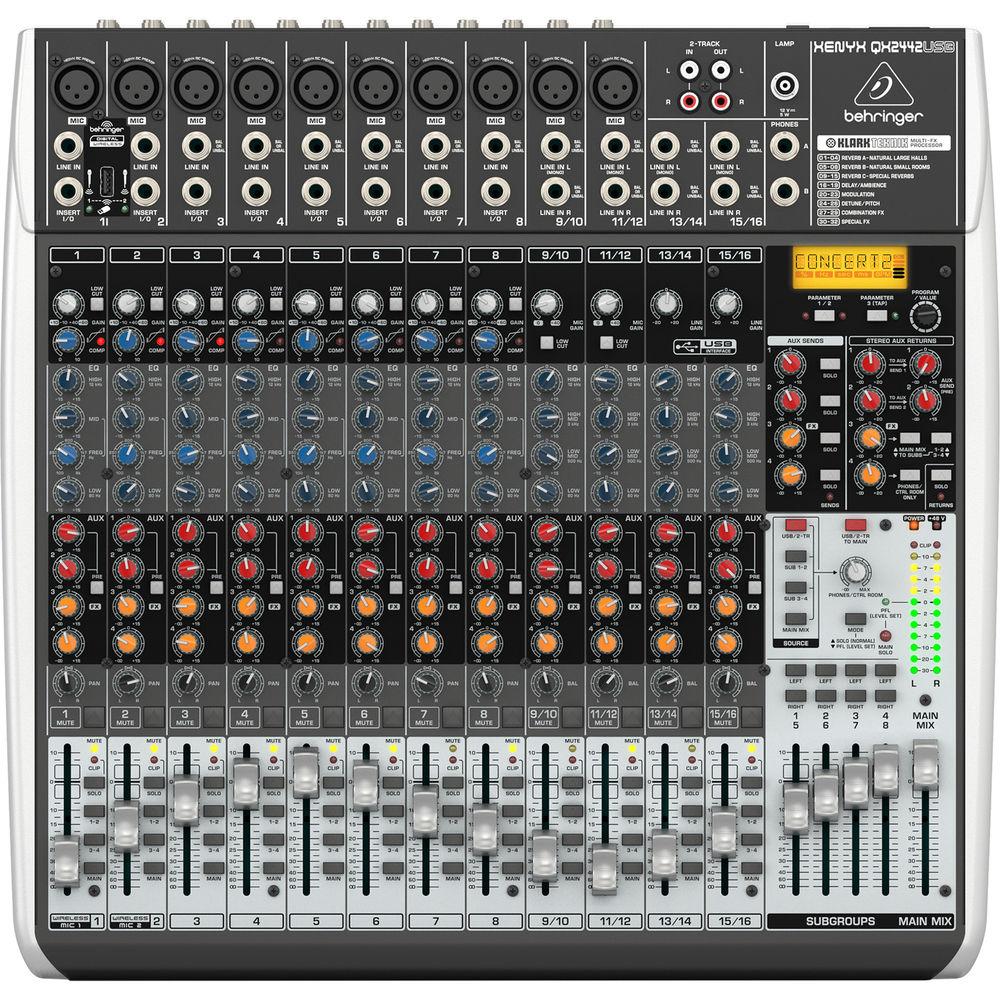

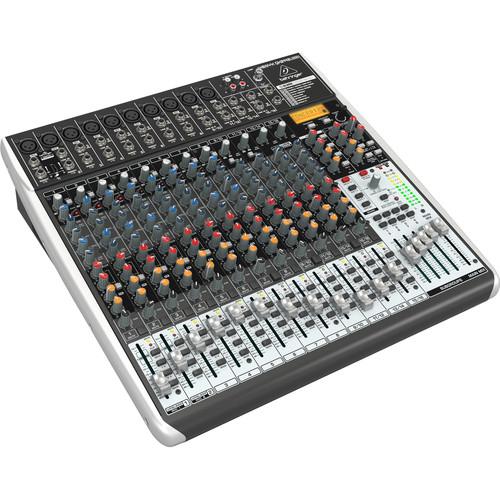

User Manual for Behringer XENYX QX2442USB 24-Channel USB Mixer with Multi-FX Processor Click to enlarge the picture
Contents of the user manual for the Behringer XENYX QX2442USB 24-Channel USB Mixer
- Product category: Analog Recording Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Analog Recording Mixers
 |
User manual for the Behringer XENYX QX2442USB 24-Channel USB Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - XENYX QX2442USB Mixer & USB Audio Interface
The Behringer XENYX QX2442USB is a versatile 24-channel mixer equally well suited for sound-reinforcement applications and project recording studios. It employs ten, high-quality XENYX mic preamps to deliver a clear and natural sound with 130 dB of dynamic range, low distortion, and a wide frequency response extending from 10 Hz to 200 kHz. British-style, 3-band EQs provide warm and musical tone corrections for your vocals and instruments, while easy-to-use, "one-knob" compressors gently smooth out signal peaks for punchy and present bass lines, drums, and vocals that sit right in the mix.The XENYX QX2442USB is packed with powerful features for getting the job done no matter the situation. Should your singer prefer the convenience of performing without a mic cable, the mixer is wireless-ready with a USB jack on the top panel for connecting the Behringer ULM digital wireless microphone system (available separately). The onboard multi-effect processor brings you the legendary Klark Teknik reverb effect as well as chorus, flange, delay, and pitch-shift, all great for adding depth and dimension to your mix. There is also a built-in, stereo USB audio interface for recording your mix directly to a computer, at audio resolutions up to at 16-bit/48 kHz. It even comes with the recording and editing software needed to turn your computer system into a complete home recording studio.A set of flexible routing and monitoring options makes it easy to integrate the XENYX QX2442USB into your existing set up. The mixer offers four aux sends per channel for sending signals to the FX processor or out of the console to other gear. It also comes with four stereo subgroups with separate outputs, channel inserts, direct outputs, eight aux returns, and more. The main outputs carry the signal on both XLR and 1/4" TRS balanced connectors, while the control room outputs are on two 1/4" TRS balanced connectors.Other features include clip LEDs to help you set the correct mic levels, mute and solo buttons, main-mix and subgroup routing switches, and PFL functions on all channels. Designed to withstand the rigors of live gigs, the QX2442USB is built with long-wearing, 60mm logarithmic-taper faders and sealed rotary controls. There is even a lamp socket to connect a gooseneck lamp when working in low-light environments. - Key Features
-
- 10 high-quality, phantom-powered XENYX mic preamps for dynamic and condenser microphones
- 130 dB of dynamic range for high headroom
- Low-noise and low-distortion circuitry
- 8 studio-grade compressors with super-easy "one-knob" functionality and control LED
- Legendary Klark Teknik FX processor with LCD display, dual-parameters, Tap function, and storable user parameter settings
- 100 FX presets include reverbs, delays, modulation, and multi-effects
- Wireless-ready for Behringer ULM digital wireless microphone system (available separately)
- Built-in stereo USB audio interface to connect directly to your computer
- Free audio recording, editing, and podcasting software, plus 150 instrument/effect plug-ins downloadable at behringer.com
- Neo-classic, British-style 3-band EQs with semi-parametric mid band for warm and musical sound
- Channel inserts and direct outputs on each mono channel plus main mix inserts for flexible connection of outboard equipment
- 4 aux sends per channel: 2 pre-/post-faders and switchable for monitoring/FX applications, 2 post-faders for internal FX processor or as send to external FX processor
- Clip LEDs, mute, main mix and subgroup routing switches, solo, and PFL functions on all channels
- 4 subgroups with separate outputs for added routing flexibility
- 4 multi-functional stereo aux returns with flexible routing
- Control room/phones outputs with multi-input source matrix—record inputs assignable to main mix or control room/phones outputs
- Long-wearing 60mm logarithmic-taper faders and sealed rotary controls
- Lamp socket to connect a gooseneck lamp
- "Planet Earth" switching power supply for maximum flexibility (100-240 V), noise-free audio, superior transient response, and low power consumption for energy saving
- Designed and engineered in Germany
UPC: 794504549812 In the Box Behringer XENYX QX2442USB 24-Channel USB Mixer with Multi-FX Processor Power Cable Limited 1-Year Warranty Extends Additional 2 Years upon Registration within 90 Days User Manual PDF 6.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX QX2442USB 24-Channel USB Mixer with Multi-FX Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer QX2442USB Specs | Microphone Inputs | 10 x XLR, balanced, discrete input circuit
XENYX microphone preamps with 48 V phantom power (switchable) | | Microphone EIN | (EIN 20 Hz to 20 kHz)
At 0 Ohm Source Resistance: -134 dB / -136 dB A-weighted
At 50 Ohms Source Resistance: -131 dB / -133 dB A-weighted
At 150 Ohms Source Resistance: -129 dB / -131 dB A-weighted
Frequency Response: <10 Hz to 150 kHz (-1 dB)
Frequency Response: <10 Hz to 200 kHz (-3 dB)
Gain Range: +10 to +60 dB
Maximum Input Level: +12 dBu at +10 dB gain
Impedance: 2 kOhms, balanced
Signal-to-Noise Ratio: 108 dB / 110 dB A-weighted (0 dBu In at +22 dB gain)
Distortion (THD+N): 0.005% / 0.004% A-weighted | | Line Inputs | 8 x 1/4" / 6.3 mm TRS, balanced
Impedance: 20 kOhms balanced / 10 kOhms unbalanced
Gain Range: -10 to +40 dB
Maximum Input Level: 30 dBu | | Frequency Response | Microphone Input to Main Out:
<10 Hz to 160 kHz (
