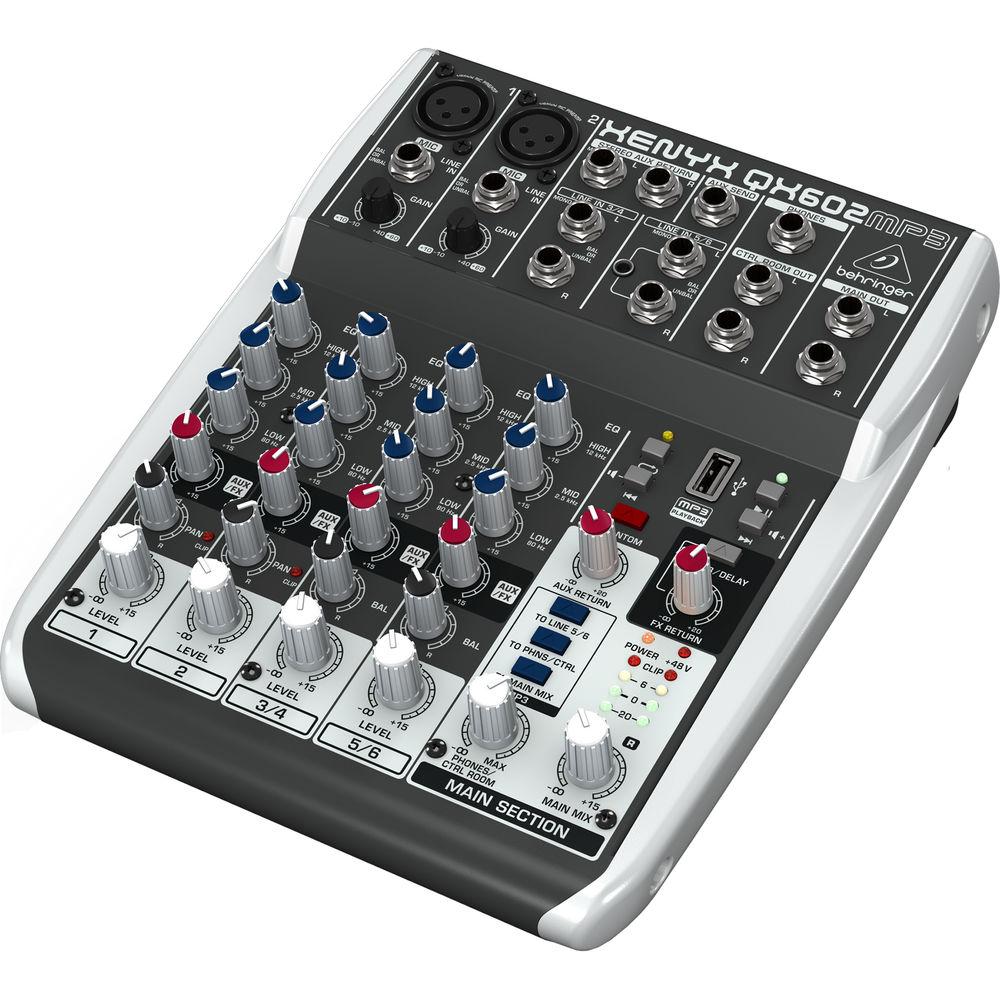

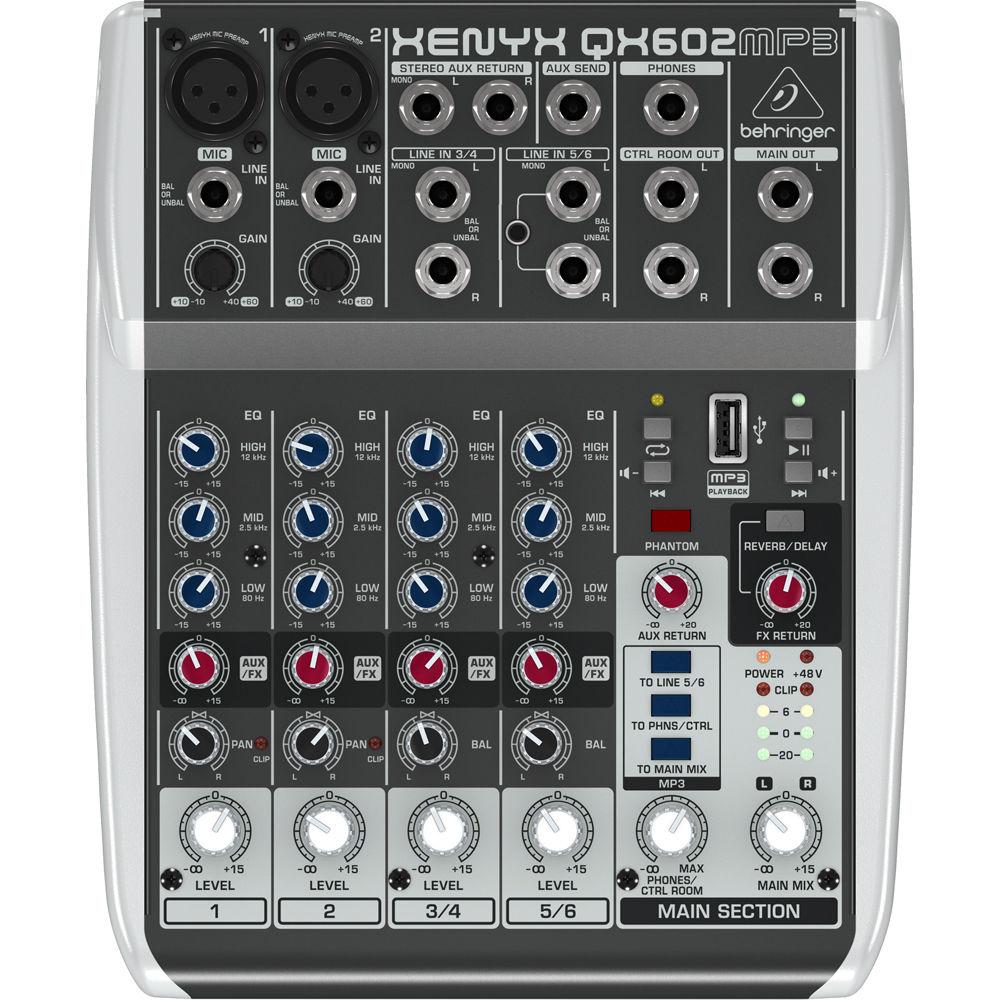

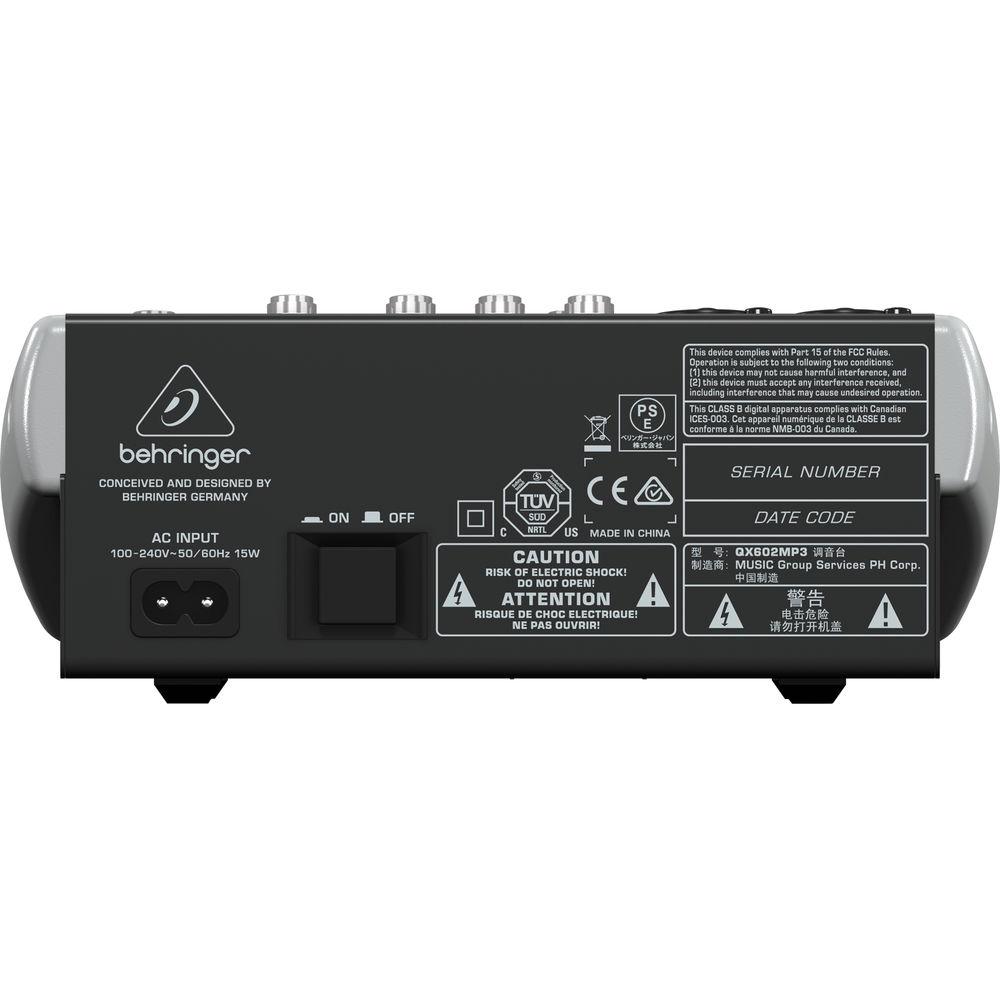

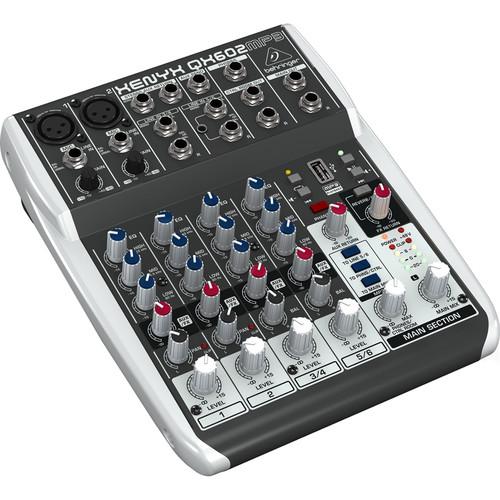

Product description The Xenyx QX602MP3 from Behringer is an analog mixer suitable for small project recording, rehearsals, podcasts, and other such environs. It features six inputs (two mic/line inputs and two sets of stereo inputs) with 48V phantom power for its microphone slots. Two on-board mic preamps offer 130 dB of dynamic range with a built-in, British-style three-band EQ to boot. An on-board 24-bit stereo multi-FX processor provides reverbs and delays, while an integrated MP3 player lets you access audio files directly from a USB drive, giving you control over playback via play/pause, rewind/forward, and random controls, all located on a four-button pad. Auxiliary sends and a stereo return provide the ability to loop in external gear, while separate headphone and control room outputs are provided for independent monitoring. This mixer includes an auto-switching 100-240 VAC power supply. UPC: 748252157140 In the Box Behringer Xenyx QX602MP3 6-Input 2-Bus Analog Mixer with MP3 Player and Effects Power Cord Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Xenyx QX602MP3 6-Input 2-Bus Analog Mixer with MP3 Player and Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer QX602MP3 Specs | | | Connector Type | 2 x XLR, balanced discrete input circuit, channels 1 and 2 | | Equivalent Input Noise | @ +60 dB gain (20 Hz to 20 kHz):
@ 0 Ohm Source Resistance: -129 dB / -131 dB A-weighted
@ 50 Ohms Source Resistance: -128 dB / -130 dB A-weighted
@ 150 Ohms Source Resistance: -127 dB / -129 dB A-weighted | | Frequency Response | -3 dB @ +10 dB Gain: <7 hz to 80 khz
-3 dB @ +60 dB: 30 Hz to 30 kHz | | Gain Range | +10 to +60 dB | | Maximum Input Level | +11 dBu @ +10 dB gain | | Impedance | 2 kOhms, balanced | | Signal-to-Noise Ratio | 106 dB / 108 dB A-weighted (11 dBu In @ +10 dB gain) | | Distortion | THD+N: 0.003 / 0.002%, A-weighted | | Phantom Power | +48 V, switchable | | | | Connector Type | 2 x 1/4" TRS connector, balanced, channels 1 and 2 | | Impedance | 20 kOhms balanced, 10 kOhms unbalanced | | Gain Range | -10 dB to +40 dB | | Maximum Input Level | +30 dBu @ -10 dB gain | | | | Connector Type | 4 x 1/4" TRS connector, balanced channels 3 through 6 | | Impedance | 20 kOhms balanced, 10 kOhms unbalanced | | Maximum Input Level | +22 dBu | | Type | 1 x 1/8" / 3.5 mm TRS connector, unbalanced, channels 5 and 6 | | Impedance | 10 kOhms | | Maximum Input Level | +22 dBu | | | | Low Frequency EQ | ±15 dB @ 80 Hz, shelving | | Mid Frequency EQ | ±15 dB @ 2.5 kHz | | High Frequency EQ | ±15 dB @ 12 kHz, shelving | | | | Connector Type | Aux Send: 1 x 1/4" TRS connector, balanced
Stereo Aux Return: 2 x 1/4" TRS connector, unbalanced | | Impedance | Aux Send: 240 Ohms
Stereo Aux Return: 10 kOhms | | Maximum Level | Output: Maximum Aux send level (+22 dBu)
Input: Maximum Stereo Aux return level (+26 dBu) | | | | Connector Type | 2 x 1/4" TRS connector, balanced | | Impedance | 240 ohms, balanced | | Maximum Output Level | +22 dBu | | | | Connector Type | 2 x 1/4" TRS connector, balanced | | Impedance | 240 Ohms, balanced | | Maximum Output Level | +22 dBu | | | | Connector Type | 1 x 1/4" TRS connector, balanced | | Maximum Output Level | +17 dBu / 150 Ohm | | | | Connector Type | USB type-A | | File System | FAT 16, FAT 32 | | Format | MP3 (DBR & VBR) | | Bit Rates | 32 to 320 kbps | | Sample Rates | 32, 44.1, 48 kHz | | | | Noise | Main Mix @ -infinity, Channel Fader @ -infinity: -96.5 dB / -99 dB A-weighted
Main Mix @ 0 dB, Channel Fader @ -infinity: -90.7 dB / -93 dB A-weighted
Main Mix @ 0 dB, Channel Fader @ 0 dB: -88 dB / -90 dB A-weighted | | | | Power Supply | 100 to 240 VAC, 50/60 Hz, switching | | Power Consumption | 15 W | | Connection Interface | Standard IEC C8 receptacle | | | | Dimensions (H x W x D) | 3.0 x 7.7 x 9.1" / 75 x 195 x 230 mm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 12.1 x 9.8 x 5.1" |
