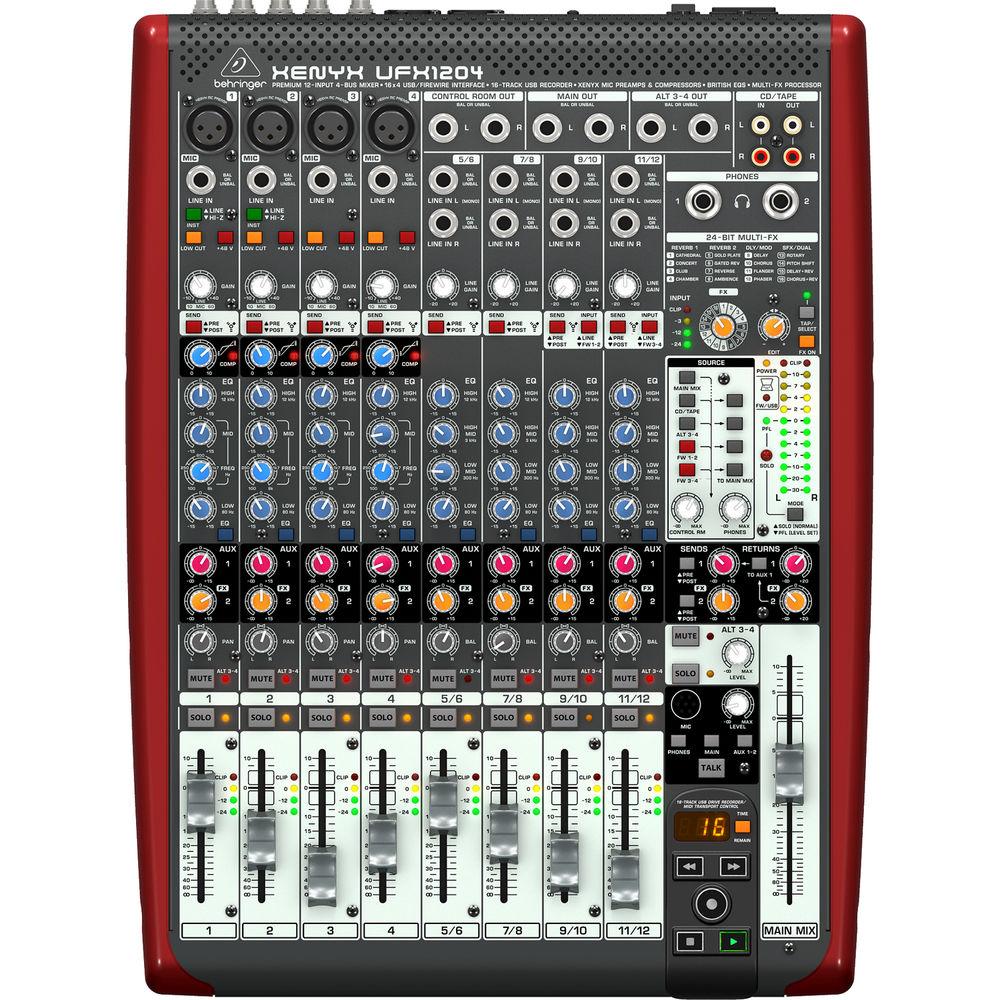

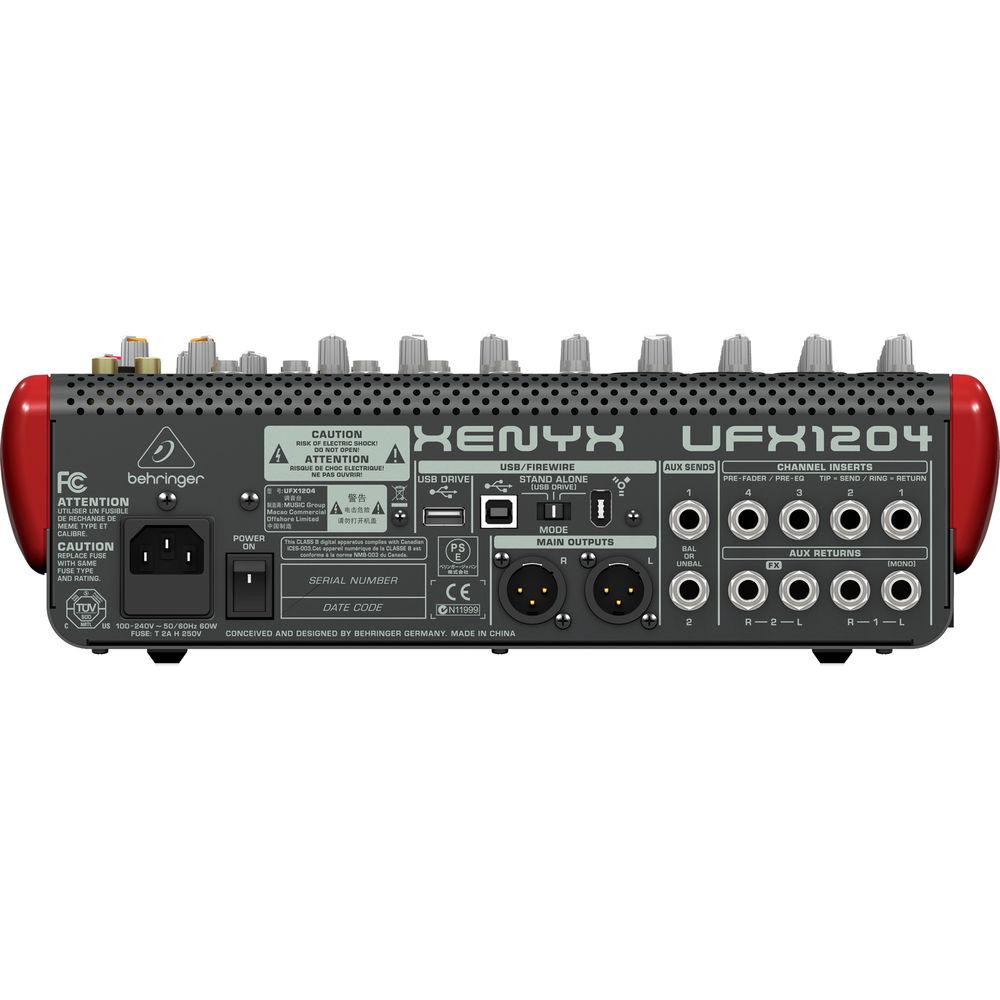

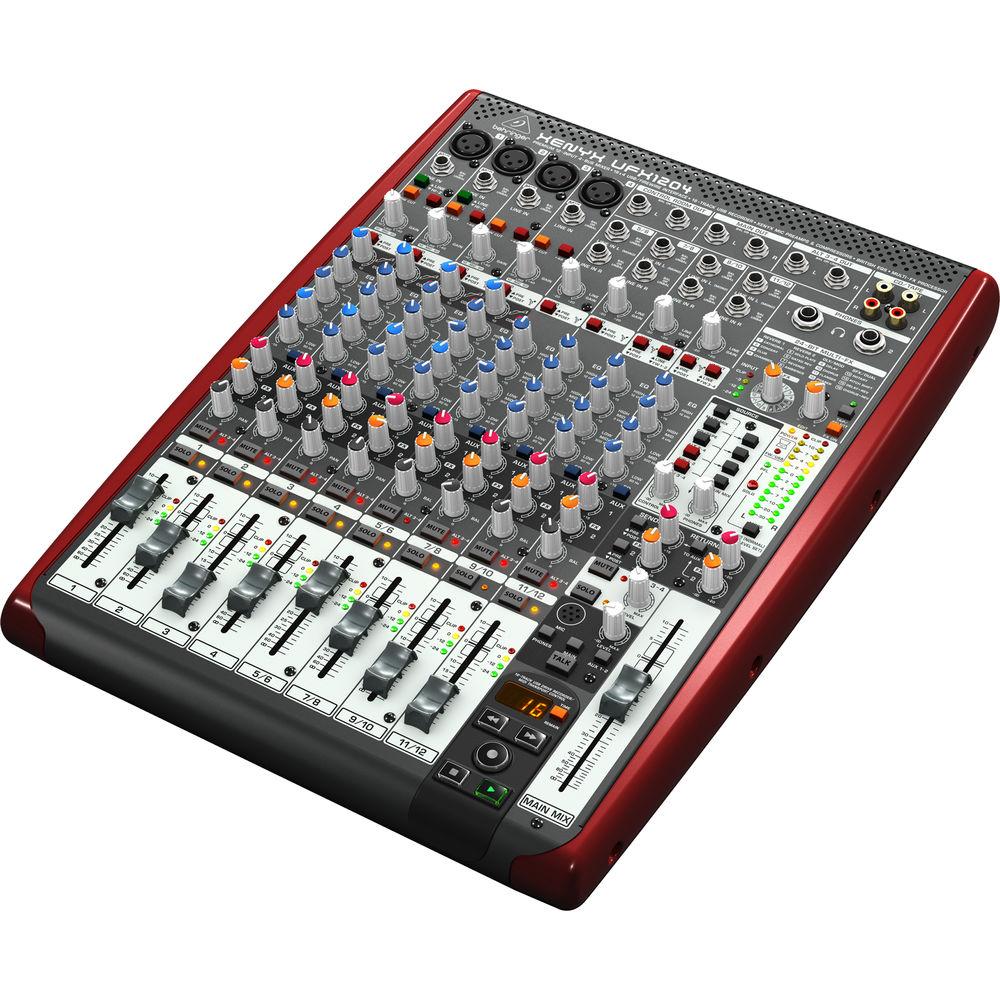

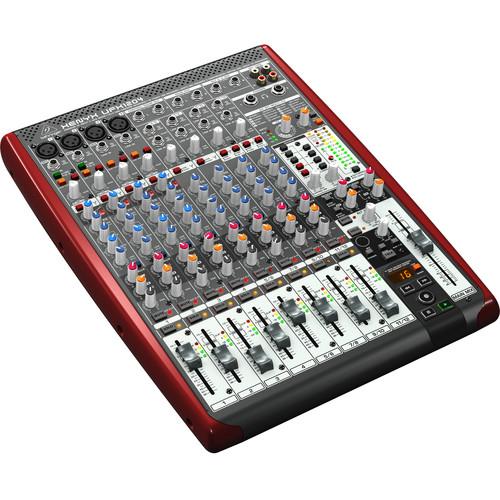

Product description - XENYX UFX1204 Analog Mixer and Multichannel USB/Firewire Interface
From input to output, the XENYX UFX1204 Premium 12-Input 4-Bus Mixer from Behringer is all about functionality, ease of use, and versatility. Mono channels on this mixer feature semi-parametric mid control, allowing you to dial in the frequency center and boost or cut by as much as 15 dB. All channels feature XENYX mic preamps and accept both balanced XLR and 1/4" TRS, as well as unbalanced 1/4" TS connections. A Line / Hi-Z switch is also provided on channels 1 & 2 so you can connect acoustic, electric, and bass guitars without the need for an external DI box.
This mixer makes it easy to capture your live performances or home recording sessions. All you need to do is to plug a USB stick into the rear panel, and hit the record button on the 16-track recorder control interface. You can even control any compatible computer-based DAW directly from your UFX mixer via MIDI. Also, the channel EQ on this XENYX mixer allows you to imbue signals with warmth and detailed musical character. Even when applied generously, these equalizers exhibit good audio quality. Additionally, the mixer features individually switchable, true +48V phantom power on all mono channels, allowing you to use even top-of-the-line studio condenser microphones.
Stereo channels on the mixer support balanced and unbalanced 1/4" line connections and the 4-band British EQs provide tonal adjustment. All channels feature 4 Aux Sends, switchable Pre / Post FireWire Sends, Mute / Alt 3-4 functionality, and smooth, long-wearing 60mm logarithmic-taper faders, as well as a 100mm main mix fader.
The one-knob compression design on the mixer is available on all mono channels and is easy to operate, even for entry-level users. Now you can easily dial in the apt amount of compression for instruments and vocals, creating powerful mixes with punch and clarity.
The UFX1204 mixer comes with a high-end stereo FX processor with 16 editable presets that include reverb, chorus, flanger, delay, phaser, multi-effects, and tap function for performance enhancement.
This mixer also includes access to a free download of Tracktion 4, which is fun and easy-to-use music production software that puts everything you will need on your desktop, on a single screen without all the drop-down and hidden menus that are common to most other DAWs. This software does not limit the number of tracks you can record, or the number of effects you can use. Recording and editing is easier and you simply have to drag, drop, cut, copy, or paste. Additionally, you can also share it with other Tracktioneers so they can listen, collaborate, and edit. General Features - Premium low noise, high headroom analog mixer with integrated 24-bit / 96 kHz USB/FireWire interface and 16-track USB recorder
- Built-in 16 x 4 interface connects directly to your computer and supports Mac OS X & Windows XP or higher
- Integrated 16-track USB recorder allows for instant recordings of studio or live sessions
- 4 XENYX mic preamps comparable to stand-alone boutique preamps with individual phantom power switches
- 4 studio-grade compressors with easy one-knob functionality & control LED for professional vocal and instrumental sound
- Neo-classic British 3-band EQs with semi-parametric mid band for warm & musical sound
- Studio-grade stereo FX processor with 16 editable presets including reverb, chorus, flanger, delay, pitch shifter, multi-effects, tap function, and storable user parameter settings
- Illuminated MIDI transport section to remote-control your DAW / Sequencer on PC / Mac
- 2 Hi-Z inputs for direct connection of guitars, 4 channel inserts, and balanced main mix outputs on 1/4" TRS & XLR connectors
- 2 Aux Sends per channel, all pre / post fader switchable, 2 stereo Aux Returns, & separate CD / Tape input
- Solo-in-place with PFL / AFL function plus full-featured talkback section with onboard Mic
- Comprehensive monitor section with separate level controls for speaker & headphones outputs
- Long-wearing 60mm logarithmic-taper channel faders, 100mm main mix fader, and sealed rotary controls
- Planet Earth switching power supply for maximum flexibility (100 to 240V), noise-free audio, enhanced transient response plus low power consumption for energy saving
- High-quality components & rugged construction ensure long life
Tracktion 4 Software Features - Native FX plug-ins ranging from dynamics to modulation, reverb, and more
- Support for available third party AU, VST, and VSTi plug-ins
- 64-bit, 192 kHz mix engine
- Filters: Volume / Pan, Level Meter, 4-band EQ, Aux Send & Return and FX
- Export to a variety of formats such as .wav, .aif, and .mp3
UPC: 794504550115 In the Box Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer Limited 10-Year Warranty User Manual PDF 24.7mbbbtueyydrxsvwfftcedwwabcttrxswbd Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer UFX1204 Specs | | | Microphone Inputs | 4 (XENYX Mic preamp) | | Type | XLR, electronically balanced, discrete input circuit | | Equivalent Input Noise | 20 Hz to 20 kHz:
At 0 Ω Source Resistance: -129 dB / 131 dB A-weighted
At 50 Ω Source Resistance: -128 dB / 130 dB A-weighted
At 150 Ω Source Resistance: -127 dB / 129 dB A-weighted | | Frequency Response | <10 hz to 140 khz (-1 db)
<10 Hz to 200 kHz (-3 dB) | | Gain Range | +10 to +60 dB | | Maximum Input Level | +12 dBu at +10 dB gain | | Impedance | Approximately 2.06 kΩ balanced
Hi-Z Input: 1 MΩ | | Signal to Noise Ratio | 110 dB A-weighted (-10 dBu in at +32 dB gain) | | THD + N | 0.0045% (-20 dBu in at +20 dB gain) | | Phantom Power | +48 V, switchable per mic channel | | | | Type | 1/4" TRS connector, balanced | | Impedance | 20 kΩ balanced, 10 kΩ unbalanced | | Gain Range | -10 dB to +40 dB | | Maximum Input Level | 30 dBu | | | | Type | 1/4" TRS connector, balanced | | Impedance | 20 kΩ balanced, 10 kΩ unbalanced | | Gain Range | -20 dB to +20 dB | | Maximum Input Level | +22 dBu | | | | Type | CD / Tape In & Out: RCA connector | | Impedance | CD / Tape In: 10 kΩ
CD / Tape Out: 1 kΩ | | Maximum Input Level | +22 dBu | | Maximum Output Level | +22 dBu | | | | EQ Type Mono Channels | 3-Band Semi-Parametric:
Low: 80 Hz / ±15 dB
Mid: 100 Hz to 8 kHz / ±15 dB
High: 12 kHz / ±15 dB
Low Cut: 80 Hz, 18 dB/oct | | EQ Type Stereo Channels | 4-Band Fixed:
Low: 80 Hz / ±15 dB
Low Mid: 300 Hz / ±15 dB
High Mid: 3 kHz / ±15 dB
High: 12 kHz / ±15 dB | | | | Channel Inserts | Type: 1/4" TRS connector, unbalanced
Maximum Input Level: +22 dBu | | Cross Talk | Main Fader Closed: 90 dB
Channel Muted: 88 dB
Channel Fader Closed: 88 dB | | | | Type | Aux Sends: 1/4" TS connector, unbalanced
Aux Returns: 1/4" TRS connector, balanced | | Impedance | Aux Sends: 120 Ω
Aux Returns: 20 kΩ balanced, 10 kΩ unbalanced | | Maximum Output Level | Aux Sends & Returns: +22 dBu | | | | Main Outputs | Type: XLR + 1/4" TRS balanced
Impedance: 240 Ω balanced, 120 Ω unbalanced
Maximum Output Level: +28 dBu | | Control Room Outputs | Type: 1/4" TS connector, unbalanced
Impedance: 120 Ω
Maximum Output Level: +22 dBu | | Phones | Type: Dual 1/4" TRS connector, unbalanced
Maximum Output Level: +22 dBu / 23 Ω - 300 mW at 100 Ω | | | | Converters | 24-bit Delta-Sigma
128 times over-sampling | | Sampling Rate | 48 kHz | | | | Operating Modes | FireWire 400 or USB 2.0 | | Connectors | 6-pin FireWire 400 (IEEE1394A)
USB 2.0 Type B | | Converters | 24-bit | | Sample Rate | 44.1 / 48 / 88.2 / 96 kHz | | Channel Quantity | 16 x 4 in / out | | Operating Systems | Windows XP or higher, Mac OS X | | Audio Support | Low Latency: ASIO (Win), CoreAudio (Mac) | | Transport Controls | Standard MIDI mode (CC / note commands) or Mackie control mode | | | | Connector | USB 2.0 (Type A) for Stand-Alone Mode | | Storage Device | External USB 2.0 Hard-Disk Drive (Operation depends on required power consumption) | | Sample Rate | 44.1 / 48 kHz | | File Format | WAV (uncompressed) | | File System | FAT 16 / 32 | | Number of Channels | Recorded: 16 tracks (stored as mono WAV files) | | | | Voltage | 100 to 240 V, 50 / 60 Hz | | Power Consumption | 60 W | | Fuse | T 2 A H 250 V (100 to 230 V, 50 / 60 Hz) | | Connector | Standard IEC receptacle | | | | Dimensions (H x W x D) | 3.8 x 12.2 x 17.2" (96.5 x 309.9 x 436.9 mm) | | Weight | 9.9 lb (4.5 kg) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 20.5 x 16.3 x 7.0" |
