Behringer XENYX X1622USB - 16-Input USB

Search your instruction manual in PDF to download

User Manual for Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects

Click to enlarge the picture
Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects Contents of the user manual for the Behringer XENYX X1622USB - 16-Input USB
  • Product category: Analog Recording Mixers Behringer
  • Brand: Behringer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Behringer Analog Recording Mixers

Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects
User manual for the Behringer XENYX X1622USB - 16-Input USB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Behringer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!



Product description

  • XENYX X1622USB Premium 16-Input 2/2-Bus Mixer

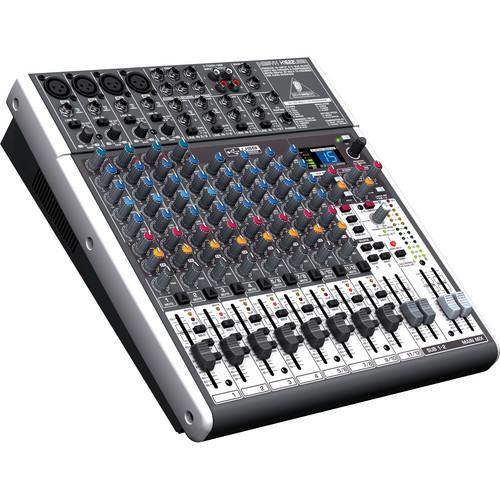

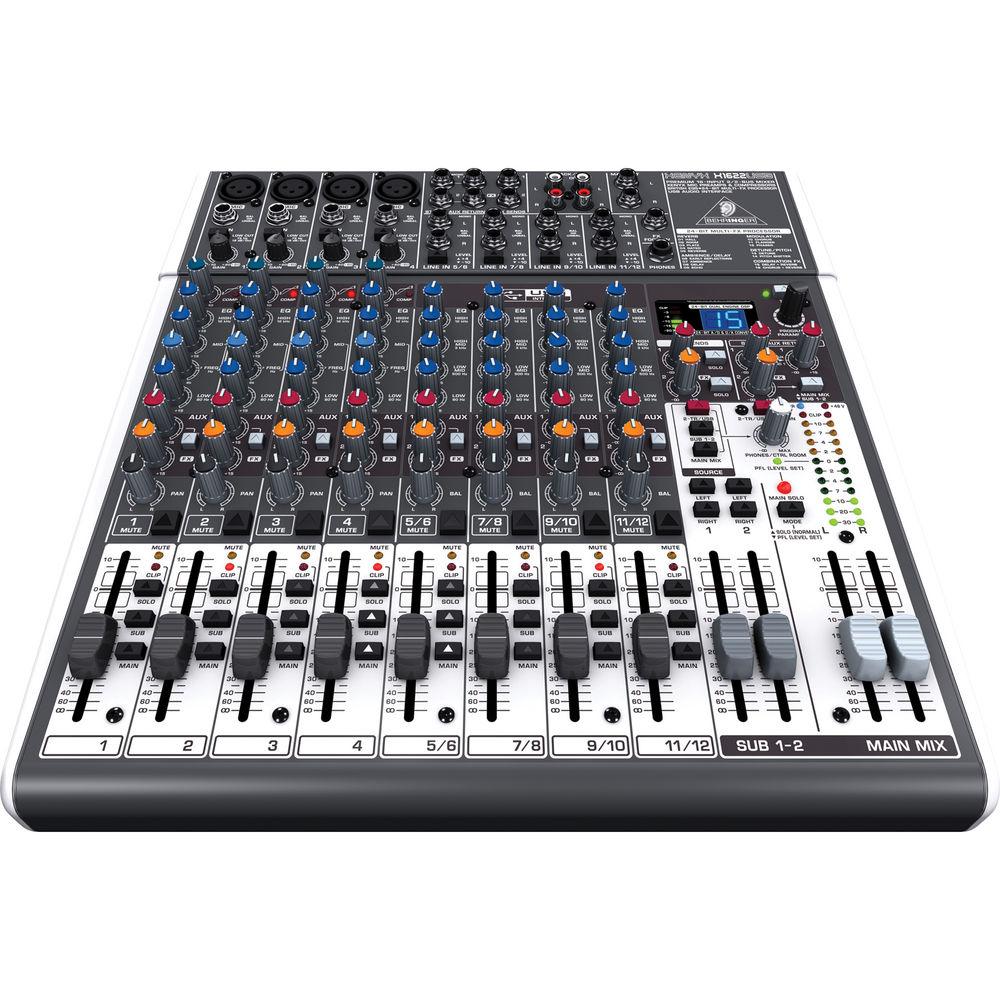

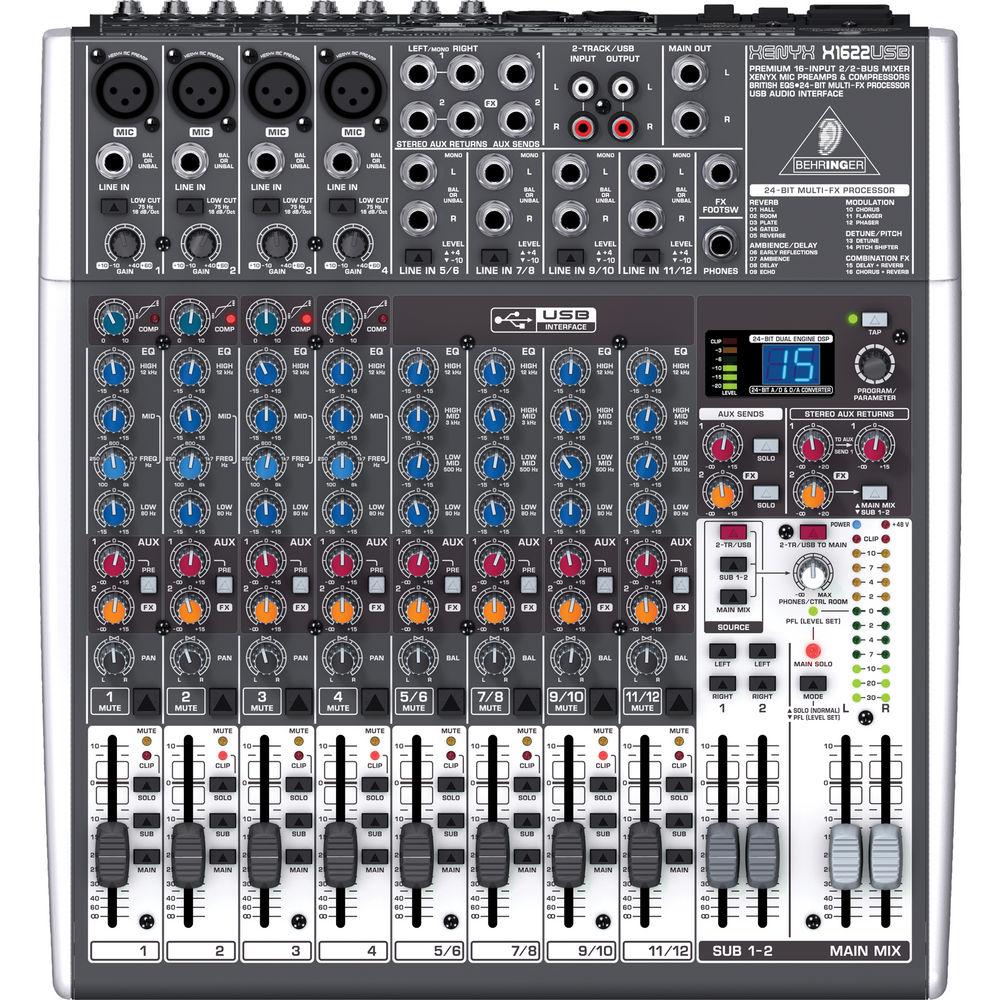

The XENYX X1622USB - 16-Input USB Audio Mixer with Effects from Behringer is a 16-input audio mixer with an integrated USB computer audio interface. It enables you to mix together and shape the sound of multiple audio signals, and route the audio to several outputs. Special attention has been paid to the quality of the X1622USB's 4 microphone preamps, "British" style EQ, and 4 easy-to-use one-knob compressors. The X1622USB provides four mono channels and four stereo channels, making it ideal for smaller and medium sized audio tasks. There are two aux sends on every channel (which enable you to route individual channels to stage monitors or external effects), and two stereo aux returns. Every channel features a 3-band EQ with a swept mid, which can really help you make vocals and instruments stand out in a mix. The built-in USB interface allows for a bi-directional transfer of audio to and from your computer. The built-in 24-bit dual engine effects processor features 16 presets that include, reverb, chorus, flanger, delay, pitch shifter, and multi-effects. You can edit the parameters of every preset, and a tap tempo button is included to sync time-based effects. The 4 built-in compressors are designed to simplify the process of controlling dynamics in your mix. With a single knob you can dial in the amount of compression you need for any given sound. Individual compressors are a feature rarely seen in mixing boards in this price range. The 4 XENYX preamps offer 130 dB of dynamic range, and the 3-band "British" style EQs really allow you to create a fine-tuned mix. The XENYX X1622USB is well-suited for recording studios, video editing suites, live sound mixing, podcasting, and more.
  • Low noise, high headroom analog mixer
  • 4 phantom-powered XENYX microphone preamps
  • 4 compressors with easy "one-knob" functionality and control LED for professional vocal and instrumental sound
  • "British" 3-band EQs for warm and musical sound
  • Effects processor with 16 editable presets including reverb, chorus, flanger, delay, pitch shifter, multi-effects, tap function and storable user parameter settings
  • Built-in stereo USB audio Interface to connect directly to a computer
  • 2 aux sends per channel: 1 pre/post fader switchable for monitoring/FX applications, 1 post fader (for internal FX or as external send)
  • Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
  • 2 subgroups with separate outputs for added routing flexibility; 2 multi-functional stereo aux returns with flexible routing
  • Control room & headphone outputs with multi-input source matrix
  • Long-wearing 60mm faders and sealed rotary controls
  • Switching power supply for maximum flexibility (100 - 240V~), noise-free audio, superior transient response plus low power consumption for saving energy
UPC: 736211583246 In the Box Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects
  • Power Cable
  • USB Cable
  • Rack Mount Hardware
  • Limited 10-Year Warranty
  • User Manual PDF 5.2mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Behringer XENYX X1622USB - 16-Input USB Audio Mixer with Effects can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Behringer XENYX X1622USB - 16-Input USB Audio Mixer with EffectsDownload PDF User Manual - https://www.search-manual.com/ upload/ behringer-xenyx-x1622usb-16-input-usb-audio-mixer-with-effects-79210-user-manual.pdf
    (PDF file, 3.59 MB)


    Technical parameters

    Behringer X1622USB Specs

    Total # Of Inputs 16 Inputs
    Mic/Line Inputs 4 x XLR Microphone Inputs
    8 x 1/4" TRS Line-Level Inputs
    Stereo Line Inputs 4 x 1/4" TRS Left & Right Paired Inputs
    AUX Sends 2
    AUX Returns 2 Stereo Returns
    Inserts 4
    BUS (Group) Outputs 2 Sub Groups

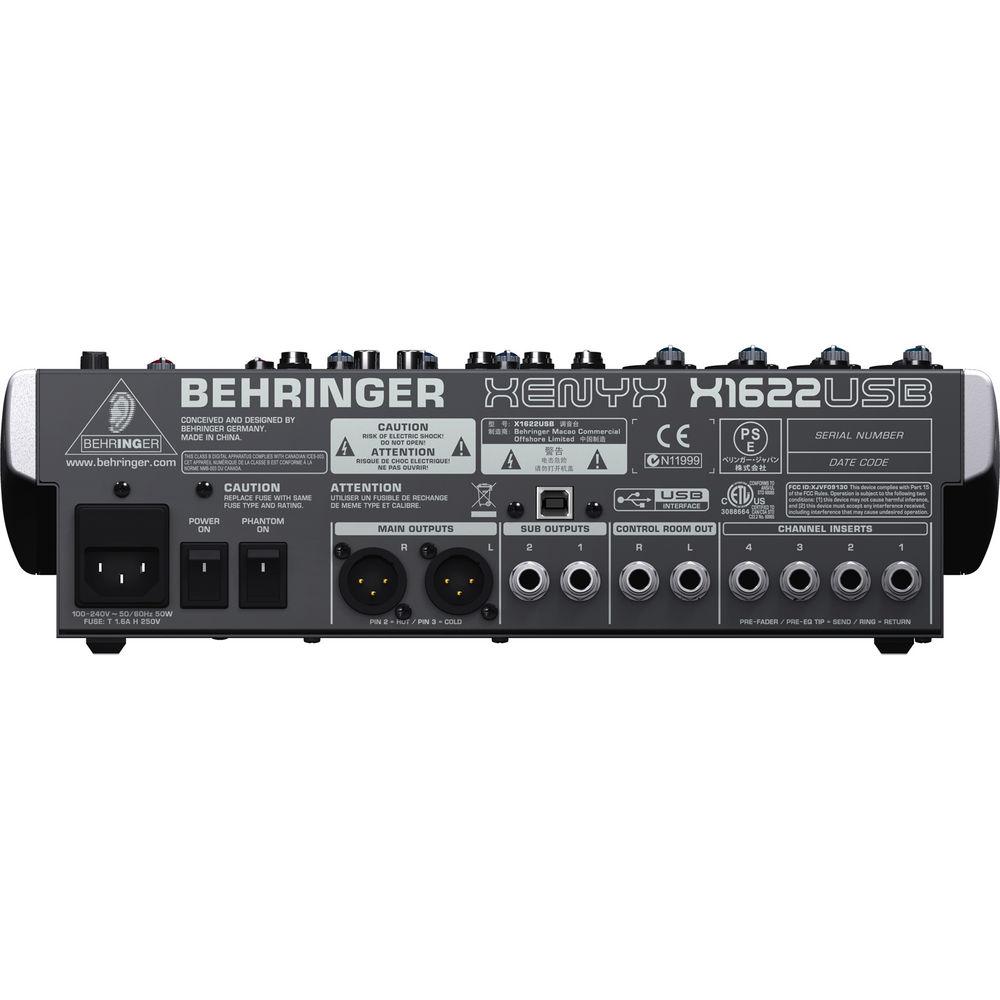

    2 Trk Master I/O 2 x Balanced XLR Outputs
    2 x 1/4" TRS Outputs
    ALT I/O 2 x 1/4" TRS Sub Outputs
    Stereo RCA 2-Track Outputs
    Monitor Outputs 2 x 1/4" TRS Control Room Outputs
    1 x 1/4" Stereo Headphone Output
    EQ Section 3-Band EQ with Mid Sweep on Every Channel
    Solo/Mute Mute and Solo Buttons on Every Channel
    Channel Level Control 60mm Faders
    Trim/Gain Control Yes
    Phantom Power +48 V Phantom
    Metering 12-Segment Stereo LED Meters
    Clip LEDs on Every Channel
    Frequency Response Mic Input to Main Output:
    <10 hz - 90 khz (+0 db ><10 hz - 160 khz (+0 db >
    Dynamic Range Not Specified by Manufacturer
    Signal-to-Noise Ratio 110 dB A-weighted (0 dBu In @ +22 dB Gain)
    Total Harmonic Distortion (THD) 0.005% / 0.004% A-weighted
    Power Supply Not Specified by Manufacturer
    Dimensions 3.54 x 12.60 x 13.39" (90 x 320 x 340 mm)
    Weight 7.60 lb (3.45 kg)
    Package Weight 12.0 lb
    Box Dimensions (LxWxH) 16.0 x 16.0 x 6.0"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 10 owners. Add your rating and experience with the product.
