User Manual for Behringer XENYX X1832USB - 18-Input USB Audio Mixer with Effects Click to enlarge the picture
Contents of the user manual for the Behringer XENYX X1832USB - 18-Input USB
- Product category: Analog Recording Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Analog Recording Mixers
 |
User manual for the Behringer XENYX X1832USB - 18-Input USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

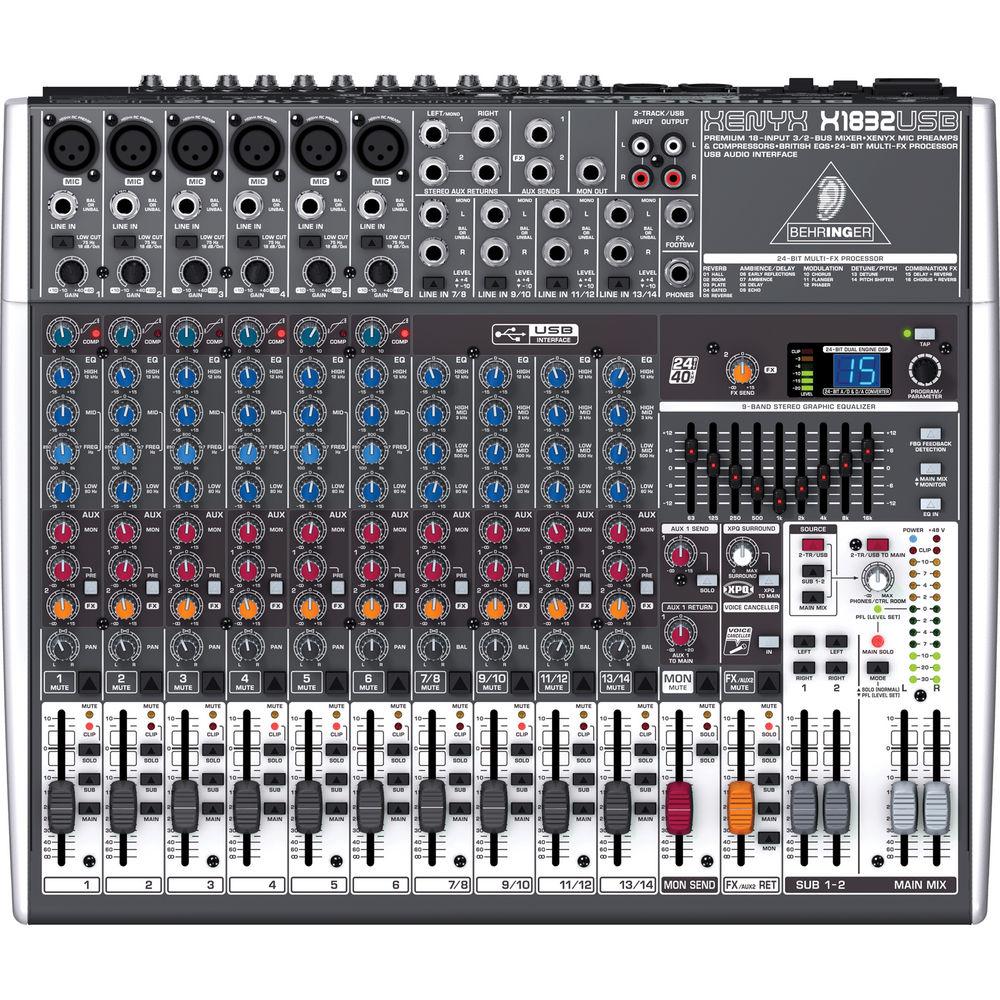

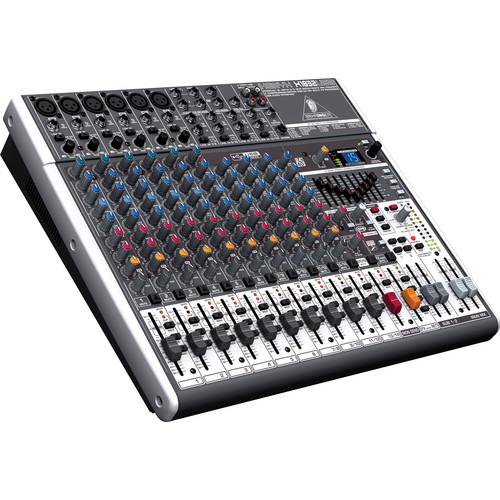

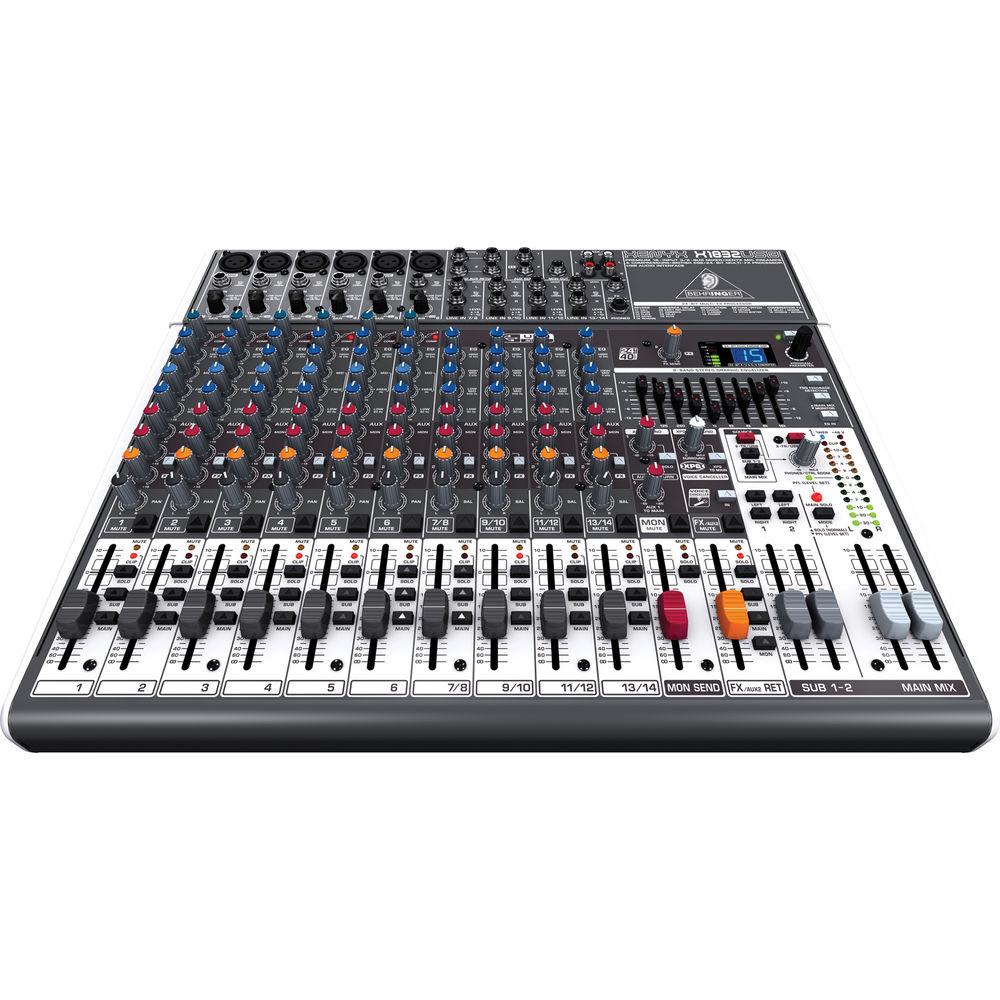

Product description - X1832USB Small Format Mixer & USB Audio Interface
The XENYX X1832USB - 18-Input USB Audio Mixer with Effects from Behringer is a 18-input audio mixer with an integrated USB computer audio interface. It enables you to mix together and shape the sound of multiple audio signals, and route the audio to several outputs. Special attention has been paid to the quality of the X1832USB's 6 microphone preamps, "British" style EQ, and 6 easy-to-use one-knob compressors. The X1832USB provides six mono channels with inserts and four stereo channels, making it ideal for a wide range of audio tasks. There are three aux sends on every channel (which enable you to route individual channels to stage monitors or external effects). Every channel features a 3-band EQ with a swept mid, which can really help you make vocals and instruments stand out in a mix. The 9-band graphic EQ can be assigned to either the main or monitor outputs, and an FBQ feedback detection function helps to cut down on disturbing feedback. The built-in USB interface allows for a bi-directional transfer of audio to and from your computer. The built-in 24-bit dual engine effects processor features 16 presets that include, reverb, chorus, flanger, delay, pitch shifter, and multi-effects. You can edit the parameters of every preset, and a tap tempo button is included to sync time-based effects. The 6 built-in compressors are designed to simplify the process of controlling dynamics in your mix. With a single knob you can dial in the amount of compression you need for any given sound. Individual compressors are a feature rarely seen in mixing boards in this price range. The 6 XENYX preamps offer 130 dB of dynamic range, and the 3-band "British" style EQs really allow you to create a fine-tuned mix. The XENYX X1832USB is well-suited for recording studios, video editing suites, live sound mixing, podcasting, and more. - Low noise, high headroom analog mixer
- 6 phantom-powered XENYX microphone preamps
- 6 compressors with easy "one-knob" functionality and control LED for professional vocal and instrumental sound
- "British" 3-band EQs for warm and musical sound
- Effects processor with 16 editable presets including reverb, chorus, flanger, delay, pitch shifter, multi-effects, tap function and storable user parameter settings
- Built-in stereo USB audio Interface to connect directly to a computer
- 3 aux sends per channel: 1 pre fader for monitoring, 1 pre/post fader switchable for monitoring/FX applications, 1 post fader (for internal FX or as external send)
- Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
- 9-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
- 2 subgroups with separate outputs for added routing flexibility and 2 multi-functional stereo aux returns with flexible routing
- Control room & headphone outputs with multi-input source matrix
- Long-wearing 60mm faders and sealed rotary controls
- Switching power supply for maximum flexibility (100 - 240V~), noise-free audio, superior transient response plus low power consumption for saving energy
UPC: 736211583147 In the Box Behringer XENYX X1832USB - 18-Input USB Audio Mixer with Effects Power Cable USB Cable Rack Mount Hardware Limited 10-Year Warranty User Manual PDF 5.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer XENYX X1832USB - 18-Input USB Audio Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

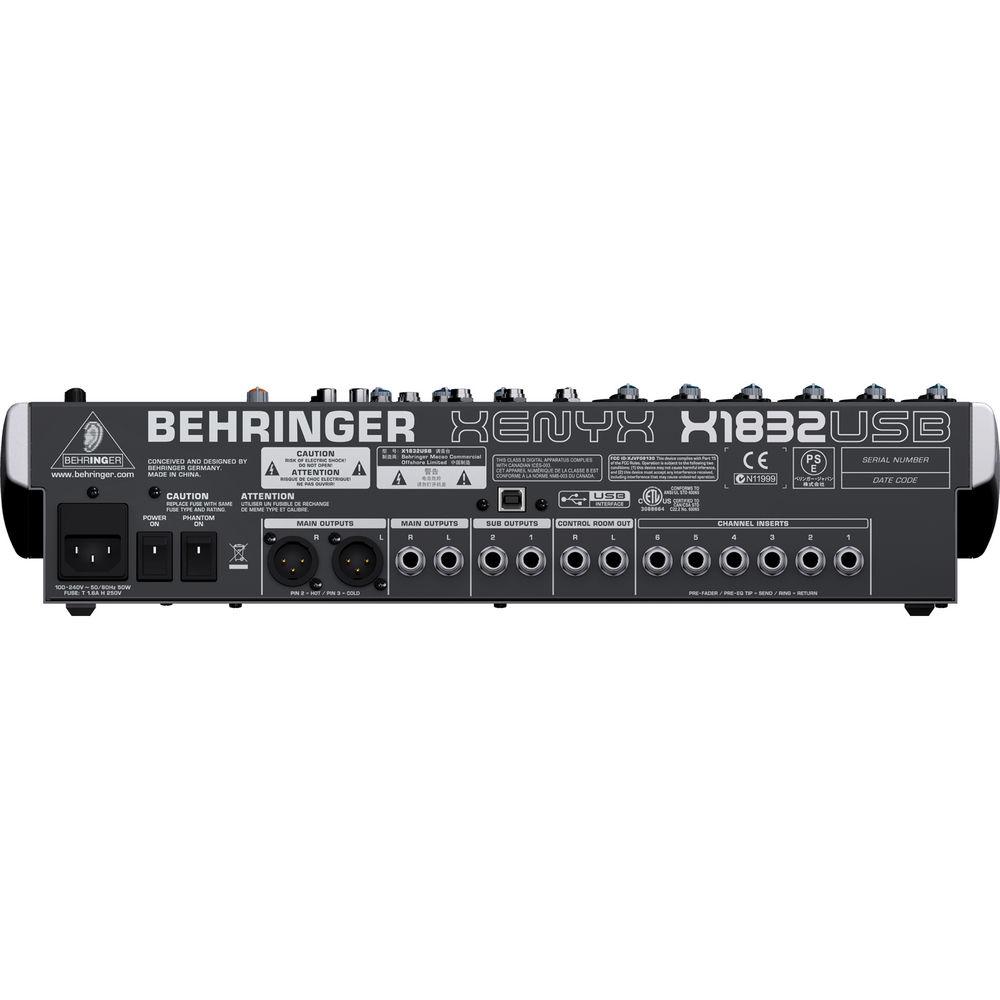

Technical parametersBehringer X1832USB Specs | Total # Of Inputs | 18 Inputs | | Mic/Line Inputs | 6 x XLR Microphone Inputs
10 x 1/4" TRS Line-Level Inputs | | Stereo Line Inputs | 4 x 1/4" TRS Left & Right Paired Inputs | | AUX Sends | 3 | | AUX Returns | 2 Stereo Returns | | Inserts | 6 | | BUS (Group) Outputs | 2 Sub Groups | | 2 Trk Master I/O | 2 x Balanced XLR Outputs
2 x 1/4" TRS Outputs | | ALT I/O | 2 x 1/4" TRS Sub Outputs
1 x 1/4" MON Output Stereo
RCA 2-Track Outputs | | Monitor Outputs | 2 x 1/4" TRS Control Room Outputs
1 x 1/4" Stereo Headphone Output | | EQ Section | 3-Band EQ with Mid Sweep on Every Channel
9-Band Graphic EQ on Either Mains or Monitor Outs | | Solo/Mute | Mute and Solo Buttons on Every Channel | | Channel Level Control | 60mm Faders | | Trim/Gain Control | Yes | | Phantom Power | +48 V Phantom | | Metering | 12-Segment Stereo LED Meters
Clip LEDs on Every Channel | | Frequency Response | Mic Input to Main Output:
<10 hz - 90 khz (+0 db ><10 hz - 160 khz (+0 db > | | Dynamic Range | Not Specified by Manufacturer | | Signal-to-Noise Ratio | 110 dB A-weighted (0 dBu In @ +22 dB Gain) | | Total Harmonic Distortion (THD) | 0.005% / 0.004% A-weighted | | Power Supply | Not Specified by Manufacturer | | Dimensions | 3.54 x 16.93 x 14" (90 x 430 x 355 mm) | | Weight | 10.2 lb (4.64 kg) | | | | Package Weight | 13.85 lb | | Box Dimensions (LxWxH) | 20.5 x 16.6 x 6.0" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
