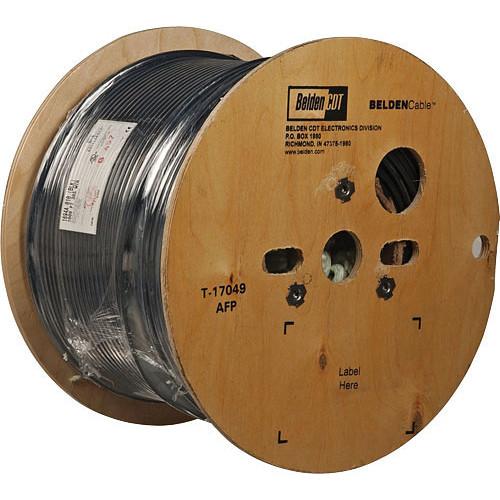

User Manual for Belden 1192A Multi-Conductor - Four-Conductor Star Quad, Low-Impedance Cable Click to enlarge the picture
Contents of the user manual for the Belden 1192A Multi-Conductor - Four-Conductor Star
- Product category: Bulk Audio Cable Belden
- Brand: Belden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belden Bulk Audio Cable
|
User manual for the Belden 1192A Multi-Conductor - Four-Conductor Star contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belden product will considerably shorten its lifespan!
|
Product description The 500' Belden 1192A Multi-Conductor - Four-Conductor Star Quad, Low-Impedance Cable is designed for low-impedance microphones. It's constructed with two blue wires and two white wires with the like colors connected. The cable is connected by attaching the blue conductors to one pin and the white conductors to another in a XLR balance-line connector. This set-up offers maximum noise rejection. - 24 AWG stranded (42 x 40) high-conductivity bare copper conductors
- Tinned copper braid outer shield (95% coverage)
In the Box Belden 1192A Multi-Conductor - Four-Conductor Star Quad, Low-Impedance Cable (500', Black) 10-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 1192A Multi-Conductor - Four-Conductor Star Quad, Low-Impedance Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1192A-500-BLK Specs | | | Cable Length | 500' (152.4 m) | | Conductors | 4 x high-conductivity soft bare copper (SBC) conductors | | AWG | 24 | | Stranding | 42 x 40 | | Insulation | Material: Polyethylene
Wall Thickness: 0.016" (0.4 mm)
Diameter: 0.056" (1.4 mm) | | Outer Shield Material | Tinned copper braid | | Coverage | 95% | | Outer Jacket | Material: PVC
Nominal Wall Thickness: 0.045" (1.1 mm) | | Overall Nominal Diameter | 0.245" (6.2 mm) | | | | Impedance | 40 ohms | | Inductance | 0.21 μH/ft | | Nominal Capacitance | 39.2 pF/ft (conductor to conductor)
57.4 pF/ft (between conductors in a quad configuration) | | Nominal Velocity of Propagation | 66% | | DCR @ 20°C (Ohm/100 m) | 26.6 (conductor)
7.1 (outer shield) | | Max Operating Voltage - UL | 100 V RMS | | Max Operating Voltage - Other | 18.0 kV (nominal breakdown voltage between conductors)
16.9 kV (nominal breakdown voltage conductors to shield) | | Max Recommended Current | 2.9 amps per conductor at 25°C | | Other Electrical Characteristic | 2/c 21 AWG equivalent DCR when connected to a 3-pin XLR | | | | EU CE Mark | Yes | | EU Directive 2000/53/EC (ELV) | Yes | | EU Directive 2002/95/EC (RoHS) | Yes | | EU RoHS Compliance Date | 01/01/2004 | | EU Directive 2002/96/EC (WEEE) | Yes | | EU Directive 2003/11/EC (BFR) | Yes | | CA Prop 65 (CJ for Wire & Cable) | Yes | | MII Order #39 (China RoHS) | Yes | | Plenum (Yes/No) | No | | | | Operating Temperature Range | -22 to 167°F (-30 to 75°C) | | Non-UL Temperature Rating | 167°F (75°C) | | Max Recommended Pulling Tension | 21 lb (9.5 kg) | | Minimum Bend Radius/Minor Axis | 2.5" (63.5 mm) | | Bulk Cable Weight | 16.5 lb (7.5 kg) | | | | Package Weight | 17.65 lb | | Box Dimensions (LxWxH) | 13.622 x 10.236 x 7.874" |
