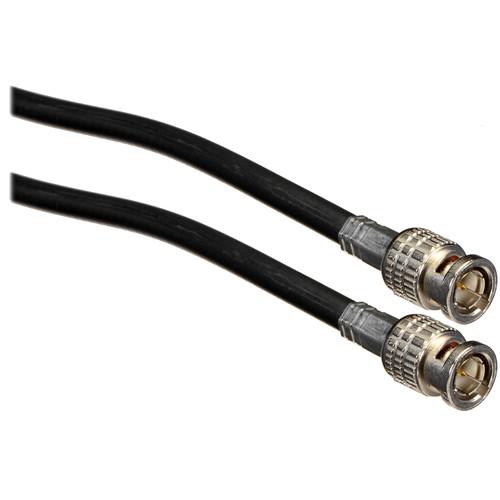

Product description Featuring quality BNC connectors (alternately from Canare, Kings, or other reliable manufacturers), this 100 ft long Belden 1694A Digital Video BNC Cable, in black, is suitable for HDTV and professional SDI applications.
The cable itself is Belden's broadcast-quality 18 AWG 1694A RG6 low-loss coax cable, offering consistent impedance along the entire 100 ft length. UPC: 808447043259 In the Box Belden 1694A Digital Video BNC Cable (100 ft, Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 1694A Digital Video BNC Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1694-100B Specs | Cable Length | 100' / 30.5 m | | Conductor | Bare Copper | | Shielding | 95% Tinned Copper Braid
100% Aluminum Foil | | Wire Gauge | 18 AWG | | Outer Diameter | 0.28" / 7.1 mm | | Jacket Type | Polyvinyl Chloride (PVC) | | Coaxial Type | RG-6 | | Insulation Type | Polyethylene | | Maximum Impedance | 75 Ohms | | Capacitance | 16.2 pF/ft | | Bend Radius | 2.8" / 7.1 cm | | Certifications | RoHS, as per Manufacturer | | Operating Temperature | -22 to 167°F / -30 to 75°C | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 9.8 x 9.4 x 2.8" |
