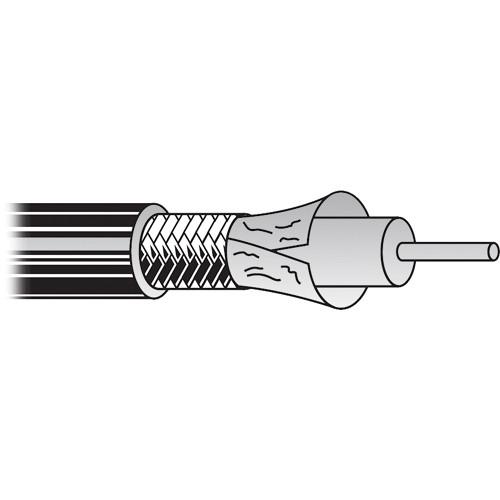

User Manual for Belden 1694A RG6 Low Loss Serial Digital Coaxial Cable Click to enlarge the picture
Contents of the user manual for the Belden 1694A RG6 Low Loss Serial
- Product category: Bulk Video Cables Belden
- Brand: Belden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belden Bulk Video Cables
|
User manual for the Belden 1694A RG6 Low Loss Serial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belden product will considerably shorten its lifespan!
|
Product description Styled in yellow and measuring 1000' in length, the 1694A RG6 from Belden is a roll of low-loss serial digital coaxial cable. An 18 AWG spool of RG-6/U type cable, the 1694A RG6 utilizes a bare copper conductor with gas-injected foam HDPE insulation, a Duofoil tinned-copper braid shield, and a PVC jacket. UPC: 612825358237 In the Box Belden 1694A RG6 Low Loss Serial Digital Coaxial Cable (1000', Yellow) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 1694A RG6 Low Loss Serial Digital Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1694A Specs | Conductor | Coax #: 1
AWG: 18
Stranding: Solid
Material: BC (Bare Copper)
Diameter: 0.04" / 0.10 cm | | Insulation | Material: Gas-Injected FHDPE (Foam High-Density Polyethylene)
Diameter: 0.18" / 0.46 cm | | Outer Shield | Layer 1:
Outer Shield Trade Name: Duofoil
Type: Tape
Material: Aluminum Foil, Polyester Tape
Coverage: 100%
Layer 2:
Type: Braid
Material: TC (Tinned Copper)
Coverage: 95% | | Outer Jacket Material | PVC (Polyvinyl Chloride) | | Max. Recommended Pulling Tension | 69 lb / 31.3 kg | | Min. Bend Radius | Minor Axis: 2.75" / 7 cm | | Compliance | NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG
EU Directive 2011/65/EU (RoHS II): Yes
EU CE Mark: Yes
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date: 01/01/2004
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire and Cable): Yes
MII Order #39 (China RoHS): Yes
RG Type: 6/U
UL Flame Test: UL1666 Vertical Shaft
CSA Flame Test: FT4 | | Suitability | Indoor | | Plenum/Non-Plenum | Non-Plenum | | Impedance | 75 Ohms | | Inductance | (µH/1' [0.3 m]): 0.106 | | Capacitance | (pF/1' [0.3 m]): 16.2 | | Velocity of Propagation | 82% | | Delay | (ns/1' [0.3 m]): 1.240 | | Conductor DC Resistance | DCR @ 68°F / 20°C (Ohm/1000' [304.8 m]): 6.4 | | Outer Shield DC Resistance | DCR @ 68°F / 20°C (Ohm/1000' [304.8 m]): 2.8 | | Attenuation | Frequency in MHz, Attenuation dB 100' / 30.5 m
1.000, 0.240
3.580, 0.440
5.000, 0.520
6.000, 0.570
7.000, 0.610
10.000, 0.710
12.000, 0.780
25.000, 1.080
67.500, 1.650
71.500, 1.690
88.500, 1.860
100.000, 1.950
135.000, 2.240
143.000, 2.300
180.000, 2.570
270.000, 3.170
360.000, 3.690
540.000, 4.600
720.000, 5.380
750.000, 5.500
1000.000, 6.420
1500.000, 7.990
2000.000, 9.370
2250.000, 10.010
3000.000, 11.780
4500.000, 14.920 | | Minimum Return Loss | @ Start Frequency of 5 MHz:
Stop Frequency: 1600 MHz
Min. RL: 23 dB
@ Start Frequency of 1600 MHz:
Stop Frequency: 4500 MHz
Min. RL: 21 dB Return loss tested in accordance with ASTM D-4566 paragraph 45.3 using a 75 Ohm fixed bridge and termination | | Operating Voltage | UL: 300 V, RMS | | Operating Temperature | -22 to 167°F / -30 to 75°C | | UL Temperature Rating | 167°F / 75°C | | Length | 1000' / 305 m | | Weight | 48 lb / 21.8 kg | | | | Package Weight | 43.85 lb | | Box Dimensions (LxWxH) | 15.0 x 15.0 x 15.0" |
