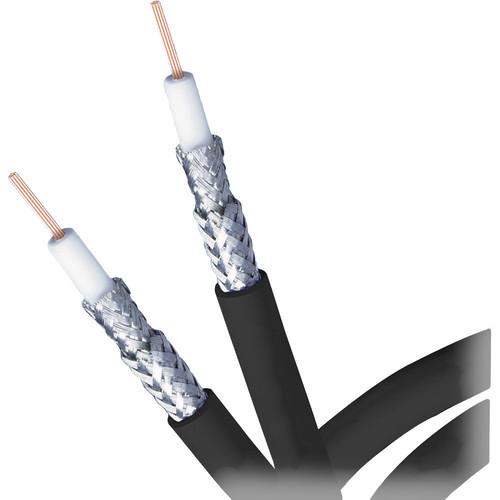

User Manual for Belden 1694F Digital Video Coaxial Cable Click to enlarge the picture
Contents of the user manual for the Belden 1694F Digital Video Coaxial Cable
- Product category: Bulk Video Cables Belden
- Brand: Belden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belden Bulk Video Cables
|
User manual for the Belden 1694F Digital Video Coaxial Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belden product will considerably shorten its lifespan!
|
Product description This black 1694F Digital Video Coaxial Cable from Belden provides a serial digital transmission distance of up to 1580’ (481.5m), and can be conveniently routed through building walls, conduit in studio settings, and other fixed installations. This RG-6/U Type Low Loss Serial Digital coaxial cable is a flexible version of the industry standard 1694A.
With a sweep test rating of 4.5GHz, the 1694F Digital Video Coaxial Cable offers high return loss performance. The return loss measures the signals that are reflected, due to the presence of impedance discontinuities in the channel. It features a 19 AWG bare copper (compacted), stranded center conductor, and foam polyethylene insulation provides advance impedance stability and return loss characteristics. The double tinned copper braid shielding provides 100 dB of shield isolation and improved flex characteristics.
Scratch-resistant matte PVC jacket prevents the cable from breaking under adverse circumstances like pulling, flexing, bending, and crushing. The 1694F Digital Video Coaxial Cable incorporates improved physical and electrical characteristics making it suitable for applications such as patch bays usage, mobile studio trucks, and remote outdoor field locations. In addition, the cable can be used for AES-3id (Audio Engineering Society standard) applications. - Provides serial digital transmission distance of up to 1580' (481.5m)
- Easy to route through building walls, conduit in studio settings, and other fixed installations
- RG-6/U Type Low Loss Serial Digital coaxial cable
- Flexible version of 1694A industry standard
- Sweep test rating of 4.5GHz - allows cable offer high return loss performance
- Return loss measures the signals that are reflected, due to presence of impedance discontinuities in the channel
- Features a 19 AWG bare copper (compacted), stranded center conductor
- Foam polyethylene insulation provides advance impedance stability and return loss characteristics
- Double tinned copper braid shielding provides 100 dB of shield isolation and improved flex characteristics
- Scratch resistant matte PVC jacket prevents the cable from breaking under adverse circumstances like pulling, flexing, bending, and crushing
- Incorporates improved physical and electrical characteristics making it suitable for applications such as patch bays usage, mobile studio trucks, and remote outdoor field locations
- Can be used for AES-3id (Audio Engineering Society standard) applications
UPC: 612825356196 In the Box Belden 1694F Digital Video Coaxial Cable (1000', Black) 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 1694F Digital Video Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1694F-1000-BLK Specs | Cable Type | FRG-6/U Type | | Length | 1000' | | Shielding | Double Tinned Copper Braid | | Conductor | 19 AWG Stranded (7x27) Bare Copper Conductor | | | | Package Weight | 53.38 lb | | Box Dimensions (LxWxH) | 14.5 x 14.5 x 9.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
